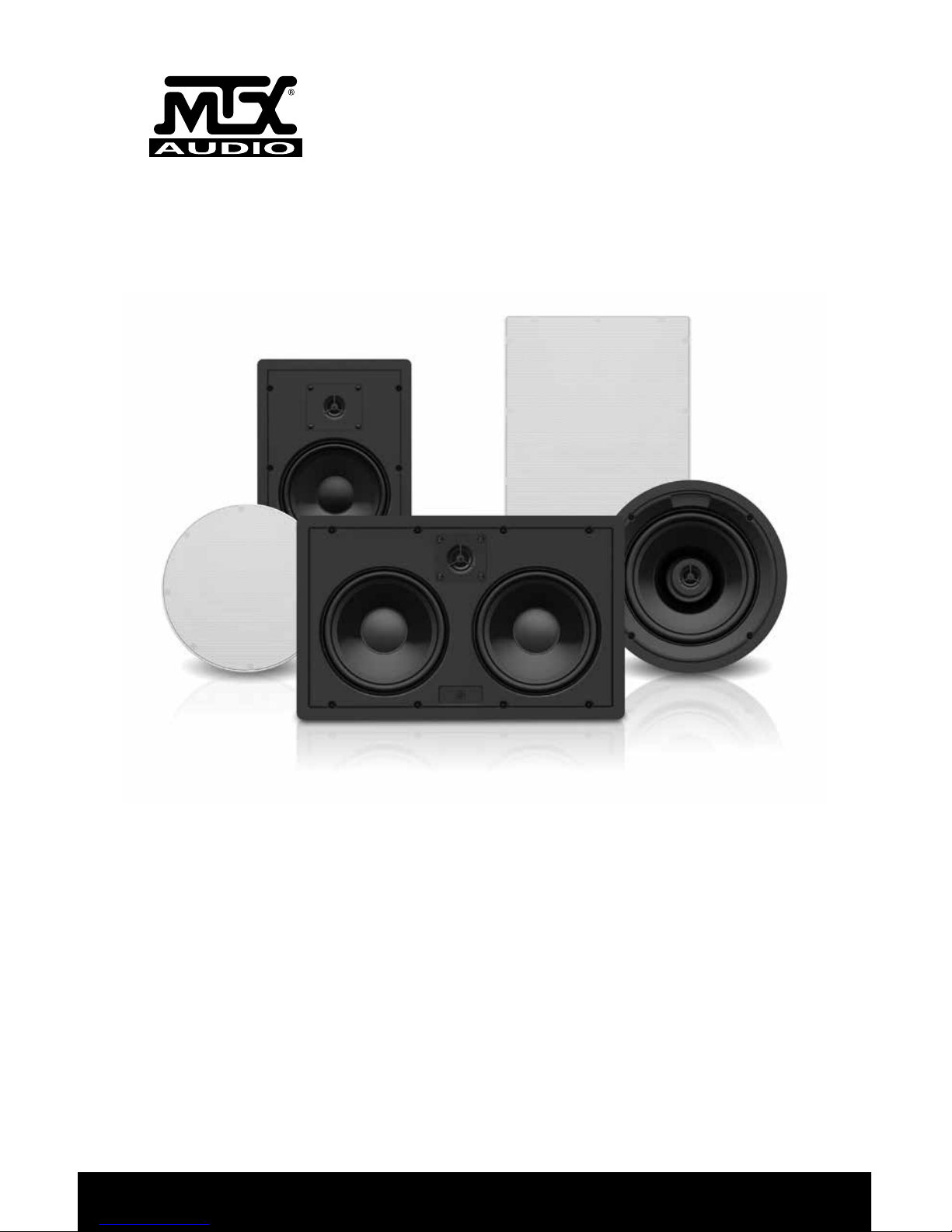

MTX MUSICA SERIES Manual de usuario

MTX.COM

OWNER’S MANUAL

MUSICA SERIES

DISTRIBUTED AUDIO CUSTOM SPEAKERS

MTX.COM

Thank you for choosing MTX MUSICA Series speakers for your home audio system. Properly installed

and operated, these speakers will provide years of worry-free listening pleasure.

KEY FEATURES

• Polypropylene Woofer with Rubber Surround

• PEI Balanced Dome Tweeter

• 6dB Octave Tweeter Crossover

• Easy to Install Collared Dog Leg Mounting

• Steel Paintable Grilles

• Press Fit Grille Reduces Exposed Bezel to 0.1"

SPEAKER INSTALLATION

MTX MUSICA Series speakers can be installed in either in-ceiling or in-wall applications allowing

them to blend within any interior decorating scheme. Speaker placement is critical to maximizing the

performance of the speakers within the system. Achieve the best stereo reproduction by installing

two loudspeakers an equal distance from the listener’s position and separated so that the speakers

and the listener form an equilateral triangle, with all sides of the triangle being the same length. In

multi-channel applications the same principle applies for both the front and rear speakers with the

addition of a center channel speaker directly in front of the listener’s position.

Listener

MTX.COM 3

CUTTING THE SPEAKER HOLE

Before cutting any speaker holes, it is important to check for electrical wiring, plumbing, conduit,

studs, or other obstacles that may exist in the intended installation spot. Remember that the grille and

ange are larger than the speaker cut-out. Ensure there is room on all sides of the desired location to

accommodate the entire speaker.

1. Use the included cut-out template to mark the cut-out pattern on the wall or ceiling once it has

been determined to be a safe location with no obstructions.

2. Use a sabre saw, keyhole saw, or sharp utility knife to cut the hole following the traced pattern.

Use caution when cutting the hole to prevent unnecessary damage to the surrounding surface.

3. Clear the hole of any debris or other material that will prevent speaker installation.

INSTALLING THE SPEAKER

1. Connect the speaker wires previously run to the install location ensuring that the ends are stripped

and the inner copper wire is exposed. Press down on the compression terminals and insert the

speaker wire into each terminal ensuring that polarity is maintained with the positive wire

connected to the + terminal and the negative wire connected to the - terminal.

2. The speaker includes four front panel Phillips screws that operate the dog legs that will attach the

speaker to the ceiling or wall material.

3. Using a screwdriver or power drill on low setting turn each screw clockwise until the dog leg

rmly secures itself to the ceiling or wall material. Use caution to not overtighten the dog legs

causing them to crack or break.

4. Attach the included press-t grille, make the speaker wire connections at the source, and turn on

a signal to test the speaker(s).

PAINTING THE GRILLES

MTX MUSICA Series speakers include press t grilles that can be painted to match ceiling or wall

colors allowing them to blend into the room. Spray application will provide excellent results. The

cloth inserts in the grilles should be removed before the grilles are painted and they should be placed

back in the grilles once the paint is dry.

1. Remove the grille from the speaker bafe.

2. Fold up all grille aps carefully.

3. Push the grille out from the plastic trim.

4. Remove the scrim cloth, making sure not to damage it. It will be needed when re-assembling the

grille.

5. Paint the grille and trim ring. Make sure not to ll in the grille holes as this will affect sound quality.

MTX.COM

RE-ASSEMBLING THE GRILLES

The grill can now be re assembled into the speaker bafe.

1. Place the scrim cloth on the inner side of the grille.

2. Take the plastic trim and align the notches with the grille aps.

3. Push the grille into the trim until it sits ush.

4. Fold over the grille aps tightly so the grille is locked in place.

MTX.COM 5

SPECIFICATIONS

ICM612

Speaker Type: 2-Way In-Ceiling

Tweeter: 14mm Balanced Dome

Woofer: 6.5" Polypropylene

Impedance: 8Ω

Sensitivity: 88dB (2.83V/1M)

Frequency Response: 43Hz - 25kHz (-10dB)

RMS Power: 50-Watts

Dimensions: Diameter 8.98" x 3.60"

(Diameter 228mm x 91.5mm)

Mounting Depth: 3.27" (83mm)

Cut Out: Diameter 7.87" (200mm)

ICM812

Speaker Type: 2-Way In-Ceiling

Tweeter: 14mm Balanced Dome

Woofer: 8" Polypropylene

Impedance: 8Ω

Sensitivity: 90dB (2.83V/1M)

Frequency Response: 43Hz - 24kHz (-10dB)

RMS Power: 65-Watts

Dimensions: Diameter 10.51" x 3.98"

(Diameter 267mm x 101mm)

Mounting Depth: 3.64" (92.5mm)

Cut Out: Diameter 9.41" (239mm)

IWM620

Speaker Type: 2-Way In-Wall

Tweeter: 14mm Balanced Dome

Woofer: 6.5" Polypropylene

Impedance: 8Ω

Sensitivity: 88dB (2.83V/1M)

Frequency Response: 40Hz - 25kHz (-10dB)

RMS Power: 50-Watts

Dimensions: 8.52" x 11.91" x 3.33"

(216.5mm x 302.5mm x 84.5mm)

Mounting Depth: 2.99" (76mm)

Cut Out: 7.40" x 10.79" (188mm x 274mm)

IWM820

Speaker Type: 2-Way In-Wall

Tweeter: 14mm Balanced Dome

Woofer: 8" Polypropylene

Impedance: 8Ω

Sensitivity: 90dB (2.83V/1M)

Frequency Response: 40Hz - 24kHz (-10dB)

RMS Power: 65-Watts

Dimensions: 9.90" x 13.92 x 3.72"

(251.5mm x 353.5mm x 94.5mm)

Mounting Depth: 3.39" (86mm)

Cut Out: 8.78" x 12.80" (223mm x 325mm)

LCRM62

Speaker Type: Dual 6.5" LCR

Tweeter: 14mm Balanced Dome

Woofer: Dual 6.5" Polypropylene

Impedance: 8Ω

Sensitivity: 88dB (2.83V/1M)

Frequency Response: 39Hz - 25kHz (-10dB)

RMS Power: 65-Watts

Dimensions: 15.41" x 9.67" x 3.39"

(391.5mm x 245.5mm x 86mm)

Mounting Depth: 2.97" (75.5mm)

Cut Out: 14.25" x 8.54" (362mm x 217mm)

MTX.COM

NOTES:

MTX.COM 7

NOTES:

MTX.COM

Engineered in the U.S.A.

Due to continual product development, all specications are subject to change without notice.

MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A. 1-800-225-5689

MTX005338 RevA 10/15 • 21A10474 • AW0015220
