Moxa Technologies AirWorks AWK-3131A Manual de usuario

P/N: 1802031311017

*1802031311017*

AWK-3131A

Quick Installation Guide

Moxa AirWorks

Edition 7.1, October 2018

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Table of Contents

Overview............................................................................... - 3 -

Hardware Setup .................................................................... - 3 -

Package Checklist ............................................................... - 3 -

Panel Layout of the AWK-3131A ........................................... - 4 -

Mounting Dimensions .......................................................... - 5 -

DIN-Rail Mounting .............................................................. - 5 -

Wall Mounting (Optional) ..................................................... - 6 -

Wiring Requirements........................................................... - 7 -

Read and Follow These Guidelines: ....................................... - 7 -

Grounding the AWK-3131A .................................................. - 8 -

Installations with Cable Extended Antennas for Outdoor

Applications ................................................................. - 8 -

Wiring the Redundant Power Inputs ...................................... - 9 -

Wiring the Relay Contact ..................................................... - 9 -

Wiring the Digital Inputs.....................................................- 10 -

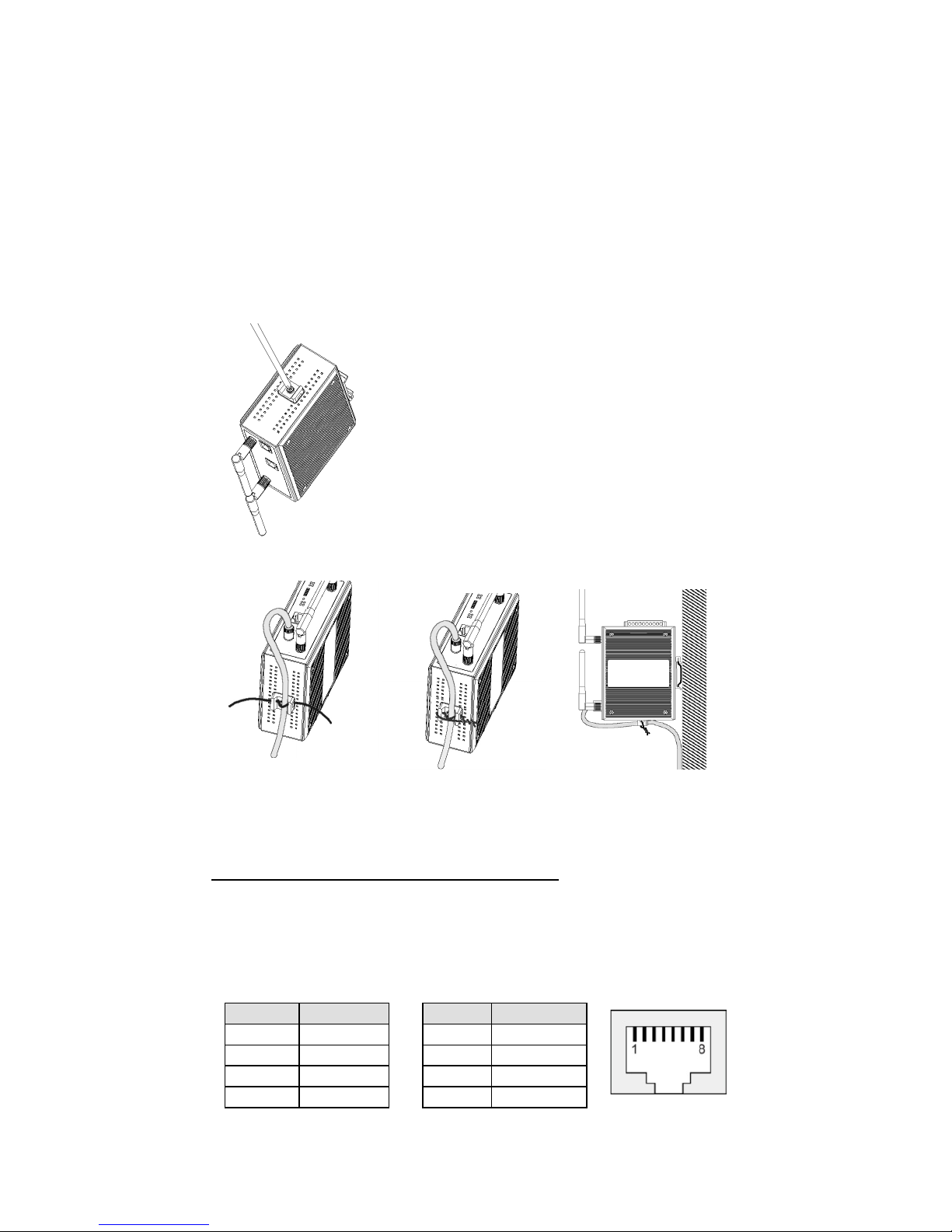

Cable Holder Installation ....................................................- 10 -

Communication Connections ...............................................- 10 -

10/100BaseT(X) Ethernet Port Connection ......................- 10 -

1000BaseT Ethernet Port Connection..............................- 11 -

RS-232 Connection ......................................................- 11 -

LED Indicators ..................................................................- 12 -

Specifications....................................................................- 13 -

Software Setup ................................................................... - 15 -

How to Access the AWK......................................................- 15 -

First-Time Quick Configuration ............................................- 16 -

Point-to-Multipoint Scenario (AP/Client Mode) .................- 16 -

Point-to-Point Scenario (Master/slave mode) ...................- 18 -

- 3 -

Overview

The AWK-3131A 3-in-1 industrial wireless access point meets the growing

need for faster data transmission speeds and wider coverage by

supporting IEEE 802.11n technology with a net data rate of up to 300

Mbps. The AWK-3131A combines two adjacent 20 MHz channels into a

single 40 MHz channel to deliver a potent combination of greater

reliability and more bandwidth. The two redundant DC power inputs

increase the reliability of the power supply, and the AWK-3131A can be

powered via PoE to make deployment easier. The AWK-3131A can

operate on either the 2.4 or the 5 GHz band and is backwards-compatible

with existing 802.11a/b/g deployments.

Hardware Setup

This section covers the hardware setup for the AWK-3131A.

Package Checklist

Moxa’s AWK-3131A is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•1 AWK-3131A wireless AP/client

•2 2.4/5 GHz antennas: ANT-WDB-ARM-0202

•DIN-rail kit

•2 plastic RJ45 protective caps

•Cable holder with one screw

•Quick installation guide (printed)

•Warranty card

- 4 -

Panel Layout of the AWK-3131A

1. Grounding screw (M5)

2. Terminal block for PWR1,PWR2,

relay, DI1, and DI2

3. Reset button

4. System LEDs: PWR1, PWR2, PoE,

FAULT, and STATE LEDs

5. LEDs for signal strength

6. WLAN LED

7. Ethernet LED

8. RS-232 console port

9. LAN: 10/100/1000 BaseT(X) RJ45

Port

10.

Antenna A

11.

Antenna B

12.

Model name

13.

Screw holes for wall-mounting kit

14.

DIN-rail mounting kit

- 5 -

Mounting Dimensions

Unit = mm

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should be fixed to the back panel

of the AWK-3131A when you take it out of the box. If you need to reattach

the DIN-rail attachment plate to the AWK-3131A, make sure the stiff

metal spring is situated towards the top, as shown in the figures below.

STEP 1:

Insert the top of the DIN rail into

the

slot just below the stiff metal spring.

STEP 2:

The DIN

-rail attachment unit will

snap into place as shown below.

To remove the AWK-3131A from the DIN rail, reverse Steps 1 and 2.

- 6 -

Wall Mounting (Optional)

For some applications, it may be more convenient to mount the

AWK-3131A to a wall, as illustrated below.

STEP 1:

Remove the aluminum

DIN

-rail attachment plate

from the AWK

-3131A, and

then attach the

wall

-mounting plates with

M3 screws, as shown in the

adjacent diagrams.

STEP 2:

Mounting the AWK

-3131A to a wall requires 3 screws.

Use

the AWK-3131A device, with wall-mounting plates

attached, as a guide to mark the correct locations of the

3 screws. The heads of the screws should be less than 6.0

mm in diameter, and the

shafts should be less than 3.5

mm in diameter, as shown in the figure on the right.

Do not drive the screws in all the way—leave a space of about 2 mm to

allow room for sliding the wall-mounting panel between the wall and the

screws.

NOTE

Test the screw head and shank size by inserting the screws

into

one of the keyhole shaped apertures of the wall

mounting plates

before they are fixed to the wall.

STEP 3:

Once the screws are fixed into the wall,

insert the four screw heads through

the large opening of the

keyhole

-shaped apertures, and then

slide the AWK

-3131A downwards, as

indicated to the right. Tighten the

three screws for added stability.

- 7 -

WARNING

•

This equipment is intended to be used in a

Restricted Access

Location, such as a dedicated computer room where only

authorized service personnel or users can gain access.

Such

personnel must be instructed about the fact that the metal

chassis of the equipment is extremely hot and may cause

burns.

•

Service personnel

or users have to pay special attention and

take special precautions before handling this equipment.

•

Only authorized, well-

trained professionals should be allowed

to access the restricted access location. Access should be

controlled by the authority responsible for the location with

lock and key or a security identity system.

•

External metal parts are hot!! Pay special attention or

use

special protection before handling the equipment.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your AWK

-3131A.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes

that dictate the

maximum current allowed for each wire size. If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

Read and Follow These Guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the crossing point.

NOTE

Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•For future reference, you should label the wiring used for all of your

devices.

ATTENTION

This product is

intended to be supplied by a Listed Power Unit

marked “Class 2” or “LPS” and rated O/P: 7.2 W

- 8 -

ATTENTION

Make sure

the external power adapte

r (includes power cords and

plug assemblies) provided with the unit is certified and suitable

for use in your country.

ATTENTION

DO NOT

use a

PoE Injector. Instead, use an IEEE 802.3af or IEEE

802.3at compliant PSE (Power Sourcing Equipment) for PoE

(Power over Ethernet) devices.

Grounding the AWK-3131A

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

The

potential difference

between any two

grounding points

must be zero. If the potential

difference is NOT zero, the product could be permanently

damaged.

Installations with Cable Extended Antennas for Outdoor

Applications

If an AWK device or its antenna is installed in an outdoor location, proper

lightning protection is required to prevent direct lightning strikes to the

AWK device. In order to prevent the effects of coupling currents from

nearby lightning strikes, a lightning arrester should be installed as part of

your antenna system. Ground the device, antenna, as well as the arrester

properly to provide maximum outdoor protection for the device.

- 9 -

Arrester Accessories

•SA-NMNF-01: Surge arrester, N-type (male) to N-type (female)

•SA-NFNF-01: Surge arrester, N-type (female) to N-type (female)

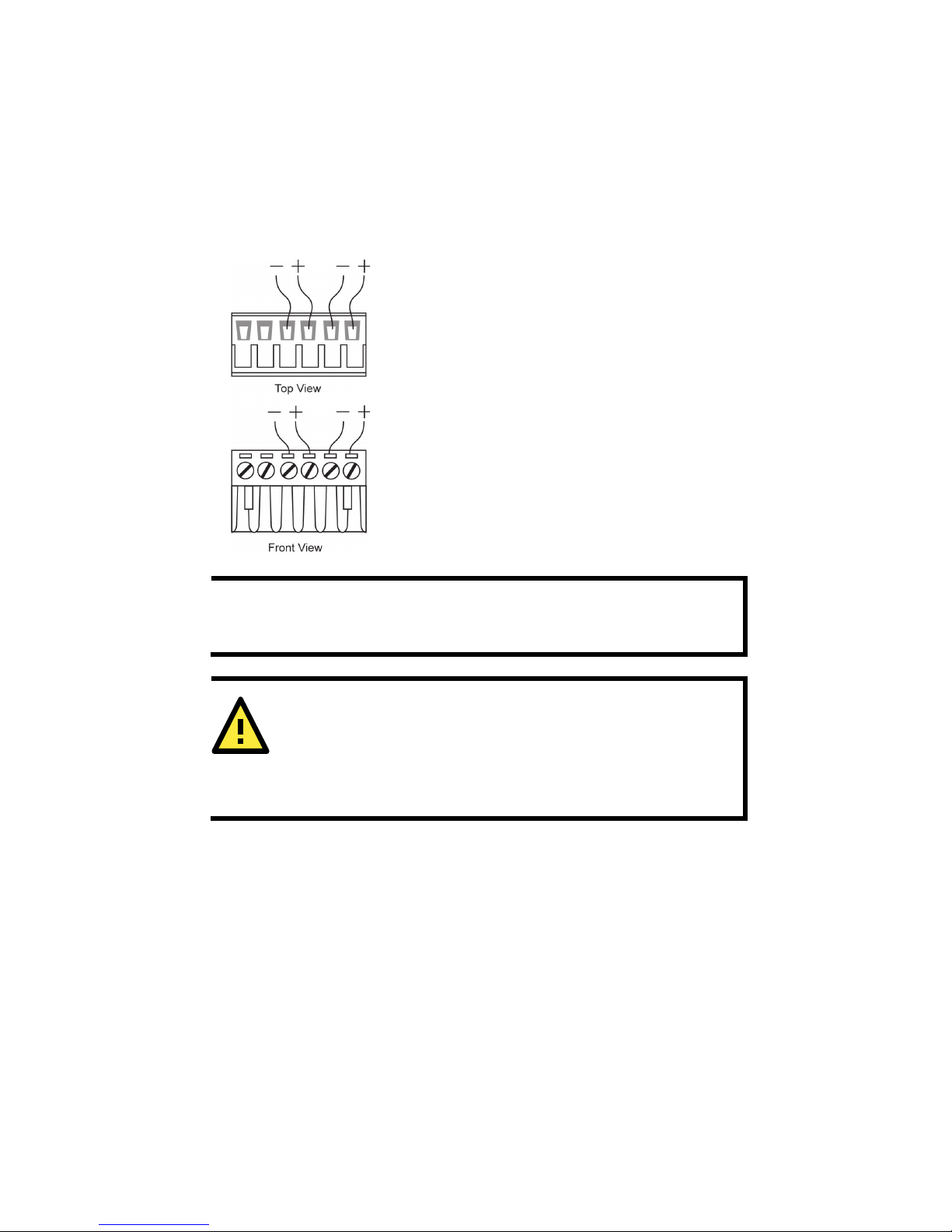

Wiring the Redundant Power Inputs

The top two pairs of contacts of the 10-contact terminal block connector

on the AWK-3131A’s top panel are used for the AWK-3131A’s two DC

inputs. Top and front views of the terminal block connector are shown

below.

STEP 1: Insert the negative/positive DC wires

into the

V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose,

use a small flat

blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is

located on the AWK-3131A’s

op panel.

NOTE

Input Terminal Block (CN1) is suitable for wire size range of

-28 AWG (3.31-0.0804 mm²) and a torque value of 4.5 lb-in

(0.51 Nm).

ATTENTION

If the AWK

3131A is connected to a motor or other similar type of

equipment, be sure to use power isolation protection. Before

connecting the

AWK-3131A to the DC power inputs, make sure

the DC power source voltage is stable.

Wiring the Relay Contact

The AWK-3131A has one relay output, which consists of the two contacts

of the terminal block on the AWK-3131A’s top panel. Refer to the previous

section for detailed instructions on how to connect the wires to the

terminal block connector, and how to attach the terminal block connector

to the terminal block receptor. These relay contacts are used to indicate

user-configured events. The two wires attached to the Relay contacts

form an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the Relay circuit will be closed.

- 10 -

Wiring the Digital Inputs

The AWK-3131A has two sets of digital inputs—DI1 and DI2. Each DI

comprises two contacts of the 10-pin terminal block connector on the

AWK-3131A’s top panel. Refer to the “Wiring the Redundant Power Inputs”

section for detailed instructions on how to connect the wires to the

terminal block connector, and how to attach the terminal block connector

to the terminal block receptor.

Cable Holder Installation

Attach the cable holder to the bottom of the AWK-3131A to keep cabling

neat and avoid accidents that result from untidy cables.

STEP 1: Screw the cable holder onto the bottom

of the AWK

-3131A.

STEP 2:

After mounting the AWK-

3131A and plugging in the LAN cable,

tighten the cable along the device and wall.

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-3131A’s front panel are

used to connect to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/switch-type) ports.

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

Otros manuales para AirWorks AWK-3131A

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Moxa Technologies

Moxa Technologies

Moxa Technologies Airworks AWK-3131A-M12-RCC Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3121 Manual de usuario

Moxa Technologies

Moxa Technologies NPort NWH650 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-5232-M12-RCC Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1151C Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131-RCC Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3121 Manual de usuario

Moxa Technologies

Moxa Technologies airworks awk-5232 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1137C Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1100 Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3121-SSC-RTG Manual de usuario

Moxa Technologies

Moxa Technologies WAC-1001 Series Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3121B Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3251A-M12-RCC Series Manual de usuario

Moxa Technologies

Moxa Technologies AWK-4121 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks WK-1137C-EU-T Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3121-M12 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1127 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A-M12-RCC-EU Manual de usuario

Moxa Technologies

Moxa Technologies AWK-6232 Manual de usuario

Moxa Technologies

Moxa Technologies WAC-1001 Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1200-AP Manual de usuario

Moxa Technologies

Moxa Technologies TAP-6226 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1127 Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
