AWK-6232-M12

Hardware Installation Guide

Moxa AirWorks

Third Edition, April 2014

- 2 -

Notes for the Reader

WARNING

ndicates that death or personal injury may occur if proper

precautions are not taken.

ATTENTION

ndicates that possible damage to this product or your property

may result if proper precautions are not taken.

NOTE

Highlights important information related to this product.

Package Checklist

Moxa’s AWK-6232-M12 is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•AWK-6232-M12 wireless AP/bridge/client

•4 Dual-band omnidirectional antennas (5/2 dBi, N-type male, 2.4/5

GHz)

•Wall mounting kit (includes 2 supports)

•Field-installable power plug

•Field-installable M12 8-pin male LAN plug

•2 transparent plastic sticks for field-installable plugs

•1 metal cap to cover M12-female LAN connector

•1 metal cap to cover RJ45 connector

•1 metal cap to cover M12-male DI/O connector

•Documentation and software CD

•Quick installation guide (printed)

•Warranty card

Recommended SFP Accessories

SFP-1G series

•SFP-1GSXLC:

Small form factor pluggable transceiver with 1000BaseSX, LC, 0.5 km,

0 to 60°C

•SFP-1GSXLC-T:

Small form factor pluggable transceiver with 1000BaseSX, LC, 0.5 km,

-20 to 75°C

•SFP-1GLSXLC:

Small form factor pluggable transceiver with 1000BaseLSX, LC, 2 km,

0 to 60°C

•SFP-1GLSXLC-T:

Small form factor pluggable transceiver with 1000BaseLSX, LC, 2 km,

-40 to 85°C

- 3 -

•SFP-1GLXLC:

Small form factor pluggable transceiver with 1000BaseLX, LC, 10 km,

0 to 60°C

•SFP-1GLXLC-T:

Small form factor pluggable transceiver with 1000BaseLX, LC, 10 km,

-40 to 85°C

•SFP-1GLHLC:

Small form factor pluggable transceiver with 1000BaseLH, LC, 30 km,

0 to 60°C

•SFP-1GLHLC-T:

Small form factor pluggable transceiver with 1000BaseLH, LC, 30 km,

-40 to 85°C

•SFP-1GLHXLC:

Small form factor pluggable transceiver with 1000BaseLHX, LC, 40

km, 0 to 60°C

•SFP-1GLHXLC-T:

Small form factor pluggable transceiver with 1000BaseLHX, LC, 40

km, -40 to 85°C

•SFP-1GZXLC:

Small form factor pluggable transceiver with 1000BaseZX, LC, 80 km,

0 to 60°C

•SFP-1GZXLC-T:

Small form factor pluggable transceiver with 1000BaseZX, LC, 80 km,

-40 to 85°C

•SFP-1GEZXLC:

Small form factor pluggable transceiver with 1000BaseEZX, LC, 110

km, 0 to 60°C

•SFP-1GEZXLC-120:

Small form factor pluggable transceiver with 1000BaseEZX, LC, 120

km, 0 to 60°C

NOTE

The above items come with the

AWK-6232-M12 standard

version. The package contents

for customized versions may be

different.

Installation

Before installing the AWK-6232-M12, make sure that all items in the

Package Checklist are in the box. In addition, you will need access to a

notebook computer or PC equipped with an Ethernet port. The

AWK-6232-M12 has a default IP address, user name and password that

you must use when resetting or connecting to your AWK-6232-M12

device.

Default IP address: 192.168.127.253

User name: admin

Password: root

Please read “Chapter2 Getting Started” in AWK-6232-M12 User’s

Manual for more details about installation and configuration.

- 4 -

ATTENTION

For security reasons, we strongly recommend changing the

password. To do so,

go to Maintenance



Password

, and then

follow the on-screen instructions.

NOTE

To make the change effective, you must save the change and

then click

Restart



Save and Restart button to apply all

changes.

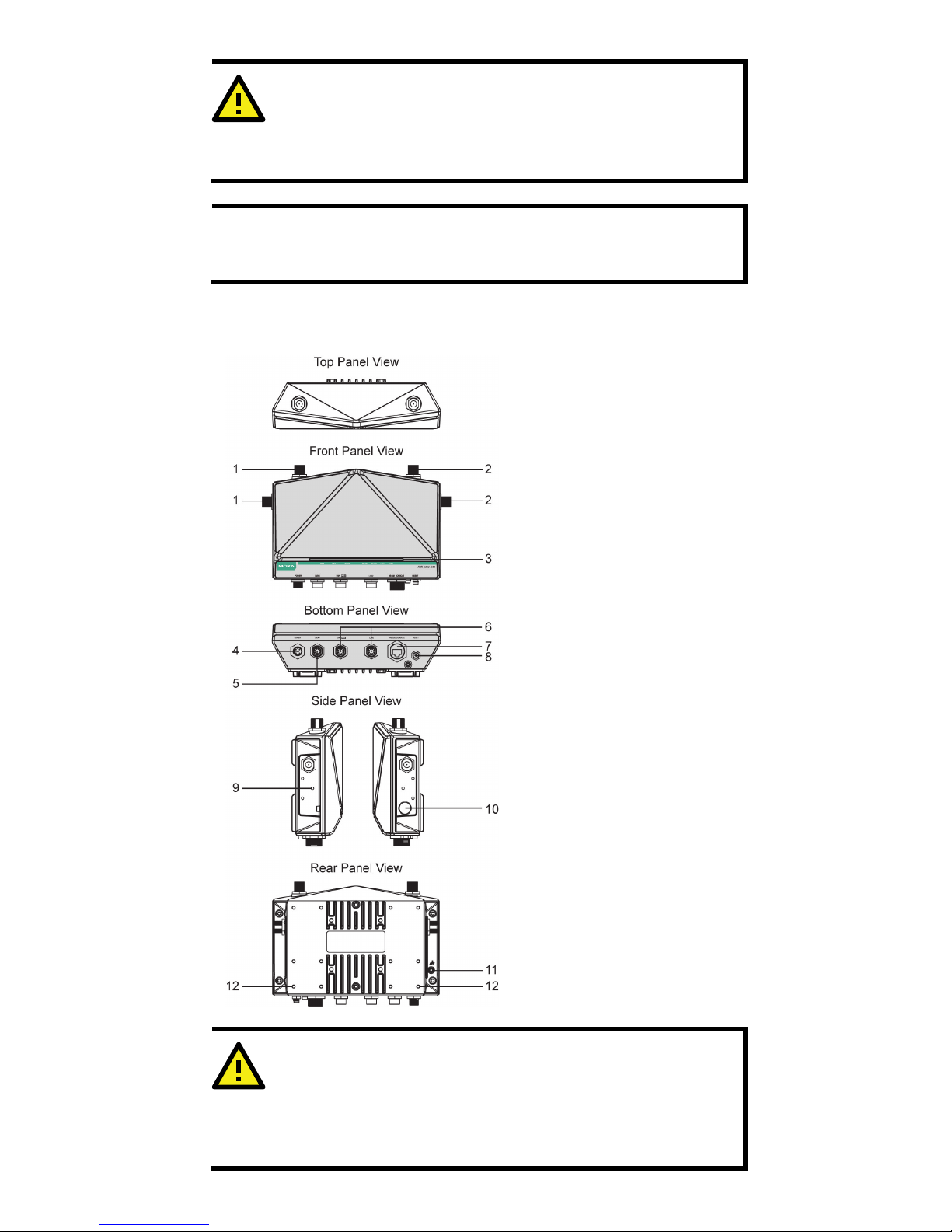

Panel Layout of the AWK-6232-M12

RF 1’s 1A and 1B antennas

RF 2’s 2A and 2B antennas

LEDs for PWR, FAULT,

STATE, WLAN1, WLAN2,

LAN1, and LAN2

M12 A-coding connector

for PWR1 and PWR2

M12 8-pin connector for

DI/DO

10/100/1000BaseT(X)

M12 Port: LAN1 and LAN2

RS-232 console port

Reset button

Screw holes for wall

mounting

10.

Waterproof vent

11.

Grounding screw

12.

Screw holes for DIN-rail

mounting

ATTENTION

Please DO NOT open or remove the vent

(item 10, in the

diagram)

. The warranty will be invalid if the seal is removed.

All exposed connectors, including

items 1,2,&4-7, should be

tightly covered by suitable caps when they are not in use.

- 5 -

Dimensions

Unit = mm (inch)

Attaching Antennas

The AWK-6232-M12 inclues two dual-band omnidirectional antenna by

default. Attach the antennas as illustrated below.

Step 1:

Use your fingers and hold the antenna metal N-type connector.

Step 2: Screw the antenna N-type connector (male) onto the

AWK-6232-M12 device’s N-type connector (female)

Caution

Do not hold the rubber plate to screw the antenna on to the

AWK-6232-M12 device.

ATTENTION

Use the antennas correctly: Use 2.4GHz antennas if the

AWK

-6232-M12 operates in IEEE 802.11b/g/n. Use the 5GHz

antennas for

operations in IEEE802.11a/n. Make sure your

antenna installation is within a safe area covered by a lightning

protection or surge arrest system.

Antenna Metal N-type

Rubber plate

- 6 -

Wall Mounting

In most applications, wall mount provides an easier installation. You will

find it quite easy to mount AWK-6232-M12 on the wall, as illustrated

below.

STEP 1:

Attach the wall

-mounting kit

with M4 screws, as shown in

the diagram below.

STEP 2:

Mounting the

AWK-6232-M12 on the

wall requires 4 screws. Use t

AWK

-6232-M12 device, with

wall

-mounting kit attached, as a guide

to mark the correct locations of the 4

screws. The heads of the screws are

recommended to be between 5.5mm

and 8.5 mm in diameter, and the shafts

should not be more

than 5.0 mm

diameter, as shown

in the figure.

Do not screw the screws all the way in to the wall—leave a space of about

2 mm to allow room for sliding the wall-mounting kit between the wall and

the screws.

ATTENTION

You can test

the screw head and shank size by inserting the screw

into one of the keyhole shaped apertures of the wall mounting

plates before it is screwed into the wall.

STEP 3:

Once the screws are fixed into the wall, insert the four screw heads

through the large opening of the keyhole-shaped apertures, and then

slide the AWK-6232-M12 downwards, as indicated to the right. Tighten

the four screws for added stability.

ATTENTION

To avoid environmental vibration or shock, you can

consider a

robust installation with

four bigger screws, which the shafts are

between 7.0 mm and 8.5 mm in diameter, and fix the

AWK-6232-M12 onto wall directly and tightly.

- 7 -

DIN-Rail Mounting (Optional)

The DK-DC50131 die-cast metal kit can be

bought se

parately, and enable easy and

robust installation for the

AWK-6232-M12.

pair of DK

-DC50131s is needed for DIN-

Rail

mounting. To install

the DIN-Rail mounting

kits, tightly attach the two DIN

-Rail

mounting kits on the rear panel of

AWK

-6232-M12 with 12 screws. (6 screws

for each kit)

To Install

STEP 1:

Use the recessed button

on the spring

-loaded

bracket to lock it into

position.

STEP 2:

Insert the top of the DIN

-Rail into the slot

just below the upper hook of the DIN

-Rail

mounting kit. Push the

AWK-6232-M12

toward the DIN

-Rail until the DIN-Rail

attachment bracket snaps into place.

To Release

STEP 1:

Pull out the two spring

-loaded

brackets

from the bottom until

they are fixed in the “release”

position.

STEP 2:

Pull the

AWK-6232-M12 out and

upward.

- 8 -

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa

AWK-6232-M12.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size. If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring with similar electrical characteristics can be bundled

together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

Grounding Moxa AWK-6232-M12

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to

be mounted to a well-grounded

mounting surface, such as a metal panel. There must be no

potential difference between two ground potentials, otherwise

there is a risk that the device could be destroyed.

- 9 -

Wiring the Redundant Power Inputs

The AWK-6232-M12 must be connected to a Power over Ethernet Plus

(PoE+) IEEE 802.3at compliant power source or an IEC60950 compliant

limited power source. When AWK-6232-M12 is powered via DC power,

the M12 A-coding connector on the bottom panel is used for the

AWK-6232-M12’s two redundant inputs. The male, device-side pin

assignment is shown below:

Power Input

V1+

V2+

V1-

V2-

GND

ATTENTION

This product is intended to be supplied by a Listed Power Unit

marked “Class 2” or “LPS” and rated O/P: 12 to 48 VDC

max

imum 800mW.

Make sure External Power Adaptor (includes power cords and

plug assemblies) provided with the unit is certified and suitabl

for use in your country.

Before connecting the

AWK-6232-M12 to the DC power inputs,

make sure the DC power source voltage is stable.

ATTENTION

Do not use

the PoE Injector. Instead, please use an

IEEE802.3af

or IEEE802.3at

compliant PSE (Power Sourcing Equipment) for

PoE+ (Power over Ethernet Plus) devices.

Wiring the Digital Inputs and Relay Contact

(Digital Output)

The AWK-6232-M12 has two sets of digital input—DI1 and DI2. Each DI

comprises two contacts of the 8-pin M12 connector on the

AWK-6232-M12’s bottom panel. These two digital inputs can be

connected to digital-output-enabled sensors for on-site status

monitoring.

The AWK-6232-M12 also has one relay output, which consists of the two

contacts. These relay contacts are used to detect user-configured events.

The two wires attached to the Relay contacts form an open circuit when a

user-configured event is triggered. If a user-configured event does not

occur, the Relay circuit will be closed.

A field-installable plug, M12A-8PF-IP67, is recommended for

connecting the AWK-6232-M12’s DIs and relay.

- 10 -

Communication Connections

Connecting the Data Lines

10/100/1000BaseT(X) Ethernet Port Connection

AWK-6232-M12 has 10/100/1000BaseT(X) Ethernet ports (8-pin

shielded M12 connector with A coding). The 10/100/1000BaseT(X) ports

located on the AWK-6232-M12’s bottom panel are used to connect to

Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type)

ports and MDI-X (HUB/Switch-type) ports.

Pinouts for the 10/100/1000BaseT(X) M12 (8-pin) Port

Signal

Relay

DI1 I1

DI1 COM_1

DI2 I2

DI2 COM_2

Reserved

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Moxa Technologies

Moxa Technologies

Moxa Technologies AirWorks AWK-1127 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3121-SSC-RTG Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks WK-1137C-EU-T Manual de usuario

Moxa Technologies

Moxa Technologies TAP-6226 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-4131A Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-5232-M12-RCC Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3121 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131-RCC Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-5222 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3121 Manual de usuario

Moxa Technologies

Moxa Technologies WAC-1001 Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1200-AC Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1131A Manual de usuario

Moxa Technologies

Moxa Technologies AWK-1121 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1127 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1131A Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3131A-RTG Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3121B Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131-M12-RCC Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-6222 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
