AWK-1127

Quick Installation Guide

Moxa AirWorks

Second Edition, June 2014

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

Overview

Moxa’s AWK-1127 WLAN Client is ideal for applications that are hard to

wire, too expensive to wire, or use mobile equipment that connects over

a TCP/IP network. The AWK-1127 is rated to operate at temperatures

ranging from 0 to 60°C for standard models and -40 to 75°C for extended

temperature models, and is rugged enough for any harsh industrial

environment. Installation is easy, with either Din-Rail mounting or

distribution boxes. The Din-Rail mounting ability, wide operating

temperature range, and IP30 housing with LED indicators make the

AWK-1127 a convenient yet reliable solution for any industrial wireless

application.

Package Checklist

Moxa’s AWK-1127 is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•1 AWK-1127

•1 Swivel-type Antenna (2dBi, RP-SMA, 2.4&5GHz)

•1 Quick Installation Guide

•1 Software CD

•1 Moxa Product Warranty Booklet

•1 Protective Cap

•1 Resistive Terminator

All manuals and user guides at all-guides.com

- 3 -

Panel Layout of the AWK-1127

Top Panel View

Front Panel View

Rear Panel View

1. Grounding screw (M3)

2. Terminal block for PWR1 and

PWR2

3. RS-232 console port

4. AUX antenna port

5. System LEDs:

PWR, FAULT, and

STATE LEDs

6. LEDs for signal strength

7. WLAN and LAN LEDs

8. 10/100BaseT(X) RJ45 Port

9. MAIN antenna port

10.

RS-232/422/485 Serial port

11.

Screw hole for wall mounting kit

12.

Din-Rail mounting kit

13.

Reset button

All manuals and user guides at all-guides.com

- 4 -

Mounting Dimensions (unit = mm)

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should be fixed to the back

panel of the AWK-1127 when you take it out of the box. If you need to

reattach the DIN-Rail attachment plate to the AWK-1127, make sure the

stiff metal spring is situated towards the top, as shown in the figures

below.

STEP 1:

Insert the top of the

DIN

-Rail into the slot just below

the stiff metal spring.

STEP 2:

The DIN-Rail attachment

unit will snap into place as shown

below.

To remove the AWK-1127 from the DIN-Rail, simply reverse Steps 1 and

All manuals and user guides at all-guides.com

- 5 -

Wall Mounting (optional)

For some applications, it may be more convenient to mount the

AWK-1127 to a wall, as illustrated below.

STEP 1:

Remove the aluminum

DIN

-Rail attachment plate

from the

AWK-1127, and

then attach the wall mount

plates with M3 screws, as

shown in the adjacent

diagrams.

STEP 2:

Mounting the

AWK-1127 to a wall requires 4 screws.

Use the

AWK-1127 device, with wall mount plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the

shafts should be less

than 3.5

mm in diameter, as shown in the figure at the

right.

Do not screw the screws in all the way—leave a space of about 2 mm to

allow room for sliding the wall mount panel between the wall and the

screws.

NOTE

Test the screw head and shank size by inserting the screw into

one of the keyhole shaped apertures of the Wall Mounting Plates

before it is screwed into the wall.

STEP 3:

Once the screws are fixed into the

wall, insert the four screw heads

through the large opening of the

keyhole

-shaped apertures, and

then slide the

AWK-1127

downwards, as indicated to the

right. Tighten the four screws for

added stability.

All manuals and user guides at all-guides.com

- 6 -

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa AWK-1127.

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowed for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring with similar electrical characteristics can be bundled

together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

ATTENTION

This product is intended to be supplied by a Listed Power Unit

marked

“Class 2” or “LPS” and rated O/P: 12 to 48 VDC

, minimum

7.7 W (12 V/0.55 A to 48V/0.16 A), 25°C.

ATTENTION

Make sure

the external power adapto

r (includes power cords and

plug assemblies) provided with the unit is certified and suitable

for use in your country.

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

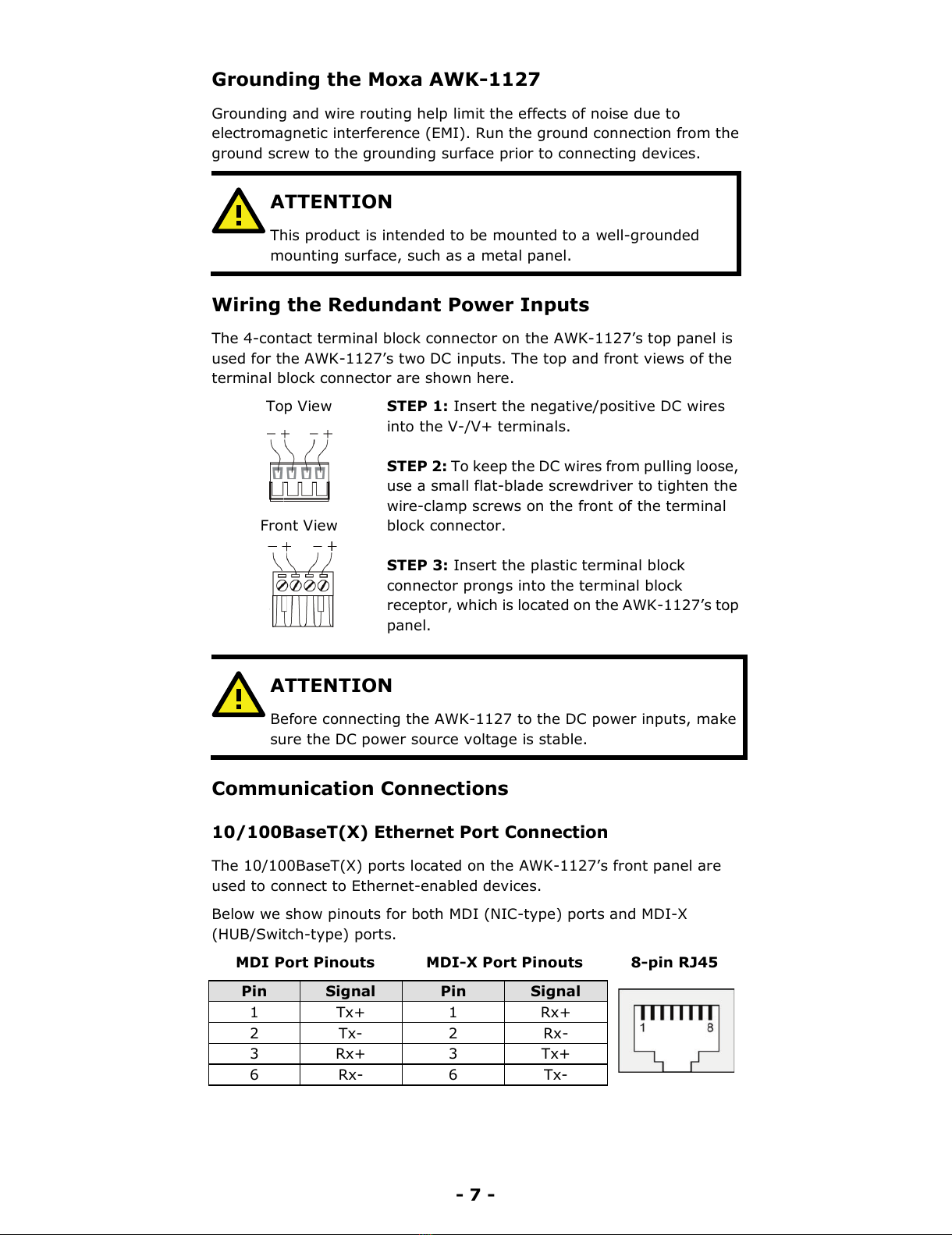

Grounding the Moxa AWK-1127

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

Wiring the Redundant Power Inputs

The 4-contact terminal block connector on the AWK-1127’s top panel is

used for the AWK-1127’s two DC inputs. The top and front views of the

terminal block connector are shown here.

Top View

Front View

STEP 1: Insert the negative/positive DC wires

into the

V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose,

use a small flat

blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is

located on the AWK-1127’s t

panel.

ATTENTION

Before connecting the

AWK-1127

to the DC power inputs, make

sure the DC power source voltage is stable.

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-1127’s front panel are

used to connect to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports.

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Rx+

Tx-

Rx-

Rx+

Tx+

Rx-

Tx-

All manuals and user guides at all-guides.com

- 8 -

RS-232/422/485 Serial Port

The AWK-1127 has 1 RS-232/422/485 serial port with DB9 connector for

serial to WLAN connectivity. Below are the pin assignments are the serial

port.

Pin RS-232

RS-422/485

(4W)

RS-485

(2W)

DCD

TxD-(A)

---

RxD

TxD+(B)

---

TxD

RxD+(B)

Data+(B)

DTR

RxD-(A)

Data-(A)

GND

DSR

---

RTS

---

CTS

---

RS-232 Console Connection

The AWK-1127 has one RS-232 (8-pin RJ45) console port located on the

top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect

the Moxa AWK-1127’s console port to your PC’s COM port. You may then

use a console terminal program to access the AWK-1127 for console

configuration.

Console Pinouts for 10-pin or 8-pin RJ45

10-Pin

Description

8-Pin

-----

DSR

RTS

GND

TxD

RxD

DCD

CTS

DTR

-----

NOTE

1. The pin numbers for male DB9 and DB25 connectors, and

hole numbers for female DB9 and DB25 connectors are

labeled on the connector. However, the numbers are

typically quite small, so you may need to use a magnifying

glass to see the numbers clearly.

2. The pin numbers for both 8-pin and 10-

pin RJ45 connectors

(and ports) are typically not labeled on the connector (or

port). Refer to the Pinout diagram above to see how RJ45

pins are numbered.

All manuals and user guides at all-guides.com

- 9 -

LED Indicators

The front panel of the Moxa AWK-1127 contains several LED indicators.

The function of each LED is described in the table below.

LED

Color

State

Description

PWR Green

Power is supplied

Off

Power is not supplied

FAULT Red

Booting

Blinking

(slow)

IP address cannot be retrieved from the

DHCP server (interval: 1 sec)

Blinking

(fast)

IP address conflict (interval: 0.5 sec)

Off

Normal status

STATE Green/

Red

Green

Software Ready

Blinking

Green

The AWK Search Utility has located the

AWK (interval: 1sec)

Red

Boot or device error

SIGNAL

(5 LEDs)

Green

Signal level

Off

Reserved

WLAN Green

WLAN is established

Blinking

WLAN is transmitting data

Off

WLAN is not established or is not

working properly

LAN Green

100/10 Mbps LAN port is active

Blinking

Data is being transmitted

Off

100/10 Mbps LAN port is inactive

TX/RX

Green

Serial port is transmitting data.

Off

No data is being received through the

serial port.

Amber

Serial port is receiving data.

Off

No data is being transmitted through

the serial port.

Specifications

WLAN Interface

Standards

IEEE 802.11a/b/g for Wireless LAN

IEEE 802.3u 10/100BaseT(X) for Ethernet LAN

IEEE 802.3af for Power-over-Ethernet (PoE models

Only)

Spread Spectrum

and Modulation

(typical)

•

DSSS with DBPSK, DQPSK, CCK

•OFDM with BPSK, QPSK, 16QAM, 64QAM

•802.11b:

CCK @ 11/5.5 Mbps

DQPSK @ 2 Mbps

DBPSK @ 1 Mbps

•802.11a/g:

64QAM @ 54/48 Mbps

16QAM @ 36/24 Mbps

QPSK @ 18/12 Mbps

BPSK @ 9/6 Mbps

All manuals and user guides at all-guides.com

- 10 -

Operating

Channels

(central

frequency)

•US:

2.412 to 2.462 GHz (11 channels)

5.18 to 5.24 GHz (4 channels)

•EU:

2.412 to 2.472 GHz (13 channels)

5.18 to 5.24 GHz (4 channels)

•JP:

2.412 to 2.484 GHz (14 channels, channel

14 only

support DSSS)

5.18 to 5.24 GHz (4 channels for W52)

Security

Firewall for MAC/IP/Protocol/Port-based filtering

64-bit and 128-bit WEP encryption,

WPA/WPA2-Personal and Enterprise (IEEE

802.1X/RADIUS, TKIP and AES)

Transmission

Rates

•

802.11b: 1, 2, 5.5, 11 Mbps

•802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

TX Transmit

Power

•802.11b:

Typ. 18±1.5 dBm @ 1 to 11 Mbps

•802.11g:

Typ. 18±1.5 dBm @ 6 to 24 Mbps

Typ. 17±1.5 dBm @ 36 Mbps

Typ. 16±1.5 dBm @ 48 Mbps

Typ. 16±1.5 dBm @ 54 Mbps

•802.11a:

Typ. 18±1.5 dBm @ 6 to 24 Mbps

Typ. 16±1.5 dBm @ 36 Mbps

Typ. 15±1.5 dBm @ 48 Mbps

Typ. 14±1.5 dBm @ 54 Mbps

RX Sensitivity •802.11b:

-97 dBm @ 1 Mbps

-94 dBm @ 2 Mbps

-92 dBm @ 5.5 Mbps

-90 dBm @ 11 Mbps

•802.11g:

-88 dBm @ 6 to 24 Mbps

-85 dBm @ 36 Mbps

-75 dBm @ 48 Mbps

-70 dBm @ 54 Mbps

•802.11a:

-88 dBm @ 6 to 24 Mbps

-85 dBm @ 36 Mbps

-75 dBm @ 48 Mbps

-70 dBm @ 54 Mbps

Protocol Support

General Protocols

Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP,

UDP, RADIUS, SNMP, PPPoE, DHCP,LLDP

Interface

Default Antennas

1 dual-band omni-directional antennas, 2 dBi, RP-SMA

(male)

Connector for

External Antennas

2 RP-SMA (female)

Serial Port

1, RS232/422/485, DB9 male connector

RJ45 Ports 1, 10/100BaseT(X) auto negotiation speed, F/H

duplex mode, and auto MDI/MDI-X connection

All manuals and user guides at all-guides.com

Otros manuales para AirWorks AWK-1127

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Moxa Technologies

Moxa Technologies

Moxa Technologies TAP-213 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3251A-M12-RCC Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1137C Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3121 Manual de usuario

Moxa Technologies

Moxa Technologies AWK-6232 Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3131 Manual

Moxa Technologies

Moxa Technologies AirWorks WK-1137C-EU-T Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-6222 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131-RCC Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-622 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1131A Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1151C Series Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-1131A Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-5222 Manual de usuario

Moxa Technologies

Moxa Technologies AWK-3131A-RTG Series Manual de usuario

Moxa Technologies

Moxa Technologies AWK-4121 Manual de usuario

Moxa Technologies

Moxa Technologies AWK-4131 Manual de usuario

Moxa Technologies

Moxa Technologies AWK-4121 Manual de usuario

Moxa Technologies

Moxa Technologies TAP-213 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manual de usuario

Moxa Technologies

Moxa Technologies AWK-1121 Manual de usuario

Moxa Technologies

Moxa Technologies AWK-4121 Manual de usuario

Moxa Technologies

Moxa Technologies AirWorks AWK-5232-M12-RCC Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
