TN-4500A Series (HW 1.x, 2.x)

Quick Installation Guide

Moxa ToughNet Switch

Version 3.1, June 2023

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The ToughNet TN-4500A Series M12 managed Ethernet switches are

designed for industrial applications in harsh environments. The TN

series switches use M12 connectors to ensure tight, robust connections,

and guarantee reliable operation against environmental disturbances,

such as vibration and shock. The wide 24 to 110 VDC dual power inputs

increases the reliability of your communications.

The TN-4500A Series includes PoE, non-PoE, and fiber switches.

•TN-4516A non-PoE models: 12 Fast Ethernet M12 ports; 4 Gigabit

Ethernet ports.

•TN-4516A PoE models: 12 Fast Ethernet M12 ports with PoE

functionality; 4 Gigabit Ethernet ports with PoE functionality.

•TN-4516A fiber (ODC) models: 12 Fast Ethernet M12 ports with PoE

functionality; 2 Gigabit Ethernet ports with PoE functionality; 2

Gigabit Ethernet ports with a Q-ODC fiber connector.

•TN-4524A PoE models: 24 Fast Ethernet M12 ports, 16 with PoE

functionality.

•TN-4528A PoE models: 24 Fast Ethernet M12 ports, 16 with PoE

functionality; 4 Gigabit Ethernet ports with PoE functionality.

•TN-4528A fiber (ODC) models: 24 Fast Ethernet M12 ports, 16 with

PoE functionality; 2 Gigabit Ethernet ports with PoE functionality; 2

Gigabit Ethernet ports with a Q-ODC fiber connector.

The -40 to 75°C operating temperature and IP42-rated waterproof

enclosure allow deployment in harsh environments. The TN-4500A

Series Ethernet switches are compliant with mandatory sections of EN

50155, covering operating temperature, power input voltage, surge,

ESD, and vibration, as well as conformal coating and power insulation,

making the switches suitable for a variety of industrial applications.

Package Checklist

Your ToughNet TN-4500A switch is shipped with the following items. If

any of these items are missing or damaged, please contact your

customer service representative for assistance.

•1 Moxa ToughNet switch

•M12-to-DB9 console port cable

•2 protective caps for console and relay output ports

•Panel-mounting kit

•Quick installation guide (printed)

•Warranty card

- 3 -

Hardware Version Appearance

The appearance of different TN-4500A Series hardware versions may

not be similar. For example, the shape and positions of LEDs on the TN-

4516A hardware version 3.x are different from previous hardware

versions. Secondly, the trenches on the front side are removed for

hardware version 3.x. You can also refer to the device label to

differentiate different device hardware versions (Rev).

Hardware version 1.x, 2.x

Hardware version 3.x

Device label on the back (non-PoE models) or side (PoE models)

Features

Anti-Vibration Circular Connectors for Robust Links

•M12 D-coded 4-pin female connectors for Fast Ethernet

10/100BaseT(X) ports

•M12 X-coded 8-pin female connectors for Gigabit Ethernet

10/100/1000BaseT(X) ports

•M12 A-coded 5-pin male connectors for console and relay outputs

•M23 6-pin male connectors for power input

•Q-ODC fiber connector for Gigabit Ethernet 1000BaseLSX with 2km

multimode embedded transceiver

Isolated Power Inputs

•Supports 24 to 110 VDC (continuous voltage input from 16.8 to

137.5 VDC as stated by EN 50155)

High Performance Network Switching Technology

•IPv6 ready, certified by the IPv6 Logo Committee

•DHCP Option 82 for IP address assignment with different policies

•Turbo Ring and Turbo Chain (recovery time <20 ms @250

switches), and STP/RSTP/MSTP for network redundancy

•IGMP Snooping and GMRP for filtering multicast traffic from

industrial Ethernet protocols

•Port-based VLAN, IEEE 802.1Q VLAN, and GVRP protocol to ease

network planning

•QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic

classification and prioritization

- 4 -

•802.3ad, LACP for optimum bandwidth utilization

•TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance

network security

•SNMP v1/v2c/v3 for different levels of network management

•RMON for efficient network monitoring and proactive capability

•Bandwidth management prevents unpredictable network status

•Lock port allows access by only authorized MAC addresses

•Port mirroring for online debugging

•Automatic warning by exception through email, relay output

•Automatic recovery of connected devices’ IP addresses

•Line-swap fast recovery

•LLDP for automatic topology discovery through network

management software

•Loop protection prevents network loops

•Configurable through web browser, Telnet/serial console, CLI, and

Windows utility

Designed for Industry-Specific Applications

•Four Gigabit Ethernet ports to meet high bandwidth requirements.

•Complies with all EN 50155 mandatory test items*

•-40 to 75°C operating temperature range

•IP42 rugged high-strength case

•Panel mounting installation capability

*This product is suitable for rolling stock railway applications, as

defined by the EN 50155 standard. For a more detailed statement, click

here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf

Recommended Optional Accessories

•CBL-M23(FF6P)OPEN-BK-100-IP67: 1-meter M23 to 6-pin power

cable with IP67-rated female 6-pin M23 connector

•CBL-M12D(MM4P)/RJ45-100 IP67: 1-meter M12-to-RJ45 Cat-5E

UTP Ethernet cable with IP67-rated male 4-pin M12 D-coded

connector

•CBL-M12(FF5P)/OPEN-100 IP67: 1-meter M12-to-5-pin power cable

with IP67-rated female 5-pin M12 A-coded connector

•CBL-M12XMM8PRJ45-Y-200-IP67: 2-meter M12-to-RJ45 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8P-Y-300-IP67: 3-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12XMM8P-Y-100-IP67: 1-meter M12-to-M12 Cat-5 UTP

Ethernet cable with IP67-rated 8-pin male X-coded crimp type M12

connector

•CBL-M12DMM4PM12DMM4P-BK-100-IP67: 1-meter M12-to-M12

Cat-5E STP Ethernet cable with IP67-rated 4-pin D-coded M12

connector

•CBL-M12FF5PF9-BK-150-IP67: 1.5-meter M12-to-DB9 Cat-5E STP

Ethernet cable with waterproof 5-pin D-coded M12 connector

•M12D-4PMM-IP67: M12 D-coded connector, QUICKON type, male

4-pin, IP67-rated

•M12D-4P-IP68: Field-installable M12 D-coded screw-type

connector, male 4-pin, IP68-rated

•M12A-5P-IP68: Field-installable M12 A-coded screw-type connector,

female 5-pin, IP68-rated

- 5 -

•M12X-8PMM-IP67-HTG: Field-installable M12 X-coded crimp type,

slim design connector, 8-pin male, IP67-rated

•A-CAP-M12F-M-PP: Metal cap for M12 female connector

•A-CAP-M12M-M: Metal cap for M12 male connector

•A-PLG-WPM23-01-IP67: M23 cable connector, 6-pin female, crimp

type

•ABC-01-M12: Configuration backup and restoration tool with M12

connector for managed Ethernet switches and wireless

APs/Bridges/Clients, 0 to 60°C operating temperature

ATTENTION

The equipment is intended to be supplied by an external power

source (UL listed/IEC 60950

-1/IEC 62368-1), of which the

output

complies with ELV/ES2, LPS/PS2.

-4500A non-PoE models require an output rating of 24 to

110 VDC, 0.62A min., at an ambient temperature of 75°C min.

-4500A PoE models require an output rating of 24 to 110

VDC, 7 A min., at an ambient temperature of 75°C min.

Function Ports and Indicators

The TN-4500A Series features physical indicators for the PoE and

bypass functions. Take the TN-4516A as an example, the indicators for

ports that support PoE or bypass functionality will be located on the

front panel of the device, as shown in the graph below.

Bypass Ports Location

•TN-4516A models:

4GTXBP models: Ports G1 and G2 (set 1), ports G3 and G4 (set 2)

2GTXBP models: Ports G1 and G2

•TN-4528A models: Ports G1 and G2

PoE Ports Location

•TN-4516A PoE models: Ports 1 to 12, ports G1 to G4

•TN-4516A 2GTXBP and ODC models: Ports 1 to 12, ports G3 and

•TN-4520A PoE models: Ports 1 to 16, ports G1 to G4

•TN-4524A PoE models: Ports 1 to 16

- 6 -

•TN-4528A PoE models: Ports 1 to 16, ports G1 to G4

•TN-4528A 2GTXBP and ODC models: Ports 1 to 16, ports G3 and

TN-4516A Non-PoE Models Panel Layouts

Model name

2. Screw holes for panel

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage

range indicator

7. Power input port

(male 6-pin shielded

M23 connector)

8. PWR1 LED: for power

input 1

9. PWR2 LED: for power

input 2

10.

FAULT LED

11.

MSTR/HEAD LED: for

ring master or chain

head

12.

CPLR/TAIL LED: for

ring coupler or chain

tail

13.

TP port’s 10/100 Mbps

LED

14.

10/100BaseT(X) port

(M12 D-coded 4-pin

female connector)

15.

Gigabit Ethernet port

LED: Gigabit port's

10/100/1000 Mbps

LED

16.

10/100/1000BaseT(X)

port (M12 X-coded 8-

pin female connector)

- 7 -

TN-4516A PoE Models Panel Layouts

1. Model name

2. Screw holes for panel

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage

range indicator

7. Power input port

(male 6-pin shielded

M23 connector)

8. PWR1 LED: for power

input 1

9. PWR2 LED: for power

input 2

10.

FAULT LED

11.

MSTR/HEAD LED: for

ring master or chain

head

12.

CPLR/TAIL LED: for

ring coupler or chain

tail

13.

TP port’s 10/100 Mbps

LED

14.

10/100BaseT(X) port

(M12 D-coded 4-pin

female connector)

15.

Gigabit Ethernet port

LED: Gigabit port's

10/100/1000 Mbps

LED

16.

10/100/1000BaseT(X)

port (M12 X-coded 8-

pin female connector)

- 8 -

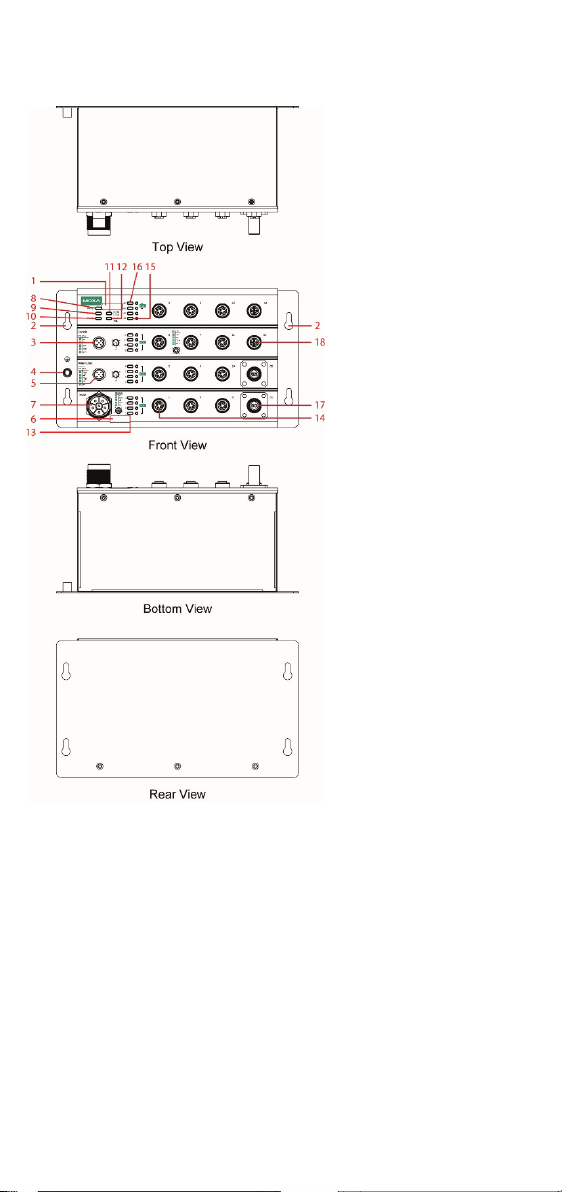

TN-4516A Fiber Models Panel Layouts

1. Model name

2. Screw holes for panel

mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage

range indicator

7. Power input port

(male 6-pin shielded

M23 connector)

8. PWR1 LED: for power

input 1

9. PWR2 LED: for power

input 2

10.

FAULT LED

11.

MSTR/HEAD LED: for

ring master or chain

head

12.

CPLR/TAIL LED: for

ring coupler or chain

tail

13.

TP port’s 10/100 Mbps

LED

14.

10/100BaseT(X) port

(M12 D-coded 4-pin

female connector)

15.

Gigabit Ethernet port

LED: Gigabit port’s

1000 Mbps LED

16.

Gigabit Ethernet port

LED: Gigabit port’s

10/100/1000 Mbps

LED

17.

1000BaseLSX Gigabit

fiber port

18.

10/100/1000BaseT(X)

port (M12 X-coded 8-

pin female connector)

- 9 -

TN-4524A PoE Models Panel Layouts

1. Model name

2. Screw holes for panel mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage range indicator

7. Power input port (male 6-pin shielded M23 connector)

8. PWR1 LED: for power input 1

9. PWR2 LED: for power input 2

10. FAULT LED

11. MSTR/HEAD LED: for ring master or chain head

12. CPLR/TAIL LED: for ring coupler or chain tail

13. TP port’s 10/100 Mbps LED

14. 10/100BaseT(X) port (M12 D-coded 4-pin female connector)

- 10 -

TN-4528A PoE Models Panel Layouts

1. Model name

2. Screw holes for panel mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage range indicator

7. Power input port (male 6-pin shielded M23 connector)

8. PWR1 LED: for power input 1

9. PWR2 LED: for power input 2

10. FAULT LED

11. MSTR/HEAD LED: for ring master or chain head

12. CPLR/TAIL LED: for ring coupler or chain tail

13. TP port’s 10/100 Mbps LED

14. 10/100BaseT(X) port (M12 D-coded 4-pin female connector)

15. Gigabit Ethernet port LED: Gigabit port’s 10/100/1000 Mbps LED

16. 10/100/1000BaseT(X) port (M12 X-coded 8-pin female connector)

Otros manuales para ToughNet TN-4500A Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G500E Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5508 Series Manual

Moxa Technologies

Moxa Technologies PT-7324 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-2008-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-7528-24TX-HV Manual de usuario

Moxa Technologies

Moxa Technologies EDS-G4008 Series Manual de usuario

Moxa Technologies

Moxa Technologies ICS-G7526 Series Manual

Moxa Technologies

Moxa Technologies EDS-405A Manual

Moxa Technologies

Moxa Technologies EDS-405A Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manual

Moxa Technologies

Moxa Technologies EDS-2010-ML Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5510-2GLSX-ODC Manual

Moxa Technologies

Moxa Technologies IKS-6324 Series Manual

Moxa Technologies

Moxa Technologies IESH-MB205G-C2E-R Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manual

Moxa Technologies

Moxa Technologies PT-G7828 Manual de usuario

Moxa Technologies

Moxa Technologies PT-7528 Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-4009 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G509-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-516A-T Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet Switch TN-5500 series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-2005-ELP Series Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
