Moxa Technologies EtherDevice EDR-G902 Manual

P/N: 1802009030012

EDR-G902/G903

Hardware Installation Guide

Moxa EtherDevice™ Router

Third Edition, May 2014

- 2 -

Package Checklist

The Moxa EtherDevice Router is shipped with the following items. If any of

these items is missing or damaged, please contact your customer service

representative for assistance.

•1 EtherDevice Router

•Hardware Installation Guide

•CD-ROM with User’s Manual and Windows utility

•Moxa product warranty statement

•RJ45 to DB9 console port cable

•Protective caps for unused ports

Features

Advanced Industrial Networking Capability

•Router/Firewall/VPN all in one.

•High performance Gigabit copper/fiber combo port.

•Supports 1 WAN, 1 LAN, and 1 user-configurable WAN or DMZ

interface (EDR-G903).

•Supports 1 WAN and 1 LAN (EDR-G902)

•Firewall with Quick Automation Profile for Fieldbus protocols.

•Network address translation (N-to-1, 1-to-1, and port forwarding).

•Intelligent PolicyCheck and SettingCheck tools.

•-40 to 75°C operating temperature (T models).

- 3 -

Panel Views of EtherDevice Router

EDR-G903 Front Panel:

1. WAN1, DMZ/WAN2, LAN port:

10/100/1000 BaseT(X) or

100/1000Base SFP slot combo

ports

2. Power input PWR1 LED

3. Power input PWR2 LED

4. Fault LED

5. 10/100/1000BaseT(X) LED

indicator

6. LED for DMZ/WAN2 port

EDR

-G902 Front Panel:

1. WAN, LAN port 10/100/1000

BaseT(X) or 100/1000Base SFP

slot combo ports

2. Power input PWR1 LED

3. Power input PWR2 LED

4. Fault LED

5. 10/100/1000BaseT(X) LED

indicator

- 4 -

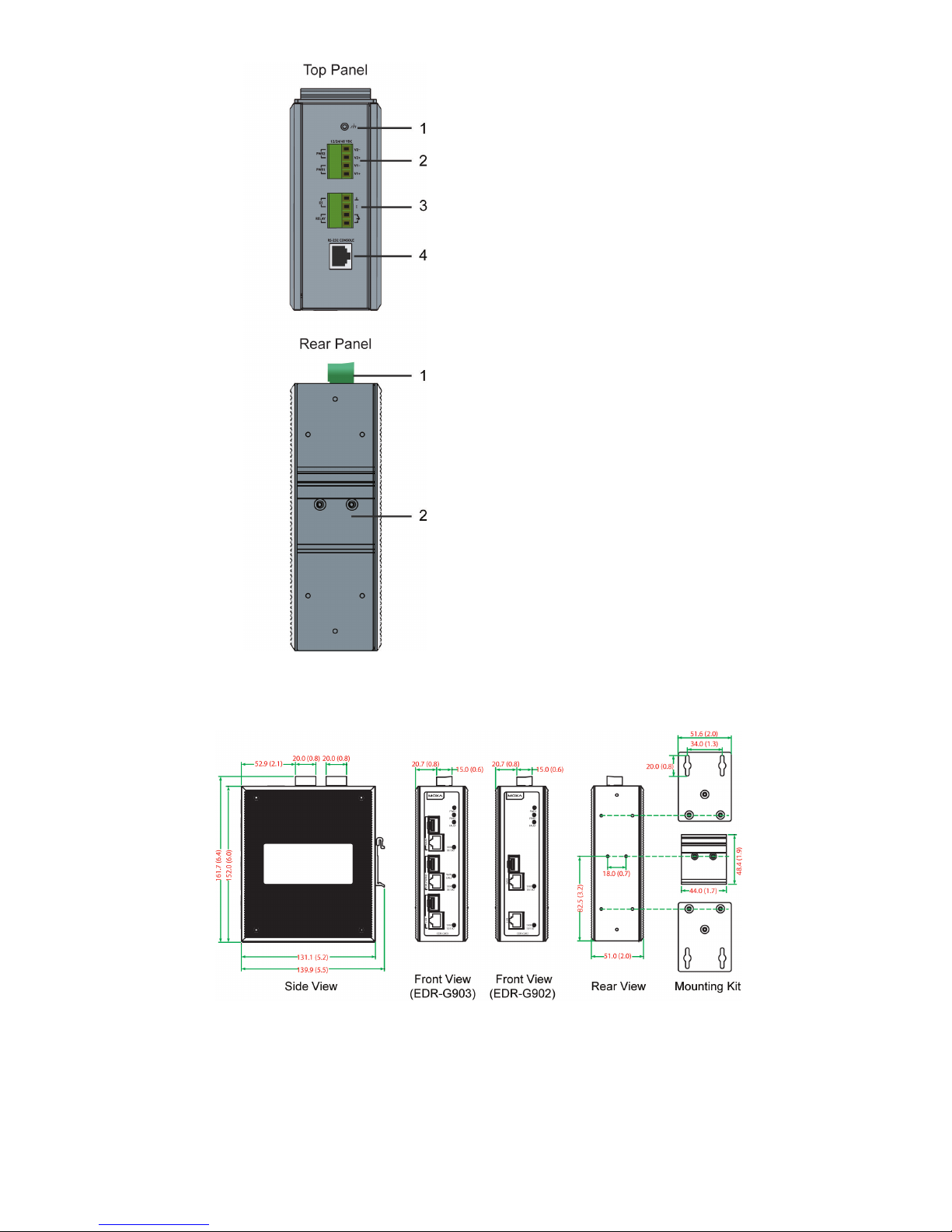

Top Panel:

1. Grounding screw

2. 4-pin terminal block for PWR 1,

PWR 2

3. 4-pin terminal block for DI and

Relay

4. RS-232 console port

Rear Panel:

1. Terminal block

2. DIN-Rail kit

Mounting Dimensions

Unit = mm (inch)

- 5 -

DIN-Rail Mounting

The aluminum DIN-Rail attachment plate should already be fixed to the

back panel of the EtherDevice Router when you take it out of the box. If

you need to reattach the DIN-Rail attachment plate to the EtherDevice

Router, make sure the stiff metal spring is situated towards the top, as

shown in the following figures.

STEP 1

—

Insert the top of the

DIN

-Rail into the slot just below

the stiff metal spring.

STEP 2

—

The DIN-Rail attachment

unit will snap into place as shown

the following illustration.

To remove the EtherDevice Router from the DIN-Rail, simply reverse

Steps 1 and 2 above.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The device

s are designed for operation with a

afety Extra-Low V

oltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with the

afety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950-1/ VDE0805.

ATTENTION

This unit is a built

-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit must

comply with fire enclosure regulation IEC 60950

-1/EN60950-1

(or similar regulation).

- 6 -

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice

Router.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical code

s dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring sharing similar electrical characteristics can be bundled

together

•You should separate input wiring from output wiring

•We advise that you label the wiring to all devices in the system.

Grounding the Moxa EtherDevice Router

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted

to a well-grounded

mounting surface such as a metal panel.

- 7 -

Wiring the Relay Contact

The EtherDevice Router has one set of relay outputs. This relay contact

uses one contacts of the terminal block on the EtherDevice Router’s top

panel. Refer to the next section for detailed instructions on how to

connect the wires to the terminal block connector, and how to attach the

terminal block connector to the terminal block receptor.

In this section, we illustrate the meaning of the contact used to connect

the relay contact.

FAULT:

The two

right contacts of the 4-pin terminal block

connector are used to detect user

-configured

events. The two wires attached to the

fault

contacts form an open circuit when a

user

-configured event is triggered. If a

user

-configured event does not occur, the fault

circuit remains closed.

Wiring the Redundant Power Inputs

The EtherDevice Router has two sets of power inputs—power input 1 and

power input 2. The top and front views of one of the terminal block

connectors are shown here.

STEP 1: Insert the negative/positive DC wires

into the V

-/V+ terminals, respectively.

STEP 2: To keep the DC wires from pulling loose,

use a small flat

-bl

ade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on

the EtherDevice

Router’s top panel.

- 8 -

Wiring the Digital Inputs

The EtherDevice Router has one set of digital input, DI. The DI consists of

two left contacts of the 4-pin terminal block connector on the EtherDevice

Router’s top panel, which are used for the DC inputs. The top and front

views of one of the terminal block connectors are shown here.

STEP 1: Insert the negative (ground)/positive

DI wires into the

┴/I terminals, respectively.

STEP 2: To keep the DI wires from pulling loose,

use a small flat

blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on

the EDR-

G903’s top

panel.

Communication Connections

Each EtherDevice Router has 2 types of communication port:

1. 1 RJ45 console port (RS-232 interface)

2. 3 combination 10/100/1000T(X)/1000BaseSFP ports (EDR-G903)

3. 1 combination 10/100/1000T(X)/1000BaseSFP port and 1

10/100/1000T(X) Ethernet port (EDR-G902)

RS-232 Connection

The EtherDevice Router has one RS-232 (10-pin RJ45) console port,

located on the top panel. Use either an RJ45-to-DB9 (see the cable

following wiring diagrams) to connect the EtherDevice Router’s console

port to your PC’s COM port. You may then use a console terminal program,

such as Moxa PComm Terminal Emulator, to access the EtherDevice

Router’s console configuration utility.

RJ45 (10-pin) Console Port Pinouts

Description

---

DSR

RTS

---

TxD

RxD

GND

CTS

DTR

---

- 9 -

RJ45 (10-pin) to DB9 (F) Cable Wiring

10/100/1000BaseT(X) Ethernet Port Connection

The 10/100/1000BaseT(X) ports located on Moxa EtherDevice Router’s

front panel are used to connect to Ethernet-enabled devices. Most users

will choose to configure these ports for Auto MDI/MDI-X mode, in which

case the port’s pinouts are adjusted automatically depending on the type

of Ethernet cable used (straight-through or cross-over), and the type of

device (NIC-type or HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

10/100Base T(x) RJ45 Pinouts

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

1000BaseT RJ45 Pinouts

MDI

MDI-X

BI_DA+

BI_DB+

BI_DA-

BI_DB-

BI_DB+

BI_DA+

BI_DC+

BI_DD+

BI_DC-

BI_DD-

BI_DB-

BI_DA-

BI_DD+

BI_DC+

BI_DD-

BI_DC-

- 10 -

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

100 BaseFX or 1000BaseSFP Fiber Port

The Gigabit Ethernet ports on the EtherDevice Router are SFP slots, which

require 100BaseFX SFP or Gigabit mini-GBIC fiber transceivers to work

properly. Moxa provides complete transceiver models for various distance

requirements.

The concept behind the LC port and cable is quite straightforward.

Suppose you are connecting devices I and II. Unlike electrical signals,

optical signals do not require a circuit in order to transmit data.

Consequently, one of the optical lines is used to transmit data from device

I to device II, and the other optical line is used to transmit data from

device II to device I, for full-duplex transmission.

Remember to connect the Tx (transmit) port of device I to the Rx (receive)

port of device II, and the Rx (receive) port of device I to the Tx (transmit)

port of device II. If you make your own cable, we suggest labeling the two

sides of the same line with the same letter (A-to-A and B-to-B, as shown

below, or A1-to-A2 and B1-to-B2).

LC-Port Pinouts

LC-Port to LC-Port Cable Wiring

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Moxa Technologies

Moxa Technologies

Moxa Technologies EDS-518E Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5516 Series Manual

Moxa Technologies

Moxa Technologies EDS-G308 Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-508 Manual

Moxa Technologies

Moxa Technologies WDR-3124A Manual de usuario

Moxa Technologies

Moxa Technologies TSN-G5000 Series Manual de usuario

Moxa Technologies

Moxa Technologies ioLogik E1200 Series Manual de usuario

Moxa Technologies

Moxa Technologies OnCell 5004 Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 Manual de usuario

Moxa Technologies

Moxa Technologies ioLogik E1210 Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE Manual

Moxa Technologies

Moxa Technologies IKS-6324 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 Manual

Moxa Technologies

Moxa Technologies OnCell 5004 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-518E Manual de usuario

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-308 Manual

Moxa Technologies

Moxa Technologies ioLogik E1242 Manual de usuario

Moxa Technologies

Moxa Technologies EDR-810 Series Manual

Moxa Technologies

Moxa Technologies SDS-3008 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDR-8010 Series Manual de usuario

Moxa Technologies

Moxa Technologies Managed Ethernet Switch/Extender Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 Manual de usuario

Moxa Technologies

Moxa Technologies E Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDR-G902-T Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
