V2403C Series

Quick Installation Guide

Embedded Computers

Version 1.0, September 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The V2403C Series embedded computers are based on the Intel® 7th

generation processor and feature 4 RS-232/422/485 serial ports, 4 LAN

ports, and 4 USB 3.0 ports. The V2403C computers come with 1

DisplayPort and 1 HDMI port with 4-k resolution support, fulfilling

various requirements for industrial applications.

The mSATA slot, SATA connectors, and USB ports provide the V2403C

computers with the reliability needed for industrial applications that

require storage expansion for data buffering.

Package Checklist

Each basic system model package is shipped with following items:

•V2403C Series embedded computer

•Wall-mounting kit

•Storage disk tray package

•HDMI cable locker

•Quick installation guide (printed)

•Warranty card

Hardware Installation

Front View

Rear View

- 3 -

Dimensions

LED Indicators

The following table describes the LED indicators located on the front

and rear panels of the V2403C computer.

LED Name

Status

Function

Power

(On power

button)

Green

Power is on

Off No power input or any other power error

Ethernet

(100 Mbps)

(1000 Mbps)

Green

Steady On: 100 Mbps Ethernet link

Blinking: Data transmission is in progress

Yellow Steady On: 1000 Mbps Ethernet link

Blinking: Data transmission is in progress

Off

Data transmission speed at 10 Mbps or

the cable is not connected

Serial

(TX/RX)

Green

Tx: Data transmission is in progress

Yellow

Rx: Receiving Data

Off

No operation

Storage

Yellow

Data is being accessed from either the

mSATA or the SATA drives

Off Data is not being accessed from the

storage drives

- 4 -

Installing the V2403C

The V2403C computer comes with two wall-mounting brackets. Attach

the brackets to the computer using four screws on each side. Ensure

that the mounting brackets are attached to the V2403C computer in the

direction shown in the following figure.

The eight screws for the mounting brackets are included in the product

package. They are standard IMS_M3x5L screws and require a torque of

4.5 kgf-cm. Refer to the following illustration for details.

Use two screws (M3*5L standard is recommended) on each side to

attach the V2403C to a wall or cabinet. The product package does not

include the four screws required for attaching the wall-mounting kit to

the wall; they need to be purchased separately. Ensure that the

V2403C computer is installed in the direction shown in the following

figure.

- 5 -

Connecting the Power

The V2403C computers are provided with 3-pin power input connectors

in terminal block on the front panel. Connect the power cord wires to

the connectors and then tighten the connectors. Push the power button.

The Power LED (on the power button) will light up to indicate that

power is being supplied to the computer. It should take about 30 to 60

seconds for the operating system to complete the boot-up process.

Definition

V+

V-

Ignition

The power input specification is given below:

•The DC power source rating is 12 V @ 5.83 A, 48 V @ 1.46 A, and a

minimum of 18 AWG.

For surge protection, connect the grounding connector located below

the power connector with the earth (ground) or a metal surface.

In addition, there is an ignition control switch on the front panel, which

can be used to control the power input. Refer to the V2403C Hardware

User’s Manual for details.

Connecting Displays

The V2403C has 1 display port connector on the rear panel. In addition,

another HDMI interface is also provided on the rear panel.

NOTE

In order to have highly reliable video streaming, use premium,

HDMI-certified cables.

USB Ports

The V2403C comes with 4 USB 3.0 ports on the front panel. The USB

ports can be used to connect to other peripherals, such as keyboard,

mouse, or flash drives for expanding the system’s storage capacity.

Serial Ports

The V2403C comes with 4 software-selectable RS-232/422/485 serial

ports on the rear panel. The ports use DB9 male connectors.

Refer to the following table for pin assignments:

RS-232 RS-422 RS-485

(4-wire)

RS-485

(2-wire)

DCD

TxDA(-)

–

RxD

TxDB(+)

–

TxD

RxDB(+)

DataB(+)

DTR

RxDA(-)

DataA(-)

GND

DSR

–

RTS

–

CTS

–

- 6 -

Ethernet Ports

The V2403C has 4 100/1000 Mbps RJ45 Ethernet ports with RJ45

connectors on the front panel. Refer to the following table for pin

assignments:

10/100 Mbps

1000 Mbps

ETx+

TRD(0)+

ETx-

TRD(0)-

ERx+

TRD(1)+

–

TRD(2)+

–

TRD(2)-

ERx-

TRD(1)-

–

TRD(3)+

–

TRD(3)-

Digital Inputs/Digital Outputs

The V2403C comes with 4 digital inputs and 4 digital outputs in a

terminal block. Refer to the following figures for the pin definitions and

the current ratings.

Digital Inputs

Dry Contact

Logic 0: Short to

Ground

Logic 1: Open

Wet Contact

(DI to COM)

Logic 1: 10 to 30

VDC

Logic 0: 0 to 3 VDC

Digital Outputs

Current Rating

0 mA per

channel

Voltage

24 to 30 VDC

For detailed wiring methods, refer to the V2403C Hardware User’s

Manual.

Installing Storage Disks

The V2403C comes with two 2.5-inch storage sockets, allowing users to

install two disks for data storage.

Follow these steps to install a hard disk drive.

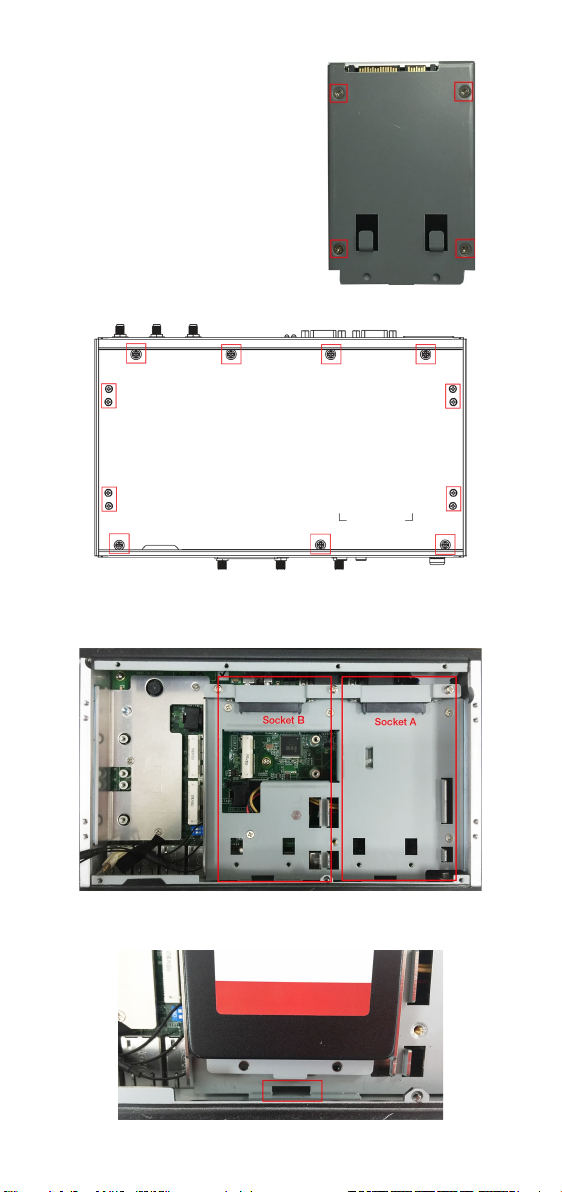

1. Unpack the storage disk

tray

from the product package.

2. Place the disk drive on the tray.

- 7 -

3. Turn the disk and tray

arrangement around to view

the rear side of the tray.

Fasten the four screws to

secure the disk to the tray.

4. Remove all screws on the rear panel of the V2403C computer.

5. Take out the rear cover of the computer and find the location of

the storage disk sockets. There are two sockets for the storage

disk tray; you may install on either socket.

6. To place the storage disk tray, put the end of the tray near the

groove on the socket.

- 8 -

7. Place the tray on the socket

and push upward so that the

connectors on the storage disk

tray and the socket can be

connected. Fasten two screws

on the bottom of the tray.

For instructions on installing other peripheral devices or wireless

modules, refer to the V2403C Hardware User’s Manual.

NOTE

This computer is intended to be installed in a restricted access

area only. In addition, for safety reason

s, the computer should

be installed and handled

only by qualified and experienced

professionals.

NOTE

This computer is

designed to be supplied by listed equipment

rated 12 to 48 VDC, minimum 5.83 to 1.46 A, and minimum

Tma=70

˚C. If you need assistance with purchasing a power

adapter, contact the Moxa technical support team.

NOTE

If using Class I adapter, the power cord adapter should be

connected to a socket outlet with an earthing connection or the

power cord and adapter must comply with Class II construction.

Replacing the Battery

The V2403C comes with one slot for a battery, which is installed with a

lithium battery with 3 V/195 mAh specifications. To replace the battery,

follow the steps below:

1. The battery cover is located on the rear panel of the computer.

- 9 -

2. Unfasten the two screws on the battery cover.

3. Take off the cover; the battery is attached to the cover.

4. Separate the connector and remove the two screws on the metal

plate.

5. Replace the new battery in the battery holder, place the metal

plate on the battery and fasten the two screws tightly.

- 10 -

6. Reconnect the connector, place the battery holder into the slot,

and secure the cover of the slot by fastening the two screws on

the cover

NOTE

•

Be sure to use the correct type of battery. Incorrect

battery may cause system damage. Contact Moxa’s

technical support staff for assistance, if necessary.

•

To reduce the risk of fire or burns, do not disassemble,

crush, or puncture the battery; do not dispose of in fire or

water and do not short external contacts.

ATTENTION

Before connecting the V2403C to the DC power inputs, make

sure

the DC power source voltage is stable.

•

The wiring for the input terminal block shall be installed by

a skilled person.

•

Wire type: Cu

•

Only use 28-18 AWG wire size and a torque value of 0.5 N-

•

Use only one conductor in a clamping point between the DC

power source and the power input.
