TC-6110 Series Hardware Manual

Edition 5.0, March 2016

www.moxa.com/product

TC-6110 Series Hardware Manual

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of

Moxa.

Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited

to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the

products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for

its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas

Toll

-free: 1-888-669-2872

Tel:

+1-714-528-6777

Fax:

+1-714-528-6778

Moxa China (Shanghai office)

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia

-Pacific

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045

Table of Contents

1. Introduction...................................................................................................................................... 1-1

Overview...........................................................................................................................................1-2

Model Descriptions and Package Checklist..............................................................................................1-2

Appearance........................................................................................................................................1-3

LED Indicators....................................................................................................................................1-4

Reset Button......................................................................................................................................1-4

Features............................................................................................................................................1-4

Hardware Specifications ......................................................................................................................1-4

Hardware Block Diagram .....................................................................................................................1-7

2. Hardware Installation ....................................................................................................................... 2-1

Mounting ...........................................................................................................................................2-2

Desktop .....................................................................................................................................2-2

Rack mounting............................................................................................................................2-2

Optional Rack Panel Extender Installation.......................................................................................2-4

Wiring Requirements...........................................................................................................................2-6

Connecting the Power Supply...............................................................................................................2-7

Connecting to a Display.......................................................................................................................2-9

Connecting Audio Input/Output ............................................................................................................2-9

Connecting USB Devices....................................................................................................................2-10

Connecting Serial Devices.................................................................................................................. 2-11

LAN Ports ........................................................................................................................................ 2-11

Installing the SSD/HDD into the Storage Tray ......................................................................................2-12

Replacing the Battery........................................................................................................................2-15

Installing System Memory and CF Card ...............................................................................................2-18

3. BIOS Setup........................................................................................................................................ 3-1

Entering the BIOS Setup Utility ............................................................................................................3-2

BIOS Main Page..................................................................................................................................3-2

Modifying BIOS Settings ......................................................................................................................3-3

Advanced Settings.......................................................................................................................3-3

Security Settings.........................................................................................................................3-8

Power Settings............................................................................................................................3-9

Boot Settings............................................................................................................................ 3-10

Exit Settings.............................................................................................................................3-11

Upgrading the BIOS..........................................................................................................................3-13

A. Safety Installation Instructions ........................................................................................................ A-1

B. Regulatory Statement Approval ........................................................................................................ B-1

1. Introduction

Thank you for purchasing the Moxa TC-6110 series x86 ready-to-run industrial computer.

This manual introduces the hardware installation, connector interfaces, and BIOS setup of the TC-6110. For

software configuration and management, please refer to the software manual for your operating system.

The following topics are covered in this chapter:



Overview



Model Descriptions and Package Checklist



Appearance



LED Indicators



Reset Button



Features



Hardware Specifications



Hardware Block Diagram

TC-6110 Series Hardware Introduction

1-2

Overview

TC-6110 train computers are specifically designed for auxiliary train applications such as network video

recorders, passenger infotainment systems, condition monitoring, and train-to-ground communications. They

come with two Gigabit LAN ports, one RS-232 serial port, three USB 2.0 ports, and two TC-SATA-T storage

modules, giving customers a versatile solution for on-board train computing.

Providing a high reliability and durable platform for train operation, TC-6110 computers come with M12

connectors for Gigabit LAN ports, USB 2.0 ports, and the dual power inputs. In addition, the expansion modules

offer high flexibility for system integration. Users can easily add storage modules for additional data storage

capacity, Gigabit switch module to expand connectivity and/or bandwidth, or mini PCIe module for additional

peripheral communications. All TC-6110 series computers further come with conformal coating, promising the

most reliable operation for component protection under harsh environment.

Model Descriptions and Package Checklist

The TC-6110 Series includes the following models:

TC-6110-W7E: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24 to 110

VDC isolated power, WLAN module (available on request), Win7 Embedded (32-bit) , -25 to 55°C operating

temperature range, compliant with EN 50155 Class T1

TC-6110-T-W7E: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24 to

110 VDC isolated power, WLAN module (available on request), Win7 Embedded (32-bit), -40 to 70°C operating

temperature range, compliant with EN 50155 Class TX

TC-6110-CT-W7E: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24 to

110 VDC isolated power, conformal coating, WLAN module (available on request), Win7 Embedded (32-bit) ,

-25 to 55°C operating temperature range, compliant with EN 50155 Class T1

TC-6110-CT-T-W7E: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24

to 110 VDC isolated power, conformal coating, WLAN module (available on request), Win7 Embedded (32-bit),

-40 to 70°C operating temperature range, compliant with EN 50155 Class TX

TC-6110-LX: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24 to 110

VDC isolated power, WLAN module (available on request), Linux Debian 7, -25 to 55°C operating temperature

range, compliant with EN 50155 Class T1

TC-6110-T-LX: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24 to 110

VDC isolated power, WLAN module (available on request), Linux Debian 7, -40 to 70°C operating temperature

range, compliant with EN 50155 Class TX

TC-6110-CT-LX: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24 to

110 VDC isolated power, conformal coating, WLAN module (available on request), Linux Debian 7, -25 to 55°C

operating temperature range, compliant with EN 50155 Class T1

TC-6110-CT-T-LX: Modular 3U/42HP train computer, Intel Atom D525 1.8 GHz CPU, 4 expansion slots, 24 to

110 VDC isolated power, conformal coating, WLAN module (available on request), Linux Debian 7, -40 to 70°C

operating temperature range, compliant with EN 50155 Class TX

Each model is shipped with following standard items:

TC-6110 train computer

Rack mount kit

Power switch with cable extender

M12 connector (M12A-5P-IP68)

Power cable (CBL-Power Jack to M12)

Documentation CD or DVD

Quick installation guide (printed)

Warranty card

TC-6110 Series Hardware Introduction

1-3

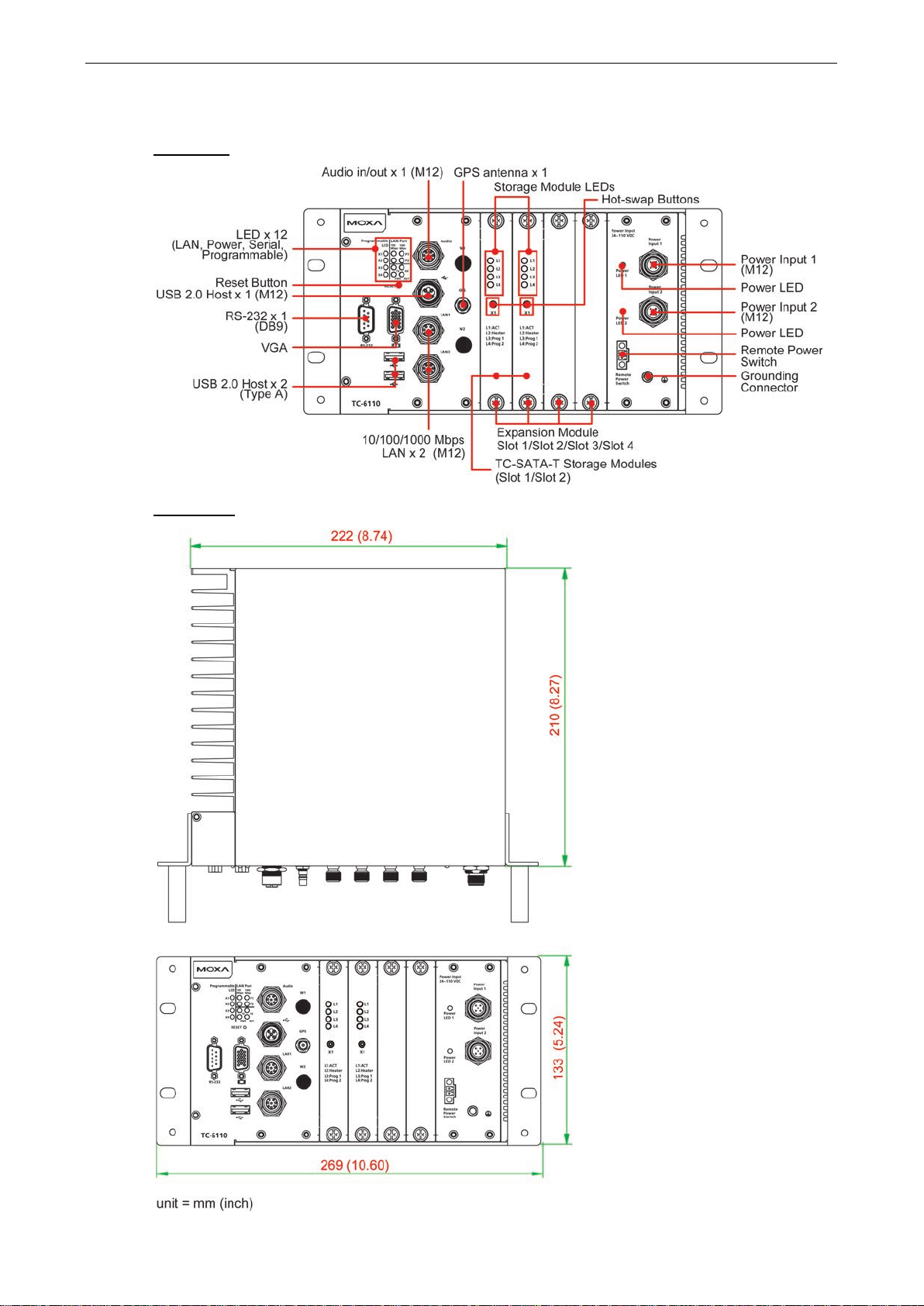

Appearance

Front View

Dimensions

TC-6110 Series Hardware Introduction

1-4

LED Indicators

LED Name LED Color LED Function

Power Green Power is on and functioning normally

Off Power is off or power system error

System Ready

Yellow

Logged in to OS, functioning normally

Off Login failure or OS not functioning normally

Tx(P1) Green Serial port P1 transmitting data

Off Serial port P1 not transmitting data

Rx(P1) Yellow Serial port P1receving data

Off Serial port P1 not receiving data

LAN(P1-P2)

Green Programmable by users

Yellow Programmable by users

Off Working 100 Mbps Ethernet link

X1-X4 Green Working 1000 Mbps Ethernet link

Off Disconnected or short circuit

Reset Button

The reset button on the TC-6110’s front panel initiates a soft system reboot. Once the system has completed

the reboot the Ready LED will maintain a steady glow.

Features

The TC-6110 computer has the following features:

•Fanless and rugged design for rolling stock applications

•Compliant with EN 50121-4 and essential sections of EN 50155

•Protective conformal coating to prevent moisture, dust, and corrosion

•3U high compact design, 24 to 110 VDC isolated wide range power supply

•Modular design for easy storage and peripheral expansion

•Moxa SafeGuard Technology provides:

•Reliable HDD operation at low temperatures

•Independent temperature sensor with custom API

•Independent G-sensor returns system shock/vibration info with custom API

•SNMP-based system configuration and monitoring supported

Hardware Specifications

Computer

CPU:

Intel Atom D525, dual-core 64-bit threaded 1.8 GHz, 1 MB for L2 cache

OS:

Windows Embedded Standard 7 or Linux

Note: The OS is pre

-installed.

System Chipset:

ICH8-M

System Memory:

4 GB capacity, 2 GB pre-installed: 2 slots of 2 GB DDR3-1066 204 pin SO-DIMM SDRAM

USB:

USB 2.0 hosts x 3 (Type A connectors x 2, supporting system boot up; D-coded, 5-pin, female M12

connectors x 1)

Storage

Built

-in: 8 GB onboard industrial CompactFlash card for operating system storage

HDD Support:

2 removable TC-SATA-T storage trays, for 2.5-

inch SSD or HDD storage drive (with Intelligent

Heating Solution)

TC-6110 Series Hardware Introduction

1-5

Other Peripherals

Audio:

1 line in / line out interface with A-coded, 8-pin, female M12 connector

Independent Sensors:

Accelerometer (G-sensor), thermometer (T-sensor)

Display

Graphics Controller:

Integrated Intel GMA 3150 (Pineview) Graphics Engine

VGA Interface:

Up to 2048 x 1536 resolution at 75 Hz, DB9 female connector

Ethernet Interface

LAN:

Auto-sensing 10/100/1000 Mbps ports (A-coded, 8-pin, female M12) x 2

GPS Module

Receiver Types:

50 channels, GPS L1 C/A code, SBAS (WAAS), EGNOS, MSAS, GAGAN

Acquisition:

• Cold start: 29 s

• Warm start: 29 s

• Aided start: 1 s

• Hot start: 1 s

Sensitivity:

• Tracking & Navigation:

-160 dBm

• Reacquisition:

-160 dBm

• Cold start:

-147 dBm

Accuracy:

• Autonomous: 2.5 m

• SBAS: 2.0 m

Protocols: NMEA, UBX binary, max. update rate: 5 Hz (ROM version)

Time Pulse:

0.25 Hz to 1 kHz

Velocity Accuracy:

0.1 m/s

Heading Accuracy:

0.5°

-GPS: AssistNow Online/Offline, SUPL (Open Mobile Alliance) compliant

Operational Limits:

• Dynamics ≤ 4 g

• Altitude 50,000 m

• Velocity 500 m/s

Connector Type:

QMA

WLAN Module (Available on request)

Standards:

IEEE 802.11 a/b/g/n for wireless LAN

Security:

WEP, TKIP, and AES hardware encryption

Antenna Type:

2 QMA connectors (female type)

Mode:

Client (default), Access Point (available on request)

Serial Interface

Serial Standards:

1 RS-232 port (DB9 male)

Data Bits: 5, 6, 7, 8

Stop Bits:

1, 1.5, 2

Parity:

None, Even, Odd, Space, Mark

Flow Control:

RTS/CTS

Baudrate:

Up to 115.2 kbps

Serial Signals

-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND

LEDs

System:

Independent “Power” and “System Ready” signals

LAN:

100M/Link x 2, 1000M/Link x 2

Serial:

TX x 1, RX x 1

Other:Programmable x 4

TC-6110 Series Hardware Introduction

1-6

Physical Characteristics

Housing:

Aluminum and SECC sheet metal (1 mm)

Weight:

5 kg (11.11 lb)

Dimensions:

• Without ears: 210 x 222 x 133 mm (8.27 x 8.74 x 5.24 in)

• With ears: 210 x 269 x 133 mm (8.27 x 10.60 x 5.24 in)

Mounting:

Rack

Environmental Limits

Operating Temperature:

• Standard models:

-25 to 55°C (-13 to 140°F), (EN 50155 Class T1)

• Wide temp. models:

-40 to 70°C (-40 to 158°F), (EN 50155 Class Tx)

Storage Temperature:

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity:

5 to 95% (non-condensing)

Anti

-Vibration: Meets EN 50155 standard

Anti

-Shock: Meets EN 50155 standard

Power

Reset Button:

For warm reboot (front panel)

Input Voltage:

24 to 110 VDC; A-coded, 5-pin, male M12 connector

Power Consumption:

32 W (without heater), 62 W (with heater), no SSD/HDD attached

Note: 24 VDC and 110 VDC compliant with EN 50155

Standards and Certifications

Safety:

UL 60950-1, CSA C22.2 No. 60950-1-07, EN 60950-1

EMC:

EN 55022:2010 Class A, EN 55024:2010, FCC CFR Title 47 Part 15 Subpart B: 2011 Class A, CISPR

22:2008, ANSI C63.4:2009, ICES

-003 Issue 5:2012 Class A

RF:

EN 62311:Jan 2008, ETSI EN 301 489-1:V1.9.2 (2011-09), ETSI EN 301 489-3:V1.4.1 (2002-

08), ETSI EN

301 893:V1.6.1 (2011

-11), ETSI EN 300 328:V1.7.1 (2006-10), ETSI EN 300 440-1:V1.6.1 (2010-

08), ETSI

EN 300 440

-2:V1.4.1 (2010-08)

Rail Traffic:

EN 50155:2007 (essential compliance*), EN 50121-1:2006 for EMC test, EN 50121-3-

2:2006, EN

50121

-4:2006, EN 5011:2009+A1:2010, EN 61000-6-4:2007, CISPR 16-1-2:2003/A2:2006, CISPR

-2-1:2003+A1:2005, CISPR 16-2-3:2006, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:1999

*Moxa defines “essential compliance” to include those EN 50155 requirements that make products

more suitable for rolling stock railway applications.

Environmental Tests: EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:1999

Reliability

Automatic Reboot Trigger:

Built-in WDT (watchdog timer) supporting system reset with software

programmable time intervals of 1

-255

MTBF (mean time between failures)

Time:

360,616 hrs

Standard:

Telcordia (Bellcore) Standard TR/SR

Warranty

Warranty Period:

3 years

Details:

See www.moxa.com/warranty

Note: These hardware specifications describe the embedded computer unit itself, but not its official

accessories. In particular, the wide temperature specification d

oes not apply to accessories such as power

adapters and cables.

TC-6110 Series Hardware Introduction

1-7

Hardware Block Diagram

Otros manuales para TC-6110 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de Moxa Technologies

Moxa Technologies

Moxa Technologies Smartio CP-104UL Manual de usuario

Moxa Technologies

Moxa Technologies MiiNePort E1-SDK Manual de usuario

Moxa Technologies

Moxa Technologies UC-8100 Series Manual de usuario

Moxa Technologies

Moxa Technologies Industio C114HI Manual de usuario

Moxa Technologies

Moxa Technologies UC-8410 Instrucciones de uso

Moxa Technologies

Moxa Technologies C168P Manual de usuario

Moxa Technologies

Moxa Technologies Industio CI-132 Series Manual de usuario

Moxa Technologies

Moxa Technologies UPort 200A Series Manual de usuario

Moxa Technologies

Moxa Technologies CA-132/132I Manual de usuario

Moxa Technologies

Moxa Technologies CP-102N-T Manual de usuario

Moxa Technologies

Moxa Technologies THINKCORE W311 Manual de usuario

Moxa Technologies

Moxa Technologies CP-102U/UL Manual de usuario

Moxa Technologies

Moxa Technologies ioLogik E2000 Series Manual de usuario

Moxa Technologies

Moxa Technologies CP-102N-T Manual de usuario

Moxa Technologies

Moxa Technologies THINKCORE W311 Manual de usuario

Moxa Technologies

Moxa Technologies WAPN008 Manual de usuario

Moxa Technologies

Moxa Technologies CP-602U-I Manual de usuario

Moxa Technologies

Moxa Technologies V2201 Instrucciones de uso

Moxa Technologies

Moxa Technologies Moxa Smartio C168H Manual de usuario

Moxa Technologies

Moxa Technologies UC-7420-CE Manual de usuario

Moxa Technologies

Moxa Technologies ABC-02-USB-T Manual de usuario

Moxa Technologies

Moxa Technologies ABC-02-USB Manual de usuario

Moxa Technologies

Moxa Technologies ioLogik 2500 Series Manual de usuario

Moxa Technologies

Moxa Technologies Industio CP-114 Series CP-114 Series Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
