ABC-02-USB

Quick Installation Guide

Automatic Backup Configurator

Edition 2.1, July 2019

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The ABC-02-USB Automatic Backup Configurator is a device that can

save and load configuration files, backup event logs, and load firmware

of Moxa’s managed switch via the USB (universal serial bus) interface.

The ABC-02-USB is able to be accessed directly like a standard USB

flash drive from a computer.

The ABC-02-USB makes it easier to manage the backup of system

parameters or perform configuration during the replacement of a

switch. With the ABC-02-USB, users can quickly re-install a substitute

switch (of the same model) without the need of a laptop computer. The

ABC-02 can be used to recover the entire system configuration,

including the IP address, if a switch failure occurs.

Switches can load firmware from the ABC-02-USB and backup event

logs to the ABC-02-USB. It is also an easy and fast diagnostics tool for

automation engineers to retrieve configuration files and event logs in

the field immediately, without the need for laptop computers.

Package Checklist

The ABC-02-USB is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•1 x ABC-02-USB

•Quick installation guide (printed)

•Warranty card

Features

•Widely used USB 2.0 interface

•Click the switch rest button to back up the configuration file and

event log to ABC-02

•Automatic loading of system configuration after system reboot

•Manual upgrade firmware from ABC-02 and backup event logs to

ABC-02

•Manual and saving system configuration through web console

•Extend switch event log storage capability

•Portable low-power design that requires no power supply

•CE, FCC approval

- 3 -

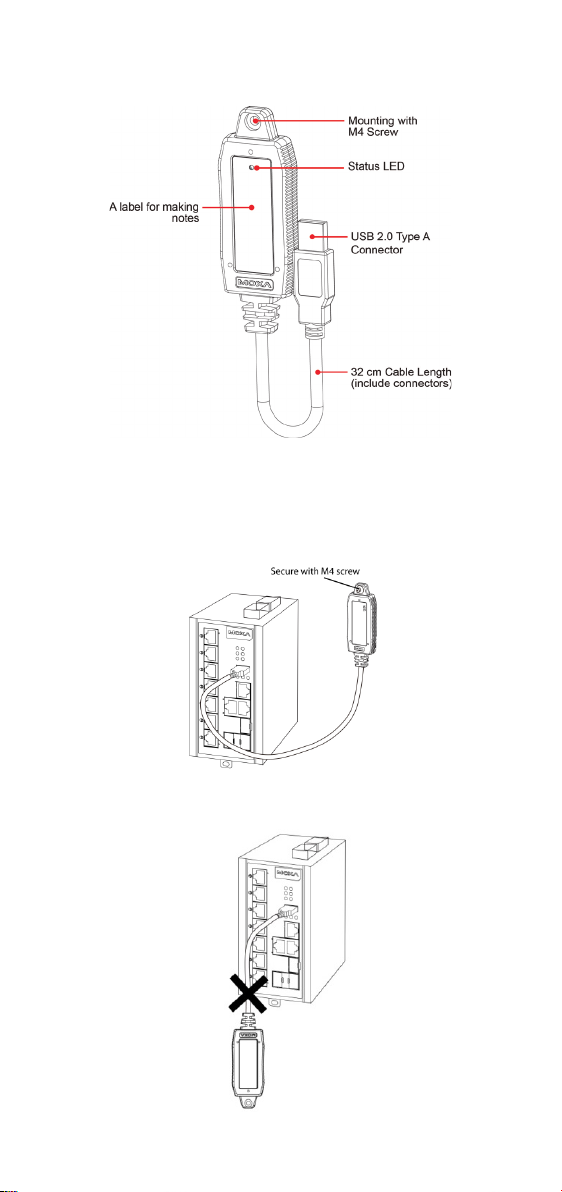

Hardware Description

Product Installation

The ABC-02-USB is designed for use with an USB 2.0 port. Plug the

ABC-02 into the USB port of your Moxa managed switch. Securing the

ABC-02 on the wall with an M4 screw is suggested.

Avoid hanging the ABC-02 configurator from the switch without

securing it onto the wall.

- 4 -

Please refer to the Product Operation section for instructions on how to

save and load the configuration, firmware, and event logs.

Product Operation

Configuration Backup and Restore

•Backup switch configuration on the ABC-02

Use the switch web console to save the configuration file to the

ABC-02. This function is found under “System/System Files/

Configuration Backup and Restore “. Then select “Auto Backup

Configurator (ABC-02)” in the web console. Click “Backup” to save

the configuration file to the ABC-02. The file will be saved in the

“:\Moxa” folder of the ABC-02. The file name is “Sys.ini”.

•Restore the configuration file from the ABC-02 to the switch

Manually operate in web console

Use

the switch web console to load configuration files from the

ABC

-02 to the switch. This function is found under

“System/System Files/ Configuration Backup and Restore”.

Then select “Auto Backup Configurator (ABC

-02)” in the web

console. Click “Browse” to s

elect the file you need. Then click

“Restore” to start loading into your switch.

Auto-load the configuration file from the ABC-02 to the system

when the switch boots up

Power off your switch first, and then plug in the ABC

-02. Then

power on your switch

, the system will detect the configuration

file on the ABC

-02 automatically. The switch will recognize the

file name with following sequence priority:

1. ”MAC address last 6 digits.ini*”

2. “Sys.ini”. If no matching configuration file is found, the fault

ED light will turn on. The switch will boot up normally.

NOTE

Please save your configuration files in the “:\Moxa” folder of the

ABC

-02. Auto-load will detect the configuration file using this

path only.

- 5 -

Firmware Upgrade

Upgrade the firmware from the ABC-02 to the switch. You can

download the firmware file from http://www.Moxa.com/support/.

Save the firmware file in the “:\Moxa” folder of the ABC-02.

Plug in the ABC-02 into your switch. Use the switch web console to load

the switch firmware file from the ABC-02. This function is found under

“System/System Files/ Firmware Upgrade “. Then select “Auto Backup

Configurator (ABC-02)” in the web console. Click “Browse” to select the

file you need. Then click “Upgrade” to start loading the file into your

switch.

Log File Backup

Backup the switch log file to the ABC-02

Use the switch web console to save the configuration file to the ABC-02.

This function is found under “System/System Files/ Log File Backup “.

Then select “Auto Backup Configurator (ABC-02)” in the web console.

Click “Backup” to save the configuration file to the ABC-02. The log file

will be saved in the “:\Moxa” folder of the ABC-02. The file will be

named “Sys.log”.

One-click backup

The ABC-02 can backup configuration and log files from the switch.

When the ABC-02 is plugged into the switch, “STATE” LEDs on the

switch will start to blink slowly, and the reset function will be disabled

automatically. Press the “reset” button once and the switch will start

backing up configuration files and system logs to the ABC-02.

The “RESET” button is located on the front panel of rackmount type

switches and on the top panel of DIN-rail type switches.

- 6 -

Auto backup to the ABC-02 when configurations change

The ABC-02 is capable of backing up switch configuration files

automatically. This function is found under “System/System Files/

Configuration Backup and Restore”. While the ABC-02 is plugged into

the switch, enable the “Auto backup to ABC-02 when configuration

change” option. Then click “Apply”. Once this configuration is modified,

the switch will back up the current configuration under the “/His_ini”

folder in the ABC-02. The file name will be the system date/time

(MMDDHHmm.ini).

Auto backup of the earliest 100 log entries to prevent

overwriting

This function is designed to maintain a long-term record the switch log

files. Moxa Ethernet switches are capable of saving 1000 entries of

event logs. When the 1000-entry storage limit is reached, the switch

will delete the oldest saved event log. The ABC-02 can help to backup

these event logs. When switch log entries reach 1000, the ABC-02 will

back up the earliest 100 entries of the switch.

The function is found under “System/System Files/ Log File Backup”.

Enable the “Auto backup the earliest 100 log entries to prevent

overwriting”. Then click “Apply”. After that, when the ABC-02 is

plugged into the switch, the event logs will always be saved to the ABC-

02 automatically.

NOTE

For further details on the ABC-02 operation through the switch

web console, please refer to the switch user manual.

WARNING

DO NOT remove the ABC

02 when the STATE LED is blinking or

when the web console is showing WORKING status.

NOTE

The status of the ABC-02 may be checked on the switch web

console or by observing the switch front panel LEDs.

Operation

Switch LED status

The switch detects

ABC-02-

USB plugged

STATE blinking slowly (1 time/ 2

seconds),

Import/Export in

progress*

FAULT, MASTER, COUPLER LEDs

Blink sequentially and circularly

Import/Export

successful

FAULT, MASTER, COUPLER LEDs light

off

Save/Load failed

FAULT LED light on until ABC-02 is

removed or system reboot

Operation

ABC-02 LED status

Power on

ABC-02 STATE LED green light on

Reading /Writing

ABC-02 STATE LED blinking

Does not include “Auto backup to the ABC-02 when

configuration change”

and ”Auto backup the earliest 100 log

entries to prevent overwriting

- 7 -

Specifications

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Connectors

RS-232 RJ45 port

Power Requirement

3 to 5 VDC, power input via RS-232 RTS

Configuration

via Moxa managed switch’s web console

Casing

PVC molding, IP40

Weight

50 g

Installation

M4 screw (> 4 mm)

Dimension (W × D × H)

32.5 × 97 × 12 mm

Cable Length

35 cm, including connectors

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature

-20 to 70°C (-4 to 158°F)

Ambient Relative

Humidity

5 % to 95 % (non-condensing)

EMI

FCC Part 15, CISPR (EN55032) Class A

EMS

EN61000-4-2 (ESD), level 3

EN61000-4-3 (RS), level 3

EN61000-4-4 (EFT), level 3

EN61000-4-5 (Surge), level 3

EN61000-4-6 (CS), level 3

Warranty

5 years
