Moxa Technologies C168P Manual de usuario

C168P User’s Manual

Universal 8 Port Serial Board

May 1999 (7th Edition)

The content of this manual is also available in CD-ROM and at Moxa Web Site.

Moxa Technologies Co., Ltd.

Tel: +866-2-8665-6373

Fax: +886-2-8665-6372

www.moxa.com

[email protected]

C168P User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of the agreements.

Reproduction in any form without permission is prohibited.

Trademarks

MOXA is a registered trademark of Moxa Technologies Co., Ltd.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on

the part of Moxa.

Moxa provides this document “as is”, without warranty of any kind, either expressed or implied,

including, but not limited to, the particular purpose. Moxa may make improvements and/or changes in

this manual or in the product(s) and/or the program(s) described in this manual at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa

Technologies assumes no responsibility for its use, or for any infringements of rights of the fourth parties

which may result from its use.

This product could include technical or typographical errors. Changes are periodically made to the

information herein; these changes may be incorporated in new editions of the publication.

MOXAInternetServices

Customer’s satisfaction is always our number one concern. To ensure that customers get the full benefit

of our services, Moxa Internet Services have been built for technical support, product inquiry, new driver

update, user’s manual update, etc.

The followings are the services we provide.

E-mail for technical support

address:[email protected]

FTP site for free driver update

address: ftp.moxa.com

ftp.moxa.com.tw

user ID: ftp

password: your_email_address

World Wide Web (WWW) Site for product info

address: www.moxa.com

www.moxa.com.tw

AboutThisManual

This manual is composed of six Chapters and one Appendix. This manual is written for installer, system

administrator and software programmer.

If you are a first-time installer and system administrator, we recommend you to go through the whole

manual except Chapter 4.

If you are a software programmer, you may refer to Chapter 4 “Serial Programming Tools”.

If you need cable wiring information, please see Chapter “Connection Option (Opt8x) and Cable

Wiring”.

If you encounter any problem during installation, please refer to Chapter “Troubleshooting”.

Chapter 1 Introduction

Overview and features of the C168P boards, list of items and overall installation guide.

Chapter 2 Hardware Installation

Hardware installation for the C168P boards and connection option (Opt8x) is detailed.

Chapter 3 Software Installation

This Chapter details the software installation, configuration, driver loading/unloading, driver

upgrade and removal for various operating systems: Windows NT, Windows 95/98, DOS.

Chapter 4 Serial Programming Tools

This Chapter roughly describes the programming tools for various O.S. platforms, including PComm

under Windows NT, Windows 95/98 and API-232 under DOS. Also RS-485 programming issue is

covered (for Opt8J).

Chapter 5 Connection Option (Opt8x) and Cable Wiring

This Chapter describes the RS-232/422/485 cable wiring for each connection option (Opt8x).

Chapter 6 Troubleshooting

This Chapter describes the problems and possible answers for C168P.

Appendix Technical Reference

Specification details, I/O port address map, and DB62 pinouts are described.

TableofContents

Introduction..................................................................... 1-1

Overview................................................................................................................1-1

Features.................................................................................................................1-4

Check List..............................................................................................................1-5

Installation Guide...................................................................................................1-8

Hardware Installation ...................................................... 2-1

Default Settings .....................................................................................................2-1

Quick Hardware Installation...................................................................................2-2

How to Do Quick Hardware Installation..........................................................................2-2

Hardware Installation with IO-IRQ Utility................................................................ 2-3

IO-IRQ Utility and Hardware Configuration....................................................................2-4

Software Installation ....................................................... 3-1

Windows NT ..........................................................................................................3-1

Installing Driver............................................................................................................. 3-2

Configuring Board and Port........................................................................................... 3-7

Updating Driver.............................................................................................................3-9

Removing Driver ...........................................................................................................3-9

Windows 95/98......................................................................................................3-9

Installing Driver........................................................................................................... 3-10

Configuring Board and Port......................................................................................... 3-14

Updating Driver...........................................................................................................3-15

Removing Driver .........................................................................................................3-16

DOS.....................................................................................................................3-17

Installing Driver........................................................................................................... 3-17

Driver Setup................................................................................................................ 3-18

Loading Driver................................ ............................................................................. 3-22

Unloading Driver..........................................................................................................3-23

Serial Programming Tools................................................ 4-1

Windows NT and Windows 95/98..........................................................................4-1

Installation..................................................................................................................... 4-1

PComm Programming Library .......................................................................................... 4-2

Utilities.......................................................................................................................... 4-2

DOS.......................................................................................................................4-6

Installation..................................................................................................................... 4-6

DOS API-232 Library.....................................................................................................4-6

Utilities.......................................................................................................................... 4-6

RS-485 Programming for Opt8J ............................................................................4-8

Connection Option (Opt8x) and Cable Wiring ........................ 5-1

RS-232 Cable Wiring for Opt8A/B/C/D/S............................................................... 5-1

RS-422 Cable Wiring for Opt8J/F/Z.......................................................................5-7

RS-485 Cable Wiring for Opt8J...........................................................................5-10

RS-422/485 Impedance Matching........................................................................5-11

Troubleshooting............................................................... 6-1

General Troubleshooting.......................................................................................6-1

Windows NT ..........................................................................................................6-4

Windows 95/98......................................................................................................6-5

DOS.......................................................................................................................6-6

Technical Reference........................................................A-1

Specifications.........................................................................................................A-1

PC I/O Port Address Map.......................................................................................A-3

DB62 Connector Pinouts .......................................................................................A-4

C168P User’s Manual 1-1

1 Introduction

Overview

The Standard Multiport Async Solutions

The standard C168P multiport boards offer 8 serial ports for connecting terminals,

modems, printers, data acquisition equipment and any other serial devices to the

PC/AT and its compatible systems.

The Smartio C168P is equipped with custom-designed ASIC chip which replaces

lots of conventional ICs and reduces the board to half-size. The whole family

supports 16 bit architecture. Full range of I/O addresses and IRQs are available. In

addition, with on-board EEPROM for storing the configuration data, the family is

designed without jumper or switch. These features make each port on the board truly

independent to any other port and thus compatible with most existing multiport

boards.

The C168 board is also available in PCI bus. Please contact MOXA

dealer/distributor or MOXA Web site for more details.

1-2 C168P User’s Manual

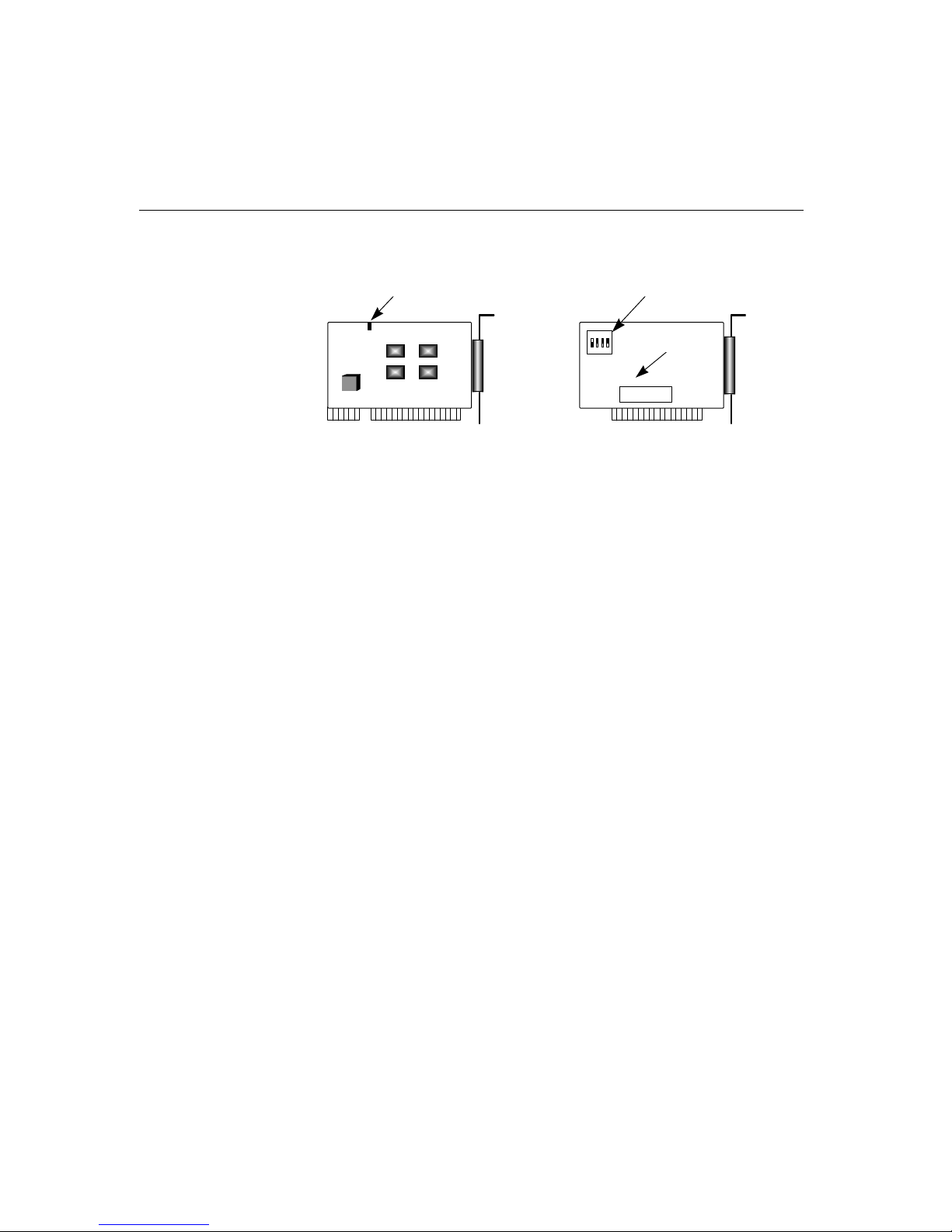

Hardware Configuration Method

SmartioFamily

JP1

Traditional

Multipoort Board

Jumper

1 2 3 4

Switch

.........

New : set I/O address Traditional : set switch and

and IRQ via software and jumper manually for

Utility. I/O address and IRQ.

Instead of using traditional jumper or switch for IRQ and I/O address settings,

hardware configuration of each port is easily set by DOS utility, Io-irq.exe, which

reads and writes the on-board EEPROM for configuration information through the

CAP (Configuration Access Port) address. The CAP address is the only channel

via which the configuration utility Io-irq.exe can access the board, which is identical

to the first port's base I/O address.

The only jumper, JP1, is designed in case that users forget the CAP address.

Normally JP1 is left open. When JP1 is short, the CAP address is forced to a fixed

I/O address, 0xA700. However, to adopt quick installation (described later), it is a

must to keep JP1 always short.

Quick Installation

To ease the hardware configuration, users who install only one C168P board under

Windows NT/95/98 are recommended to adopt quick installation described in

Chapter 2.

Because the family is so flexible in hardware configuration that they are compatible

virtually with all kinds of other manufacturer's multiport boards using 16450 or

16550 UART.

Introduction

C168P User’s Manual 1-3

Operating System Support

The family is operational under most popular operating systems such as Windows

NT, Windows 95/98, SCO UNIX/XENIX/OpenServer, DOS, Linux, QNX,

FreeBSD, etc. However, MOXA device drivers for Windows NT, Windows 95/98,

Linux and DOS are provided for easier installation, configuration and better

performance. In this manual, chapters for MOXA Windows NT,Windows 95/98

and DOS device drivers are included. For other compatible systems not mentioned,

please refer to the respective operating system’s manual for how to install and

configure the standard driver.

MOXA Serial Comm Tools

For easy application development, MOXA provides an easy-use serial

communication library under Windows NT/95/98 (PComm) and DOS (API-232).

Users can use this library to develop your own applications using Microsoft C,

Turbo C, Assembly, QuickBASIC, Turbo Pascal, Clipper, Visual Basic, Visual C++,

Borland Delphi, etc. Utilities, such as diagnostic and monitor, are included for

diagnosing the board/port or monitoring the communication status.

Wide Applications

The C168P is suitable for many applications. Here are a few:

lInternet/Intranet Connection

lRemote Access Application

lMulti-user Application

lIndustrial Automation

lOffice Automation

lTelecommunication

lPC-based (vending) Machine or Kiosk System

lPoint-of-Sale (POS) System

1-4 C168P User’s Manual

Features

vCustom-designed ASIC, compact board size (half-size)

vNo switch no jumper, easily configured by software

vIndependent I/O address, IRQ setting for each of 8 serial ports

v16 bit AT bus architecture, more IRQs supported

vIsolation protection for RS-422 (optional connection box Opt8F)

vPComm serial communication tool

vSupport popular OS¡ÐWindows NT, Windows 95/98, DOS, Linux

vCompatible with many other OS¡ÐQNX, SCO UNIX/OpenServer, SCO

XENIX, Free BSD

C168H/HS

Windows NT 3

Windows 95/98 3

DOS 3

Linux R

SCO UNIX/OpenServer C

QNX C

SCO XENIX C

FreeBSD C

3: Driver supported by Moxa and shipped with product

R : Driver supported by Moxa but sent by request

C : Driver supported by OS

Note: MOXA FTP site is available for driver download

Tabla de contenidos

Otros manuales de Hardware de computadora de Moxa Technologies

Moxa Technologies

Moxa Technologies CP-114UL Series Manual de usuario

Moxa Technologies

Moxa Technologies UPort 200A Series Manual de usuario

Moxa Technologies

Moxa Technologies Industio CP-114 Series CP-114 Series Manual de usuario

Moxa Technologies

Moxa Technologies V2201 Instrucciones de uso

Moxa Technologies

Moxa Technologies Smartio CP-168U Manual de usuario

Moxa Technologies

Moxa Technologies CP-102N-T Manual de usuario

Moxa Technologies

Moxa Technologies UC-8100 Series Manual de usuario

Moxa Technologies

Moxa Technologies CCG-1500 Series Manual de usuario

Moxa Technologies

Moxa Technologies VPort 66-2MP Series Manual de usuario

Moxa Technologies

Moxa Technologies NPort Server Lite DE-302 Manual de usuario

Moxa Technologies

Moxa Technologies C104P Manual de usuario

Moxa Technologies

Moxa Technologies Industio CI-132 Series Manual de usuario

Moxa Technologies

Moxa Technologies MPC-2101 Series Manual de usuario

Moxa Technologies

Moxa Technologies CSM-G200 Series Manual de usuario

Moxa Technologies

Moxa Technologies CP-602U-I-T Manual de usuario

Moxa Technologies

Moxa Technologies W315A Manual de usuario

Moxa Technologies

Moxa Technologies RKP-A110 Series Manual de usuario

Moxa Technologies

Moxa Technologies CP-118U Series Manual de usuario

Moxa Technologies

Moxa Technologies ioLogik 2500 Series Manual de usuario

Moxa Technologies

Moxa Technologies UC-7420-CE Manual de usuario

Moxa Technologies

Moxa Technologies CP-602U-I Manual de usuario

Moxa Technologies

Moxa Technologies CA-132/132I Manual de usuario

Moxa Technologies

Moxa Technologies Industio C114HI Manual de usuario

Moxa Technologies

Moxa Technologies Smartio CP-104UL Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
