Motic AE2000MET Manual de usuario

We are constantly endeavouring to improve our instruments and to adapt them to the requirements of

modern research techniques and testing methods. This involves modification to the mechanical

structure and optical design of our instruments.

Therefore, all descriptions and illustrations in this instruction manual, including all specifications are

subject to change without notice. Hereby, we deeply appreciate that you choose MOTIC instrument,

your satisfactions is our best payback!

CONTENT

1. NOMENCLATURE 4

1.1 Application 4

1.2 Nomenclature 5

1.3 Technical data 6

2. SETTING-UP THE INSTRUMENT 7

2.1 Working Environment 7

2.2 Input voltage and power 7

3. ASSEMBLING THE MICROSCOPE 9

3.1 Illumination (Halogen) 9

3.2 Installing the Lamp house 12

3.3 Installing the Objectives 14

3.4 Inserting the Eyepieces 14

3.5 Installing the Analyzer and Polarizer 15

3.6 Power cord 15

4. MICROSCOPE HANDLING 16

4.1 Interpupillary Distance Adjustment 16

4.2 Diopter Adjustment 16

4.3 Coarse and fine focusing 17

4.4 Coarse focus torque adjustment 17

4.5 Adjust the aperture diaphragm 18

4.6 Align up Field Diaphragm and Aperture Diaphragm 18

4.7 Use of Polariser and Analyser 19

4.8 Bright field Observation 20

4.9 Dark field Observation 20

4.10 Polarizing Observation 21

4.11 Brightness and Contrast Adjustment 21

4.12 Filter selection and installation way 21

4.13 Auto/ Off/ On switch function 22

4.14 Stage with Scale for movement reference 23

5. PHOTOMICROGRAPHIC PROCEDURE ( TRINOCULAR ONLY) 24

6. TROUBLESHOOTING TABLE 25

6.1 Optical and Operating Problems 25

6.2 Electrical 26

7. CARE AND MAINTENANCE 27

7.1 Lenses and Filters 27

7.2 Cleaning of Painted or Plastic Components 27

7.3 When Not in Use 27

7.4 Warning Label 28

1. NOMENCLATURE

1.1 Application

MOTIC AE2000MET BD series are dedicated to meeting the versatile observation/inspection on

irregular sample, large size sample and rigid sample on one microscope, such as metal part, materials,

minerals, die casting and precision mold, which are not observed/inspected under upright Microscope

conveniently for analysis and quality control purpose. And it is also cost saving due to the requirement-

less to sample making. Fit field includes automotive, aerospace, machinery, tooling fabrication and

iron&steel industry etc. industrial realm.

The overall optical performance of the AE2000MET series is superb and unique for projecting the real

micro world for you, via using a new generation of BD and BF metallurgical plan objectives be made of

high-quality glass and upgrade anti-reflex coating tech, whatever be used for analysis or quality control

in all industry.

1.2 Nomenclature

1.2.1 AE2000MET Trinocular left side view

(Fig.1)

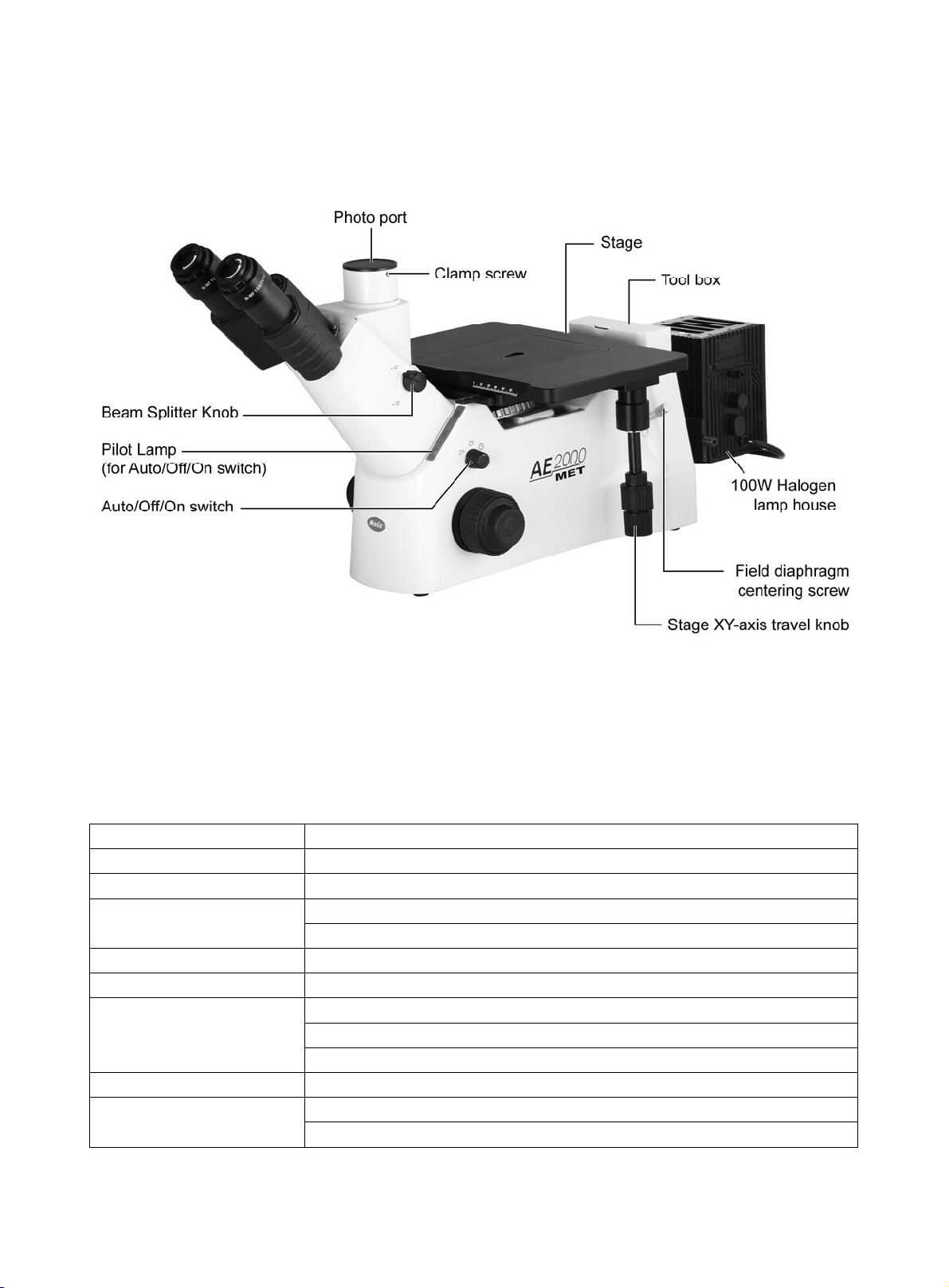

1.2.2 AE2000MET Trinocular right side view

(Fig.2)

Note: Please be aware the accessories are presented in above or following figure, such as:

Objectives, Illuminations, Polariser/Analyser, color filter etc., just for demonstration purpose of

operations, please contact your local vendor or seller for more details.

1.3 Technical data

Model AE2000MET

Optical System Color Corrected Infinity Optical System [CCIS®]

Eyepieces N-WF 10X/20mm, with diopter adjustment

Observation Tube Widefield binocular 45°

Widefield trinocular 45° - light distribution 20/80

Interpupillary Distance 48 ~ 75mm

Nosepiece Left side orientated, quintuple.

Focus

Coaxial system

Coarse focus with torque adjustment

Fine focus with 2μm minimum increment

Mechanical Stage 280X180mm surface; 50X50mm movement

Illumination 12V/50W halogen Koehler illumination

12V/100W halogen Koehler illumination

2. SETTING-UP THE INSTRUMENT

2.1 Working Environment

The location should be free from dust, moisture, chemical vapours and from mechanical vibrations.

Don't locate the instrument in bright or direct ambient light, in front of a lamp, or a will-lit bright wall. Best

image will be achieved without significant ambient light.

Environmental condition:

Indoor use

Altitude: Max 2000m

Ambient temperature: 5°C~ 40°C;

Maximum relative humidity: 80 % for temperatures up to 31 °C decreasing linearly to 50 % relative

humidity at 40°C

Supply voltage fluctuations: Not to exceed ±10% of the normal voltage

Pollution degree: 2

Installation/ Overvoltage category: 2 `

Air Pressure of 75kPa to 106kPa

2.2 Input voltage and power

Automatic voltage selection works with electrical outlets worldwide. It is advised to always use a power

cord that is rated for the voltage used in your area and that has been approved to meet local safety

standards. Using the wrong power cord could cause fire or equipment damage.

In order to prevent electric fluctuation to the instrument electrics, always turn the power switch on the

instrument off before connecting the power cord.

50W Halogen

Rating:

Power Adaptor Input: 100-240Vac, 50-60Hz, 1.6A

Main Unit Input: 15Vdc, 4.2A

Halogen Lamp Input: 12Vdc, 50W

Attention: The plug of the power adaptor is the "disconnect device" for whole unit. To save energy we

recommend to unplug the instrument when not in use.

The device is specified to connect to the following power adaptor:

SINPRO ELECTRONICS CO LTD, Model: IPU63-106

Input: 100-240Vac, 50-60Hz, 1.6A

100W Halogen

Rating:

Power Adaptor Input: 100-240Vac, 50-60Hz, 1.6A

Main Unit Input: 15Vdc, 4.2A

Halogen Lamp Input: 12Vdc, 100W

Attention: The plug of the power adaptor is the "disconnect device" for whole unit. To save energy we

recommend to unplug the instrument when not in use.

The device is specified to connect to the following power adaptor:

SINPRO ELECTRONICS CO LTD, Model: IPU63-106

Input: 100-240Vac, 50-60Hz, 1.6A

3. ASSEMBLING THE MICROSCOPE

3.1 Illumination (Halogen)

3.1.1 Halogen bulb

The quartz halogen bulb, used as a light source, has higher luminance and colour temperature than

conventional tungsten lamps. The luminance of halogen bulb is approximately four times brighter than

the conventional tungsten lamps.

As long as the lamp voltage is kept constant, the halogen lamp maintains the same level of brightness

and colour temperature regardless of whether it is new or nearing the end of its life span.

3.1.2 Installing the bulb

In order to prevent electric shock please always make sure the power switch in “off” position and

unplug the power cord before installing or replacing the lamp.

The bulb and the lamphouse become very hot during and after a period of operation.

Risk of burn – Do not touch the bulb during or immediately after a period of operation.

Make sure the bulb has cooled sufficiently before attempting to replace the lamp.

50W Halogen

The applicable halogen bulbs are the 12V 50W HAL high-intensity bulb.

(Osram, model: 64610 HLX)

Loosen clamp screw of the lamp housing cover using a coin/ tool and remove the cover. (Fig.3-1)

When installing the bulb, do not touch the glass surface of the bulb with bare fingers.

The behaviour may contaminate the bulb by fingerprints, grease, etc., so as to influence the

illumination intensity and flatness finally. If the surface is contaminated, wipe it clean with lens

tissue.

Firmly insert the bulb into the socket pinholes until it reaches the limited position (Fig.3-2). Be

serious do not tilt or bend the lead of the bulb when mounting. (Fig.3-3) or the behaviour may lead

to illumination uneven.

Mount back the lamp house cover and fix the lamp housing cover with clamp screw. (Fig.3-4)
