Motic BA310Met Manual de usuario
1
We are constantly endeavouring to improve our instruments and to adapt them to the requirements of
modern research techniques and testing methods. This involves modification to the mechanical
structure and optical design of our instruments.
Therefore, all descriptions and illustrations in this instruction manual, including all specifications are
subject to change without notice.
2
INFINITY OPTICAL SYSTEM
An optical configuration (in which the specimen is located at the front focal plane of the objective)
gathers light transmitted through or reflected from the central portion of the specimen and produces a
parallel bundle of rays projected along the optical axis of the microscope toward the tube lens.
A portion of the light reaching the objective originates from the periphery of the specimen, and enters
the optical system at oblique angles, moving forward diagonally but still in parallel bundles toward the
tube lens. All of the light gathered by the tube lens is then focused at the intermediate image plane, and
subsequently enlarged by the eyepiece.
The real merit of the infinity based system lies in its ability to accommodate modular accessories in the
optical path and produce a flexible design.
3
TABLE OF CONTENTS
Section Page
I. DESCRIPTION 5
1. Application 5
2. Nomenclature 6
2.1 BA310Met 6
2.2 BA310Met-T 7
2.3 Epi Illuminator 8
II. SETTING UP THE INSTRUMENT 9
1. Operating environment 9
III. ASSEMBLING THE MICROSCOPE 9
1. Input voltage 9
2. Illumination 10
3. Stage 10
4. Objectives 10
5. Condenser for BA310Met-T 11
6. Eyepiece Tube 11
7. Eyepieces 11
8. Epi Illuminator 11
9. Filters for Epi Illuminator 12
10. Filters for transmitted illumination 12
11. Power Cord 13
IV. MICROSCOPY 14
1. Illumination Brightness Adjustment 14
2. Coarse and Fine Focusing 14
3. Coarse Focus Torque Adjustment 15
4. Coarse focus quick stop 15
5. Beam splitter lever 16
6. Interpupillary Distance Adjustment 16
7. Diopter Adjustment 16
8. Polariser and Analyser of Epi-illuminator Using 17
4
9. Field Diaphragm of Epi-illuminator Centering 17
10. Aperture Diaphragm of Epi-illuminator Using 18
11. Centering the condenser for BA310Met-T 19
12. Use of aperture diaphragm for BA310Met-T 19
13. Use of field diaphragm for BA310Met-T 20
14. Brightness and Contrast Adjustment 20
V. PHOTOMICROGRAPHIC PROCEDURE 21
VI. TROUBLESHOOTING TABLE 22
Optical 22
Electrical 23
VII. CARE AND MAINTENANCE 24
1. Do not disassemble 24
2. Cleaning the Microscope 24
A. Lenses and filters 24
B. Cleaning of painted or plastic components 24
3. Bulb Replacement 25
A. 12V/ 50W Halogen 25
B. 12V/ 3W LED Module 26
C. 6V/ 30W Halogen 26
D. 6V/ 3W LED Module 27
4. Disinfecting the Microscope 28
5. When not in use 28
VIII. WARNING LABELS 29
5
I. DESCRIPTION
1. Application:
The Motic BA310Met and BA310Met-T are suitable for use in all areas of research and industry
observing opaque material, e.g. in
a. Metallography
b. Mineralogy
c. Mechanical engineering
d. Electronics
Except bright field observation, BA310Met and BA310Met-T are also used for polarized light
observation. BA310Met and BA310Met-T can be installed with digital camera, video camera for
photomicrography.
6

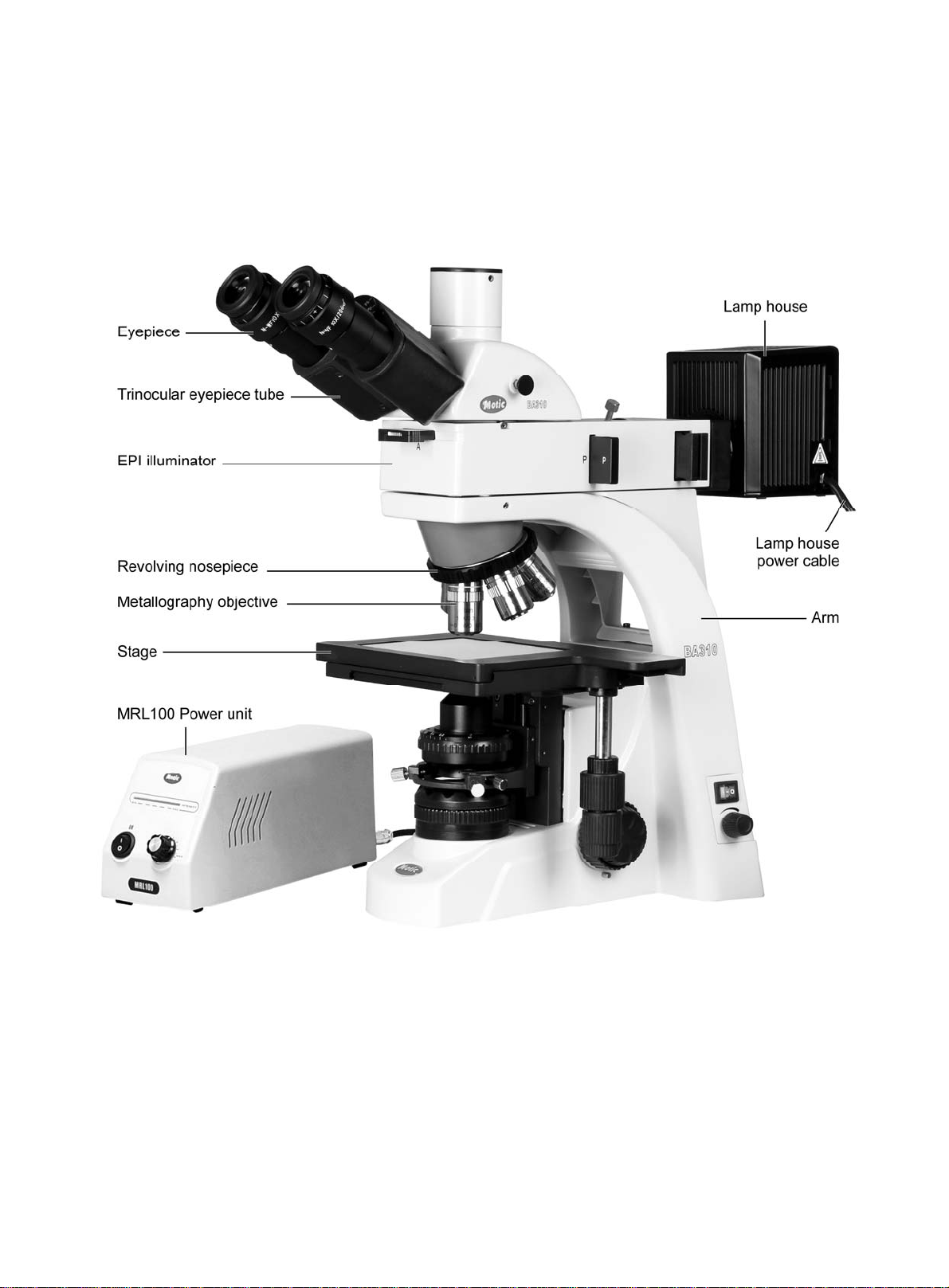

2. Nomenclature
2.1 BA310Met
7
2.2 BA310Met-T
8
2.3 Epi Illuminator
9
II. SETTING UP THE INSTRUMENT
Avoid placing the instrument in locations exposed to direct sunlight, dust, vibration, high
temperature, high humidity and where it is difficult to unplug the power supply cord.
1. Operating environment
Indoor use
Altitude: Max 2000 meters
Ambient temperature: 5°C to 40°C
Maximum relative humidity: 75% for temperature up to 31°C decreasing linearly to 50% relative
humidity at 40°C
Supply voltage fluctuations: Not to exceed ±10% of the normal voltage.
Pollution degree: 2 (in according with IEC60664)
Installation / Overvoltage category: 2 (in according with IEC60664)
Air pressure of 75kPa to 106kPa
No hoar frost, dew, percolating water, rain
III. ASSEMBLING THE MICROSCOPE
1. Input voltage
The automatic voltage selection works with a broad range of settings. However, always use a
power cord that is rated for the voltage used in your area and that has been approved to meet local
safety standards. Using the wrong power cord could cause fire or equipment damage.
In case of using the extension cord, use only a power supply cord with a protective earth (PE) wire.
In order to prevent electric shock, always turn the power switch on the power supply off before
connecting the power cord.
