Monoprice Blackbird 33418 Manual de usuario
Blackbird 4K 4x1 HDMI® Switch
P/N 33418
User's Manual
2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to these
safety warnings and guidelines. Please keep this manual in a safe place for future reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not touch the device or any connected cables with wet hands.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
3
INTRODUCTION
This Blackbird™ 4K 4x1 HDMI® Switch features four HDMI video inputs and a single HDMI
video output. It is compatible with the HDMI 2.0 and HDCP 2.2 specifications and supports
video resolutions up to 4K@60Hz 4:4:4, as well as High Dynamic Range (HDR) video. It
requires no AC power adapter as it draws all necessary power from the HDMI connections.
FEATURES
Compliant with the HDMI® 2.0 and HDCP 2.2 specifications
Supports video resolutions up to 4K@60Hz 4:4:4
18 Gbps video bandwidth
Supports High Dynamic Range (HDR) video
Supports the Consumer Electronics Control (CEC) pass-through feature
Requires no external power source
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
4
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x Blackbird™ 4K HDMI® 4x1 Switch
1x Velcro® tape
1x User's manual
PRODUCT OVERVIEW
Front Panel
1. SOURCE: Press the button to switch between the four inputs.
2. HDMI OUT: HDMI® connector for connecting the video display.
3. 1-2-3-4: The LEDs illuminate to indicate which of the four inputs is active.
Rear Panel
1. HDMI IN 1-4: HDMI connectors for connecting the video source devices.
123
1
5

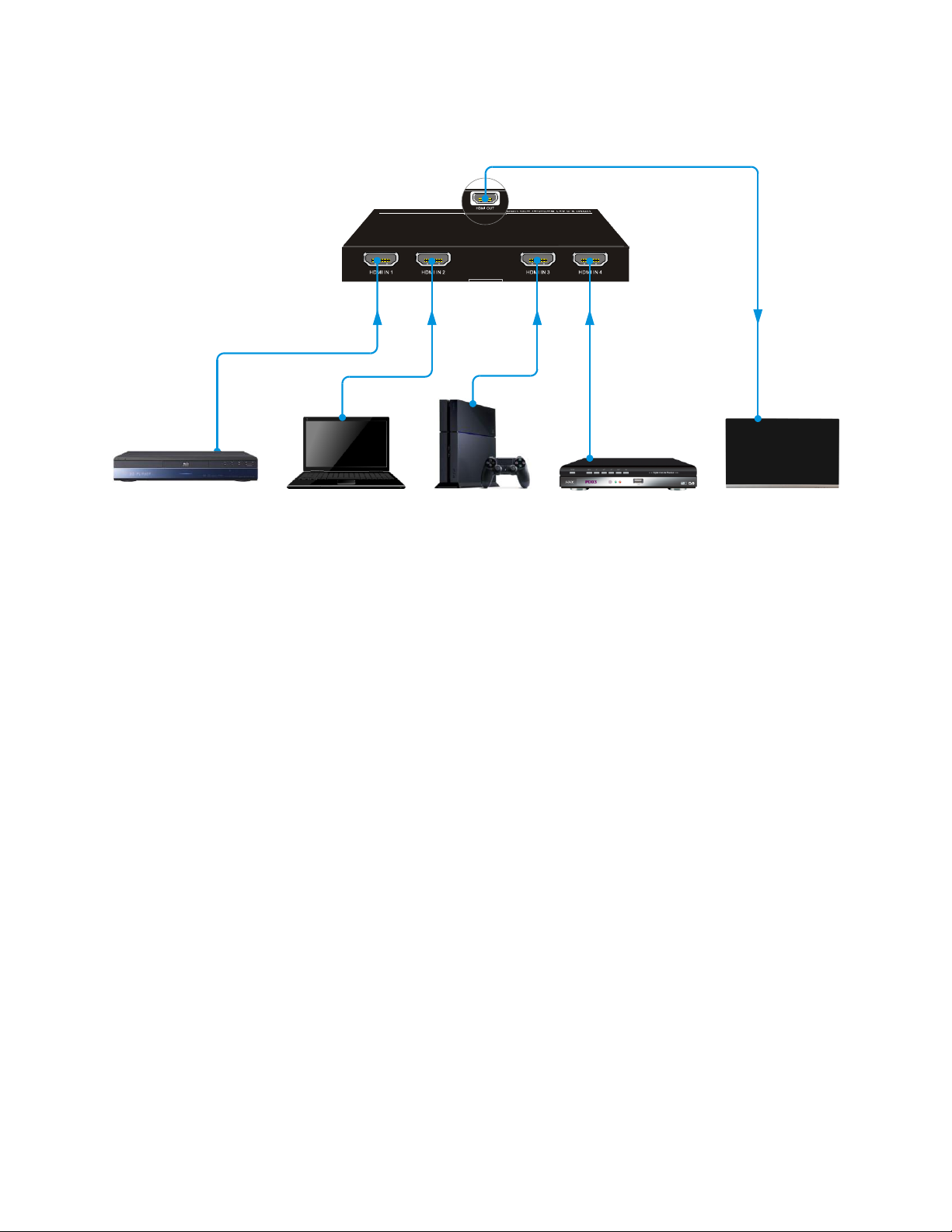

SAMPLE CONNECTION DIAGRAM
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to tech@monoprice.com
Game Console STB
Laptop HDTV
Blu-Ray
6
SPECIFICATIONS
Model
33418
Video Inputs
4x HDMI®
Video Outputs
1x HDMI
HDMI Version
2.0
HDCP Version
2.2
Maximum Video Resolution
4K@60Hz 4:4:4
Video Bandwidth
18 Gbps
Maximum Power Consumption
90 mW
Operating Temperature
+14 ~ +131°F (-10 ~ +55°C)
Storage Temperature
-13 ~ +158°F (-25 ~ +70°C)
Relative Humidity
10 ~ 90% RH, non-condensing
Dimensions
5.0" x 0.6" x 2.2" (126 x 16 x 55 mm)
Weight
6.5 oz. (185 g)
Blackbird™ is a trademark of Monoprice Inc.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
VELCRO® is a registered trademark of Velcro Industries B.V.
Blu-ray Disc™ and Blu-ray™ are trademarks of the Blu-ray Disc Association.
