ML Accessories AXREMC Manual de instrucciones

INSTALLATION & MAINTENANCE MANUAL

AXREMC

AXREMC REMOTE CONTROL PROGRAMMER

• Insert 2 x AAA batteries (not included)

• Adjust sensor settings as required (see Fig. 1)

• The sensor remote has a maximum range of 15m

These instructions should be read carefully and retained after installation by the

end user for future reference and maintenance.

These instructions should be used to aid installation of the following products:

AXREMC

Note: To change the settings on the optional AXSMOD microwave sensor module, the

AXREMC remote controller is required.

GENERAL INSTRUCTIONS

This product should be recycled in the

correct manner when it reaches the

end of its life. Check local authorities

for where facilities exist.

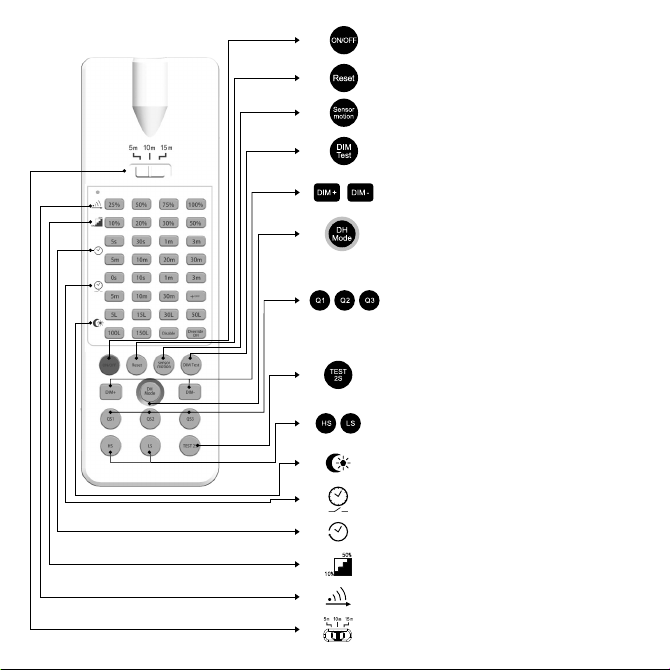

Fig. 1

BUTTON FUNCTION

Press the “ON/OFF” button, the light goes to constant on/off mode, sensor is

disabled. Press “Reset” or “Sensor motion” button to quit from this mode and the

sensor starts to work

Press “Reset” button, all parameters are same as setting of DIP switch or factory

settings.

Press “Sensor motion” button, the light quits from the constant on/off mode, and

the sensor starts to work (The latest setting stays in validity)

Press “DIM Test” button, the 1-10 V dimming works to test whether the 1-10Vdc

dimming ports are connected properly. After 2s, it returns to the latest setting

automatically.

Short press “DIM+ / DIM-“ button to transmit dimming signal. The brightness of

the lamp adjusts at 5% per unit.

(only apply for sensor with daylight harvesting function)

Long press>3s, sensor will take current light level as target lux level, to dim up/

down load automatically according to the change of ambient light level. (only

apply for sensor with daylight harvesting function)

Note: Detection area / Hold time / Stand-by period / Stand-by dim level /

Daylight sensor can be adjusted by pressing the corresponding button. The latest

setting will stay valid.

Press the “TEST 2S” button can enter the test mode anytime. At the mode, the

sensor parameters as below: Detection Area is 100%, Hold Time is 2s, Stand-by

Dim Level is 10%, Stand-by Period is 0s, daylight sensor disable. This function

only for testing. Quit the mode by pressing “RESET” or any other functions

buttons.

Scene

Options

Detection

Area

Hold time Stand-by

period

Stand-by

dim level

Daylight

Sensor

Induction

model

QS1 100% 30S 1min 10% 5Lux Hs

QS2 100% 1min 3min 10% 10Lux Hs

QS3 100% 5min 10min 10% 30Lux Hs

This product has a warranty of 5 years from date of purchase, Improper use, or removal

of the batch code will invalidate the warranty. If this product should fail within its warranty

period, it should be returned to the place of purchase for a free of charge replacement.

ML Accessories does not accept responsibility for any installation costs associated with the

replacement product. Your statutory rights are not affected. ML Accessories reserve the right

to alter product speciﬁcation without prior notice.

WARRANTY

BUTTON FUNCTION

Press “HS” button to set the detection area to be high sensitive. Press “LS”

button to set the detection area to be low sensitive. The adjustment bases on the

“Detection Area” parameter you set.

Daylight Sensor

Set up daylight threshold:

5Lux/ 15Lux/ 30Lux/ 50Lux/ 100Lux/ 150Lux/ Disable

Stand-by period

Set up stand-by time: 0S/ 10S/ 1min/ 3min/ 5min/ 10min/ 30min/ +∞

Hold time

Set up hold time: 5S/ 30S/ 1min/ 3min/ 5min/ 10min/ 20min/ 30min

Stand-by dim level

Set up stand-by dim level: 10%/ 20%/ 30%/ 50%

Detection Area

Set up detection area: 25%/ 50%/ 75%/ 100%

Remote Distance

Toggle bottom can set the remote distance of remote control and sensor.

AKAPR22_V1

142

Supplied By:

(UK) Manufacturer

ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road,

Dunstable LU5 4LT, www.mlaccessories.co.uk

(EU) Authorised Representative

nnuks Holding GmbH, Niederkasseler Lohweg 18, 40547

Düsseldorf, Germany

Email: [email protected]om

** Product designed for indoor use only
