JV400-SUV / SUJV-160 Daily Care

With a view to using this machine in a better condition, please be sure to the following daily care after at the end of the

daily work. Please refer to “Daily care manual” for the detail.

Cleaning of around the heads

Cleaning of the station

Perform [HEAD MAINT.], move the carriage to the

maintenance position and open the left maintenance cover.

(1) Press the key in LOCAL.

(2) Press the key.

(3) Press to select [HEAD MAINT.].

(4) Press the key.

(5) Open the left maintenance cover.

2. Wipe off the ink of around the head and groove with clean stick or waste cloth dipped in

maintenance liquid 07.

3. Close the left maintenance cover.

4. Press , complete the cleaning.

Perform [STATION MAINT.], move the carriage to the

maintenance position and open the right maintenance cover.

(1) Press the key in LOCAL.

(2) Press the key.

(3) Press to select [STATION MAINT.].

(4) Press the key.

(5) Open the right maintenance cover.

Left maintenance

cover

MAINT.

[Before cleaning] [After cleaning]

The nozzle part (Never

touch it.)

Clean with a clean stick.

• When you clean, fully be careful not to touch the nozzle surface.

• When you leave during maintenance (or cleaning), please make sure to complete the

cleaning by pressing key. Without completing the cleaning, the nozzle part is left

uncovered and then outside light makes the ink cure, which causes nozzle clogging or the

like.

Right maintenance

cover

MAINT.

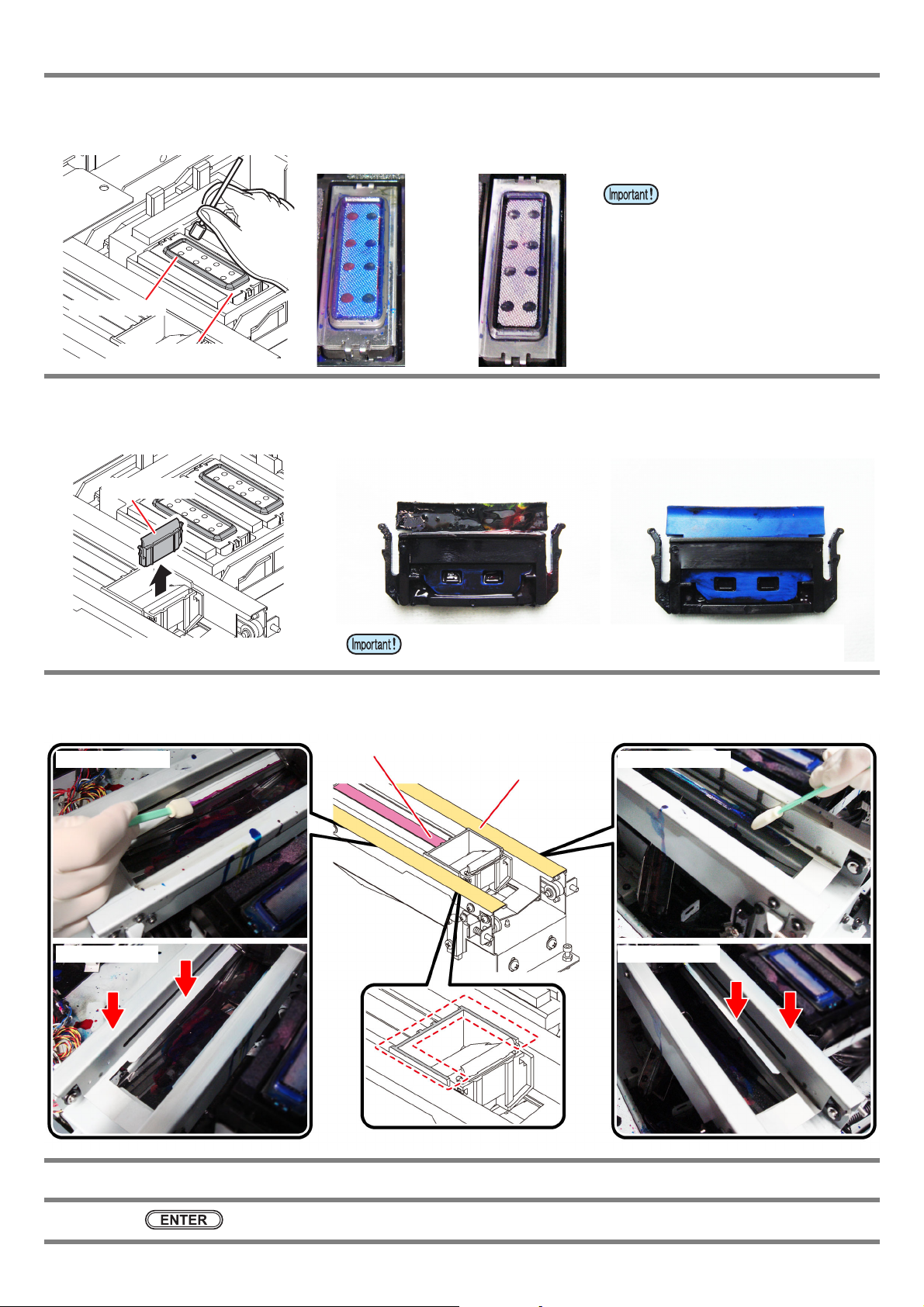

Cleaning of the cap

Wipe off the ink of the cap rubber and cap cover with clean stick or waste cloth dipped in maintenance liquid

07.

Cleaning of the wiper

Wipe off the ink of the wiper and bracket with clean stick or waste cloth dipped in maintenance liquid 07.

Cleaning of around the wiper

Wipe off around the wiper with clean stick dipped in maintenance liquid 07.

2. Close the right maintenance cover.

3. Press , complete the cleaning.

[Before cleaning] [After cleaning]

Cap rubber

• Do not clean the mesh inside

the cap.

Execute “DISWAY WASH”

regularly (about once a

week) to clean the mesh

inside the cap.

(Refer to

"Operation Manual" chapter4)

Cap cover *SUJV-160 has a different cap shape.

Wiper

[Before cleaning] [After cleaning]

• After cleaning, make sure the edge of the wiper is horizontal.

[Before cleaning]

[After cleaning ]

[Before cleaning]

[After cleaning ]

Edges of the wiper slider

Wiper guide upper portions

Wiper guide portions one level below
