Roland TrueVIS VG-640 Manual del propietario

Supplemental Explanations

(Corresponds to rmware version 1.60 or later)

Read This before Starting to Assemble the Product

Thank you very much for purchasing the VG-640/VG-540.

There are a number of supplemental points that need to be added and corrections that need to be made to the

instruction manuals included with the product. We ask that you read the information in this manual and use it in

place of the corresponding locations in the instruction manuals.

Manual name Aected page Title Page in this

manual

Setup Guide

P. 4 2. Included Items P. 2

P. 15 Step 5 : Adjusting the Ink Tube and Axing a Label

(Only When Using Four Colors) P. 2

P. 19 to P. 25 Step 8 : Ink Filling P. 3

USER’S MANUAL

P. 83, etc. (Precaution When Detaching the Drain Bottle) P. 11

P. 15 Main Menu P. 11

P. 57 Step 6 : Starting Output P. 12

P. 67 Out-of-ink Warnings P. 13

P. 86 Timing of Print Head Care and Maintenance P. 13, P. 15

P. 89 Manual Cleaning P. 14

New addition Damper Cleaning P. 16

P. 97 Super Cleaning P. 19

P. 170 to P. 175 Procedure from Preparing to Move to Reinstallation P. 21

P. 191 to P. 192 A Message Appears P. 22

P. 193 to P. 196 An Error Message Appears P. 22

P. 202 Specications P. 24

R2-160617

Company names and product names are trademarks or registered trademarks

of their respective holders.

Thank you very much for purchasing this product.

• To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read

through this manual completely and store it in a safe location.

• Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.

• The specications of this product and the contents of this manual are subject to change without notice.

• This manual and the product have been prepared and tested as much as possible. If you nd any misprints or

errors, please inform Roland DG Corp.

• Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur through use

of this product, regardless of any failure to perform on the part of this product.

• Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur with respect

to any article made using this product.

Contents........................................................................................................1

Additions and Changes to the Setup Guide ..................................................2

Addition: 2. Included Items (P. 4).................................................................................................2

Change: Adjusting the Ink Tube and Axing a Label (P. 15) ............................................ 2

Change: Ink Filling (P. 19 to P. 25)................................................................................................ 3

Additions and Changes to the User's Manual ............................................. 11

Addition: Precaution When Detaching the Drain Bottle (P. 83, etc.) ............................11

Addition: Main Menu (P. 14 to P. 17).........................................................................................11

Addition: Starting Output (P. 57)...............................................................................................12

Addition: Out-of-ink Warnings (P. 67)......................................................................................13

Change: When to Perform Manual Cleaning (P. 86 and P. 89).........................................13

Addition and Change: Damper Cleaning (P. 86, P. 96, and P. 97) ...................................15

Addition: Procedure from Preparing to Move to Reinstallation (P. 170 to P. 175) ...21

Addition: A Message Appears (P. 191 to P. 192)...................................................................22

Addition: An Error Message Appears (P. 193 to P. 196)......................................................22

Addition and Correction: Specications (P. 202) .................................................................24

Contents

Addition: 2. Included Items (P. 4)

The following included item has been added.

Included item

Cartridge-slot label (for white; 1)

* With the factory default settings, this label is axed to the platen at the location where the

front cover opens.

Change: Adjusting the Ink Tube and Afxing a Label (P. 15)

The title on P. 15 has been changed from "Step 5: Adjusting the Ink Tube and Afxing a Label

(Only When Using Four Colors)" to "Step 5: Adjusting the Ink Tube and Afxing a Label (When

Using Eight or Four Colors)" and the details have been changed as shown below.

Step 5:

Adjusting the Ink Tube and Afxing a Label (When Using Eight or Four Colors)

Adjusting the ink tube

This work is required when using the machine with four colors (CMYK). This work must be per-

formed by a suitably qualied service technician. Never attempt to perform this work yourself.

* If you are using this machine with eight colors (CMYKLcLmLkW), only perform the work

under "Axing a label."

* If you are using the machine with seven colors (CMYKLcLmLk), proceed to "Step 6: Con-

necting the Cables."

CAUTION Leave this work to a suitably qualied worker.

This procedure includes work near sources of electrical danger and

complex assembly work. Incorrect work may result in injury and

mechanical malfunction.

Afxing a label

This work is required when using the machine with eight colors (CMYKLcLmLkW) or with four

colors (CMYK).

Items used in this procedure

Included

item

CMYKLcLmLkW Cartridge-slot label (for white)

CMYK Cartridge-slot label (for four colors)

Additions and Changes to the Setup Guide

Change: Ink Filling (P. 19 to P. 25)

Details have been changed for the procedure on P. 19 to P. 25 so that eight colors (CMYKLcLm-

LkW) can be selected. Replace the information on P. 19 to P. 25 with that shown below.

Step 8: Ink Filling

IMPORTANT

First use cleaning liquid to clean the print heads, and then ll the printer with each color of ink.

• Be sure to use new TR cleaning liquid pouches and ink pouches.

• Never, under any circumstances, use anything other than the specied type of ink or cleaning liquid.

• The TR cleaning liquid pouches (2) that are included with the machine are used on P. 20, "2.

Clean the print heads using TR cleaning liquid."

• You must purchase the TR cleaning liquid pouch to be used on P. 24, "4. Fill the machine with TR

cleaning liquid." separately. Purchase them from your authorized Roland DG Corp. dealer.

Items used in this procedure

Included item TR cleaning liquid pouches (2)

Items purchased separately Ink pouches (each color), TR cleaning liquid pouch (1)

1. Select the ink type.

A Press [ ] or [ ] to select the ink type, and then press [ENTER].

SELECT INK TYPE

TrueVIS LkW

SELECT INK TYPE

TrueVIS 7C

SELECT INK TYPE

TrueVIS 4C

Name to select

Cyan (C)

Magenta (M)

Yellow (Y)

Black (K)

Light cyan (Lc)

Light magenta (Lm)

Light black (Lk)

White (W)

TrueVIS LkW   

TrueVIS 7C  

TrueVIS 4C 

B Press [ ] or [ ] to select [YES], and then press [ENTER].

TrueVIS LkW

[YES] NO

TrueVIS 7C

[YES] NO

TrueVIS 4C

[YES] NO

If the ink type is incorrect, select [NO], and then press [ENTER] to start again from step A.

Additions and Changes to the Setup Guide

C Make sure the drain bottle is installed, and then press [ENTER].

P. 13, "Step 3: Installing the Drain Bottle"

INSTALL

DRAIN BOTTLE

The screen shown below appears, and then the machine starts the preparations for

the ink lling. The (approximate) remaining time for the procedure is displayed on the

screen. (The display shown below is an example. "20:00" = "20 minutes and 00 seconds")

FILLING INK...

>>>>> 20:00

MEMO

If the screen shown below appears here, pouch trays remain in the ink slots or in the

cleaning liquid slot. Remove all the pouch trays.

REMOVE CARTRIDGE

12345678

2. Clean the print heads using TR cleaning liquid.

A Set the TR cleaning liquid pouch in the pouch tray.

Hook

Check that the hook has caught.

Additions and Changes to the Setup Guide

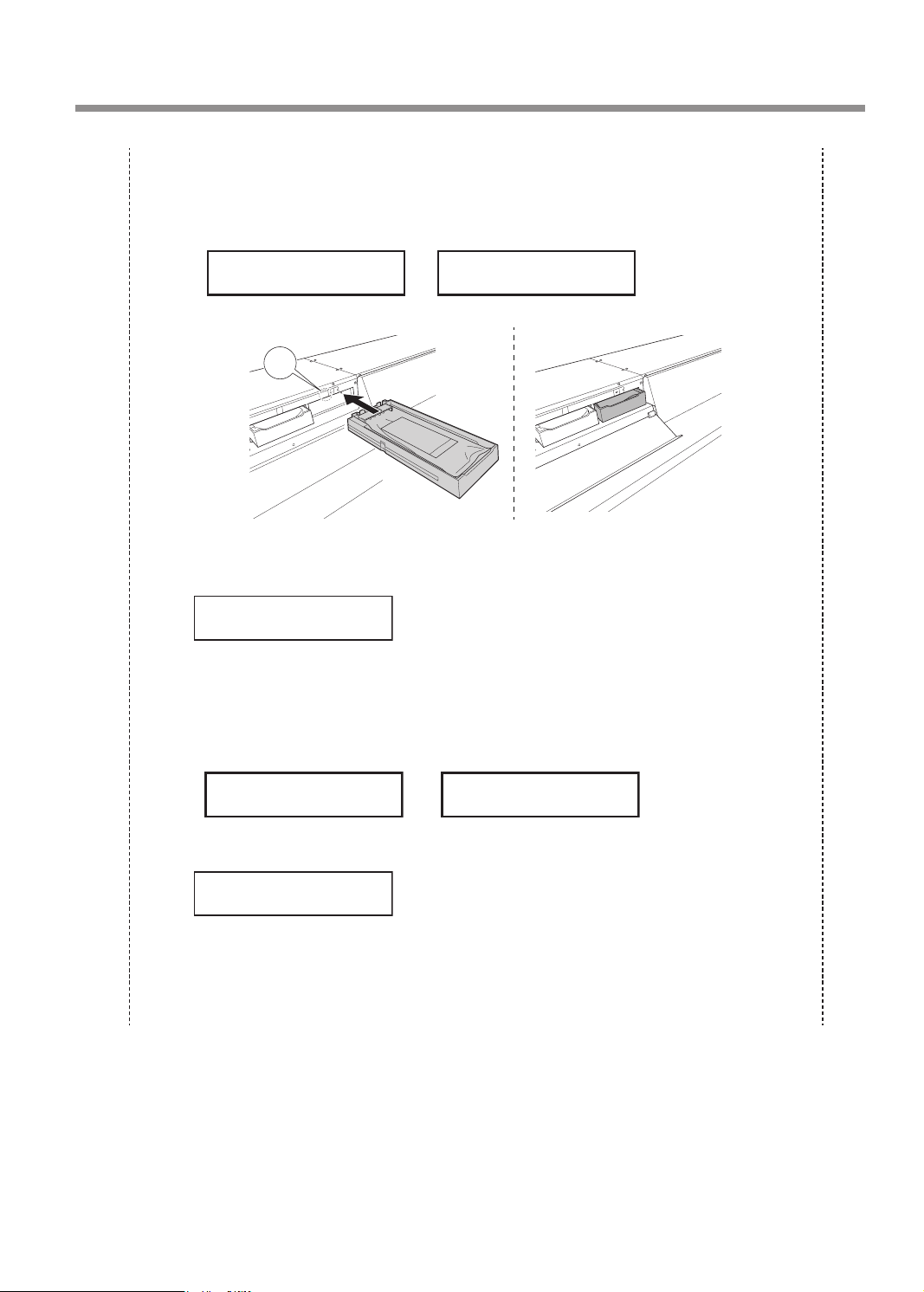

B When the screen shown below appears, set the pouch tray in which you have

set the TR cleaning liquid pouch in the slot whose number is displayed.

8 colors (CMYKLcLmLkW)

7 colors (CMYKLcLmLk) 4 colors (CMYK)

SET CL-LIQUID

1 3

* The illustration shows the setting of the pouch tray when eight or seven colors are used.

The screen shown below appears.

FILLING INK...

>>>>> XX:XX

C When the screen shown below appears, remove the pouch tray from the slot

whose number is displayed.

8 colors (CMYKLcLmLkW)

7 colors (CMYKLcLmLk) 4 colors (CMYK)

REMOVE CL-LIQUID

1 3

The screen shown below appears.

FILLING INK...

>>>>> XX:XX

Hereafter, the screens shown in steps Band Care repeated.

When you repeat the "SET" and "REMOVE" operations multiple times, the ashing slot

number changes. Follow the instructions on the screen to repeat the "SET" and "REMOVE"

operations for the pouch tray whose slot number is ashing.

Additions and Changes to the Setup Guide

MEMO

• When setting the pouch tray: When the pouch tray is set correctly, the

number stops ashing and remains lit.

SET CL-LIQUID

Flashing Lit

• When removing the pouch tray: When the pouch tray is removed correctly,

the number stops ashing and turns off.

SET CL-LIQUID

Flashing Off

D If the following message is displayed partway through the operation, remove

the drain bottle and discard the discharged uid.

EMPTY

DRAIN BOTTLE

IMPORTANT

When you remove the drain bottle, a few drops of discharged uid may come out of the machine.

Exercise caution to prevent this uid from soiling your hands or the oor.

CAUTION

Before you detach the drain bottle, be sure to wait for the screen

to display [EMPTY DRAIN BOTTLE]. After discarding the dis-

charged uid, promptly attach the drain bottle to the machine.

Failing to follow this procedure may cause discharged uid to ow

out of the machine and spill, soiling your hands or the oor.

WARNING Never place discharged uid or ink near an open ame.

Doing so may cause a re.

CAUTION To store discharged uid temporarily, place it in the included

drain bottle or in a durable sealed container such as a metal

can or polyethylene tank, and cap the container tightly.

Any spillage or vapor leakage may cause a re, an odor, or physical distress.

Dispose of discharged uid properly, in accordance with the laws in effect in your locale.

Discharged uid is ammable and contains toxic ingredients. Never attempt to incinerate dis-

charged uid or discard it with ordinary trash. Also, do not dispose of uid in sewer systems, rivers,

or streams. Doing so may have an adverse impact on the environment.

Additions and Changes to the Setup Guide

E Quickly attach the emptied drain bottle to the machine once more.

F Press [ENTER].

G Follow the instructions on the screen to repeat the "SET" and "REMOVE"

operations for the pouch tray whose slot number is ashing.

3. Fill the machine with ink.

A When the screen shown below appears, remove the drain bottle and discard

the discharged uid.

EMPTY

DRAIN BOTTLE

IMPORTANT

When you remove the drain bottle, a few drops of discharged uid may come out of the machine.

Exercise caution to prevent this uid from soiling your hands or the oor.

CAUTION

Before you detach the drain bottle, be sure to wait for the screen

to display [EMPTY DRAIN BOTTLE]. After discarding the dis-

charged uid, promptly attach the drain bottle to the machine.

Failing to follow this procedure may cause discharged uid to ow

out of the machine and spill, soiling your hands or the oor.

WARNING Never place discharged uid or ink near an open ame.

Doing so may cause a re.

CAUTION To store discharged uid temporarily, place it in the included

drain bottle or in a durable sealed container such as a metal

can or polyethylene tank, and cap the container tightly.

Any spillage or vapor leakage may cause a re, an odor, or physical

distress.

B Quickly attach the emptied drain bottle to the machine once more.

C Press [ENTER].

Additions and Changes to the Setup Guide

D Set the ink pouch for each color and the TR cleaning liquid pouch (separately

purchased item) in the pouch trays.

Also use the two pouch trays that you used in step 2. Remove the TR cleaning liquid

pouch, and then insert the ink pouch.

Hook

Check that the hook has caught.

E Gently shake the ink pouch for each color. Shake the white ink pouch 50

times (for around 20 seconds).

If ink components precipitate, it will not be possible to print with correct colors. So that

the ink mixes well, shake the pouch tray horizontally with a stroke length of 5 cm (2 in.)

from each end of the pouch tray.

IMPORTANT

• Do not remove the ink pouches. Shake the entire pouch tray. Removing the ink pouches

may lead to the ink leaking.

• Before shaking, wipe o any ink from around the mouth of the ink pouch. If you do not

wipe o the ink, it may splatter when you shake the pouch tray.

Otros manuales para TrueVIS VG-640

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Trazador de Roland

Roland

Roland CX-300 Manual

Roland

Roland VersaUv LEF - 12i Manual de usuario

Roland

Roland DXY-1300 Manual de instalación

Roland

Roland LEF-300 Manual de usuario

Roland

Roland GX-24 Manual de usuario

Roland

Roland VersaUV LEF-200 Instrucciones de operación

Roland

Roland VersaCamm VP-540 Manual de operación y mantenimiento

Roland

Roland LEC-300 Manual de usuario

Roland

Roland Camm-1 CX-24/12 Manual de usuario

Roland

Roland soljet pro4 xf 640 Manual de usuario

Roland

Roland DXY-800 Manual de usuario

Roland

Roland VS-640i Manual de operación y mantenimiento

Roland

Roland PNS-401 Manual de usuario

Roland

Roland SF-200 Manual de usuario

Roland

Roland VersaEXPRESS RF-640 Manual de usuario

Roland

Roland VersaCamm SP-540V Manual de usuario

Roland

Roland LEC-300 Manual de usuario

Roland

Roland SP-300 Manual de usuario

Roland

Roland VS-640 Manual de operación y mantenimiento

Roland

Roland SOLJET Pro 4 XR-640 Manual de usuario

Roland

Roland CX-500 Manual de usuario

Roland

Roland SOLJET PRO4 XF-640 Manual de usuario

Roland

Roland VersaStudio BN-20 Manual de usuario

Roland

Roland DPX-3300 Manual de usuario

Manuales populares de Trazador de otras marcas

MUTOH

MUTOH Kona 760 Manual de usuario

HP 7475a Manual de usuario

Vulcan-Hart

Vulcan-Hart FC-500VC Manual de usuario

Furuno

Furuno RP-180 Manual de usuario

MIMAKI

MIMAKI CF2 Series Manual de usuario

Ioline

Ioline Summit Manual de usuario

Summa

Summa S CLASS Manual de usuario

Gerber Technology

Gerber Technology GERBERplotter MP Series Manual de usuario

Furuno

Furuno RP-17 Manual de usuario

HP 7470A Manual de usuario

SII

SII LP-1010 Manual de usuario

Great Computer

Great Computer JII-61 Manual de usuario

Lectra

Lectra Alys 120 Manual de usuario

MUTOH

MUTOH Ultima SC-850D Manual de usuario

Skycut

Skycut D Series Manual de usuario

Commodore

Commodore 1520 Manual de usuario

Esko

Esko Kongsberg XE Manual de usuario

MUTOH

MUTOH Blizzard Manual de usuario
