MIMAKI JV3 Series Manual de usuario

Inkjet plotter JV3 series

Request for daily care

Inkjet plotter is the precision machine that has highly delicate mechanism. Especially, little dust and paper

powder may have effect on a head nozzle, and may not perform normal printing.

To use the inkjet plotter in good condition, we recommend the following daily care.

CAUTION

1) JV3 is the plotter using the organic solvent ink. Wear supplied goggles and gloves during daily

care.

2) In case water or alcohol mixed into the organic solvent ink, flocculation occurs. Be sure to not

adhere water or alcohol on the nozzle, near the head, the cap, and wiper.

3) When not using this plotter for a long time, it is necessary to flash little ink periodically to obtain

the ink flashing stability.

When not using for a long time, perform the [CUSTODY wash] function (Operation manual

Chapter5) and turn off the front power switch. The main power switch at rear should be on (The

“on” mark described as a vertical line “ | ” on the switch) and also keep the socket inserted.

• Do not disassemble this plotter. It causes an electric shock, fire, and damages.

•Be sure to not water into the inside of this plotter. If the inside gets wet, it causes

an electric shock, fire, and damages.

•Before start the daily care, turn off the power supply, and disconnect an electric

cable.

It causes unexpected accident.

•Do not use benzine, thinner, and the chemicals contained abrasives. The surface

of the cover may be deteriorated or deformed.

•Do not apply lube oil on the inside of this plotter. The plotter mechanism may be

damaged.

1. Installation environment

•Use this plotter in clean (less dust) environment. The use of fan and ventilator might be a cause of dust brow up.

•To use the organic solvent ink, install this plotter in a well-ventilated area.

•This plotter should be used at 20 to 35oC and 35 to 65%Rh. Avoid using at lower or higher than this temperature

and humidity.

D201103-12

2. Daily care

Around heads

Dust accumulates most around heads mostly, and it effects the operation and printing results for this plotter,

and also as this plotter has very delicate mechanism, need enough attention to the care for it. Gelled ink and

dust adhere to the bottom of a slider and around heads, scour off it using a cotton bud. Do not touch the head

nozzle.

Around heads contaminated Clean with a cotton bud

Capping station ( Operation manual Chapter3 “Cleaning the wiper and ink caps”)

Around the cap is also the place dust accumulates. Clean to prevent dust adhering to the heads.

• When using SS ink or SS2 ink or TS ink : Cleaning fluid RS (SPC-0336)

• When using MS2 ink or ES3 ink or Eco-HS1 ink : Cleaning fluid MS2 (SPC-0369)

Ink cap Guide of wipe Inside of the wiper cover

Wiper ( Operation manual Chapter3 “Cleaning the wiper and ink caps”)

Ink and paper powder accumulate on the wiper. Confirm the condition, and clean it if it's dirty. In case it

deformed, replace to the new one. ( Operation manual Chapter5 “When the message [REPLACE WIPER]

is displayed )

Dirty wiper Deformed wiper

Metal paper guide

If cut media waste and dust adhered between metal paper guide and platen, can not perform media feeding

and printing normally. Clean this place often.

Metal paper guide Metal paper guide with dust

Media sensor ( Operation manual Chapter3 “Cleaning the media sensor”)

In case dust and ink adhered to the media sensor, it causes detecting on error. Wipe out dust and ink with a

soft cloth.

Y main shaft

When Y main shaft is dirty or slider does not move smoothly, apply Y main shaft oil (SPC-0364).

Before apply the oil, wipe out the dust on the Y main shaft with a soft cloth. We recommended cleaning and

applying oil once a month.

Platen ( Operation manual Chapter3 “Cleaning the platen”)

Dust and paper powder easily adhered to the platen. Clean it frequently.

Wipe a platen and its cover with a soft brush or a dried cloth. When cleaning a platen, clean well the groove

for a media paper guide and the one for media cut (cutter line) etc where easily accumulate the dust.

Outer case ( Operation manual Chapter3 “Maintenance for frame components”)

According to the working environment, the dust and cloud of dust may be adhered. Wring a soft cloth firmly

after wetting it with water and wipe out the dust to prevent the head moving part from dust.

Waste ink tank ( Operation manual Chapter3 “When the waste ink tank become full”))

Check the waste ink tank level to prevent overflow.

3. Storage of media

Media should be stored in the little dust area, and not in direct sunlight. Avoid storing the media in the area

with high temperature and high humidity.

4. Storage of ink cartridge

Store the ink cartridge in no direct sunlight, and no high hu-

midity.

As it's a delicate product, do not drop it.

The board on an ink cartridge (right picture) should not be

contaminated and discharged static electricity.

5. The examples of defective printing

These following examples indicate improper head (nozzle) firing by dust, which effect printing.

Confirm the nozzle condition periodically before or during outputting not to use in such as this condition.

The nozzle condition can be confirmed with [TEST plotting] in this plotter. ( Operation manual Chapter2

“ Checking and solving nozzle clogging”)

Deflection Nozzle out

Ink dropping Satellite

6. How to recover improper nozzle flashing

When not using this plotter for a long time or according to environmental temperature, nozzle flashing may

become unstable. In this case, follow the procedure below to recover nozzle.

1) Daily care

Execute daily care all parts noted on this manual.

2) Normal cleaning ( Operation manual Chapter2 “Checking and solving nozzle clogging”)

Execute normal cleaning along the operation manual after executed daily care.

Repeat cleaning and test printing, then confirm the nozzle clogging resolved.

3) Hard cleaning ( Operation manual Chapter2 “Checking and solving nozzle clogging”)

If nozzle clogging cannot be solved even executed normal cleaning several times, change the cleaning

mode to hard cleaning, and execute the same procedures.

4) Nozzle cleaning ( Operation manual Chapter3 “Cleaning the nozzle [NOZZLE WASH]”)

In case nozzle clogging or other problems can not be cleared away after all these procedures, execute

nozzle cleaning.

The execute cleaning and test printing for one minute

5) Nozzle cleaning ( Operation manual Chapter3 “Cleaning the nozzle [NOZZLE WASH]”)

In case nozzle clogging is not solved with nozzle cleaning above-mentioned, set the TIME to leave 5 min-

utes, and execute nozzle cleaning and test printing again.

In case nozzle clogging is not resolved with all these procedures, contact with our customer service or make

service call to the agency you purchased.

7. Supplies

• Cleaning wiper kit (SPA-0116)

•Cleaning fluid RS (SPC-0336)

•MS2 kit (SPC-0369)

•Ymain shaft oil (SPC-0364)

Memo

D201103-12-20062008 IT

Otros manuales para JV3 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Trazador de MIMAKI

MIMAKI

MIMAKI JV3-75SPII Manual de usuario

MIMAKI

MIMAKI JV33 Series Instrucciones de montaje

MIMAKI

MIMAKI JFX200-2513EX Manual de mantenimiento

MIMAKI

MIMAKI CG-60SL Manual de usuario

MIMAKI

MIMAKI CFL-605RT Instrucciones de instalación

MIMAKI

MIMAKI CF22-1225 Manual de usuario

MIMAKI

MIMAKI GP-604D Manual de usuario

MIMAKI

MIMAKI CF22-1225 Instrucciones de instalación

MIMAKI

MIMAKI CG-60SL Instrucciones de montaje

MIMAKI

MIMAKI Tx400 Manual de usuario

MIMAKI

MIMAKI UCJV300 Guía de inicio rápido

MIMAKI

MIMAKI DM2-1810 Manual de usuario

MIMAKI

MIMAKI TPC-1000 Instrucciones de instalación

MIMAKI

MIMAKI APC-130 Manual de usuario

MIMAKI

MIMAKI CG-FX SERIES Manual de usuario

MIMAKI

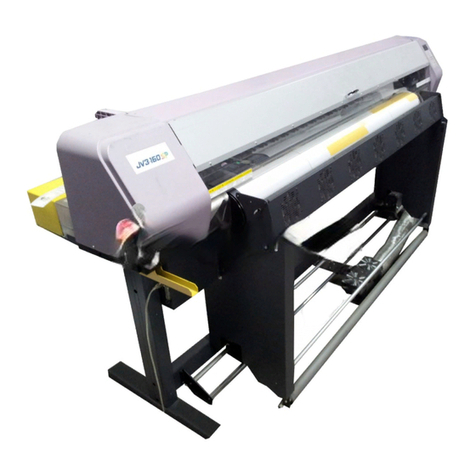

MIMAKI JV3-160SP Manual de usuario
