MiLAN MIL-S8TA Manual de usuario

MIL-S8TA

8-Port 10/100/1000 BASE-T

Unmanaged Switch

User Guide

Rev. A1

2006-09-25

Regulatory Approval

- FCC Class A

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du

Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive

(73/23/EEC) issued by the Commission of the European Community Compliance with these directives imply

conformity to the following European Norms:

EN55022 (CISPR 22) - Radio Frequency Interference

EN61000-X - Electromagnetic Immunity

EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

Transition Networks warrants to the original consumer or purchaser that each of it's products,

and all components thereof, will be free from defects in material and/or workmanship for a

period of five years from the original factory shipment date. Any warranty hereunder is

extended to the original consumer or purchaser and is not assignable.

Transition Networks makes no express or implied warranties including, but not limited to, any

implied warranty of merchantability or fitness for a particular purpose, except as expressly set

forth in this warranty. In no event shall Transition Networks be liable for incidental or

consequential damages, costs, or expenses arising out of or in connection with the

performance of the product delivered hereunder. Transition Networks will in no case cover

damages arising out of the product being used in a negligent fashion or manner.

Trademarks

The MiLAN logo and Transition Networks trademarks are registered trademarks of Transition Networks in

the United States and/or other countries.

To Contact Transition Networks

For prompt response when calling for service information, have the following information ready:

- Product serial number and revision

- Date of purchase

- Vendor or place of purchase

You can reach Transition Networks technical support at:

E-mail: [email protected]

Telephone: +1.800.260.1312 x 200

Fax: +1.952.941.2322

Transition Networks

6475 City West Parkway

Eden Prairie, MN 55344

United States of America

Telephone: +1.800.526.9267

Fax: : +1.952.941.2322

http://www.milan.com

info@ Transition.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a

class A device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

commercial installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with

instructions, may cause harmful interference on radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference, in which case, the user will be requires to correct the

interference at the user’s own expense.

Content

Introduction................................................................. 1

Features .....................................................................................................1

Package Contents ......................................................................................2

Hardware Description................................................. 3

Physical Dimensions ..................................................................................3

Front Panel.................................................................................................3

LEDs Indicators..........................................................................................3

Rear Panel .................................................................................................4

Installation................................................................... 6

Attaching Rubber Feet ...............................................................................6

Mounting on the Wall..................................................................................6

Power On ...................................................................................................7

Technical Specification.............................................. 8

Introduction

The 8-port 10/100/1000BASE-T Switch with Auto MDI/MDIX is an

unmanaged multi-port Switch that can be used to build high-performance

switched networks. This switch is a store-and-forward device that offers

low latency for high-speed networking. The Switch is designed for the core

of the network backbone computing environment to solve traffic block

problems at SME (small, medium enterprise) businesses.

The 8-port 10/100/1000BASE-T Switch features a “store-and-forward”

switching technology. This allows the switch to auto-learn and store source

addresses in an 8K-entry MAC address table.

Features

Conforms to IEEE 802.3, 802.3u, 802.3ab and 802.3x

8 Gigabit copper SOHO switch, compact size with universal internal

power

Auto-MDIX on all ports

16 Gbps back-plane

N-Way Auto-Negotiation

8K MAC address table

Back pressure half duplex

Flow control full duplex

Store-and-Forward switching architecture

144Kbytes memory buffer

True non-blocking switching

Support 8Kbytes Jumbo Frame

Package Contents

Unpack the contents of the switch and verify them against the checklist

below.

8-port Switch



Power Cord.



User Guide.

8-port Switch

Power Cord User manual

Package Content

Compare the contents of your switch package with the standard checklist

above. If any item is missing or damaged, please contact your local dealer

for service.

Hardware Description

Physical Dimensions

The physical dimensions of the Switch is 165mm x 100mm x 32.5 mm (L

x W x H)

Front Panel

The front panel of the 8-Port Gigabit switch consists of LED-indicators

(100/1000, Link/Activity, Full duplex/Collision) for each Gigabit port and

power LED-indicator for unit.

RJ-45 Ports (Auto MDI/MDIX): 8 10/100/1000 N-way auto-sensing for

10Base-T, 100Base-TX or 1000Base-T connections. (In general, MDI

means connecting to another Hub or Switch while MDIX means connecting

to a workstation or PC. Therefore, Auto MDI/MDIX allows you to connect

to another Switch or workstation without changing to non-crossover or

crossover cabling.)

LEDs Indicators

The LED Indicators gives real-time information of systematic operation

status. The following table provides descriptions of LED status and their

meaning.

LED Status Description

Green Power On

Power

Off Power is not connected

Green The port is operating at the speed of

1000Mbps.

Orange The port is operating at the speed of

100Mbps.

100/1000

Off No device attached or in 10Mbps mode

Green The port is connecting with the device.

Blinking The port is receiving or transmitting data.

LNK/ACT

Off No device attached.

Orange The port is operating in Full-duplex mode.

Blinking Packet collision occurred on this port.

FDX/COL

Off No device attached or in half-duplex

mode.

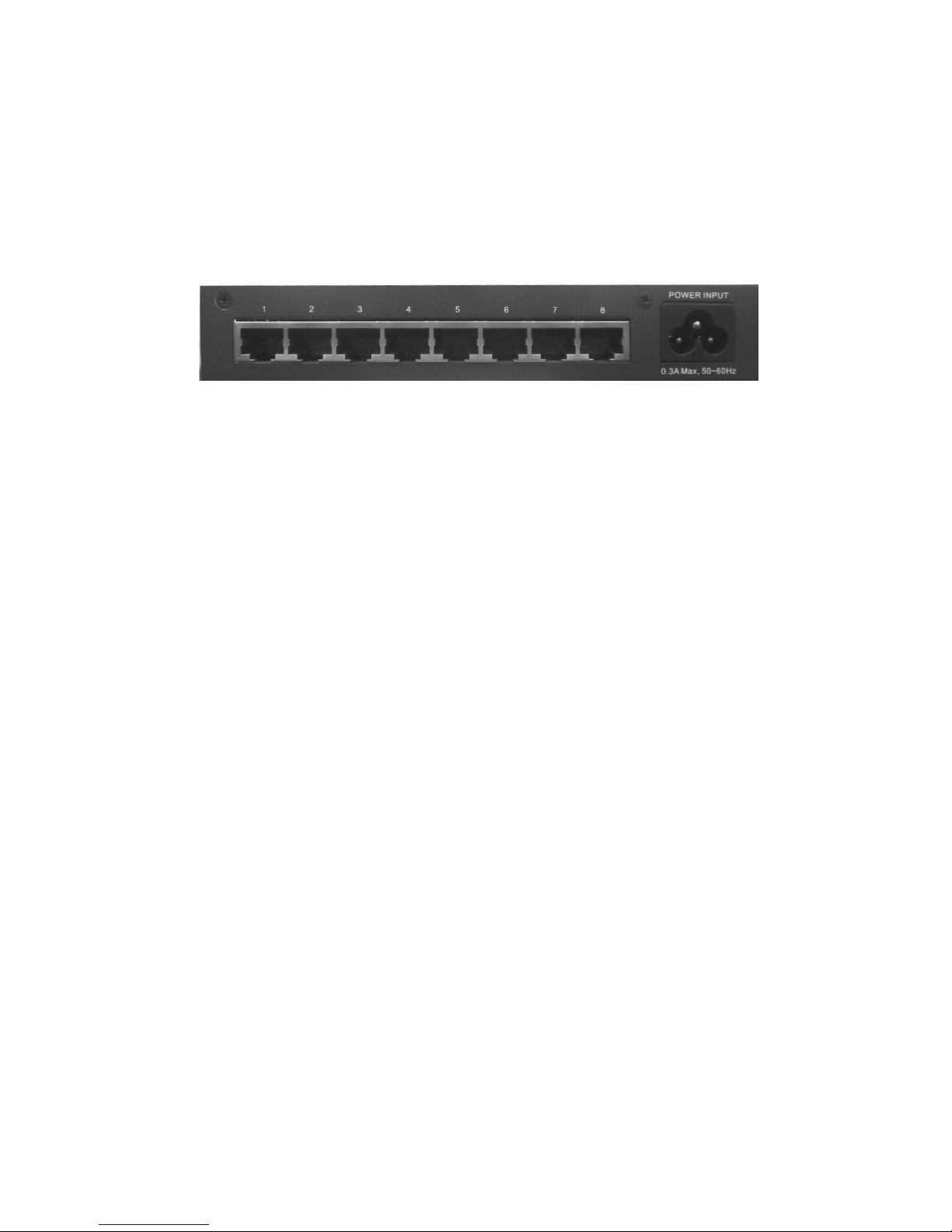

Rear Panel

The rear panel of the 8-port Gigabit Switch consists of 8 auto-negotiation

10/100/1000Mbps Ethernet RJ-45 connectors (support Automatic

MDI/MDIX function).

RJ-45 Ports (Auto MDI/MDIX): 8 port auto-negotiation 10/100/1000

Mbps Ethernet RJ-45 connectors

[Auto MDI/MDIX means that you can connect to another Switch or

workstation without changing non-crossover or crossover cabling.]

Installation

This section shows the installation procedures of the switch.

Set the Switch on a sufficiently large flat space with a power outlet nearby.

The surface where you put your Switch should be clean, smooth, level, and

sturdy. Make sure there is enough clearance around the Switch to allow

attachment of cables, power cord and air circulation.

Attaching Rubber Feet

A. Make sure mounting surface on the bottom of the Switch is grease and

dust free.

B. Remove adhesive backing from your Rubber Feet.

C. Apply the Rubber Feet to each corner on the bottom of the Switch.

These footpads can prevent the Switch from shock/vibration.

Mounting on the Wall

The switch can be mounted on the wall. The switch has two wallmount

brackets included in the package.

Using the cross hook hole at the bottom

of the switch to mount the switch on the

wall
