MiLAN MIL-S1600 Manual de usuario
MIL-S1600
16 port Ethernet 10/100 Mbps Switch
User’s Guide
With optional 100FX Modules ---
SC, ST, MTRJ and VF-45 connectors
Regulatory Approval
- FCC Class A
- UL 1950
- CSA C22.2 No. 950
- EN60950
- CE - EN55022 Class A
- EN55024
Canadian EMI Notice
This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du
Canada.
European Notice
Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive
(73/23/EEC) issued by the Commission of the European Community Compliance with these directives imply
conformity to the following European Norms:
- EN55022 (CISPR 22) - Radio Frequency Interference
-EN61000-X - Electromagnetic Immunity
-EN60950 (IEC950) - Product Safety
Five-Year Limited Warranty
MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and
all components thereof, will be free from defects in material and/or workmanship for a
period of five years from the original factory shipment date. Any warranty hereunder is
extended to theoriginal consumer or purchaser and is not assignable.
MiLAN Technology makes no express or implied warranties including, but not limited to, any
implied warranty of merchantability or fitness for a particular purpose, except as expressly set
forth in this warranty. In no event shall MiLAN Technology be liable for incidental or
consequential damages, costs, or expenses arising out of or in connection with the
performance of the product delivered hereunder. MiLAN Technology will in no case cover damages
arising out of the product being used in a negligent fashion or manner.
Trademarks
© 2000 MiLAN, the MiLAN logo and MiLAN Technology are either trademarks or registered
trademarks of Digi International, Inc. in the United States and/or other countries. All other
trademarks are the property of their respective holders.
To Contact MiLAN Technology
For prompt response when calling for service information, have the following information ready:
- Product serial number and revision
- Date of purchase
- Vendor or place of purchase
You can reach MiLAN Technology technical support at:
E-mail: [email protected]
Telephone: +1.408.744.2751
Fax: +1.408.744.2771
MiLAN Technology
1299 Orleans Drive
Sunnyvale, CA 94089-1138
United States of America
Telephone: +1.408.744.2775
Fax: +1.408.744.2793
http://www.milan.com
info @ milan.com
© Copyright 2001 MiLAN Technology
P/N 90000386_A
Contents
1. Introduction…….…………….…………….……….…… 1
Features …………………………………………..…..…….……..2
Package Contents ………………………..…..……….………... .3
2. Hardware Description ………………..….…..…...…… 4
Front Panel ………………………………………...…...………… 4
LED Indicators …………………………………………………… 5
Real Panel …………………………………………….………….. 6
Desktop Installation ……………………….…….……………….. 6
Rack-mounted Installation …...…………….…………………… 7
3. Optional Fiber Modules ……………..……….……… 9
Front Panel …………………………………...…...….….…..… 10
Features/ Specifications …………….………………..….……. 11
Installing 100FX Module ………………………………………. 12
4. Network Application .………………………………… 13
Small Workgroup ………………………………….......……..… 13
Segment Bridge …………….……………..…………..….……. 14
VLAN Application …………………….…………………………. 15
5. Network Configuration .……………..……………..….. 16
Connecting a Terminal or PC to the Console port ...………… 17
Port Setup …………………………..………….. 18
SPEED/Duplex Setup ………………………….…...………… 19
VLAN Setup ……………………………………………...……… 20
Trunk Setup ……………………………………………...…… 21
6. Technical Specification .………………………....….. 23
1.
Introduction
The MIL-S1600 is a 16 port 10/100Base-TX switch that can be used to
build high-performance switched networks. The store-and-forward
architecture offers low latency for high-speed networking for workgroups
or departments in any business.
Figure 1-1. The MIL-S1600 switch
The MIL-S1600 has 16 auto-sensing 10/100Base-TX Ethernet RJ-45
ports plus one extension slot for an optional one port 100Base-FX fiber
module enabling long-distance connectivity. The optional fiber modules
support single mode and multi-mode connectors to provide a way to
connect remote sites up to 2 Km (multi-mode) or 15 to 60Km (single-
mode). Automatic MDI/MDIX enables connection to another switch or
workstation without changing cabling.
The MIL-S1600 is basically an unmanaged switch but it does supports a
few basic management functions using the console port. The switch does
not support SNMP or an IP address. The console management functions
include trunking, VLANs and port configuration.
1
Features
•Conforms to IEEE 802.3, 802.3u, and 802.3x Ethernet Standards
•Auto-negotiation for the 10/100Base-TX ports
•Automatic MDI/MDIX crossover for each 10Base-T/ 100Base-TX port
•One Extension Slot for 100Mbps Fiber
•Backpressure for Half-duplex mode, and Flow control for Full-duplex
•Store-and-forward switching architecture
•8K-entry MAC address table and automatic address learning
•4M memory buffer sharing
•Console port for limited management support
•Non-blocking full wire speed at 3.6 Gbps
•LED-indicators for power, trunking, speed, activity, duplex
•Standard 19-inch Rackmount size, 1 Ru high
2
Package Contents
Unpack the contents of the MIL-S1600 and verify them against the
checklist below.
nMIL-S1600 Switch
nPower Cord
nFour Rubber Feet
nConsole Cable
nUser Guide
nRack Mount Ears
If any item list above is missing or damaged, please contact your local dealer
for service.
Figure 1-2. Package Contents
3
2.
Hardware Description
Front Panel
The Front Panel of the MIL-S1600 consists of 16 auto-sensing 10/100Base-
TX Ethernet RJ-45 ports, a console port, and an extension slot for a 100Base-
FX Fiber Module. The LED Indicators are also located on the front panel of
the switch.
Figure 2-1. The Front panel of the MIL-S1600
Note : MDI/MDIX allows you to connect to another switch or workstation
without regard to cabling type.
Console Port: The limited management functions are configured
through the Console Port. It requires a direct connection between the
switch and a PC with the provided console cable.
100FX Module ( Optional ) : There are 5 types of one port
100Mbps Fiber Modules available for the MIL-S1600. The connectors for
the 100FX Module are SC, ST, MT-RJ, VF-45 for multi-mode and SC in
single-mode. Using multi-mode fiber cabling the network can be extended
up to 2 kilometers. The distance for extending the network with single-
mode fiber cabling is 15 to 60 kilometers. For more information see
Section 3 on Optional Modules.
4
LED Indicators
The LED Indicators give real-time information on operational status. The
following table provides descriptions
of LED status and their meaning.
Figure 2-2. LED indicators
LED Status Description
Green Power On
Power Off Power is not connected
Green This switch is trunking into another MIL-S1600, MIL-SM801 or
MIL-SM800 switch
Trunking
Off No trunking, which is the default
Green The port is operating at the speed of 100Mbps
100M Off No device attached or in 10Mbps mode
Green The port has link established with a device
Blinks The port is receiving or transmitting data
LK/ACT
Off No device attached.
Yellow The port is operating in Full-duplex mode.
Blinks A collision is occurring on the port.
FD/COL
Off No device attached or in half-duplex mode
Table 2-1. Description of LED Indicators
5

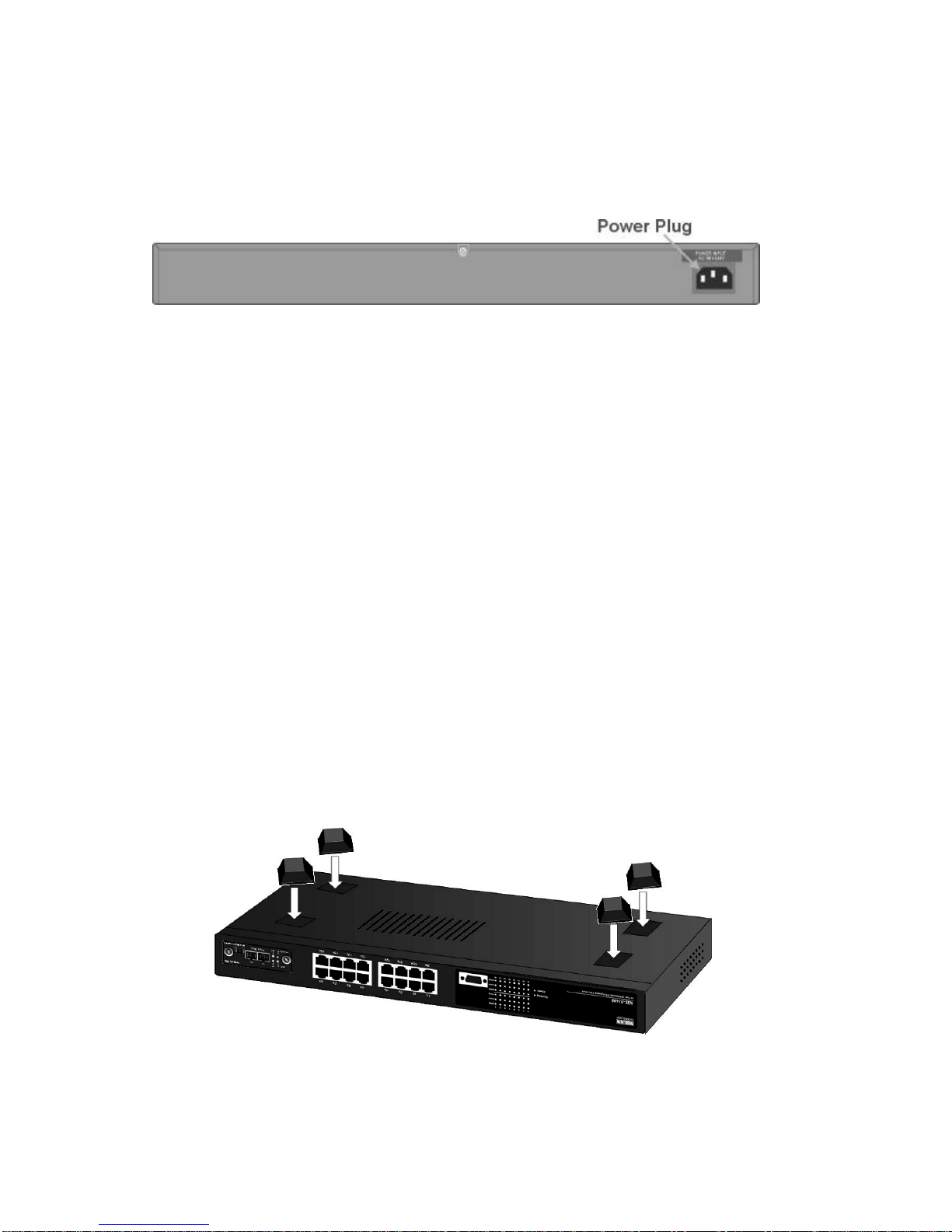

Rear Panel
The 3-pronged power plug is located at the rear panel of the MIL-S1600
as shown in Figure 2-2. The switch has autosensing power in the range
of 100-240V AC, 50-60Hz.
Figure 2-2. The Rear Panel
Desktop Installation
Set the switch on a sufficiently large flat space with a power outlet
nearby. The surface where you put your switch should be clean, smooth,
level and sturdy.
Make sure there is enough clearance around the switch to allow
attachment of cables, power cord and to allow air circulation.
Attaching Rubber Feet
A. Make sure mounting surface on the bottom of the switch is grease
and dust free.
B. Remove adhesive backing from the rubber feet.
C. Apply the rubber feet to each corner on the bottom of the switch.
These footpads can prevent the switch from being affected by shock
or vibration.
Figure 2-4. Attaching Rubber Feet to each corner on the bottom of the switch
6
Rack-mounted Installation
A rack-mounting kit is provided with the MIL-S1600 and the switch can be
mounted in an EIA standard size 19-inch rack allowing it to be placed in a
wiring closet.
Perform the following steps to rack mount the switch:
A. Position one bracket to align with the holes on one side of the switch and
secure it with the smaller bracket screws. Then attach the remaining
bracket to the other side of the switch.
Figure 2-5. Attach mounting brackets with screws
B. After attaching both mounting brackets, position the MIL-S1600 in the rack
by lining up the holes in the brackets with the appropriate holes on the
rack. Secure the switch to the rack using rack-mounting screws.
7
