MikroTik RouterBOARD Series Manual de usuario

See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 1-Aug-2011

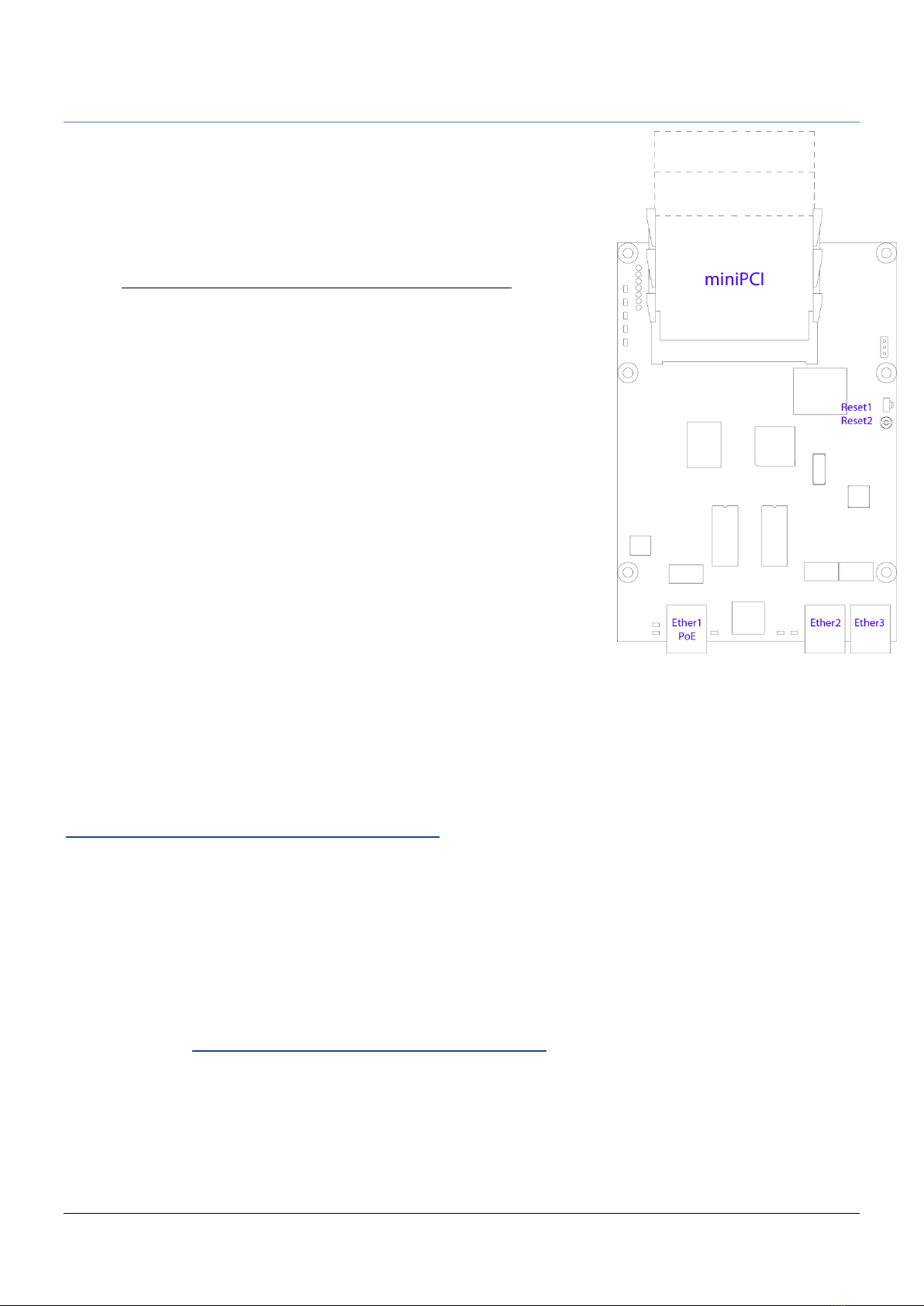

RouterBOARD 433L

Quick Setup Guide and Warranty Information

The RB433L is equipped with three Ethernet ports, and three miniPCI slots.

There are two other models available in this series

RB433L: 64MB RAM, 300MHz CPU, 3x 10/100Mbit ports (this model)

RB433UAHL: 128MB RAM, 680MHz CPU, USB port, 3x 10/100Mbit ports, DC jack

RB433GL: 128MB RAM, 680MHz CPU, USB port,

3x 10/100/1000Gigabit ports, DC jack

Assembling the Hardware

First use of the board:

1. Insert the miniPCI cards

2. Install the board in a case and connect antenna cables

3. Connect other peripherals and cables

4. Plug in PoE powered Ethernet to turn on the board

Powering

The board accepts passive PoE powering from the LAN1 Ethernet port:

The first Ethernet port (Ether1) accepts 8-30V DC input (at the board;

higher voltage needed to compensate for power loss on long cables; at least 18V suggested) from non-

standard (passive) Power over Ethernet injectors. This device does not work with IEEE802.3af compliant

48V power injectors.

Booting process

RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here:

http://wiki.mikrotik.com/wiki/Category:Manual#list

This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet

cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of

192.168.88.1 with the username admin and no password.

In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button

of the device when starting it until the LED light turns off, and Groove will start to look for Netinstall servers.

In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More

information here: http://wiki.mikrotik.com/wiki/First_time_startup

See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 1-Aug-2011

Extension Slots and Ports

Three 10/100Mbit Ethernet ports, supporting automatic cross/straight cable correction (Auto MDI/X), so

you can use either straight or cross-over cables for connecting to other network devices. The first Ether-

net port accepts 8-30V DC powering from a passive PoE injector. The other two Ethernet ports do not

support PoE powering.

Three MiniPCI Type IIIA/IIIB ports with 3.3V power signaling.

Buttons

Bootloader backup button (Reset 1). Holding the button while booting will cause the backup bootloader

to be used

RouterOS reset hole (Reset 2). While booting, and holding a metal object in this hole (for example a

screwdriver) will cause RouterOS software to be reset to defaults

Operating System Support

Currently tested operating system is MikroTik RouterOS (starting from v5).

law. No part of it may be reproduced or transmitted in any form without prior written permission from the copy-

right holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks

and registered trademarks appearing in this manual are the property of their respective holders.

Hardware. MikroTikls SIA warrants all RouterBOARD series equipment for the term of fifteen (15) months from

the shipping date to be free of defects in materials and workmanship under normal use and service, except in

case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use

or due to wind, rain, fire or other acts of nature.

If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all

warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from

MikroTik Latvia

To return failed unit or units to MikroTikls you must perform the following RMA (Return Material Authorization)

procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA

process. Take into account that all goods have one year warranty.

Instructions are located on our webpage here: http://rma.mikrotik.com

Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not

limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has

made every effort to ensure the accuracy of the contents of this manual, however, it is possible that it may con-

tain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found in this

publication, nor for direct or indirect, incidental, consequential or other damages that may result from such an

inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to sup-

[email protected]om
