GX-1 Disc Publisher

For Microsoft Windows®2000 & XP

Users Manual

Microboards Technology LLC Version 1.1

•Introduction

MICROBOARDS TECHNOLOGY, LLC GX-1 DISC PUBLISHER

TABLE OF CONTENTS

INTRODUCTION..............................................................................................................................................................4

WHAT’S INCLUDED ...........................................................................................................................................................4

SYSTEM REQUIREMENTS ...................................................................................................................................................5

ASSEMBLY AND INSTALLATION...............................................................................................................................5

ASSEMBLY INSTRUCTIONS ................................................................................................................................................5

GX-1 Disc Publisher Assembly.....................................................................................................................................5

INSTALLING INK CARTRIDGES...........................................................................................................................................6

Supported Ink Cartridges .............................................................................................................................................6

Loading / Replacing Ink Cartridges .............................................................................................................................6

LOADING DISCS.................................................................................................................................................................7

FRONT PANEL INDICATORS AND BUTTONS........................................................................................................................7

GX-1 DISC PUBLISHER INSTALLATION..............................................................................................................................8

CONNECTING TO A PC.......................................................................................................................................................8

WINDOWS XP....................................................................................................................................................................9

SETTING PRINTER ALIGNMENT..............................................................................................................................12

ALIGNMENT.....................................................................................................................................................................12

Print Test Disc............................................................................................................................................................12

Print Alignment Disc ..................................................................................................................................................13

PRINTING PREFERENCES..........................................................................................................................................14

PAPER/QUALITY TAB ......................................................................................................................................................14

Printing Recommendations.........................................................................................................................................14

ADVANCED FEATURES ....................................................................................................................................................15

COLOR TAB.....................................................................................................................................................................15

UTILITY TAB ...................................................................................................................................................................16

Ink Level .....................................................................................................................................................................16

THE GX-1 DISC PUBLISHER AND ZULU2 ...............................................................................................................17

MANUAL SOFTWARE RE-INSTALLATION............................................................................................................19

SURETHING LABELER SOFTWARE RE-INSTALLATION .....................................................................................................19

ZULU2SOFTWARE RE-INSTALLATION.............................................................................................................................21

TROUBLESHOOTING...................................................................................................................................................22

PRINTER NOT PRINTING: ..................................................................................................................................................22

DISK LOADING ERROR:....................................................................................................................................................22

LOW INK INDICATION:.....................................................................................................................................................22

DISCS NOT LOADING WHEN PRINTING FROM SURETHING ................................................................................................22

PRINTING SPECIFICATIONS .....................................................................................................................................23

TECHNICAL SUPPORT ................................................................................................................................................23

•Introduction

Introduction

The Microboards GX-1 Disc Publisher is a single drive, 50 disc, print and record system. The GX-1 combines

industrial strength printing and recording into a single, easy to use duplicator. The system includes one 16x

DVD recorder. Microboards and HP co-developed the printer technology, allowing up to 4800 x 1200 dpi

printing. The Prassi Technology Zulu 2 software is a dynamic interface for both beginners and power users.

Easily record DVD Video, DVD data, Audio CD’s, Data CD’s, Video CD’s and much more.

Other features include:

•Asynchronous print and record function

•Creation of audio CD’s from MP3, wma or wave files

•Full support for CD Text, Pre-Gap, UPC and ISRC

•Batch mode, allowing up to 8 different masters to be used at a time.

•Multi-borders support.

•Integrated print function with prn or SureThing print files.

What’s Included

When unpacking your GX-1 Disc Publisher system, the following items should be included:

•GX-1 Disc Publisher print and record system

•GX-1 Disc Publisher Quick Start Guide

•GX-1 Unpack Guide

•Print Sample

•Power Cord

•Alignment CD’s

•Blank Printable CD’s

•Users Manual (This document)

•Microboards GX-1 Disc Publisher Install CD (Includes Windows 2000/XP drivers, Zulu2

software and SureThing Label software)

•Microboards GX-200HC Color Ink cartridge (14ml)

•USB Printer Cable

•Input Bin rods (already installed)

•50 disc output assembly

If any of these items are missing, please contact your distributor or Microboards Technology

Technical Support department at 952-556-1639.

The GX-1 Disc Publisher installation disc includes

an Installer that will walk you through the process

step by step. Please perform the installation in

order as specified in the Installer before

connecting to a computer.

MICROBOARDS TECHNOLOGY, LLC GX-1 DISC PUBLISHER

System Requirements

The Microboards GX-1 Disc Publisher has the following minimum requirements and compatibilities:

Operating System

Microsoft Windows 2000 with SP4 or Windows XP with SP2.

Processor

Pentium 4 (or equivalent) CPU, running at 2.0 GHz or faster.

System Memory

Minimum 512 MB of system memory. More memory is suggested for DVD recording operation.

Hard Drive Space

Only 10MB of free space is required on the system hard drive for the applications and drivers. For

storing disc images, temporary space is needed for the full disc dimension. That could be up to about

800MB for CD or about 5 GB for DVD.

A separate internal 7200 RPM hard drive is recommended for storing your data. Using the same

hard drive as the operating system can cause the system to perform slowly.

USB Connection

USB 2.0 is required. USB 1.1 is not supported, as using USB 1.1 will result in significantly longer

recording times and the potential for recording failures.

Assembly and Installation

Assembly Instructions

GX-1 Disc Publisher Assembly

Remove the GX-1 Disc Publisher system from the shipping box

and confirm you received all of the items.

Place the GX-1 Disc Publisher on a stable, flat surface. You will

need room both in front and to the left of the system, as discs will

be accessed from both locations.

The input bin posts are pre-installed, with the wide post to the

front.

The Reject Bin is pre-installed on the left side of the GX-1 Disc

Publisher. This bin, which slides out, should be emptied when

you know discs have been rejected.

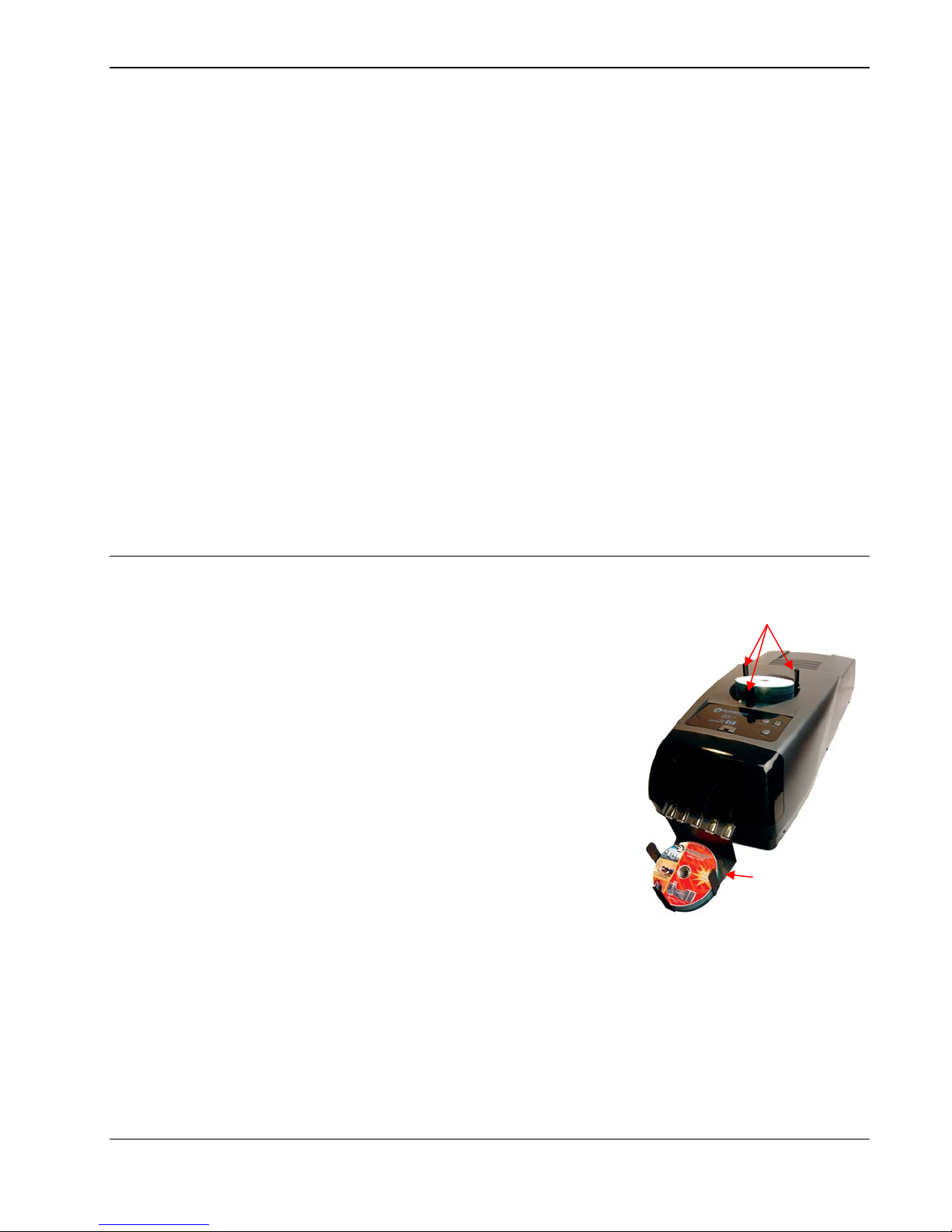

Slide the 50-disc Output Bin into the channel between the feet at

the front of the GX-1 Disc Publisher.

Input Rods

Output Bin

•Assembly and Installation

Installing Ink Cartridges

Supported Ink Cartridges

The GX-1 Disc Publisher uses a single color ink cartridge. The part number for this cartridge is GX-

200HC. If other cartridges are installed, the GX-1 Disc Publisher will not function. These cartridges

are available from any Microboards reseller.

Refill kits or non-Microboards ink cartridges are not recommended for use in the GX-1 Disc

Publisher system. Use of these types of cartridges will cause the printer to fail. Use of these

types of cartridges will void the warranty.

Loading / Replacing Ink Cartridges

Cartridges can be changed while the GX-1 Disc Publisher is on, but it should never be turned on

without an ink cartridge in place.

The GX-1 Disc Publisher system ships with one GX-200HC color ink cartridge.

•Remove the front cover. The print cartridge cradle will be on the right side of the GX-1 Disc

Publisher, as shown below.

•Tilt the old cartridge forward to release the cartridge from the cradle, as shown in the inset

below.

•Lift the old cartridge out of the cradle.

•Remove the new print cartridge from its packaging and carefully remove the plastic tape.

Hold the print cartridge so that the copper strip is at the bottom.

•With the front of the new ink cartridge tilted down, slide the cartridge into the cradle.

•Tilt the front of the cartridge back up to lock the ink cartridge in place.

•Replace the front cover.

MICROBOARDS TECHNOLOGY, LLC GX-1 DISC PUBLISHER

Loading Discs

The next step is to load your GX-1 Disc Publisher with output discs. The system will accept CD or

DVD 120 mm (12 cm) inkjet printable discs. If the disc does not have an inkjet printable surface, the

ink will not adhere to the surface of the disc. The GX-1 Disc Publisher will only accept 12 cm discs.

Business card or 8 cm discs are not supported by this system.

Figure 1 Figure 2

Load the first 5 or 6 discs flat, as seen in figure 1.

Load the rest of the discs at an angle, against the wide input rod, as seen in figure 2.

The GX-1 Disc Publisher will hold a maximum of 50 discs. DO NOT load more than 50 discs in the

system, as this may cause the discs to feed incorrectly.

Front Panel Indicators and Buttons

1. Cancel Button – Pressing the Cancel button cancels the current print job.

2. Print Button – The light on this button will flash when printing is in progress.

3. OK Button – This button will only be used when you are prompted to do so while processing

discs.

4. Power Button and Light – The Power button turns the GX-1 Disc Publisher on and off. It may

take a few seconds for the GX-1 Disc Publisher to turn on after you press the Power button.

The green light at the base of the Power button flashes when the printer is processing.

NOTE: The AC power switch located on the back of the GX-1 Disc Publisher must be turned on first

in order to supply power to the Front Panel.

1. Cancel

2. Print

3. OK

4. Power

•Assembly and Installation

GX-1 Disc Publisher Installation

The GX-1 Disc Publisher installation disk includes an Installer that will walk

you through the process step by step. Please use the Installer and follow the

installation steps in order.

The following installation sections are intended only as a reference for the installation process, not as

a guide to installing the GX-1 Disc Publisher. Performing the installation out of order could result in

an unsuccessful installation.

The GX-1 Disc Publisher Installation Quick Reference Guide will show you the order in which the

installation will occur.

Connecting to a PC

DO NOT CONNECT YOUR GX-1 DISC PUBLISHER TO A COMPUTER BEFORE

RUNNING THE INSTALLER LOCATED ON THE INSTALLATION DISK!!

The connection between the PC and the Microboards GX-1 Disc Publisher is done with one USB

cable.

1. Confirm that the power is turned OFF on the GX-1 Disc Publisher and on your PC.

2. Plug in the AC power cord to the back of the GX-1 Disc Publisher. Do not turn on power to

the GX-1 Disc Publisher until an ink cartridge has been installed.

3. Connect the square shaped end of the USB cable to the back of the GX-1 Disc Publisher.

4. Connect the flat, rectangular end of the USB cable into a USB 2.0 port in

your PC.

MICROBOARDS TECHNOLOGY, LLC GX-1 DISC PUBLISHER

Windows XP

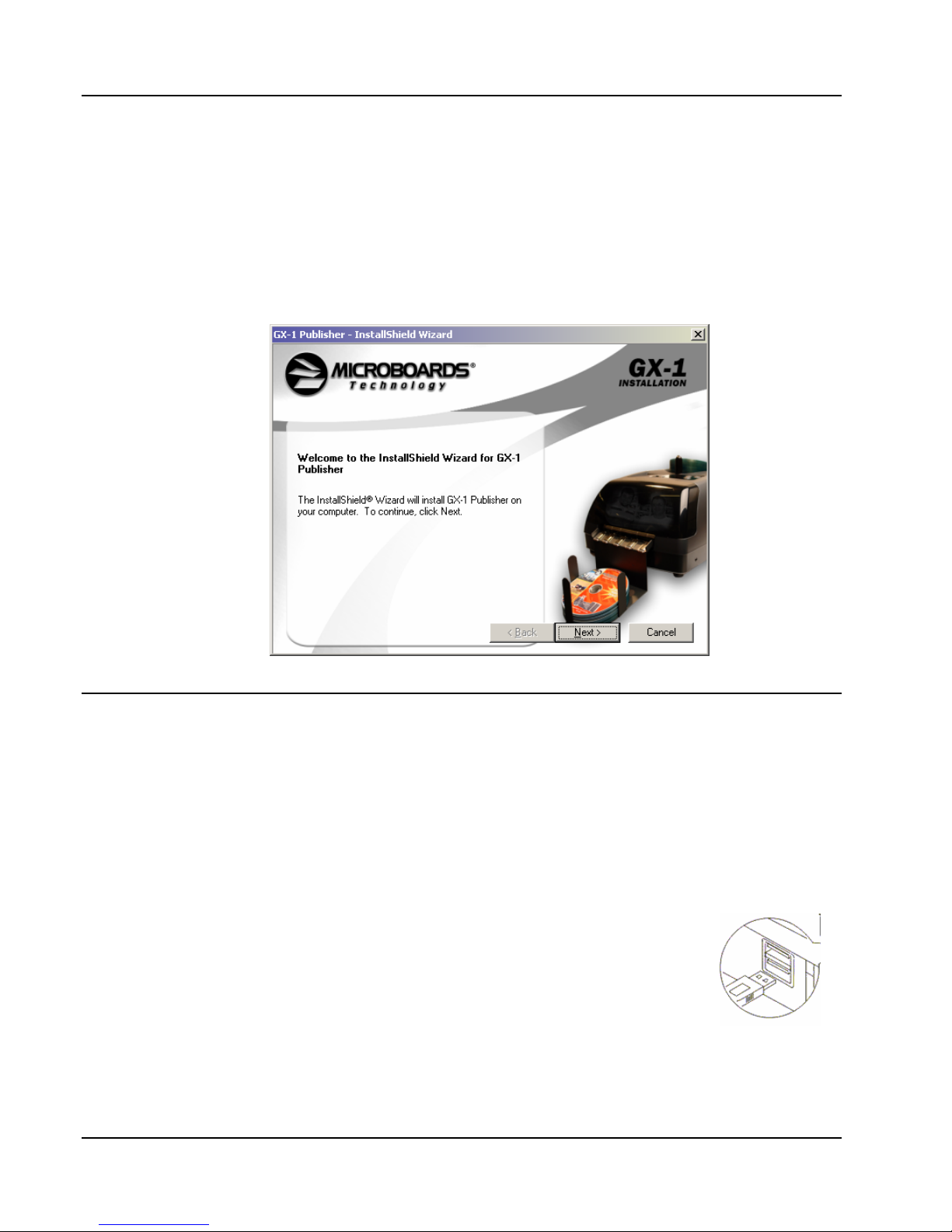

The Windows Found New Hardware Wizard will appear during any installation, including when using

the Installer. Please follow all directions in the order in which they appear when using the Installer.

Turn on power to the GX-1 Disc Publisher.

Turn on power to the PC.

Windows will now boot up and Windows XP will start stating that

new hardware is found, much like this screen:

Insert the Microboards GX-1 Disc Publisher CD into a drive in your

computer.

The operating system will next display the following screen:

1. Select No, not this time and click Next.

The following screen will appear:

2. Click the Next button and the files will

be copied from the CD.

3. Click the Next button and the files will

be copied from the CD.

4. Click Finish

The following screen will appear:

•Assembly and Installation

5. Select No, not this time and click Next.

6. Click Next.

7. Click Finish for the next screen.

8. Select No, not this time and click Next.

9. Click Next.

10. Click Continue Anyway.

11. Click Finish for the next screen.

12. Select No, not this time and click Next.

Otros manuales para GX-1

Tabla de contenidos

Otros manuales de Duplicadora de discos de MicroBoards Technology

MicroBoards Technology

MicroBoards Technology HCL-4000 Manual de usuario

MicroBoards Technology

MicroBoards Technology GX-2 Manual de usuario

MicroBoards Technology

MicroBoards Technology DX-1 Manual de usuario

MicroBoards Technology

MicroBoards Technology CX-1 Publisher Manual de usuario

MicroBoards Technology

MicroBoards Technology Orbit II Manual de usuario

MicroBoards Technology

MicroBoards Technology Orbit II Manual de usuario

MicroBoards Technology

MicroBoards Technology CX-1 Publisher Manual de usuario

MicroBoards Technology

MicroBoards Technology BD Pro Series Manual de usuario

MicroBoards Technology

MicroBoards Technology G3 Auto Printer Manual de usuario

MicroBoards Technology

MicroBoards Technology DX-2 Manual de usuario

MicroBoards Technology

MicroBoards Technology GX-1 Manual de usuario

MicroBoards Technology

MicroBoards Technology DVD Premium Series Manual de usuario

MicroBoards Technology

MicroBoards Technology LightScribe Series Manual de usuario

MicroBoards Technology

MicroBoards Technology QDL-1000 Manual de usuario

MicroBoards Technology

MicroBoards Technology QD-123 Manual de usuario

MicroBoards Technology

MicroBoards Technology CopyWriter Pro-452RM Manual de usuario

MicroBoards Technology

MicroBoards Technology CX-1 Publisher Manual de usuario

MicroBoards Technology

MicroBoards Technology G4 Manual de usuario

MicroBoards Technology

MicroBoards Technology PF-2 PrintFactory Manual de usuario

MicroBoards Technology

MicroBoards Technology DX-2 Manual de usuario

MicroBoards Technology

MicroBoards Technology GX Disc Printer Manual de usuario

MicroBoards Technology

MicroBoards Technology QD-DVD Manual de usuario

MicroBoards Technology

MicroBoards Technology GX2-1000 Manual de usuario

MicroBoards Technology

MicroBoards Technology PrintFactory PF-3 Manual de usuario

Manuales populares de Duplicadora de discos de otras marcas

Riso

Riso CV Series Manual

Addonics Technologies

Addonics Technologies HDUS325DX Manual de usuario

Carry

Carry Pro118 Manual de usuario

CopyPro

CopyPro PowerPro II Manual de usuario

Primera

Primera Max Manual de usuario

Logicube

Logicube EchoPlus-NG Manual de usuario

Silca

Silca Delta 2000 SA Manual de usuario

Reflex7

Reflex7 Daisy Chain Series Manual de usuario

Vinpower Digital

Vinpower Digital SharkCopier DC Manual de usuario

Codonics

Codonics Virtua E Manual de usuario

Octave

Octave Copy Master II Manual de usuario

Kanguru

Kanguru U2-DVDDUPE-S Manual de usuario

StarTech.com

StarTech.com 8STSATDUP11 Manual de usuario

DUPLO SEIKO CORPORATION

DUPLO SEIKO CORPORATION Duprinter DP-460 Manual de usuario

Addonics Technologies

Addonics Technologies UDFH7 Manual de usuario

Vinpower Digital

Vinpower Digital MiniLoader VDX-1 Manual de usuario

Addonics Technologies

Addonics Technologies CFASTD5 Manual de usuario

Telex

Telex SpinWise Manual de usuario
