Slim Line Rack UPS

User’s Manual

Models 3 & 4

www.mgeups.com

For service call:

1-800-438-7373

MGE UPS SYSTEMS

1660 Scenic Avenue

Costa Mesa, CA 92626

(714) 557-1636

www.mgeups.com

Revision History

Esprit Rack UPS User's Manual

86-153301-03

Revision A00 New Release 10/00

Important Safety Instructions. Save These Instructions.

This manual contains important safety instructions for the Esprit Models 3 and 4 that should be

followed during installation and maintenance of the UPS and Batteries.

Caution: Risk of electric shock, even with the unit disconnected from the AC power

source. Hazardous voltages still may be present through operation from the battery. The

battery supply should be disconnected by unplugging the battery cord from the UPS

when maintenance or service work inside the UPS is necessary.

The UPS and battery module contains voltages which are potentially hazardous. All repairs should

be performed by qualified service personnel only.

◗Do not attempt to power the UPS from any receptacle other than a 2-pole, 3-wire grounded

receptacle for models 3 and 4.

◗To reduce the risk of fire, connect Esprit to a circuit provided with the following maximum branch

circuit protection in accordance with NEC, ANSI/NFPA70:

Model 3: 30 ampere branch circuit protection;

Model 4: 50 ampere branch circuit protection.

◗Do not place Esprit near water or in an environment of excessive humidity.

◗Do not allow liquids or foreign objects to get inside Esprit.

◗Do not block air vents in front, on top, or on bottom of Esprit.

◗Do not plug any household appliances such as hair dryers into Esprit receptacles.

◗Do not place Esprit in direct sunlight or close to heat emitting sources.

◗The AC power receptacle should be near the equipment and easily accessible. To isolate Esprit

from AC input, remove the input cord from the AC power receptacle.

◗Esprit contains lead-acid batteries that should be disposed of or recycled in accordance with

local applicable laws.

◗Prior to installation, store Esprit in a dry location.

◗Storage temperatures must be between -4° to +113°F (-20° to +45°C);

◗Servicing of batteries should be performed or supervised by personnel knowledgeable of

batteries and the required precautions to handle high voltages. Keep unauthorized personnel

away from batteries.

◗When replacing batteries, use the same number and type of batteries:

12 each, 12V - 5 Ahr. • For model 3, use MGE P/N: 031-000003-0000

• For model 4, use MGE P/N: 031-000004-0000

~: alternating current supply symbol

— : direct current supply symbol

: risk of electric shock symbol

Safety

Caution: Do not dispose of batteries in a fire. The batteries may explode. Do not open

or mutilate

the batteries. Released electrolyte is harmful to the skin and eyes. It may be

toxic. A battery

can present a risk of electric shock and high short circuit current.

The following precautions should be observed when working with batteries:

◗Remove watches, rings, or other metal objects.

◗Use tools with insulated handles.

◗Do not lay tools or metal parts on top of batteries.

◗

Disconnect the charging power source prior to connecting or disconnecting battery terminals.

◗Wear rubber gloves, boots, and safety glasses.

◗Determine if the battery is inadvertently grounded.

◗Please dispose of the packaging in accordance with applicable laws.

Federal Communication Commission (FCC) Statement

Note: This equipment has been tested and found to comply with Class A limits of Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when

equipment is operated in an industrial environment. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Properly shielded and grounded cables and

connectors must be used in order to meet FCC emission limits.

iii

Contents

Quick Start ..........................................................insert

Important Safety Instructions ....................................i

1. Introduction........................................................1—1

MGE UPS Systems ......................................................................................1—1

Why the Need for Uninterruptible Power?....................................................1—1

Theory of Operation......................................................................................1—1

Make SureYou Have the Following: ............................................................1—1

2. Getting to KnowYour Esprit Rack UPS ..........2—1

2A. Product Features & Benefits ................................................................2—1

2B. UPS Model and Battery Identification

(dimensions/weights and part numbers) ..............................................2—1

2C. Esprit Rack UPS Product Views With Rack Kit ....................................2—2

3. Installation..........................................................3—1

3A. Storing the UPS and Recharging the Battery ......................................3—1

3B. Unpacking the UPS ..............................................................................3—1

3C. Placement of the UPS ..........................................................................3—1

Rack Mounting ..............................................................................3—1

3D. Optional Accessories ............................................................................3—1

3E. Connecting the Optional Extended Battery ..........................................3—2

3F. Disconnecting the UPS & Battery to Take Out of Service....................3—2

3G. Connecting to the Communication Ports ..............................................3—2

3H. Connecting the UPS to the Utility ........................................................3—3

3I. Connecting the Loads ..........................................................................3—3

3J. Solution-Pac Software ..........................................................................3—4

4. Startup and Shutdown ......................................4—1

4A. UPS Startup..........................................................................................4—1

4B. Initial Startup Tests and Diagnostics ....................................................4—1

4C. Battery Operation..................................................................................4—2

4D. UPS Shutdown......................................................................................4—2

4E. Front Panel Display Functions ..............................................................4—2

LED Operation ..............................................................................4—2

Button Operation............................................................................4—4

4F. Fault Alarms..........................................................................................4—5

5. Performance and Product Specifications........5—1

Sizing Guide and Battery Runtimes ..............................................5—2

Extended Battery Runtime ............................................................5—2

6. Advanced Configuration ..................................6—1

6A. Entering/Exiting Configuration Mode ....................................................6—1

6B Using Configuration Mode ....................................................................6—1

6C Configuration Options ..........................................................................6—2

7. Service & Maintenance......................................7—1

7A. Maintenance..........................................................................................7—1

Maintenance Log ..........................................................................7—1

Places to Contact for Service and Questions................................7—1

7B. Recycling Your UPS ..............................................................................7—2

8.Troubleshooting ................................................8—1

Other Fine MGE Products........................................................inside back cover

Figures

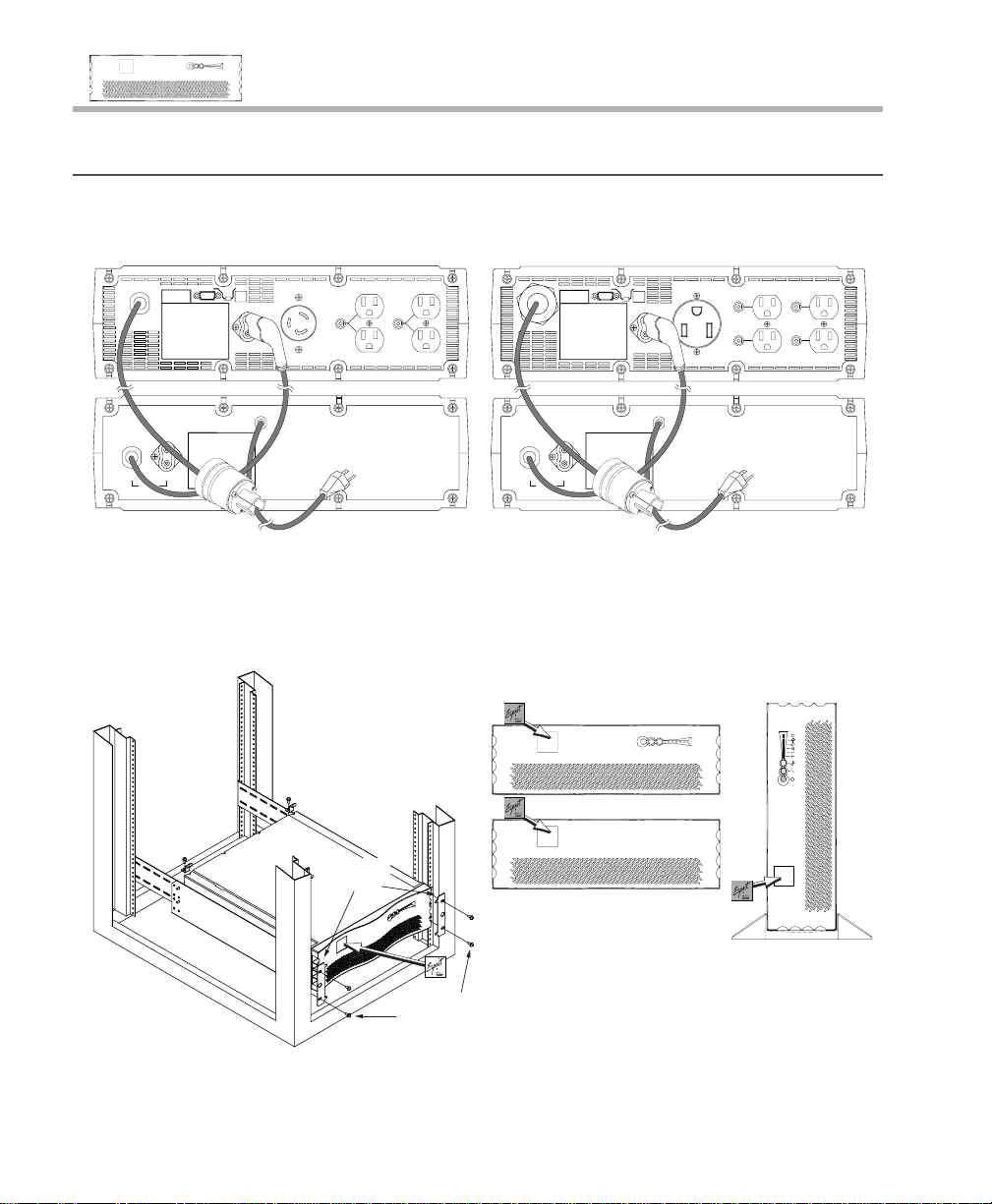

2a. Rear View of Models 3 and 4

With Rack Kit and Extended Batteries..................................................2—2

2b. Optional Rack Mounting Kit ..................................................................2—2

2c. Typical Front Views of Models 3, 4, Extended Battery, Label

Placement ............................................................................................2—2

3a. RS232, Contact Closures and Remote Shutdown................................3—2

3b. Communication Ports (USB and RS232 serial port) ............................3—3

3c. AC Line Cord of the Extended Battery ................................................3—3

4a. Front Panel Indicators and Controls......................................................4—1

Tables3a. UPS Wiring Information ........................................................................3—3

5a. Esprit Models 3 and 4 Rack UPS Specifications..................................5—1

1—1

Thank you for your purchase of the Esprit rack

"UPS" from MGE. The Esprit "UPS" will provide

many years of, trouble-free power protection for

critical high availability servers and other devices.

Please read this manual fully, to familiarize yourself

with the safety instructions and Esprit features.

MGE UPS Systems

MGE, one of the largest UPS manufacturers in

the world, has a power protection solution for

every power problem. Our product range includes

UPSs from 250 VA to over 4.5 MVA in single and

three phase configurations. Other products

include Power Management Software, DC to AC

inverters, line conditioners and isolation

transformers. Contact your sales representative

today for additional information about MGE’s

other fine products.

Why the Need for Uninterruptible

Power?

Servers and other electronic devices do not store

sufficient energy to overcome the power outages

and short interruptions that occur on a daily basis.

Any interruption of the utility power may stop the

operation of a computer and cause loss of data,

potential hardware damage, and inconvenience.

A "UPS" is an uninterruptible power supply. The

UPS has an internal battery to provide power

back-up if the utility power is lost or a short

outage

occurs. In addition, the Esprit UPS provides

surge

protection from indirect lightning strikes, power

surges and short high voltage transients (spikes)

created by machinery or other common equip-

ment.

Theory of Operation

Esprit normally operates in the bypass mode.

Surge suppression and filtering are also provided

in this mode.

The UPS instantly transfers the load to the battery

when a power failure occurs. If the power returns

before the battery is exhausted, the operation

returns to normal and the battery is recharged.

The Esprit UPS is comprised of three major

systems: the inverter, the battery/battery charger

and the bypass.

All logic and supervision in the UPS is provided by

a state-of-the-art micro-controller.

Inverter

The inverter is the heart of the UPS and inverts

direct current (DC) from the battery into

alternating current (AC) at 120 volts. The DC voltage

from the batteries is converted into a pseudo-sine

wave by a pulse width modulated (PWM) inverter.

This unique MGE technique, eliminates all bulky

60 HZ components, reduces heat, and greatly

enhances reliability.

Battery

The battery provides the energy source for back-up

when a power failure occurs. The battery is a

recombinant, sealed, lead acid-type battery which

provides the high current required for UPS use

and long life. It requires no addition of water during

its life.

Battery Charger

The battery charger maintains the battery. The

battery charger converts 120 volt AC utility power

to filtered and regulated DC current specific for

battery charging.

Bypass

The bypass is the electro-mechanical hardware

providing a transfer to or from the inverter. This is

done rapidly and synchronized to the utility power

sine wave in order to provide continuity to the critical

device and not cause a re-boot.

Make SureYou Have the Following:

◗Esprit Rack UPS ◗MGE P3 Policy

◗Solution Pac CD ROM ◗Warranty Card

◗Cables (RS232 & USB) ◗Warranty Statement

◗Quick Start Guide ◗Esprit Label

◗Stabilizing Feet (2) ◗Rack “ears” (2)

◗Mounting Screws & Nuts

1. Introduction

1—2

2. Getting to Know Your Esprit Rack UPS

2A. Product Features & Benefits

Features Benefits Comments

◗Plug in operation Low installation cost

◗Modular concept Greater flexibility Add batteries as needed

◗High efficiency Longer life and back-up time Up to 93% on battery,

98% on utility

◗2/3 components reduction Longer life, higher reliability Unique MGE design

◗Many user selectable Tailor the UPS to Front panel button accessible

parameters environment

◗Built-in receptacles Easier to specify Most common NEMA

receptacles are included

◗Quiet operation Allows placement in "library Small fan only runs while in

type" environments battery mode

◗Standard HID Provides the latest and fastest Other communications optional

communications communications possible

◗Network-based power Multiple server shutdown and

management software supervision

◗Web management New standard for web Easier to use than HTML and

via XML management provides additional features

◗Extended distribution Provides additional Optional

options receptacles for critical loads Call factory for availability

2B. UPS Model and Battery Identification

(US and Canadian Models)

Dimensions/Weights

and Part Numbers

Model Dimensions (H W D) Weight (lbs.) Part Number UPC

Esprit 3 SLR 5.25 x 17 x 20 75 ESP030 635760894318

Esprit 4 SLR 5.25 x 17 x 20 75 ESP040 635760894455

SLR Extended Battery 5.25 x 17 x 20 60 ESP001 635760894004

Rack rail kit 5 x 5 x 17 6 ESP104 635760894042

AS/400 DB9 cable 12 x 12 x 1 1 ESP105 635760894059

AS/400 DB15 cable 12 x 12 x 1 1 ESP107 635760894073

2—1

2—2

2C. Esprit Rack UPS Product Views With Rack Kit

Figure 2a. Rear View of Models 3 and 4 With Rack Kit and Extended Batteries

Model 3 Model 4

Figure 2b. Optional Rack Mounting Kit Figure 2c. Typical Front Views of Models

(ESP104) 3, 4, Extended Battery, Label

Placement

Models 3 and 4

Extended Battery

Rack "ears"

(included)

mounting

screws & nuts

(included)

Vdc In/Ue/Entrada

Do not disconnect under load

144Vdc / 5 Amp hr.

Continuous amps: 33.3

Vdc Out/Us/Salida

Intended for computer loads only

Overload

protection,

push to reset

15A/120Vac

Overload

protection,

push to reset

15A/120Vac

ATTENTION: Contiant batteries. Risque de choc electrique milime apreis

deparition tanaion d entrada. Ne pas enlevar le capot. Absence de piécede

recharge à l'intérievr de l'appareil. Appeler personnel de meinlenance qualifié.

Utilization en atmosphere controlee

Intended for use in a controlled environment

Utilización preuista en un amblento controlado.

COM1 USB

SW4

CAUTION:Batteries inside. Risk of electric shock evenwhen input

power is removed.Do not remove cover. No user serviceable parts inside.

Refer to qualified service personnel.

In/Ue

Eing/Entrada

Do not disconnect

under load

Vac

In/Ue

Eing/Entrada

Out/US

Ausg/Salida

144 VDC

Amp hr: 5

Continuous Amps: 33

COM1 USB

SW4

Vdc In/Ue/Entrada

Vdc Out/Us/Salida

CAUTION:Batteries inside. Risk of electric shock evenwhen input

power is removed.Do not remove cover. No user serviceable parts inside.

Refer to qualified service personnel.

ATTENTION: Contiant batteries. Risque de choc electrique milime apreis

deparition tanaion d entrada. Ne pas enlevar le capot. Absence de piécede

recharge à l'intérievr de l'appareil. Appeler personnel de meinlenance qualifié.

15A/120Vac

144Vdc / 4 Amp hr.

Continuous amps: 25

Overload

protection,

push to reset

Overload

protection,

push to reset

Utilization en atmosphere controlee

Intended for use in a controlled environment

Utilización preuista en un amblento controlado.

Do not disconnect under load

Intended for computer loads only

In/Ue

Eing/Entrada

Do not disconnect

under load

Vac

In/Ue

Eing/Entrada

Out/US

Ausg/Salida

144 VDC

Amp hr: 5

Continuous Amps: 33

Extended Battery Extended Battery

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unión Postal Universal de MGE UPS Systems

MGE UPS Systems

MGE UPS Systems EPS 8000 Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar EX20 Manual de usuario

MGE UPS Systems

MGE UPS Systems Galaxy PW Manual de usuario

MGE UPS Systems

MGE UPS Systems Nova 600 AVR Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar EXtreme C UPS 1000 VA Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar EXtreme2000 Manual de usuario

MGE UPS Systems

MGE UPS Systems EX 11RT Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar EXtreme 1500C Manual de usuario

MGE UPS Systems

MGE UPS Systems Ellipse 600 Manual de usuario

MGE UPS Systems

MGE UPS Systems PowerServices TelPac Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar EXtreme 1500 Manual de usuario

MGE UPS Systems

MGE UPS Systems 12 kVA Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar EXB 1000 - 1500 RT Manual de usuario

MGE UPS Systems

MGE UPS Systems GALAXY 6000 Manual de usuario

MGE UPS Systems

MGE UPS Systems Comet EXtreme CLA Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar Evolution 1500 Manual de usuario

MGE UPS Systems

MGE UPS Systems Galaxy 3000 Manual de usuario

MGE UPS Systems

MGE UPS Systems Galaxy 3000 Guía de configuración

MGE UPS Systems

MGE UPS Systems Pulsar EX 700RT Manual de usuario

MGE UPS Systems

MGE UPS Systems EX 11RT Manual de usuario

MGE UPS Systems

MGE UPS Systems EX 5 Manual de usuario

MGE UPS Systems

MGE UPS Systems Comet EX 11 RT 3:1 Manual de usuario

MGE UPS Systems

MGE UPS Systems Pulsar ellipse 1200 Manual de usuario

MGE UPS Systems

MGE UPS Systems Ellipse max 1500 Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
