Metra Electronics 99-8209 Manual de usuario

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

INSTALLATION INSTRUCTIONS

99-8209

KIT FEATURES

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

KIT COMPONENTS

• A) Radio housing • B) Bracket set 1 • C) Bracket set 2 • D) ISO brackets • E) Trim plate

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 10mm socket wrench

TABLE OF CONTENTS

Dash Disassembly

– Scion xA 2004-2006 ...........................................2

– Scion xB 2004-2007............................................3

– Scion xB 2008-2015 ............................................3

– Scion tC 2005-2010 .............................................4

– Scion xD 2008-2014 ............................................5

Kit Assembly

– DIN radio provision with pocket........................6

– ISO DIN radio provision with pocket .................7

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-1761

Antenna Adapter: Not required

A B C D E

Scion xA 2004-2006, xB 2004-2015,

tC 2005-2010, xD 2008-2014

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

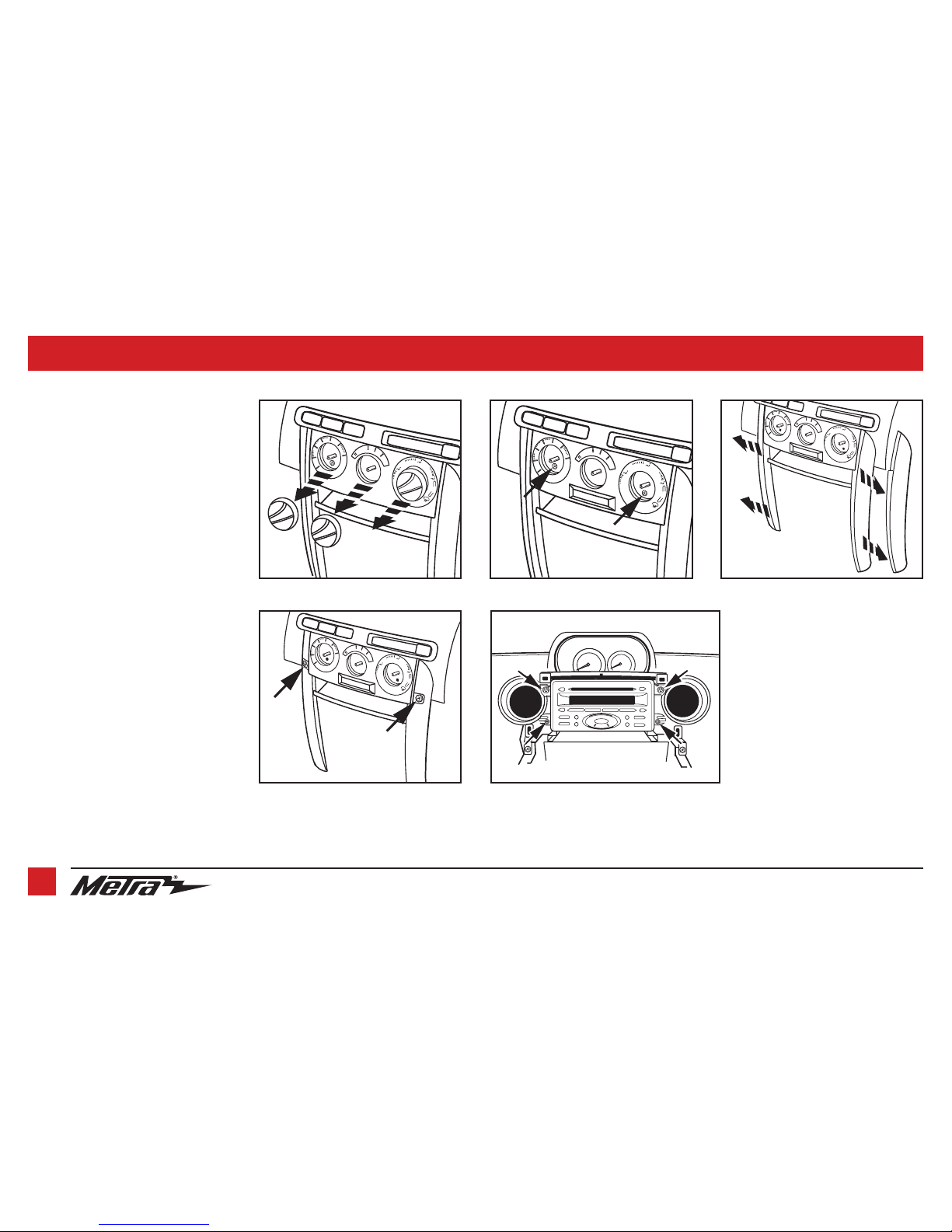

Scion xA 2004-2006

1. Pull outward on the (3) climate control

knobs and remove. (Figure A)

2. Remove (2) Phillips screws from behind

the outer two climate knobs. (Figure B)

3. Unsnap and remove the trim pieces on

each side of the climate control/ashtray/

pocket assembly. (Figure C)

4. Remove (2) Phillips screws from the

bottom of the climate control/radio trim

panel and unsnap and remove the entire

panel. (Figure D)

5. Remove (4) 10mm bolts securing the

radio. Unplug and remove the radio.

(Figure E)

Continue to Kit Assembly

OFF

(Figure A)

(Figure D) (Figure E)

(Figure B) (Figure C)

OFF

REV. 9/19/2017 INST99-8209 3

DASH DISASSEMBLY

Scion xB 2004-2007

1. Pull outward on the (3) climate control

knobs and remove. (Figure A)

2. Remove (2) Phillips screws from behind

the outer (2) knobs. (Figure B)

3. Unsnap and remove the entire panel

surrounding the climate controls and the

radio. (Figure C)

4. Remove (4) 10mm bolts securing the

radio. Unplug and remove the radio.

Continue to Kit Assembly

(Figure B)

(Figure C)

OFF

Scion xB 2008-2015

1. Unclip and remove the trim panel

around the radio including the A/C

vents. (Figure A)

2. Unclip and remove the trim panel at the

bottom edge of the dash cavity. (Figure A)

3. Remove (4) 10mm bolts securing the

radio. Unplug and remove the radio.

(Figure B)

Continue to Kit Assembly (Figure A)

(Figure B)

(Figure A)

1.800.221.0932

MetraOnline.com

DASH DISASSEMBLY

Scion tC 2005-2010

1. Unsnap trim from around shifter,

not necessary to completely remove.

(Figure A)

2. Unsnap and remove panel from around

radio, including climate controls and

radio door. (Figure B)

3. Remove (2) 10mm nuts from the top

mounting locations and (2) Phillips

screws from the bottom mounting

locations to remove the radio. (Figure C)

Continue to Kit Assembly

(Figure A) (Figure B) (Figure C)

REV. 9/19/2017 INST99-8209 5

DASH DISASSEMBLY

(Figure C)

Scion xD 2008-2014

1. Unclip radio trim panel. Unplug and

remove panel. (Figure A)

2. Remove (4) Phillips screws securing the

radio. Unplug and remove radio. (Figure B)

3. Remove factory brackets from radio.

Retain brackets for use during kit

assembly. (Figure C)

Continue to Kit Assembly

(Figure A) (Figure B)

1.800.221.0932

MetraOnline.com

KIT ASSEMBLY

DIN radio provision with pocket

1. Slide the brackets onto the sides of the

radio housing

until the

side clips engage. (Figure A)

Note:

Use bracket set 1 for xA, xB, and tC. Use bracket set 2 for

the 2008 xB and xD.

2. For

bracket set 1

cut and remove all mounting tabs except the

tabs being used for your application. (Figure B)

Note:

Tabs are marked xA, xB and tC. For bracket set 2 skip to

step 3.

3. Remove the metal DIN sleeve from the aftermarket radio.

4. Slide the sleeve into the

radio housing

and secure by bending the

metal locking tabs outward. (Figure C)

5. Slide the radio back into the sleeve until it clicks in . (Figure D)

6. Locate the factory wiring harness and antenna connector in the

dash and complete all necessary connections to the radio. Metra

recommends using the proper mating adapter from Metra and/or

AXXESS. Test the radio for proper operation.

7. Reassemble the dash in reverse order of disassembly.

(Figure B)

(Figure C)

(Figure D)

(Figure A)

side clips

Bracket Set 1

REV. 9/19/2017 INST99-8209 7

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Slide the brackets onto the sides of the

radio housing

until the

side clips engage. (Figure A)

Note:

Use bracket set 1 for xA, xB, and tC. Use bracket set 2 for

the 2008 xB and xD.

2. For

bracket set 1

cut and remove all mounting tabs except the

tabs being used for your application. (Figure B)

Note:

Tabs are marked xA, xB and tC. For bracket set 2 skip to

step 3.

3. Remove the metal DIN sleeve and trim ring from the aftermarket

radio.

4. Secure the

ISO brackets

to the radio using the screws supplied

with the radio. (Figure C)

5. Slide the radio/bracket assembly into the

radio housing

until it

snaps into place. (Figure D)

Snap the

trim plate

onto the front of the

radio housing

. (Figure D)

7. Locate the factory wiring harness and antenna connector in the

dash and complete all necessary connections to the radio. Metra

recommends using the proper mating adapter from Metra and/or

AXXESS. Test the radio for proper operation.

8. Reassemble the dash in reverse order of disassembly.

(Figure C)(Figure A)

side clips

(Figure B)

Bracket Set 1

(Figure D)

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

IMPORTANT

If you are having difﬁculties with the installation of this product,

please call our Tech Support line at 1-800-253-TECH. Before

doing so, look over the instructions a second time, and make

sure the installation was performed exactly as the instructions

are stated. Please have the vehicle apart and ready to perform

troubleshooting steps before calling.

INSTALLATION INSTRUCTIONS

99-8209

¡PRECAUCIÓN! Todos los accesorios, interruptores,

paneles de controles de clima y especialmente las

luces del indicador de las bolsas de aire deben estar

conectados antes ciclar la ignición. Además, no

quite el radio de fábrica con la llave en la posición o

de encendido ni con el vehículo funcionando.

INSTRUCCIONES DE INSTALACIÓN

99-8209

CARACTERÍSTICAS DEL KIT

• Provisión de radio DIN con cavidad

• Provisión de radio ISO DIN con cavidad

COMPONENTES DEL KIT

• A) Carcasa del radio • B) Juego de soportes 1 • C) Juego de soportes 2 • D) Soportes ISO • E) Placa de la moldura

HERRAMIENTAS REQUERIDAS

• Herramienta para quitar paneles

• Destornillador Phillips • llave de tubo 10mm

INDICE

Desmontaje del tablero

– Scion xA 2004-2006 ...........................................2

– Scion xB 2004-2007............................................3

– Scion xB 2008-2015 ............................................3

– Scion tC 2005-2010 .............................................4

– Scion xD 2008-2014 ...........................................5

Ensamble del kit

– Provisión de radio DIN con cavidad ..................6

– Provisión de radio ISO DIN con cavidad ............7

CABLEADO Y CONEXIONES DE ANTENA

(se venden por separado)

Arnés de cableado: 70-1761

Adaptador de antena: No se requiere

A B C D E

Scion xA 2004-2006, xB 2004-2015,

tC 2005-2010, xD 2008-2014

1.800.221.0932

MetraOnline.com

DESMONTAJE DEL TABLERO

Scion xA 2004-2006

1. Jale hacia afuera las (3) perillas de

control de clima y quítelas. (Figura A)

2. Quite los (2) tornillos Phillips de la parte

de atrás de las dos perillas exteriores del

clima. (Figura B)

3. Suelte a presión y quite las piezas de

moldura de cada lado del ensamble

del control de clima/cenicero/bolsillo.

(Figura C)

4. Quite los (2) tornillos Phillips de la parte

inferior del panel del control de clima/

radio y luego suelte a presión y quite

todo el panel. (Figura D)

5. Quite los (4) pernos de 10mm que

sostienen el radio. Desconecte y quite el

radio. (Figura E)

Continúe con el Ensamble del Kit

OFF

(Figura A)

(Figura D) (Figura E)

(Figura B) (Figura C)

OFF
