Metra Electronics 95-2005B Manual de usuario

REV. 6/29/2016 INST95-2005B

Installation instructions for part 95-2005B

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• ISO DDIN radio provision

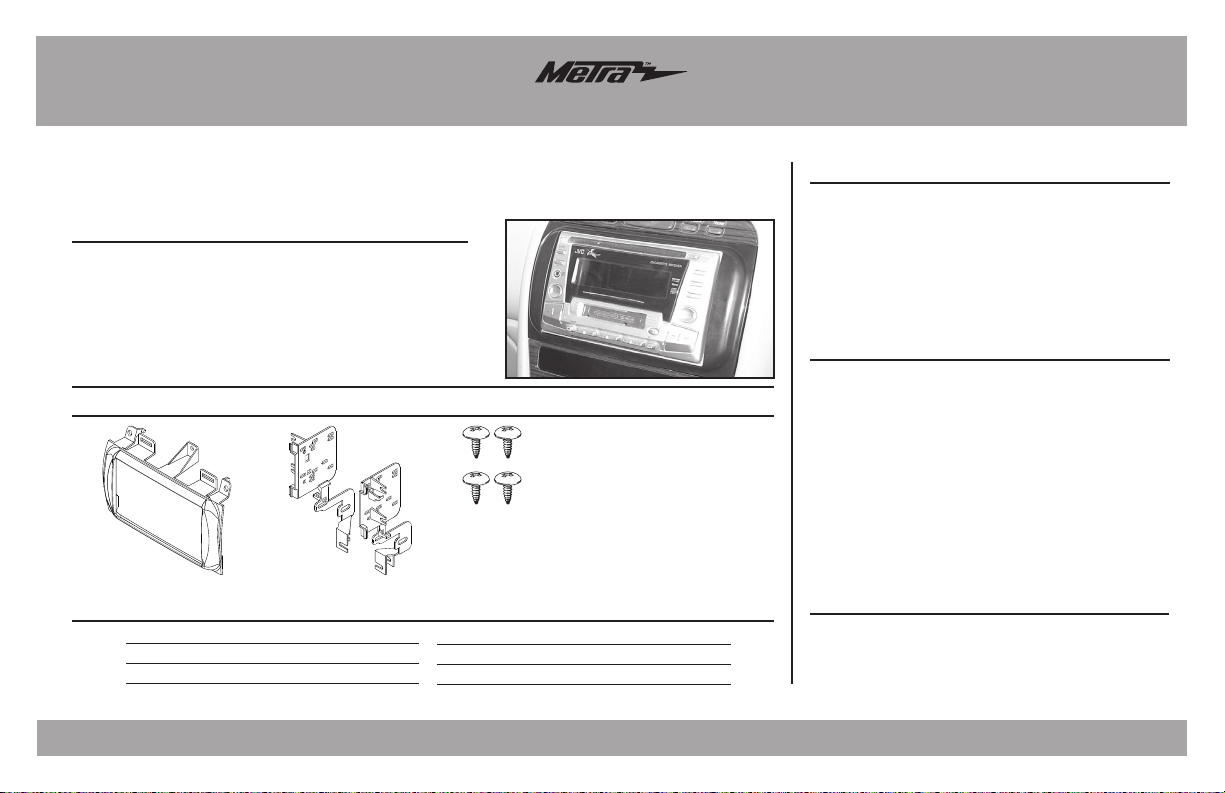

• A) Radio housing • B) Radio brackets • C) (4) #8 x 3/8” Phillips screws

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• LC-GMRC-03 • GMOS-06 (Bose amp only)

Antenna Adapter:

• 40-GM10

• Panel removal tool • Phillips screwdriver

• 9/32 Socket wrench • Cutting tool

TOOLS REQUIRED

Cadillac 1996-2005

95-2005B

A B C

CADILLAC

Deville (console shift) 1996-1999

Deville (DHS, DTS) 2000-2005

Eldorado 1996-2002

Seville 1996-2005

APPLICATIONS

95-2005B

Dash Disassembly

– Cadillac Eldorado 1996-2002............................................. 2-3

– Cadillac Seville 1996-1997 ................................................ 2-3

– Cadillac Seville 1998-2005 ................................................ 3-4

– Cadillac Deville (console shift) 1996-1999 ............................ 3-4

– Cadillac Deville (DHS, DTS) 2000-2005 ....................................4

Kit Preparation

– Cadillac Eldorado 1996-2002.................................................5

– Cadillac Seville 1996-1997 ....................................................5

– Cadillac Seville 1998-2005 ....................................................6

– Cadillac Deville (console shift) 1996-1999 ................................6

– Cadillac Deville (DHS, DTS) 2000-2005 ....................................7

Kit Assembly

– ISO DDIN radio provision ........................................................8

Table of Contents

Eldorado 1996-2002 / Seville 1996-1997

Remove C-clip on forward facing side of shift

knob and pull and remove knob. (Figure A)

2. Remove (2) 9/32 screws on each side of

the ashtray assembly and (1) in the middle

underneath ashtray insert. (Figure B)

3. Insert a small flat blade screwdriver in

between the radio and the switch panel at

top of radio and pry up and out to remove

switch panel. (Figure C)

Continue on the next page

(Figure C)

(Figure B)

(Figure A)

Dash Disassembly

95-2005B

Seville 1998-2005 /

Deville (console shift)

1996-1999

1. Remove (2) 9/32 screws

on each side of the

ashtray assembly and (1)

in the middle underneath

ashtray insert. (Figure A)

2. Insert a small flat blade

screwdriver in between

the radio and the switch

panel at top of radio and

pry up and out to remove

switch panel. (Figure B)

Continue on the next page

Eldorado 1996-2002 / Seville 1996-1997 (Cont)

4. Remove (4) 9/32 screws:

• (2) from the top (Figure D) and

• (2) from the bottom to remove radio.

5. Remove the (2) retaining nuts securing the

radio and climate control to the factory

bracket assembly and slide the climate

control outward.

Continue to kit preparation

(Figure F)

(Figure E)

(Figure D) (Figure B)

(Figure A)

Remove 2 Retaining Nuts

One Per Side

Remove (2) retaining nuts,

per side

Dash Disassembly

95-2005B

Seville 1998-2005 /

Deville (console shift) 1996-1999

4. Remove (3) 9/32 screws:

• (1) From the top (Figure C) and

• (2) From the bottom to remove radio.

(Figure D)

5. Remove the (2) retaining nuts securing the

radio and climate control to the factory

bracket assembly and slide the climate

control outward. (Figure E)

Continue to kit preparation

(Figure E)

(Figure D)

(Figure C)

Deville (DHS, DTS)

2000-2005

Unsnap and remove

panel surrounding

climate controls and

radio. (Figure A)

2. Depress clips on

both sides of radio

and pull out to

remove. (Figure B)

Continue to kit

preparation

(Figure B)

(Figure A)

Remove 2 Retaining Nuts

One Per Side

Remove (2) retaining nuts,

per side

Dash Disassembly

95-2005B

Eldorado 1996-2002 / Seville 1996-1997

1. Remove all tabs except the ones marked S-E from the radio housing. (Figure A)

2. Cut the front tab from bottom of the radio brackets armature on both sides.

(Figure B)

3. Attach the radio brackets to the radio housing. (Figure C)

4. Slide the climate control assembly into the bracket/housing assembly and

attach with the factory hardware. (Figure C)

Continue to kit assembly

(Figure C)

(Figure B)

(Figure A)

98-05S

S-E

CUT

CUT FRONT TAB HERE CUT FRONT TAB HERE

Cut front tab here Cut front tab here

(full view)

Bolt

Kit Preparation

95-2005B

Seville 1998-2005 / Deville (console shift) 1996-1999

1. Remove all tabs except the ones marked 98-05S from the radio housing.

(Figure A)

Cut the rear tab from bottom of the radio brackets armature on both sides. (Figure B)

3. Attach the radio brackets to the radio housing. (Figure C)

4. Slide the climate control assembly into the bracket/housing assembly and

attach with the factory hardware. (Figure C)

Continue to kit assembly

(Figure C)

(Figure B)

(Figure A)

98-05S

S-E

CUT CUT

CUT REAR TAB HERE CUT REAR TAB HERE

Cut rear tab here Cut rear tab here

(full view)

BOLT

98-05S

BOLT

98-05S

Bolt

Kit Preparation

95-2005B

Deville (DHS, DTS) 2000-2005

1. Remove all tabs from the radio housing top. (Figure A)

2. Attach the radio brackets to the radio housing. Leave all side tabs on the radio

brackets attached, but cut away the plastic armature below each bracket at the

bottom of both sides. (Figure B)

3. When installing the 95-2005 assembly into the dash, use the supplied (4) #8 x

3/8” Phillips screws, to the locations shown. (Figure C)

Continue to kit assembly

(Figure C)

(Figure B)

(Figure A)

98-05S

S-E

CUT CUT

CUT

Kit Preparation

REV. 6/29/2016 INST95-2005B

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

Installation instructions for part 95-2005B

IMPORTANT

If you are having difficulties with the

installation of this product, please call our

Tech Support line at 1-800-253-TECH.

Before doing so, look over the instructions a

second time, and make sure the installation

was performed exactly as the instructions

are stated. Please have the vehicle apart

and ready to perform troubleshooting steps

before calling.

ISO DDIN radio provision

Slide the radio into the bracket/radio housing

assembly, and then secure using the screws

supplied with the radio. (Figure A)

Locate the factory wiring harness and antenna

connector in the dash and complete all

necessary connections to the radio. Metra

recommends using the proper mating adapter

from Metra and/or AXXESS. Test the radio for

proper operation.

3. Reassemble the dash in reverse order of

disassembly.

(Figure A)

Kit Assembly

REV. 6/29/2016 INST95-2005B

Instrucciones de instalación para la pieza 95-2005B

¡PRECAUCIÓN!

Todos los accesorios, interruptores, paneles de con-

troles de clima y especialmente las luces del indicador de las bolsas

de aire deben estar conectados antes ciclar la ignición. Además, no

quite el radio de fábrica con la llave en la posición o de encendido ni

con el vehículo funcionando.

• Provisión de radio ISO DDIN

• A) Carcasa del radio • B) Soportes del radio • C) (4) Tornillos Phillips #8 de 3/8”

CARACTERÍSTICAS DEL KIT

COMPONENTES DEL KIT

CABLEADO Y CONEXIONES DE ANTENA

(se venden por separado)

Arnés de cableado:

• LC-GMRC-03 • GMOS-06 (Bose amp only)

Adaptador de antena:

• 40-GM10

• Herramienta para quitar paneles • Destornillador Phillips

• llave de tubo 9/32 • Herramienta de corte

HERRAMIENTAS REQUERIDAS

Cadillac 1996-2005

95-2005B

A B C

CADILLAC

Deville (cambio de la consola) 1996-1999

Deville (DHS, DTS) 2000-2005

Eldorado 1996-2002

Seville 1996-2005

APLICACIONES

95-2005B

Desmontaje del tablero

– Cadillac Eldorado 1996-2002............................................. 2-3

– Cadillac Seville 1996-1997 ................................................ 2-3

– Cadillac Seville 1998-2005 ................................................ 3-4

– Cadillac Deville (cambio de la consola) 1996-1999 ................ 3-4

– Cadillac Deville (DHS, DTS) 2000-2005 ....................................4

Preparación del kit

– Cadillac Eldorado 1996-2002.................................................5

– Cadillac Seville 1996-1997 ....................................................5

– Cadillac Seville 1998-2005 ....................................................6

– Cadillac Deville (cambio de la consola) 1996-1999 ....................6

– Cadillac Deville (DHS, DTS) 2000-2005 ....................................7

Ensamble del kit

– Provisión de radio ISO DDIN ...................................................8

Indice

Eldorado 1996-2002 / Seville 1996-1997

1. Retire el gancho en C del lado orientado

hacia el frente de la perilla de la palanca

velocidades y jale y retire la perilla. (Figura A)

2. Quite los (2) tornillos 9/32 a cada lado del

ensamble del cenicero y (1) en el centro,

debajo del inserto del cenicero. (Figura B)

Inserte un pequeño destornillador de paleta entre

el radio y el panel de interruptores en la parte

superior del radio y haga palanca para sacar y

quitar el panel de interruptores. (Figura C)

Continúa en la siguiente página

(Figura C)

(Figura B)

(Figura A)

Desmontaje del tablero

Tabla de contenidos

Idiomas:

Otros manuales de Receptor de coche de Metra Electronics

Metra Electronics

Metra Electronics 99-7888 Manual de usuario

Metra Electronics

Metra Electronics DP-3021B Manual de usuario

Metra Electronics

Metra Electronics 99-8249 Manual de usuario

Metra Electronics

Metra Electronics 99-7809B Manual de usuario

Metra Electronics

Metra Electronics 99-7427 Manual de usuario

Metra Electronics

Metra Electronics 99-3010S Manual de usuario

Metra Electronics

Metra Electronics 99-3311B Manual de usuario

Metra Electronics

Metra Electronics 99-7313 Manual de usuario

Metra Electronics

Metra Electronics 99-6537B Manual de usuario

Metra Electronics

Metra Electronics 99-6544B Manual de usuario

Metra Electronics

Metra Electronics 99-6527B Manual de usuario

Metra Electronics

Metra Electronics MDF-8202-1 Manual de usuario

Metra Electronics

Metra Electronics 99-5825S Manual de usuario

Metra Electronics

Metra Electronics Hyundai Santa Fe 2007 95-7325 Manual de usuario

Metra Electronics

Metra Electronics Ford F-150 2009-up Manual de usuario

Metra Electronics

Metra Electronics AT-807HD Manual de usuario

Metra Electronics

Metra Electronics 99-5025 Manual de usuario

Metra Electronics

Metra Electronics 99-8163 Manual de usuario

Metra Electronics

Metra Electronics 99-5815 Manual de usuario

Metra Electronics

Metra Electronics 99-9605B Manual de usuario

Metra Electronics

Metra Electronics 99-3528 Manual de usuario

Metra Electronics

Metra Electronics 95-7377B Manual de usuario

Metra Electronics

Metra Electronics BUICK Lacrosse 2005-2009 Manual de usuario

Metra Electronics

Metra Electronics 99-8209 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
