Metra Electronics 99-5025 Manual de usuario

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

INSTALLATION INSTRUCTIONS

99-5025

KIT FEATURES

• ISO DIN radio provision with pocket

KIT COMPONENTS

• A) Radio brackets • B Trim plate • C) (4) #8 x 1” Philips screws •D) Pocket • E) (4) #8 x 3/8” Phillips screws TOOLS REQUIRED

• Phillips screwdriver

• Radio removal tools 86-5618

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

–ISO DIN radio provision with pocket ..................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-1770 • 70-1768 (ampliﬁed models)

Antenna Adapter: Not required

A B C D

Ford Mustang 1987-1993

1.800.221.0932

MetraOnline.com

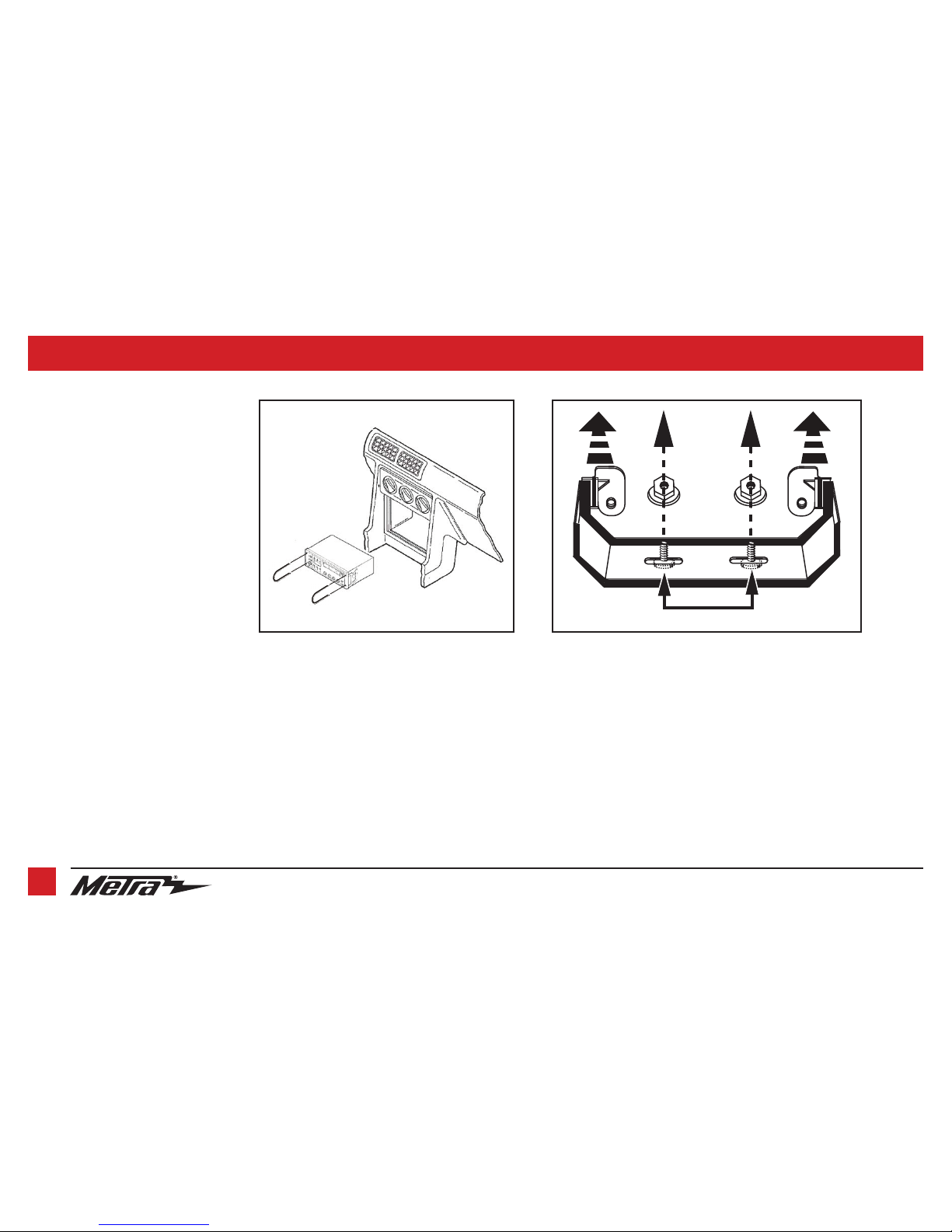

1. Using Metra’s 86-5618, pull the factory

radio from the dash and disconnect the

wiring. (Figure A)

2. Remove (2) 7/16” hex bolts from inside

the dash cavity and remove the radio

subdash bracket. (Figure B)

Note:

The threaded studs from under this

bracket will also need to be removed for

the aftermarket radio to clear

Continue to Kit Assembly

ALSO REMOVE (2) THREADED STUDS FROM UNDER BRACKET

7/16” (2)

HEX BOLTS

RADIO SUB-DASH BRACKET

(Figure B)(Figure A)

DASH DISASSEMBLY

REV. 7/11/2017 INST99-5025 3

(Figure A) (Figure B)

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Secure the

radio brackets

to the radio

using the screws supplied with the

radio. (Figure A)

2. Secure the

pocket

to the radio assembly

using the (4) #8 x 3/8” Phillips screws

provided. (Figure A)

3. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra. Test

the radio for proper operation.

4. Secure the

trim plate

to the completed

assembly, and also to the vehicle, using

the (4) #8 x 1” Phillips screws provided.

(Figure B)

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

IMPORTANT

If you are having difﬁculties with the installation of this product,

please call our Tech Support line at 1-800-253-TECH. Before

doing so, look over the instructions a second time, and make

sure the installation was performed exactly as the instructions

are stated. Please have the vehicle apart and ready to perform

troubleshooting steps before calling.

INSTALLATION INSTRUCTIONS

99-5025
