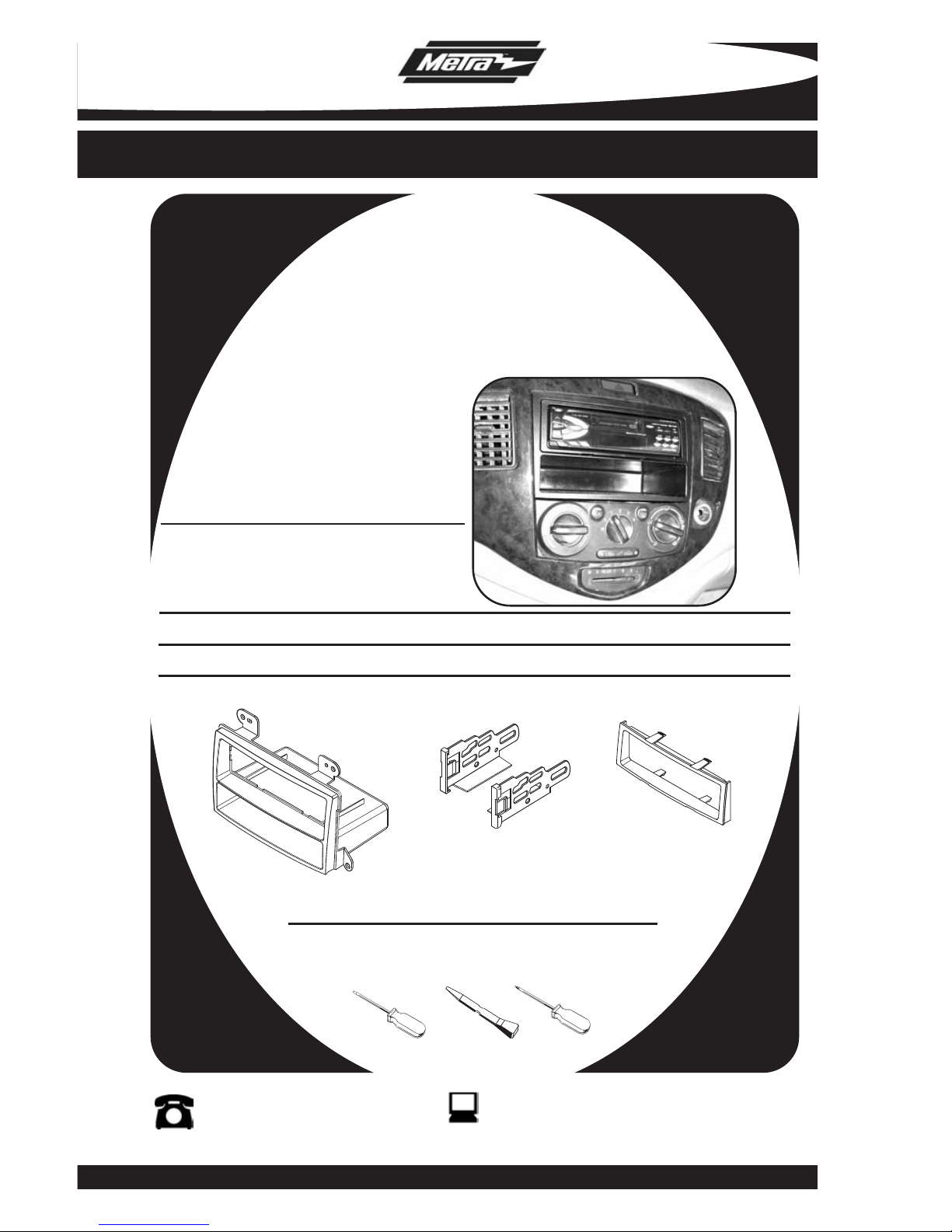

INSTALLATION INSTRUCTIONS FOR PART 99-7502

99-7502

APPLICATIONS

Mazda MPV 2000-2006

KIT FEATURES

•DIN Mount Radio Provision

•ISO Mount Radio Provision

A) Radio Housing • B) ISO Snap In Brackets • C) Trim Plate

KIT COMPONENTS

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver

1-800-221-0932

www.metraonline.com

TOOLS REQUIRED:

Dash Disassembly

Mazda MPV 2000-2006 . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . 1

Kit Assembly

- DIN Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

-ISO DIN Mount Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Final Assembly .......................................... 4

TABLE OF CONTENTS

99-7502

*Note:

Refer also to the instructions included with the aftermarket radio.

99-7502 DASH DISASSEMBLY

MAZDAMPV2000-2006

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Remove (2) Phillips head screws from

above instrument cluster. (

Figure A)

Unclip and remove the radio trim

panel.

(Figure B)

Remove (4) Phillips screws securing

the radio. Unplug and remove radio.

(Figure C)

Continue to kit assembly.

99-7502 KIT ASSEMBLY

DIN MOUNT RADIO PROVISION

Slide the aftermarket radio into the

cage until it snaps into place.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs outward.

(Figure A)

99-7502 KIT ASSEMBLY

ISO DIN MOUNT RADIO PROVISION

Slide the radio into the radio housing

until it snaps into place.

(Figure B)

Snap the Trim plate onto the front of

the Radio Housing assembly.

(Figure B)

Continue to final assembly.

*Note: Refer also to the instructions included with the aftermarket radio.

Mount the ISO Brackets to the radio

using the screws supplied with the

radio.

(Figure A)

99-7502 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown belowand the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’sspecifications.

99-7502

NOTES

99-7502 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
