Metra Electronics 95-8210 Manual de usuario

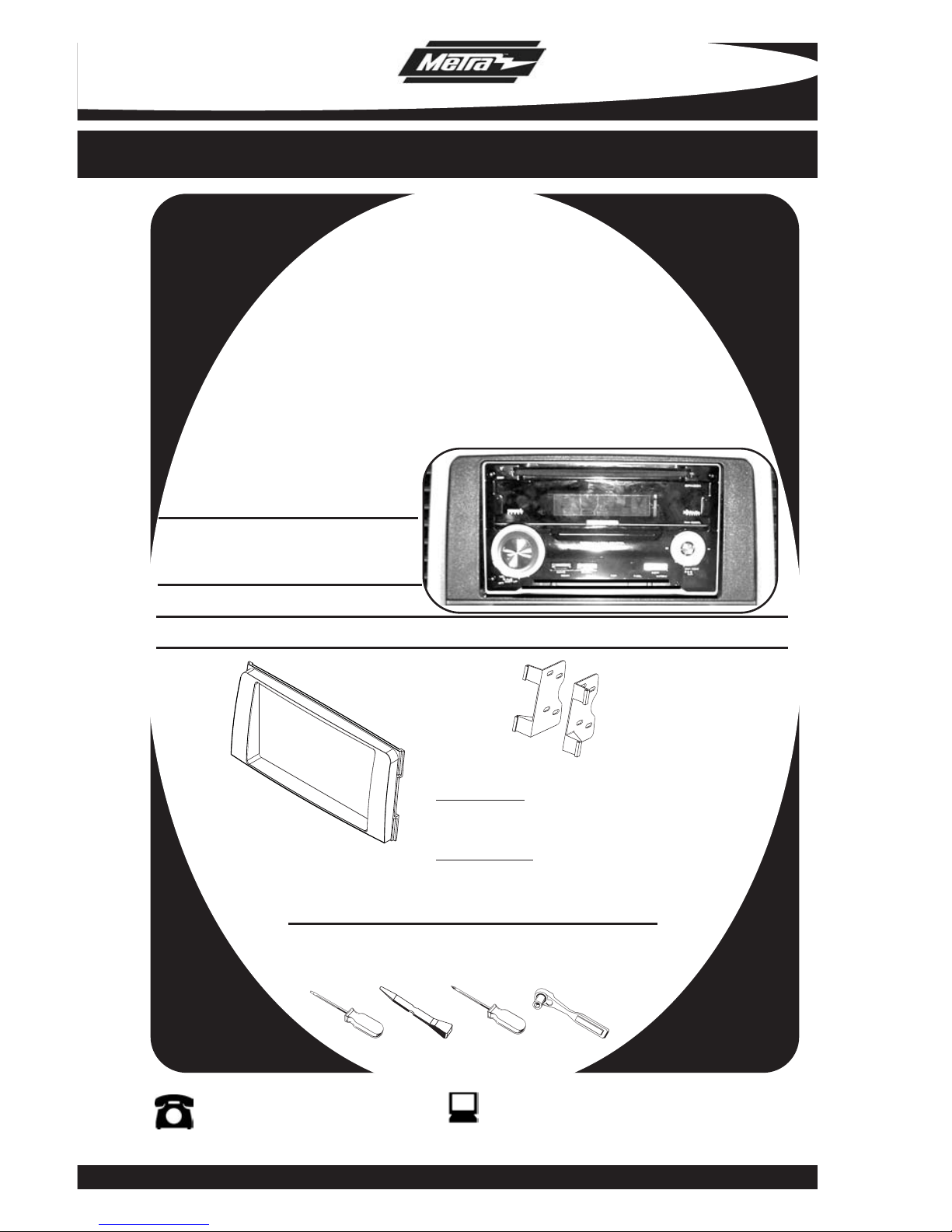

INSTALLATION INSTRUCTIONS FOR PART 95-8210

APPLICATIONS

Toyota 4-Runner Limited

2003-2009

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

A) Double Din Trim Plate • B) Double DIN Brackets

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

•Phillips Screwdriver • Socket Set

1-800-221-0932

www.metraonline.com

95-8210

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• 70-1761 - Toyota harness 1987-up

•TYTO-01 - Toyota amp harness 2003-UP

Antenna Adapter:

•Not required

Dash Disassembly

Toyota 4-Runner Limited 2003-2009 . . . . . . . . . . .

. . . . . . 1,2

Kit Assembly

-Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

-Stacked ISO Mount Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Final Assembly ........................................... 5

TABLE OF CONTENTS

95-8210

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake

steps towardabetter tomorrow.

95-8210 DASH DISASSEMBLY

Toyota 4-Runner Limited 2003-2009

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unsnap and remove trim from around

shifter. (

Figure A)

Unsnap and remove center console

cover.

(Figure B)

Unsnap trim ring from around ignition

key cylinder.

Remove (1) 10 mm bolt from bottom

right side of panel below steering col-

umn. Unsnap panel and pull away to

gain access behind panel. (

Figure C)

Remove (1) 10 mm bolt on bottom left

of center panel behind panel below

steering column. (

(Figure D)

95-8210 DASH DISASSEMBLY

Toyota 4-Runner Limited 2003-2009

PASSENGER

Remove (1) 10 mm bolt beneath cli-

mate control behind pocket door.

(Figure E)

Unsnap climate control,

unplug and remove climate control.

(Figure F)

Remove (2) 10 mm bolts beneath

radio behind climate controls.

(Figure G)

Unsnap and remove entire center

panel around radio.

Remove (2) 10 mm bolts securing

radio. Unplug and remove radio.

(Figure H)

Continue to final assembly.

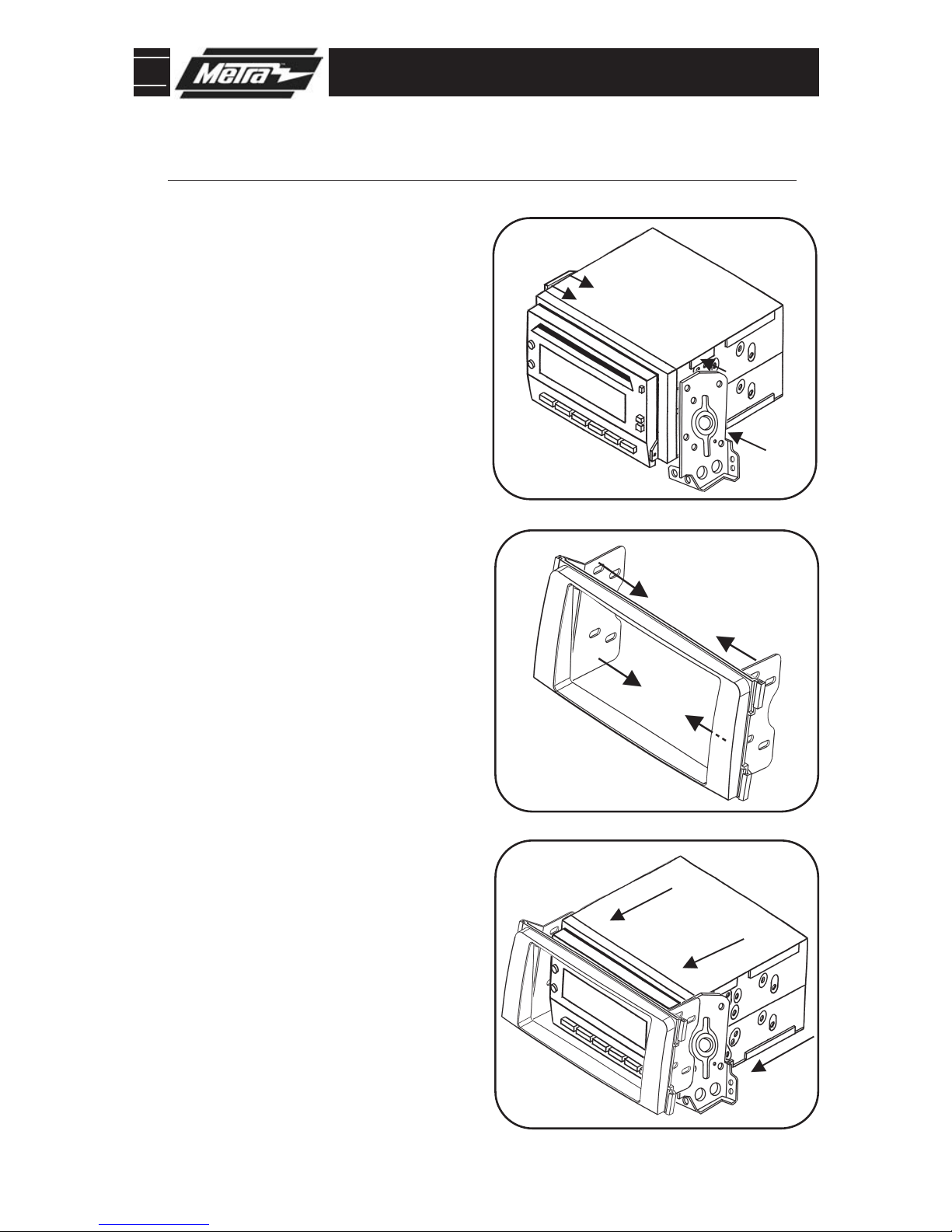

95-8210 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION

Snap the Double DIN brackets to the

outside edge of the Double DIN trim

plate.

(Figure B)

Snap the factory brackets to the side

of the radio.

(Figure A)

Slide the Double DIN radio into the

bracket/trim plate assembly and

secure the radio to the assembly

using the screws supplied with the

radio.

(Figure C)

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

95-8210 KIT ASSEMBLY

STACKED ISO UNITS PROVISION

Snap the Double DIN brackets to the

outside edge of the Double DIN trim

plate.

(Figure B)

Slide the stacked ISO mount units into

the bracket/trim plate assembly and

secure the units to the assembly

using the screws supplied with the

units.

(Figure C)

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

Snap the factory brackets to the side

of the radio.

(Figure A)

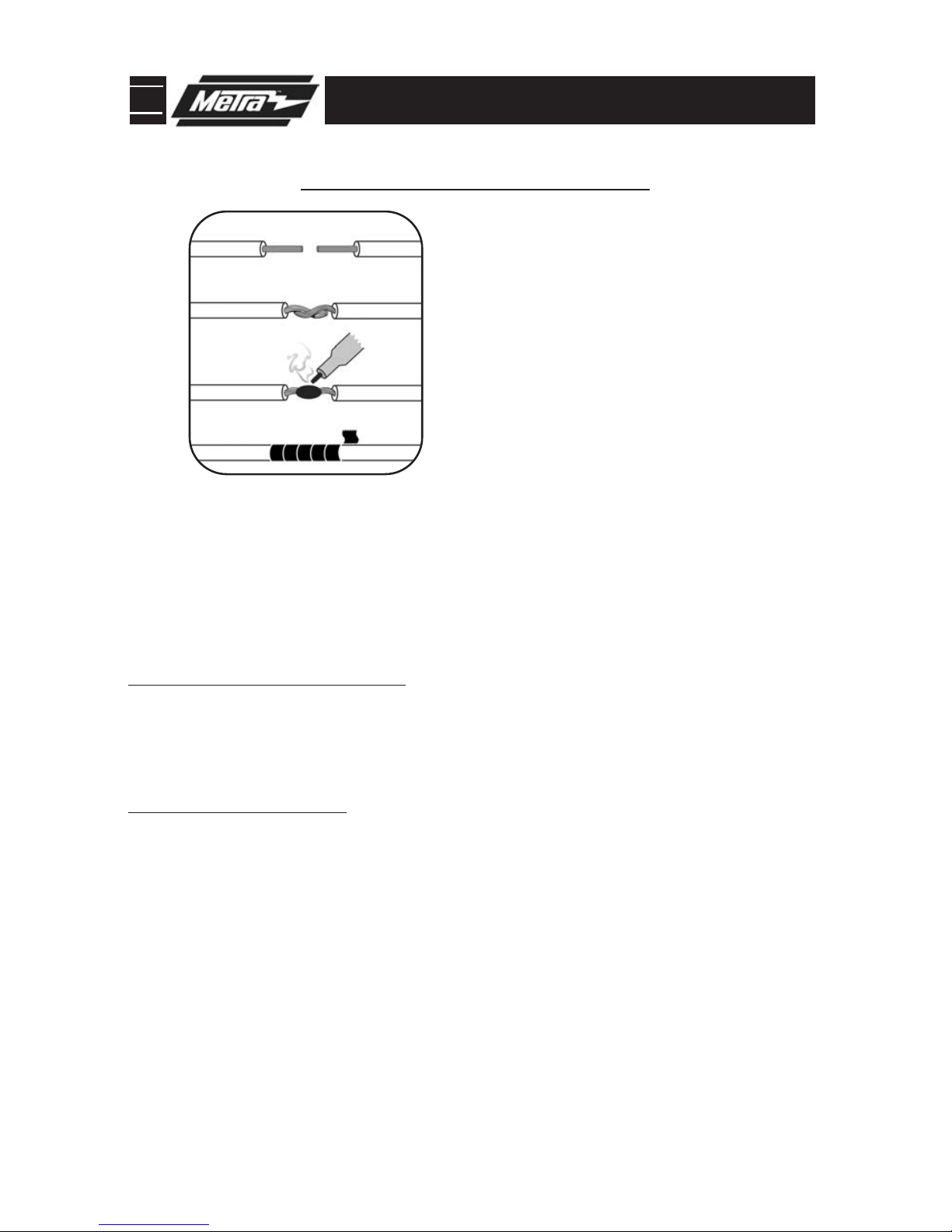

95-8210 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown. (Isolate and individ-

ually tape off the ends of any unused wires to prevent electrical short circuit.)

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the

head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and

individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground..................Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When a Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

95-8210 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
