Metra Electronics 95-3304 Manual de usuario

METRA. THE WORLD’S BEST KITS.™

APPLICATIONS

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-3304

REV. 01/05/12

WIRING & ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• GMOS-01 - GM OnStar and chime harness 2002-up

• GMOS-04 - GM OnStar and chime and amp harness 2002-up

Antenna Adapter:

• 40-GM10 - GM antenna adpter 1988-up

• Flat blade scredriver • Phillips screwdriver • Socket wrench

TOOLS REQUIRED

• A) Trim plate • B) Brackets

KIT FEATURES

KIT COMPONENTS

• Double DIN radio unit provision

• Stacked ISO DIN head unit provision

Buick/Chevy/Hummer/Pontiac/Saturn

multi-kit 2005-2009

95-3304

See application list inside

95-3304

Applications

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning

any installation. All accessories, switches, and especially air bag indicator lights must be

plugged in before reconnecting the battery or cycling the ignition.

Note: Refer to the instructions included with the aftermarket radio.

Buick

Terraza 2005-2008

Chevrolet

Corvette 2005-2009

Uplander 2005-2008

Hummer

H3 2006-2009

Pontiac

Montana (SV6 only) 2005-2007

Saturn

Relay 2005-2007

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

Table of Contents

Dash Disassembly

- Buick Terraza 2005-2008................................................................................................ 4

- Chevrolet Corvette 2005-2009 ........................................................................................ 5

- Chevrolet Uplander 2005-2008 ....................................................................................... 4

- Hummer H3 2006-2009 .................................................................................................. 6

- Pontiac Montana (SV6 only) 2005-2007 .......................................................................... 4

- Saturn Relay 2005-2007 ................................................................................................. 4

Kit Assembly

- Double DIN head unit provision........................................................................................ 7

- Stacked ISO DIN head unit provision................................................................................ 8

95-3304

Dash Disassembly 95-3304

Buick Terraza/Chevy Uplander

2005-2008

Pontiac Montana SV6/Saturn Relay

2005-2007

1. Unclip and remove trim panel around

radio and A/C control. (Figure A)

2. Remove (8) 9/32” screws to extract

radio and A/C control from sub dash.

Continue on next page

(Figure A)

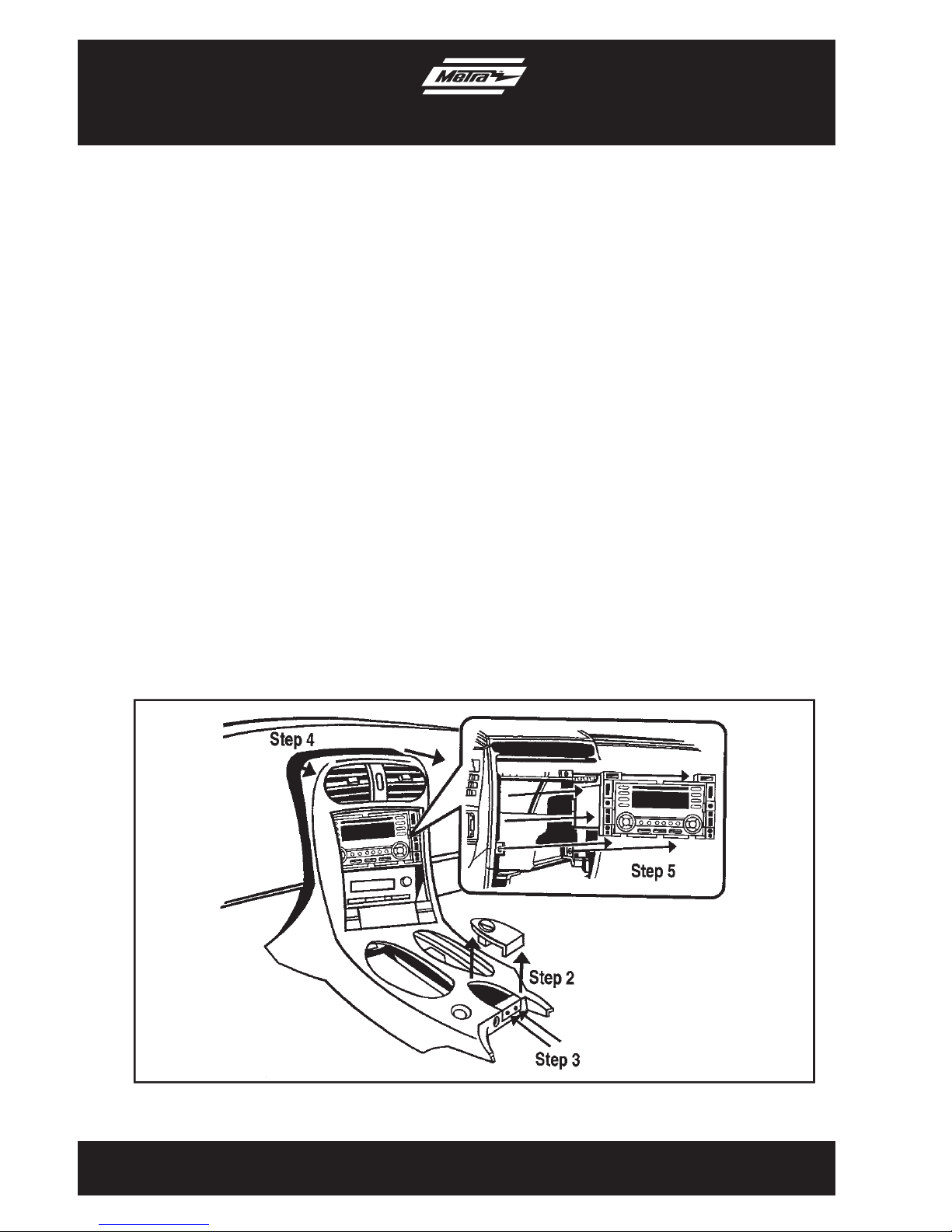

Chevrolet Corvette

2005-2009

1. Unclip and remove ride control

switch/blank plate at front edge of

center console lid, Step 2.

2. Remove (2) 9/32” screws from under

the removed blank plate, Step 3.

3. Unclip and remove entire panel

surrounding radio and including A/C

controls, Step 4.

4. Remove (4) 9/32” screws securing radio

to extract from sub dash, Step 5.

Continue to kit assembly

Dash Disassembly 95-3304

Hummer H3 2006-2009

1. Unclip and remove trim panel around

radio and A/C controls. (Figure A)

2. Remove (4) 9/32” screws securing

radio. (Figure B)

3. Unplug and remove radio.

Continue to kit assembly

(Figure A)

(Figure B)

Dash Disassembly 95-3304

Kit Assembly 95-3304

1. Slide the appropriate bracket into the

trim plate aligning the holes in the trim

plate to the clips on the bracket.

(Figure A)

2 Slide the DDIN radio unit into the trim

plate bracket assembly and secure the

unit to the kit using the screws supplied

with the head unit. (Figure B)

3. Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

4. Reassemble dash in reverse order

of disassembly.

Double DIN head unit provision

(Figure A)

(Figure B)

Kit Assembly 95-3304

Stacked ISO DIN head unit provision

1. Slide the appropriate bracket into the

trim plate aligning the holes in the trim

plate to the clips on the bracket.

(Figure A)

2 Slide the stacked ISO DIN units into the

trim plate bracket assembly and secure

the unit to the kit using the screws

supplied with the head unit. (Figure B)

3. Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adapter from Metra or

AXXESS. Re-connect the negative

battery terminal and test the unit for

proper operation.

4. Reassemble dash in reverse order

of disassembly.

(Figure A)

(Figure B)

Notes

METRA. THE WORLD’S BEST KITS.™

1-800-221-0932 metraonline.com

INSTALLATION INSTRUCTIONS FOR PART 95-3304
