Maytronics Dolphin SX20 Manual de usuario

Robotic Pool Cleaner

EN User Instructions

8151940

Robotic Pool Cleaner

SX20

User Instructions

Robotic Pool Cleaner SX20

User Instructions

Contents

1. INTRODUCTION ...................................................................... 3

2. SPECIFICATIONS ..................................................................... 3

3. WARNINGS AND CAUTIONS .................................................. 3

3.1 Warnings ............................................................................ 3

3.2 Cautions............................................................................. 3

4. POOL CLEANER PARTS ........................................................... 4

5. USING THE POOL CLEANER ................................................... 5

5.1 Setup ................................................................................. 5

5.2 Putting the Pool Cleaner into the pool ............................. 6

5.3 Removing the Pool Cleaner from the pool ........................ 6

6. CLEANING THE FILTER BASKET.............................................. 8

6.1 Cleaning after use ............................................................. 8

6.2 Periodic cleaning ............................................................... 9

7. CLEANING THE NET CANISTER ............................................. 10

8. CLEANING THE IMPELLER ...................................................... 11

9. OFF-SEASON STORAGE ......................................................... 12

10. TROUBLESHOOTING .............................................................. 12

Robotic Pool Cleaner

SX20

User Instructions

Robotic Pool Cleaner Mass 12

User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient

and cost-effective pool cleaning. Its reliable filtration in all pool conditions and active brushing,

enhance pool hygiene.

Robotic Pool Cleaners by Maytronics deliver advanced cleaning technologies, long-lasting

performance and easy maintenance. You and your family will be free to enjoy your swim with full

confidence that your pool is completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.4 m (1.33 ft)

Maximum depth: 5 m (16.4 ft)

3. WARNINGS AND CAUTIONS

3.1 Warnings

• Use the originally supplied power supply only

• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an

earth leakage interrupter (ELI)

• Keep the power supply out of standing water

• Position the power supply at least 3.5 m (12 ft) away from the edge of the pool

• Do not enter the pool while the Pool Cleaner is working

• Unplug the power supply before servicing

• Keep the Robotic Pool Cleaner out of the reach of children or persons with reduced

physical, sensory, or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction.

3.2 Cautions

Use the Pool Cleaner in the following water conditions only:

Chlorine 4 ppm Max.

pH 7.0-7.8

Temperature 6-35°C (43-95°F)

NaCl 5000 ppm Max.

CAUTION

Digital Power supply

Input: 100-125 AC Volts / 200-230 AC Volts

50-60 Hertz

Output: <30 VDC

IP 54

Robotic Pool Cleaner

SX20

User Instructions

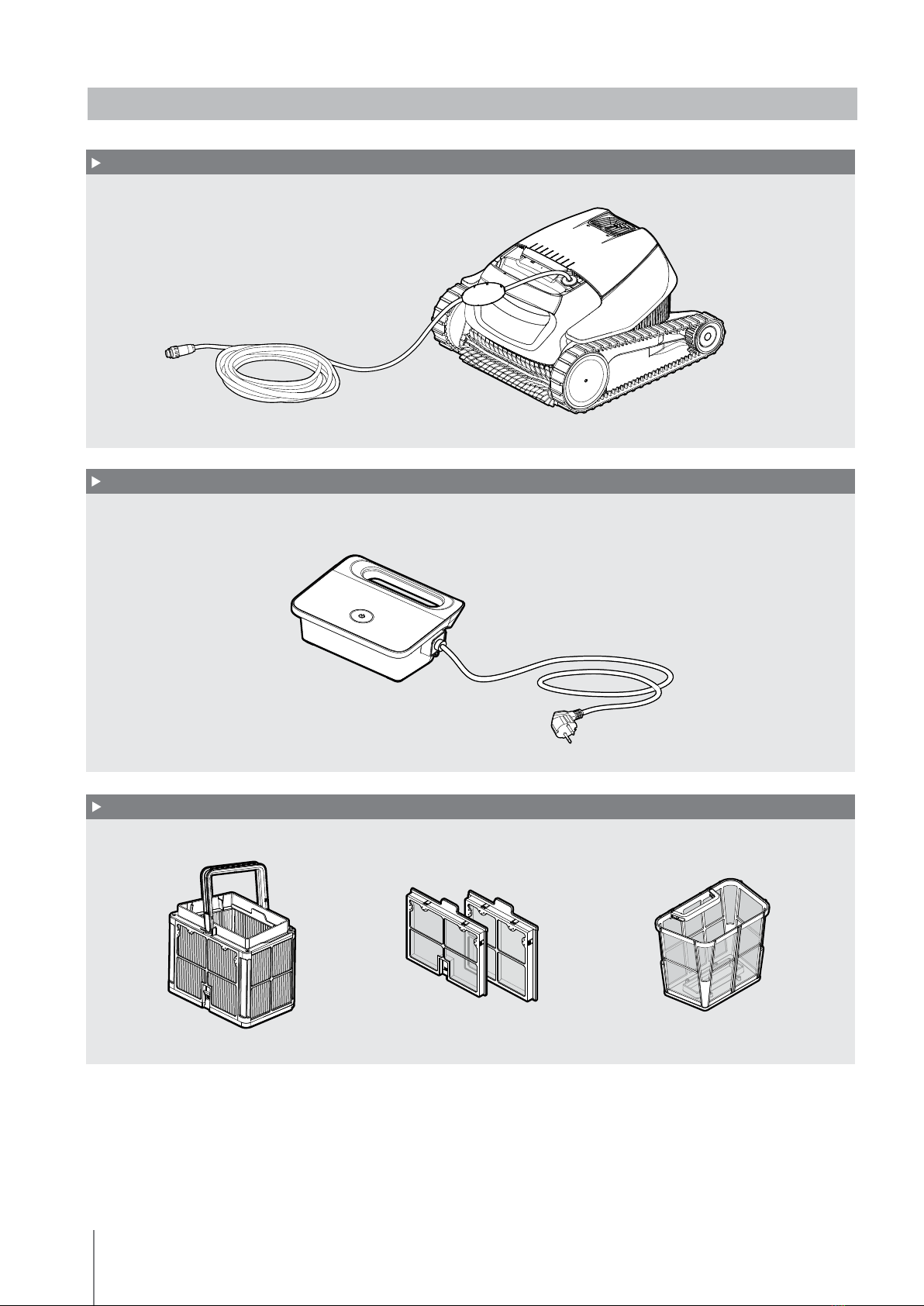

4. POOL CLEANER PARTS

Robotic Pool Cleaner Model Mass 12

Power supply unit

Filtration - options

Robotic Pool Cleaner

SX20

User Instructions

5. USING THE POOL CLEANER

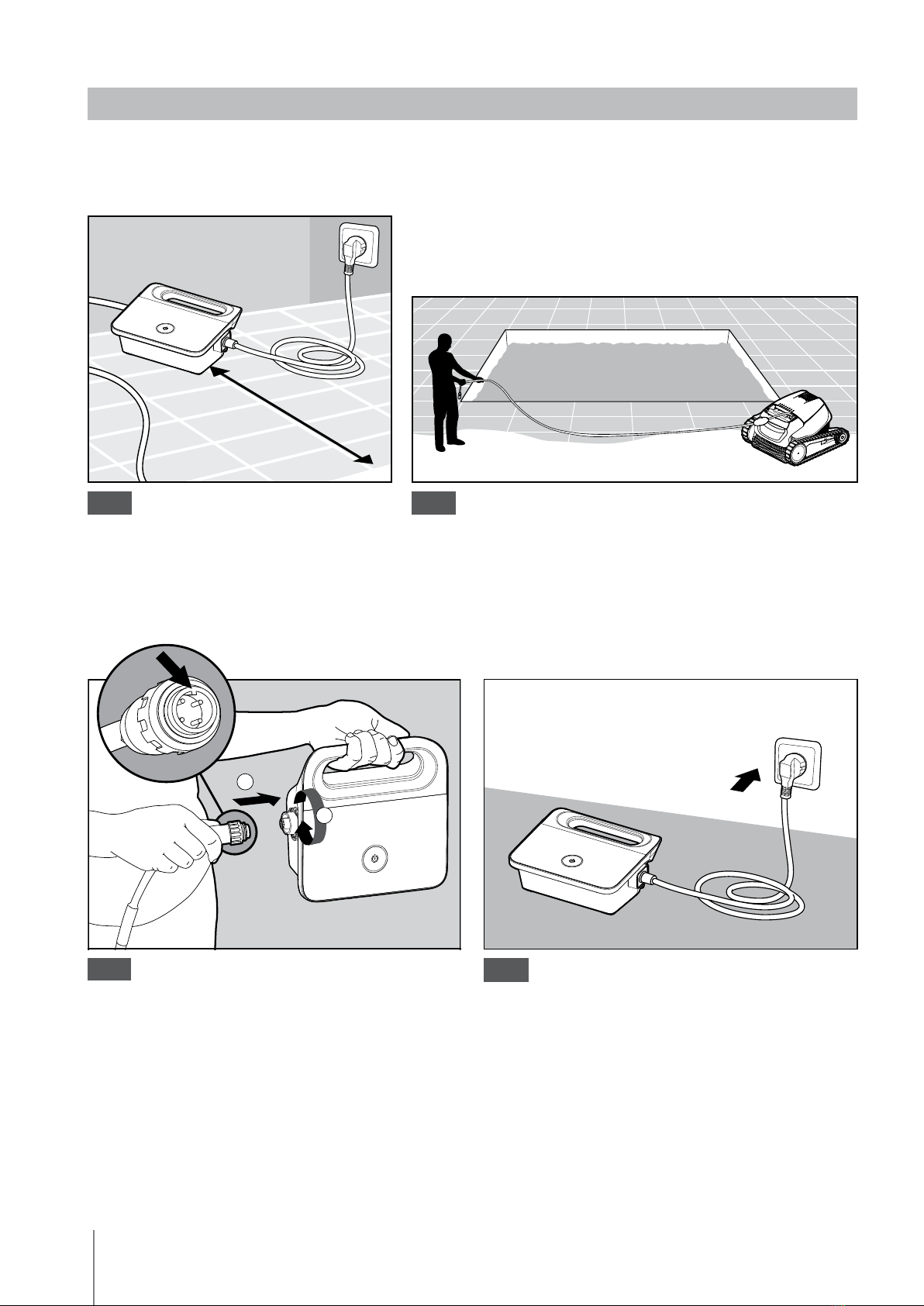

5.1 Setup

Before using the Pool Cleaner for the first time, perform the following steps:

Position the power supply so

that it is approximately in the middle

of the long side of the pool at

a distance of 3.5 m (12 ft).

Unwind the cable and stretch it out completely so that

it has no kinks.

Attach the ﬂoating cable to the power

supply by inserting it with the notch on the

connector (1), lined up with the groove in

the socket on the power supply, and turning

clockwise (2).

Plug in the power supply and leave it in the

OFF position.

5.1.1

5.1.4

5.1.2

5.1.3

3.5 m (12 ft)

Robotic Pool Cleaner

SX20

User Instructions

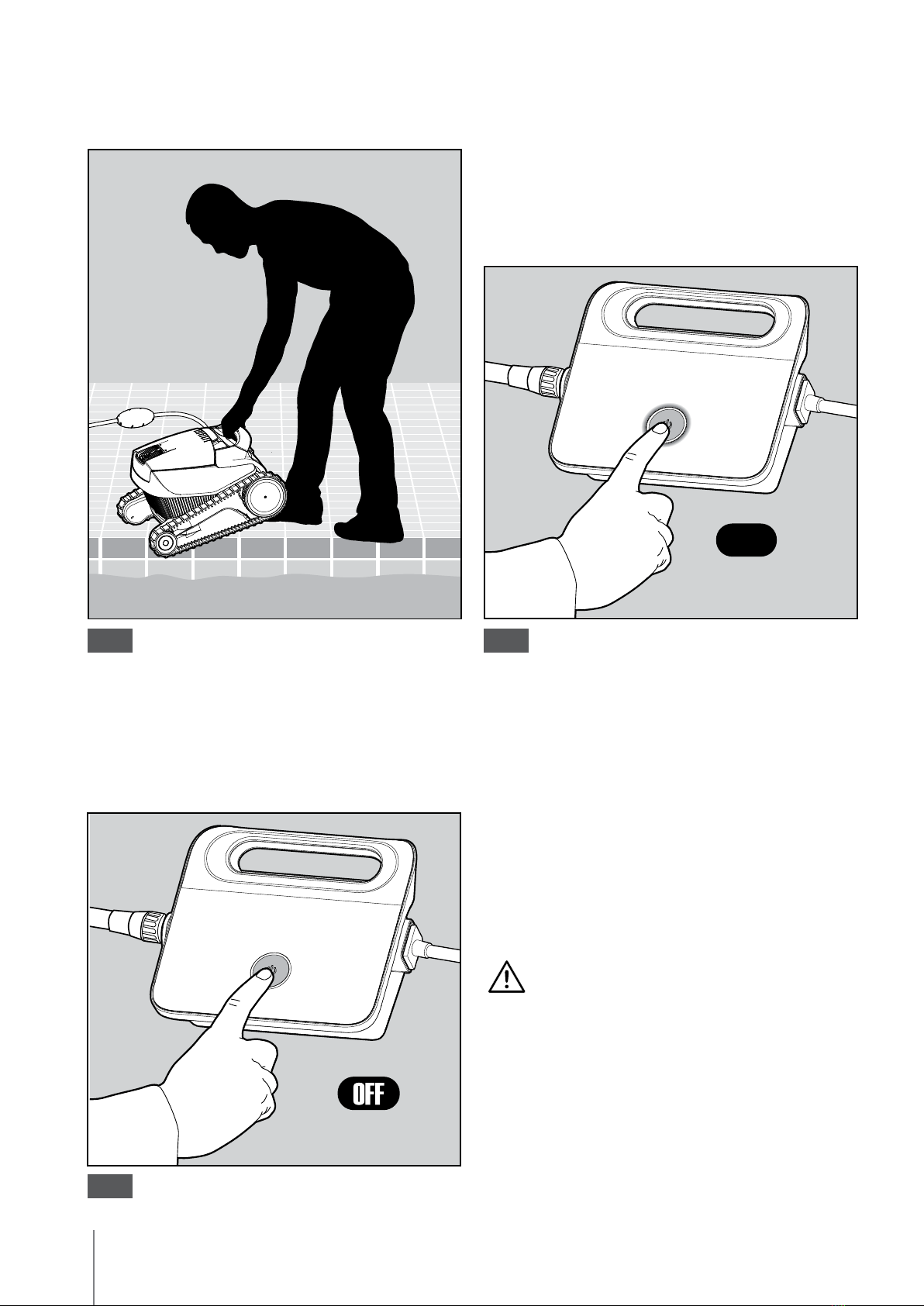

5.2 Putting the Pool Cleaner into the pool

5.3 Removing the Pool Cleaner from the pool

CAUTION

Turn OFF and unplug the power supply.

Put the Pool Cleaner into the pool.

Release the Pool Cleaner and let it sink to the floor

of the pool.

Make sure that the floating cable is free of any

obstructions.

5.2.1

Turn the power supply ON.

The Pool Cleaner will now operate until it has

reached the end of the cleaning cycle.

5.2.2

5.3.1

Robotic Pool Cleaner

SX20

User Instructions

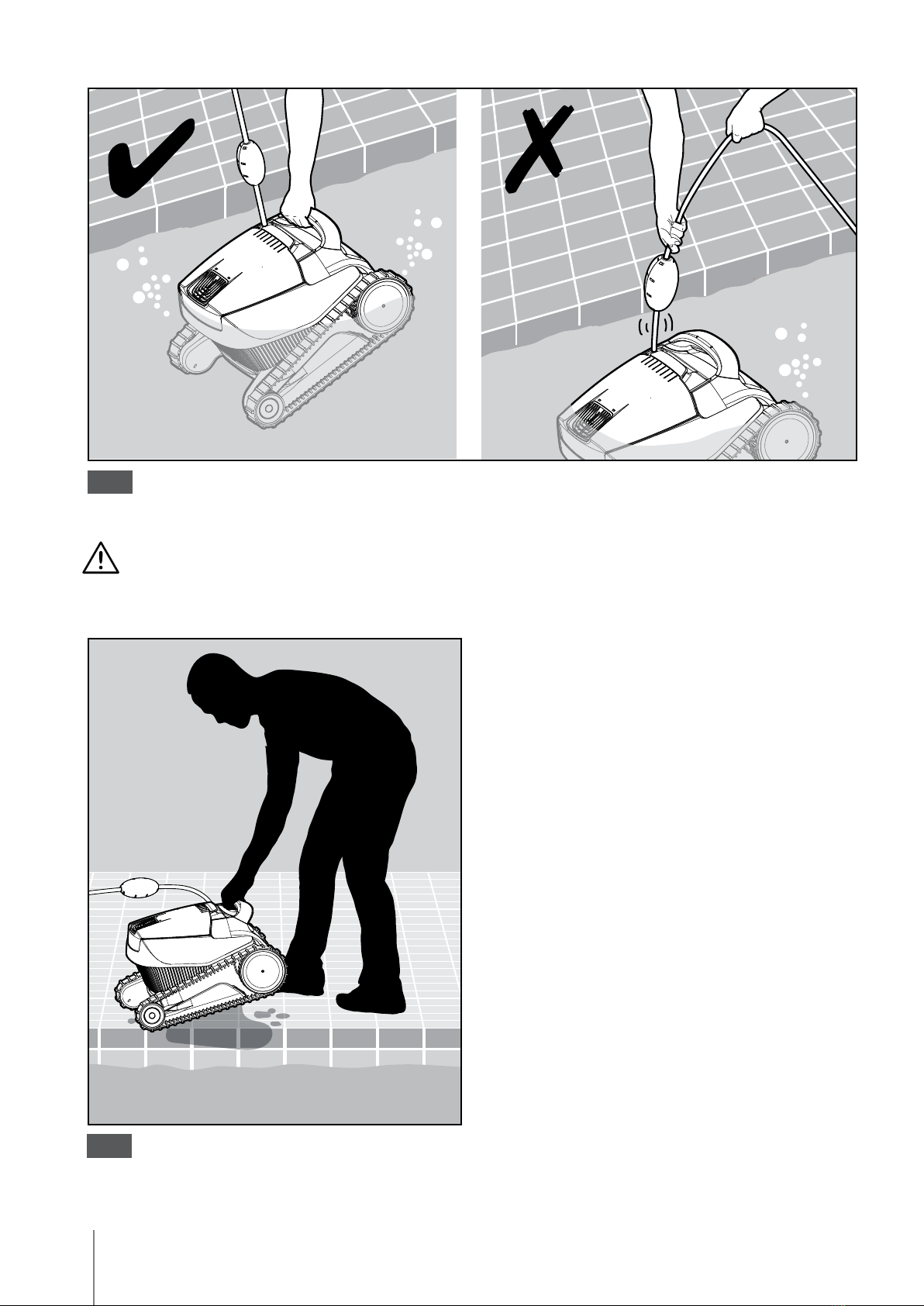

CAUTION

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

Using the floating cable, bring the Pool Cleaner to the pool’s edge.

Using the handle, remove the Pool Cleaner from the pool.

Place the Pool Cleaner on the edge of the

pool and let the water drain out.

5.3.3

5.3.2

Robotic Pool Cleaner

SX20

User Instructions

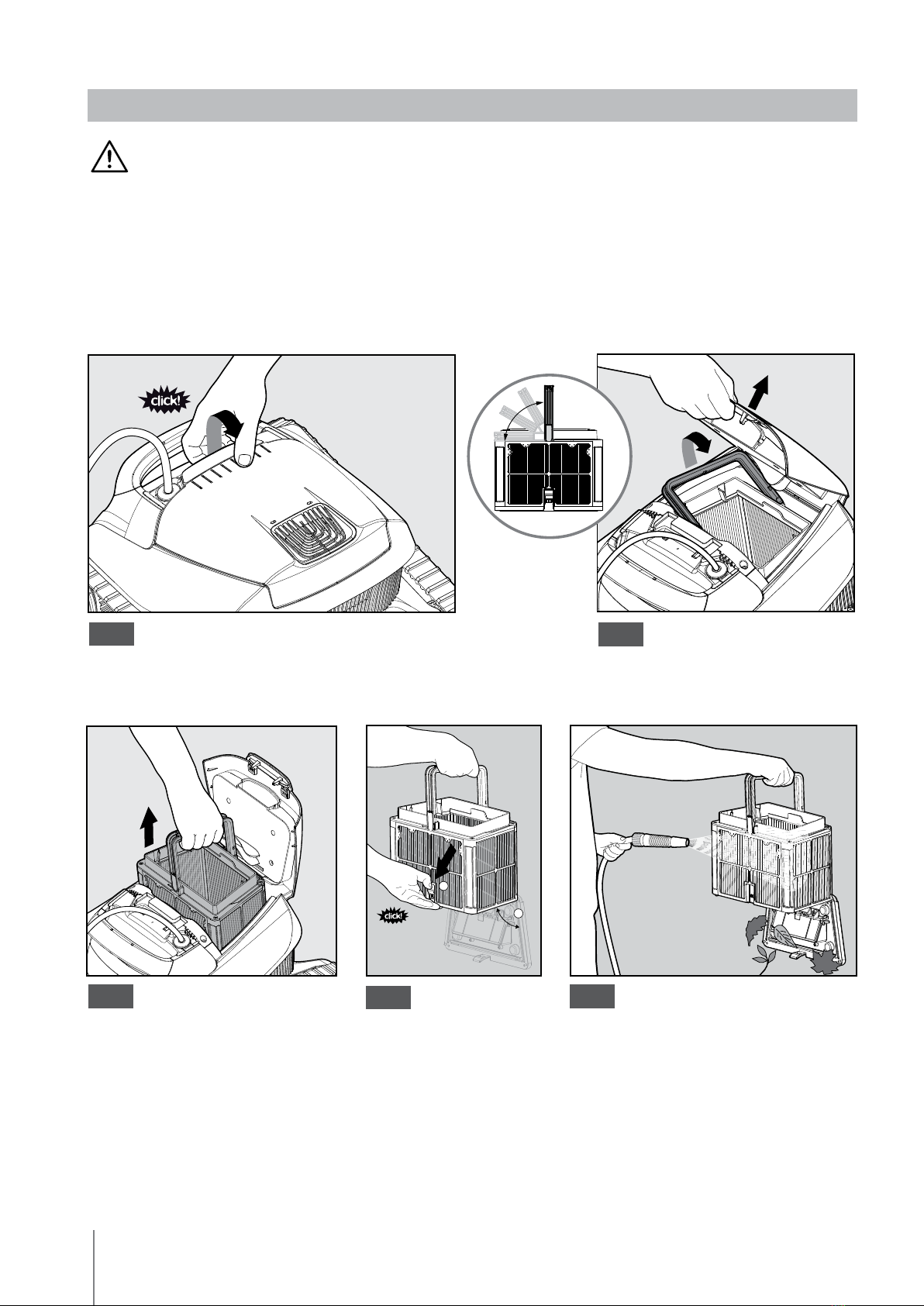

6. CLEANING THE FILTER BASKET

CAUTION

Make sure the power supply is switched off and unplugged.

It is highly recommended to clean the ﬁlter basket after each cleaning cycle.

Note: Do not let the ﬁlter basket dry out before cleaning.

Open the filter cover. Upon opening the filter cover,

the handle will lift independently.

6.1.1 6.1.2

Lift up the basket. Open the latch

to release the bottom

lid in order to remove

the debris.

6.1.3 6.1.4 Clean the filter basket with a hose.

6.1.5

6.1 Cleaning after use - removing and cleaning the ﬁlter basket

Robotic Pool Cleaner

SX20

User Instructions

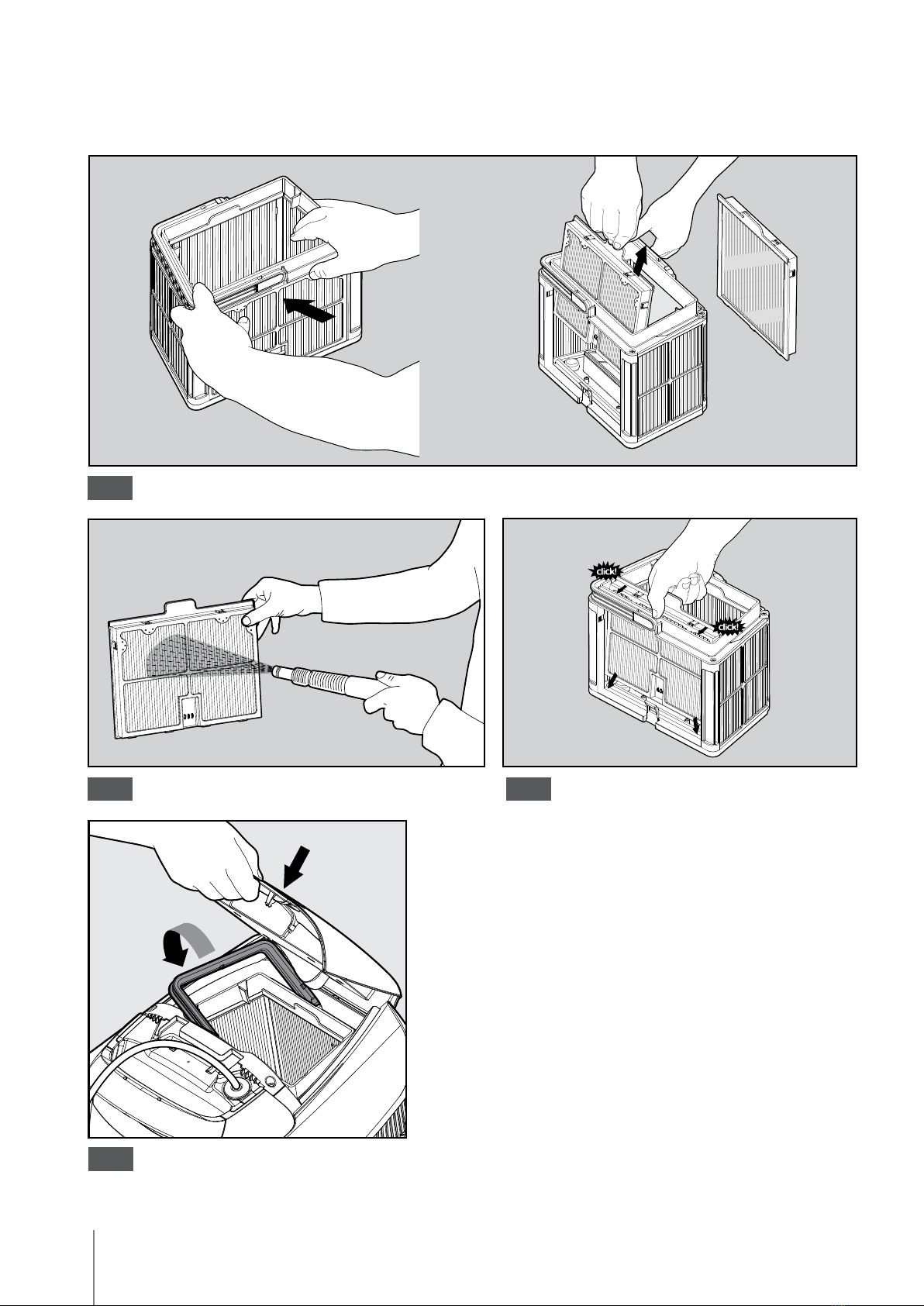

Dismantle the 2 ultra-fine filter panels of the basket, according to the following steps:

Insert the clean filter basket and

close the filter cover.

6.2.4

6.2 Periodic cleaning – recommended at least once a month

Clean the filter panels with a hose.

Assemble the filter panels

Dismantle the 2 panels using your thumbs.

6.2.2 6.2.3

6.2.1

Robotic Pool Cleaner

SX20

User Instructions

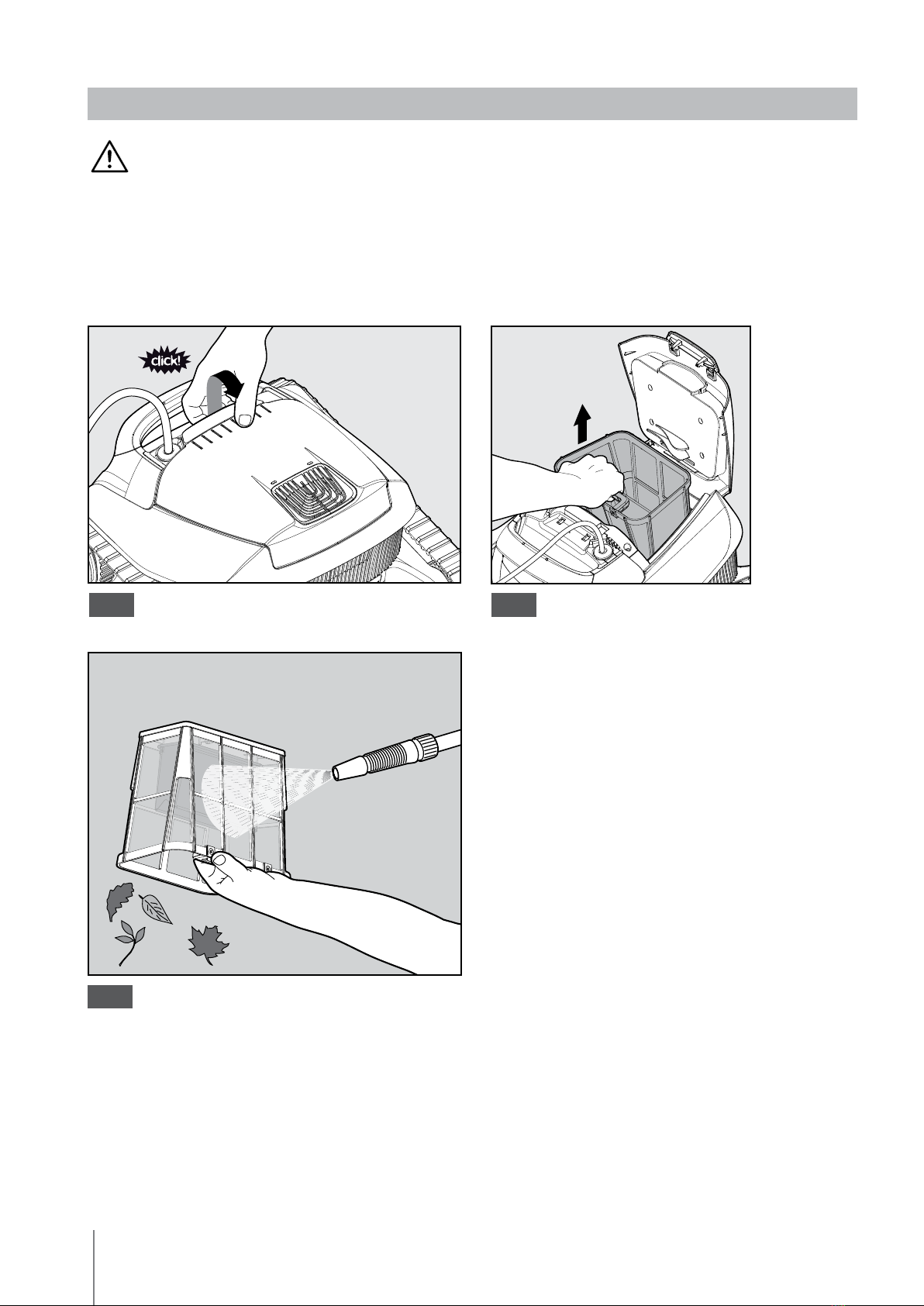

7. CLEANING THE NET CANISTER

CAUTION

Make sure the power supply is switched off and unplugged.

It is highly recommended to clean the net canister after each cleaning cycle.

Note: Do not let the net canister dry out before cleaning.

7.1 Cleaning after use - removing and cleaning the net canister

Open the filter cover. Lift up the net canister.

7.1.1 7.1.2

Clean the net canister with a hose.

7.1.3
