Installation instructions for the Macintosh OS X 10.2 update

In order to gain Maxtor OneTouch functionality with Mac OS 10.2.x (Jaguar) you must:

• Install Mac OS X (version 10.2.4 or later)

• Install the Retrospect Express 5.0.236 Updater

• Install the Maxtor 5000 Update for Mac OS X (version 10.2.x)

Procedure:

NOTE: Do NOT connect the Personal Storage 5000 LE/DV/XT to your computer until after all

software updates are installed.

1. Upgrade your system to Mac OS X (version 10.2.4 or later).

NOTE: Skip to Step 2 if you have already installed the aforementioned Operating System.

2. Install the Personal Storage 5000 Software from the CD-ROM supplied with your 5000 LE/DV/XT drive.

NOTE: Skip to Step 3 if you have already installed the Personal Storage 5000 Software.

3. Download and extract express_50236.sit to your local system. This file can be obtained from the Dantz Website.

4. Download and extract Maxtor5000Update.pkg.sit to your local system.

5. Locate the folder that you extracted called “Retrospect Express 5.0.236”.

6. Launch the file "Install Retrospect Express" located inside that folder. Follow the on-screen prompts to

complete the installation.

7. Locate and launch the “Maxtor5000Update” file

Click on the "Continue" button to proceed.

Document #: 42098 Rev: 07

Date: 3/5/03

Installation instructions for the Macintosh OS X 10.2 update

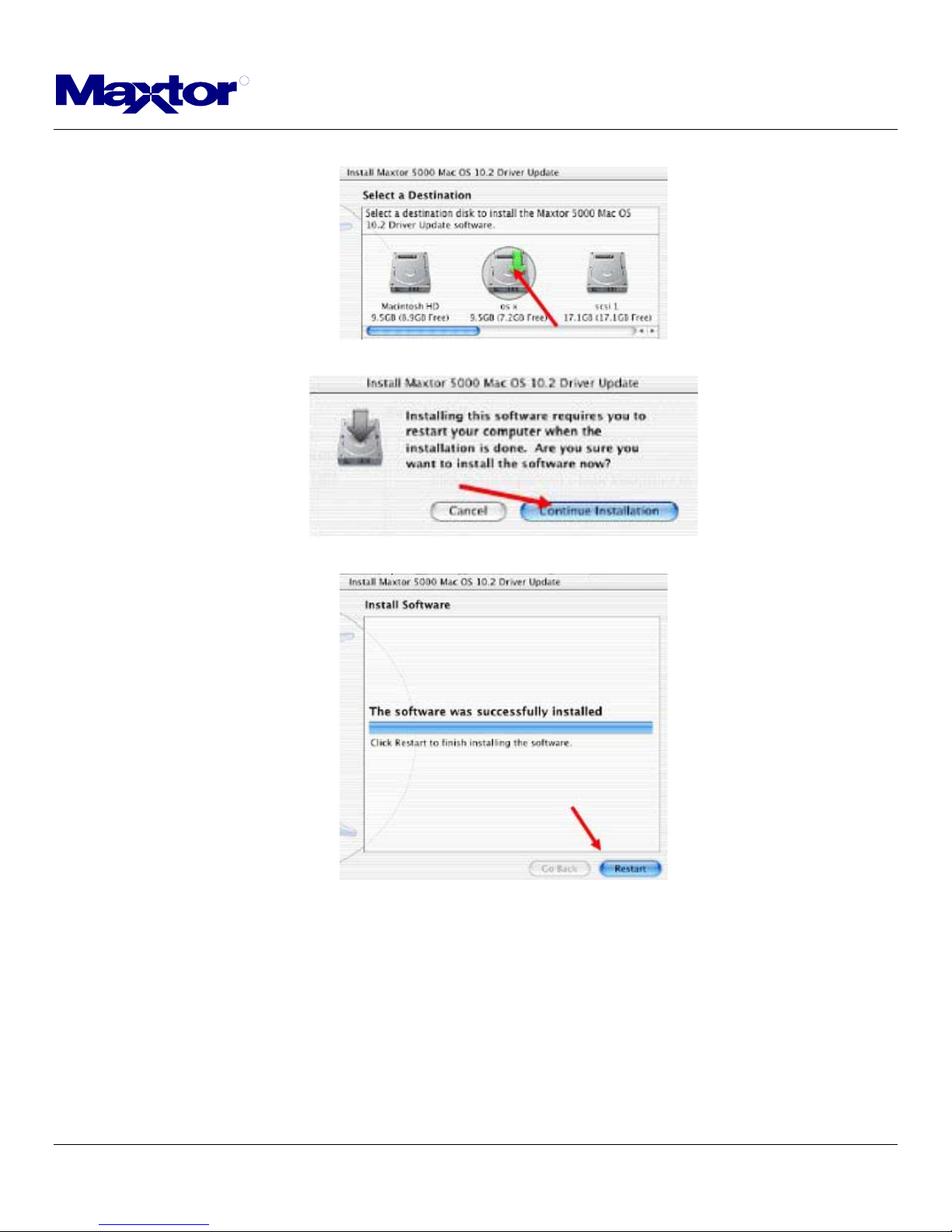

8. Select a destination drive and click on the "Continue" button.

9. Follow the remaining on-screen prompts to complete the installation

10. At this point the installation will Process and Optimize. When finished, click on the "Restart" button.

11. Connect your Personal Storage 5000 LE/DV/XT unit to you Macintosh System.

NOTE: Reference the Personal Storage 5000 User's Guide for proper connection/installation instructions:

• Step 2. Connecting the Drive (see page 7)

• Step 3. Setting Up the Maxtor OneTouch Feature (see page 11)

Additional Information:

1. OneTouch button can interrupt an Immediate Duplicate operation.

Document #: 42098 Rev: 07

Date: 3/5/03

Pressing the Maxtor OneTouch button during the scanning phase of an Immediate Duplicate operation will hang

that operation in favor of the Maxtor script that was created with the Wizard. This only happens during the

scanning phase and does not seem to happen with any other immediate operations. The Maxtor script will run

without issues, but after it has completed the user is left with Retrospect in a state where the Immediate

Duplicate's "scanning" dialog box is left in the application's foreground, leaving the Directory window visible but

Installation instructions for the Macintosh OS X 10.2 update

inaccessible. The Stop button in this window has no effect, and the user must quit the application and re-launch it

to regain to access the Directory window.

2. Maxtor Wizard will crash the Application if previous script was just deleted.

If a user deletes a Maxtor OneTouch script from Automate Scripts and then immediately presses the button to

launch the Wizard, the Retrospect Express application will "go away" as soon as the Next button in the first

window of the Wizard is pressed. After the crash the user can simply press the button again and the Maxtor

Wizard will launch and function normally. As a historical note, the previous Maxtor release had a known issue

where, under OS X 10.1.5, the OneTouch button only worked if Retrospect Express was not already running. With

the new Maxtor drivers for OS X 10.2 under Jaguar the button now works with Retrospect Express already

running.

3. The Maxtor Wizard/OneTouch script will always run if the application is launched from a non-boot drive.

The default install location is the Applications directory of the boot volume. If the Express application directory (the

"Retrospect Express 5.0" folder and all of its contents) is copied to another partition or another hard drive and

launched from that location by double-clicking the Retrospect Express icon the application behaves as if the

button was pressed. The Maxtor Wizard will open if there is no Maxtor OneTouch script or if there is a script, it will

run.

Document #: 42098 Rev: 07

Date: 3/5/03
