Marsden Jadever JCO Manual de usuario

USER MANUAL

Jadever JCO

Please take time to read these

instructions before starting

to use the scale

Version 1.0 07/06

Contents

Introduction 3

Product Specification 3

Safety Instructions 4

Explanation of Graphic Symbols 5

Installing the Scale 6

Operation: Basic Functions 7

Operation: Advanced Functions 9

Error Messages 19

Page 2

Product Specification

Model

Jadever JCO

Capacity/Division

30kg x 2g; 15kg x 1g; 6kg x 0.5g

Display Resolution

1/15,000

Weight of Scale

Approximately 5kg

Units of Measure

Kg / g / lb

Dimensions

Depth –352mm

Width –310mm

Height –104mm

Function Keys

0-9, SMPL, G N/SET, UWS/ITEM, M+/SAVE,

M-/HI, ZERO/ESC, MR, PRINT/LO, TARE

Display

3 backlit LED displays (6/5/6 digits)

Power Supply

DC9v / 400mA

Rechargeable battery (6V/4A)*

Operating Temperature

5 to 40˚C

Please note: Marsden’s policy is one of continuous development and therefore

we reserve the right to change product specification without notice.

Page 3

Dimensions

Page 4

352mm

310mm

104mm

Function keys

Sampling mode

Sampling function

Calculate the weight/ count of

an item/items from a sample.

Gross weight / net

weight.

Parameters setting

(long press)

Gross weight and net weight

shift

Shift between gross and net

weight after using the Tare

function.

Unit weight

memory

Access the unit weight memory

Access the weight data saved on

the scale’s memory.

Accumulation

Total up a number of weight

readings.

Clear the input

figures. Upper

limit setting.

Remove weight data saved on

the scale’s memory.

Zero

Scale re-zero function

Return the scale to a zero

reading.

Memory recall

Recall saved memory data

Access data saved on the scale’s

memory.

Lower limit setting

Print function

Print weight data when a printer

is installed.

Tare

Tare function

Remove unwanted weight from

the reading.

Page 5

Before using the Scale

1. Before using the scale, remove the shipping protection screw (rotate

counterclockwise), which is located underneath the scale. This screw ensures

protection of the load cell during transportation.

2. Fit the stainless steel pan over the plastic pan.

Levelling the Scale

To compensate for small surface irregularities or inclinations, the scale can be levelled. The

scale is equipped with a level indicator at the front panel. Adjust the feet until the air bubble

in the indicator is centered as shown.

Note: The scale should be levelled each time it is placed on a new surface.

Power Supply

Make sure the rechargeable battery is installed in the battery box in the underside of the

scale.

Alternatively, plug the adaptor into the port on the underside of the scale.

1. Stainless steel weighing pan

2. Plastic weighing pan

3. Transport protection screw

4. Power socket

5. On/Off switch

6. HI-LO-OK signal output and bi-direction RS-232

standard interface

7. Print button

8. Two–stage switch（110V&220V)

9. Bubble level indicator

Page 6

Operation: Basic Functions

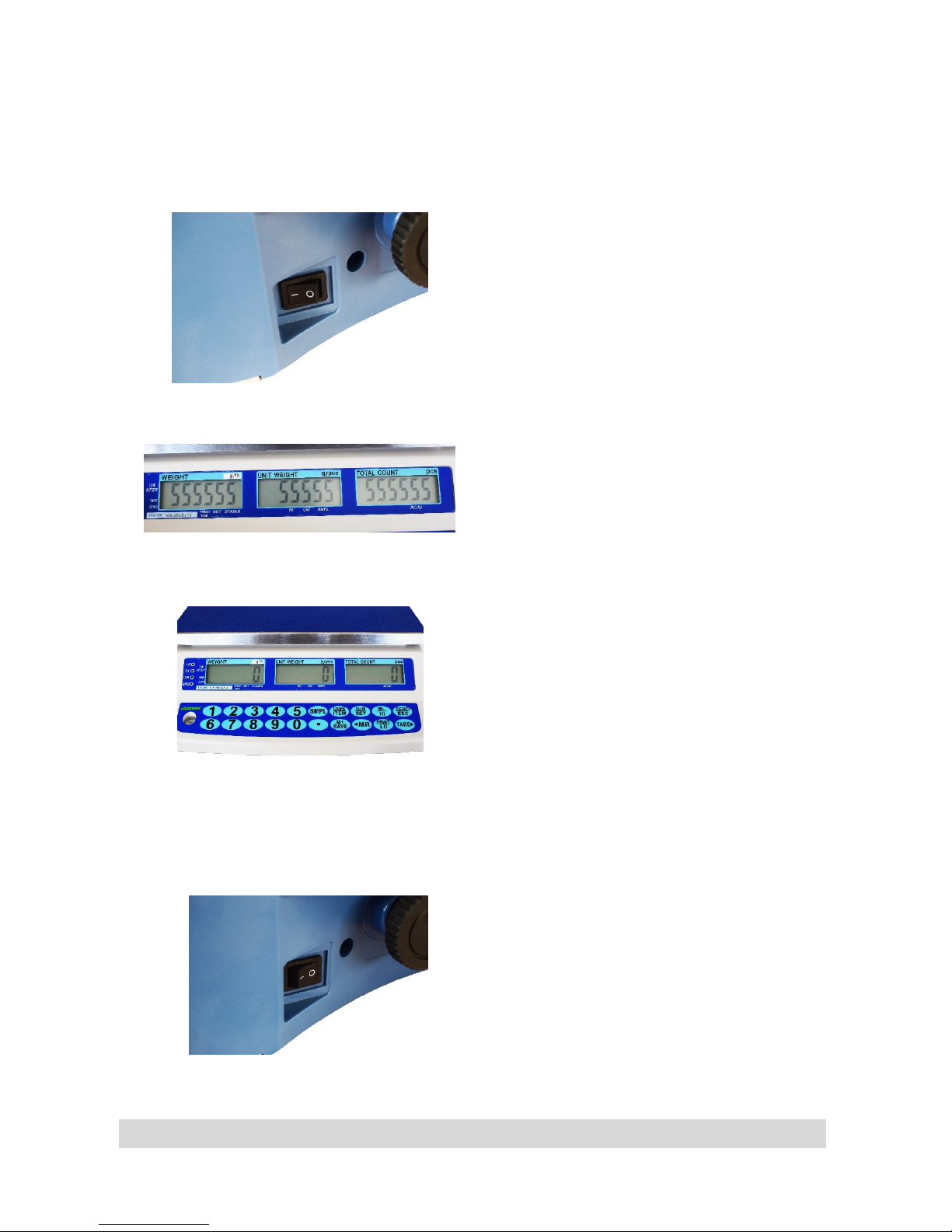

Switching on the Scale

The scale’s ON/OFF switch is located

underneath the scale. Press to power

on the scale.

The scale will first test all of the

display segments.

The scale will now go into weighing

mode and should show 0kg on the

display.

Switching off the Scale

Press the ON/OFF switch when the

scale is turned on. The scale will

now power down.

Page 7

Setting the Scale to Zero

If for any reason the scale shows a

reading other than 0kg it can be

reset to zero.

Press the ZERO/ESC key once.

The scale will return to 0kg.

Page 8

Operation: Advanced Functions

Tare and Pre-Set Tare Functions

Press the TARE key for three

seconds to enter Preset Tare

setting mode.

Enter the weight of the container

using the M/HI key to increase the

weight and the PRINT/LO key to

decrease the weight.

Press M+/SAVE to save the weight

and return to normal weighing

mode.

Add the items to the container

and the weight of the container

will be automatically tared from

the total weight.

Page 9

Upper Weight Limit Checking

Long press the M-/HI and the

leftmost number will start to flash.

Use the numeric keys to edit the

value or use the M-/HI and

PRINT/LO keys to increase or

decrease the value.

Press G N/SET to start or close

weighing checking.

Press the M+/SAVE key to confirm

and save or ZERO/ESC to return to

weighing mode without saving.

Page 10
