Marsden M-165 Manual de usuario

Marsden M-165 User Manual

Please take time to read these instructions before starting to use the scale.

Page 2 of 15

Contents

Introduction 2

Product Specification 2

Safety Instructions 3

Explanation of Graphic Symbols 4

Power Supply and Low Battery 5

Operation: Basic Functions 6

Operation: Advanced Functions 8

Assembling the Column 10

Attaching the Height Measure 11

Levelling the Scale 12

EMC Guidance and Manufacturer’s Declaration 13

Error Messages 15

Manufacturer’s Declaration of Conformity 15

Introduction

Thank you for purchasing a professional gym weighing scale. Ideal for areas of heavy traffic and guaranteed accurate weight

readings. Continue reading for instructions on how to use the device and company contact information.

Product Specification

Model

M-165

Capacity/Division

250kg x 100g

Weight of Scale

Approximately 8kg

Units of Measure

Kg/St

Function Keys

ON/ZERO/OFF, UNIT, SEND, HOLD/BMI, TARE/BSA

Stabilization Time

1-2 Seconds

Operating Temperature

5 ˚C to 35˚C

Power Supply

6x 1.5V AA batteries or 12V 1A adaptor (UE24WCP1 – 120100SPA)

Indicator Display

3cm display with 5 active digits

Dimensions

Base: 310mm x 310mm x 83mm Indicator: 174mm x 107.6mm x 50mm

Warranty

4 year

Safety Instructions

Before putting the device into use, please read with care the information given in this user manual, which contains important

instructions for proper installation, use and maintenance of the device.

Marsden and/or the manufacturer shall not be liable for damages arising from failure to heed the following instructions:

•When using electrical components under increased safety requirements, always comply with appropriate regulations.

•Inappropriate installation/use will render the warranty null and void.

•Ensure the voltage marked on the power supply unit matches your mains supply.

•This device is designed for use indoors only.

•Observe the permissible ambient temperatures for use.

•The device meets the requirements for electromagnetic compatibility. Do not exceed the maximum values specified

in the applicable standards.

•Batteries should be kept away from small children. If swallowed, promptly seek urgent medical assistance.

If you have any problems with this scale, please contact Marsden/your local dealer/your service partner.

If a serious incident occurs in relation to this device, it should be reported to the manufacturer and the competent authority of

the Member State in which the user and/or patient is established.

Page 3 of 15

Cleaning

•We recommend using alcohol-based wipes or similar when cleaning the scale.

•Please do not use corrosive liquids, large amounts of water or high-pressure washers.

•Always disconnect the scale from the mains power supply before cleaning.

Maintenance

•The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at

regular intervals. If any inaccuracies occur, please contact your local dealer or service partner.

•If you are in the UK, service contracts are available from Marsden to keep your scale accurate and reliable for longer.

Call 01709 364296 for more information.

Disposing of the Scale

•This product should not be treated as regular household waste but should be handed in to an electrical/electronic

equipment recycling centre.

•You can obtain further details from your local council, your municipal waste disposal company or from where you

purchased the product.

•Alternatively, you can return this product to Marsden –we will recycle this free of charge,

Intended Use

•This scale is intended for use to determine the weight of patients, supported by professional personnel and in rooms

intended for carrying out healthcare. The weighing value can be read after a stable weighing value has been

obtained. Before use, the scale must be checked by an authorised person to ensure it's in a suitable condition.

•Device is intended to measure one subject at a time.

Page 4 of 15

Explanation of Graphic Symbols

Caution, consult

accompanying

documents before use

Separate collection for

waste of electrical and

electronic equipment,

in accordance with

Directive 2002/96/EC

Manufacturer of medical

device

Manufacturing year of

medical device

Carefully read user

manual before

installation and usage,

and follow instructions

for use.

Medical electrical

equipment with Type B

applied part

Device catalogue

number

Authorized

representative in the

European Community

Manufacturer's batch or

lot number

Device is a medical

device

Serial number

Unique Device

Identifier

Device conforms to 93/42/EEC as amended by 2007/47/EC Medical

Device Directive. Four digit number refers to Notified Body.

Device complies with International Organization of Legal Metrology

(Class III) requirements (verified models only)

Device complies with EC directives (verified models only)

M: Conformity label in compliance with Directive 2014/31/EU for non-

automatic weighing instruments

19: Year in which conformity verification was performed and the CE

label was applied. (ex: 19=2019)

0122: Refers to Notified Body for metrology

Device complies with UK Regulation.

M: Non-Automatic Weighing Instruments Regulations 2016.

21: Year in which conformity verification was performed and the CE

label was applied. (ex: 21=2021)

0120: Refers to the Approved Body for metrology

Page 5 of 15

Power Supply & Low Battery

The indicator uses power from 6x AA batteries, or can be powered from the mains via the adaptor.

Make sure the batteries are installed in the battery box of the indicator. Alternatively, plug the adaptor (12V 1A) into the port on

the side of the scale.

Installing Batteries

Remove the battery cover.

Remove the battery case and insert batteries, ensuring they are

properly installed.

Install the battery housing.

Refit the battery cover.

Switching on the Scale

Press the ON/ZERO/OFF button firmly.

When the scale shows 0.0 on the display you are ready to

start weighing.

Page 6 of 15

Switching off the Scale

Hold the ON/ZERO/OFF button for three seconds when the

scale is turned on. The scale will power down.

Setting the Scale to Zero

If the display shows a reading other than 0.0 when nothing is

on the scale, it can be reset to zero.

Press ON/ZERO/OFF once.

The scale will return to 0.0.

Page 7 of 15

Hold Function

Press the HOLD/BMI button once, either whilst the patient is

stood on the scale or before they step onto the scale.

After a few seconds the scale will lock on the person’s weight.

When the patient leaves the scale, the weight will remain on

the display.

Press HOLD/BMI again to disable the Hold function and

return the scale to 0.0.

Note: If the weight reading remains on the display for more than five minutes, the Hold

function will automatically disable and the display will return to 0.0. If another patient steps on the scale whilst a held weight

reading is being displayed, the Hold function will be disabled.

Page 8 of 15

Body Mass Index (BMI) Function

The patient should first stand on the scale.

Hold down the HOLD/BMI button to enter BMI mode.

The scale will enter height setting mode and the

extreme left digit will flash.

Enter the height by using the TARE/BSA button to

decrease the value and HOLD/BMI button to increase

the value. To move to the next digit, press SEND.

To confirm the height hold down the ON/ZERO/OFF

button, after a few seconds the display will alternate

between weight, height and BMI.

To exit BMI mode and return to normal weighing mode,

hold down the HOLD/BMI button.

Page 9 of 15

Body Surface Area (BSA)

After calculating BMI, you can then calculate BSA. After going

through the first four steps on the previous page steps to

calculate BMI, press TARE/BSA and Body Surface Area will

be displayed.

Tare Function

Place the item/s you wish to deduct from the reading (such as

a pair of shoes) on the scale and press TARE/BSA.

Remove the item/s, and the scale will show a minus reading.

Weigh the patient as normal and the negative weight reading

will be deducted from the total weight.

Page 10 of 15

Assembling the Column (M-165 only)

Assembling the M-165’s column should ideally be carried out by two people.

Holding both the column and the base, ensuring all wiring is tucked inside the column housing, turn the scale over so that the

column can be screwed to the base from the underside of the base.

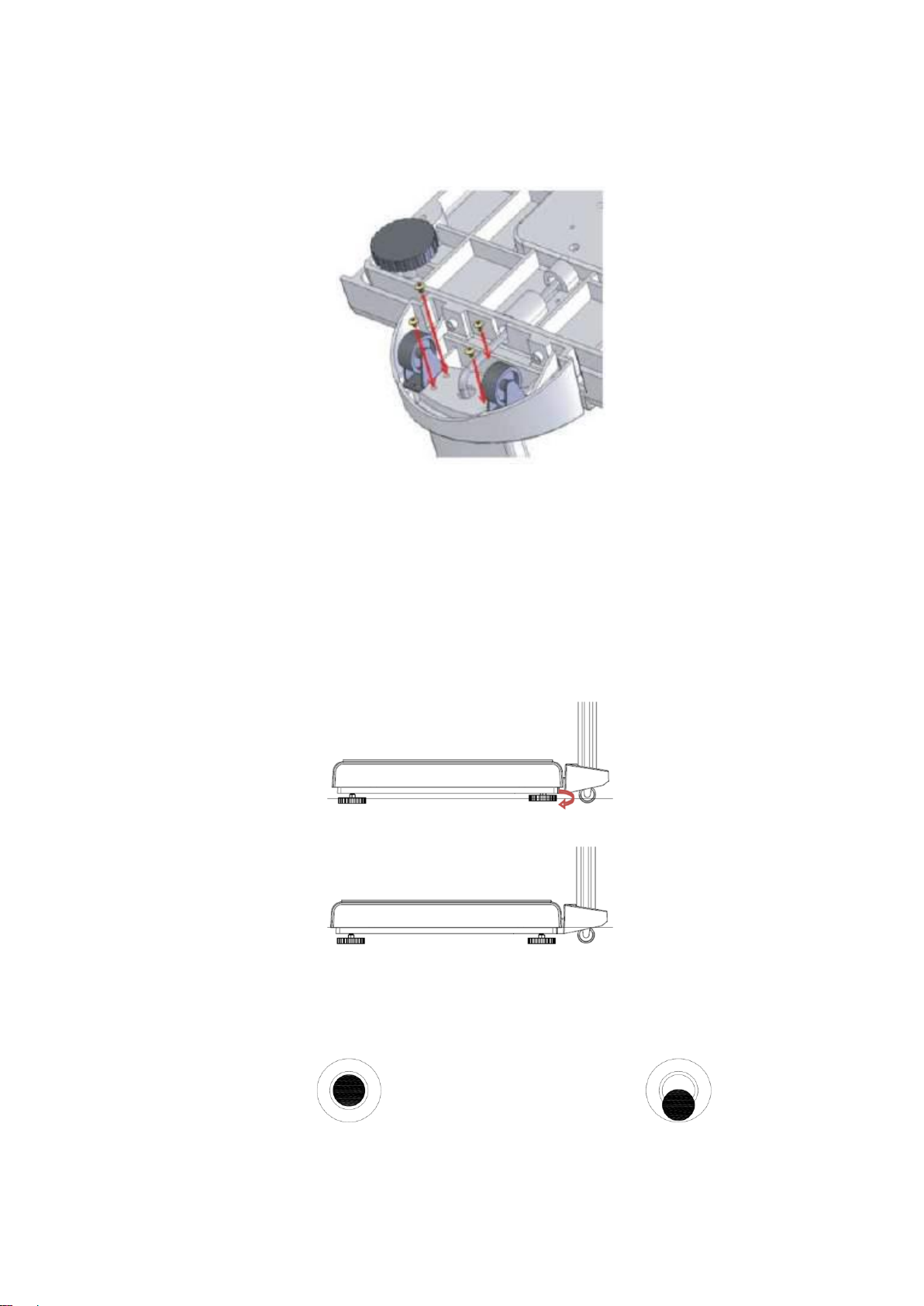

Use the four screws provided, screwing them carefully into the four holes as shown in the drawing.

Before Use

1) Place the scale on a firm and level surface

2) Unwind the levelling feet until they make contact with the ground.

3) Ensure that all four of the levelling feet and the wheels are firmly on the ground and that the spirit level bubble is

located in the center as shown below:

Correct: Incorrect:
