Logitech G Pro Manual de usuario

PRO RACING WHEEL | PRO 赛车方向盘

for PlayStation®5 consoles, PlayStation®4 consoles and PC

适用于 PlayStation®5 游戏主机、PlayStation®4 游戏主机和 PC

SETUP GUIDE | 设置指南

PRO RACING WHEEL | VOLANT DE COURSE PRO

for PlayStation®5 consoles, PlayStation®4 consoles and PC

pour consoles PlayStation®5, PlayStation®4 et PC

SETUP GUIDE | GUIDE D’INSTALLATION

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . 3

简体中文 . . . . . . . . . . . . . . . . . . . . . . . . . . .26

繁體中文 . . . . . . . . . . . . . . . . . . . . . . . . . . .49

한국어 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

3ENGLISH

CONNECTIVITY

1 USB connection to PC / console

2 Peripheral ports*

3 Power connector

*NOTE:

–Not a standard USB connection. Only Logitech

racing peripherals will function in these ports.

Other USB peripherals will not function and should

not be connected.

Please ensure that the power connector is fully

inserted; otherwise, your PRO Wheel may not

function correctly. As you insert the connector,

you might feel a small click, but you can push past

this until the connector is fully inserted. Do not use

excessive force to insert the connector.

4ENGLISH

INSTALLATION

1 DESK

1a. Place the wheel base on your desk and ensure the feet

atthe bottom are aligned against the edge.

1b. Insert the clamp into the hole at the front.

1c. Tighten the clamp by adjusting

the screw handle.

Once the clamp has come into contact with thedesk,

youonly need between a half and one full turn of

thehandle to achieve the correct level of clamping.

Donot overtighten.

< 50 mm (1.97 in)

1b 1c

NOTE:

–Also be aware of the construction of your desk and

its suitability for clamping a high-torque wheel to it.

Somedesks use a hollow-core construction, for example,

where you have a top piece of material and a bottom

piece. Those pieces are likely to be thin and are unlikely

tostand up to the forces applied when the wheel is

clamped in place. Logitech recommends only clamping

your PRO Wheel to a desk made from a solid material,

suchas MDF or wood.

5ENGLISH

2 RACING SEAT

2a. Use the three bolt holes on the underside of the PRO

Racing wheel to attach it to most major racing seats.

–You will need 3 x M6X1 bolts (not included) with a

maximum depth inside the wheel base of 15mm.

Remember to account for the thickness of the surface

that you are attaching the wheel base to.

–Using a longer bolt than this will damage the wheel

unit, so use washers if needed to ensure that the bolts

do not encroach too far inside the wheel base.

–You only need to hand tighten. Do not use power tools

to tighten the bolts.

2b. You can use the included cover to ll the clamp hole

when attaching to a racing seat.

WARNING:

–Do not use the wheel rim as leverage to assist you when

getting into or out of your racing seat as this will damage

your PRO Racing Wheel.

M6X1

M6X1 L = T + 15MM

T L

6ENGLISH

3 ATTACHING WHEEL RIM

3a. Connect the wheel rim to the wheel base,

ensuring that the sha is aligned correctly.

3b. Attach the wheel by locking the quick

releasering in its “squeezed” position.

There’sno need to hold it there while

attaching the wheel rim.

3c. Push the wheel rim onto the sha on

thewheel base until you hear the quick

release ring lock into position.

*click*

7ENGLISH

POWER ON AND SOFTWARE

1 Power on the wheel by pressing the Power button on

thefrontof the wheel base. The wheel rim will spin slightly

tocheck its calibration and then centre itself.

2 The settings display on the wheel base will then prompt you

to choose which platform you wish to play on.

3 Use either the le or the right dial on the steering wheel

toselect the platform and then push the dial in until it clicks

to make your selection.

4 Press the PS button in order to log in and sync the wheel

withyour preferred player prole.

–To play on your console simply load the compatible game

of your choice and start racing.

–On PC you must rst download and install the

latest version of the Logitech G HUB soware

atwww.logitechG.com/GHUB. Once that is installed

youcanbegin racing in the title of your choice.

Rememberthat some titles will require that you rst

congure the wheel in the control settings of the game

before it will function.

You may also wish to make use of the G923 compatibility

modefor some titles which may be required to either make

the wheel work, or to simplify set up. Details of how to access

this can be found in the section of the manual that covers

thesettings display.

Once nished, to power o the wheel, press and hold

thepowerbutton for 2 seconds.

1 2

3 4

www.logitechG.com/ghub

8ENGLISH

FEATURES

1 L1 (Gear Down)

2 Triangle, Square and L2 buttons

3 Directional Pad

4 Create (SHARE for PS4™consoles) and

L3 buttons

5 Le Dual Clutch Paddle

6 Le Adjustment Dial and push button*

7 R1 (Gear Up)

8 Cross, Circle and R2 buttons

9 Options and R3 buttons

10 Right Dual Clutch Paddle

11 Right Adjustment Dial and push button*

12 PS button

1 OLED Settings display and RPM LEDs

2 Settings button

3 Power button

4 Clamp recess cover

1 2

9ENGLISH

Your Logitech G PRO Racing Wheel features a direct drive motor

thatwill provide force feedback with supported games and systems.

Insupported titles, you will also experience our next generation

approach to force feedback: TRUEFORCE.

TRUEFORCE integrates directly with game physics and audio

tounlockhigh-denition, real-time force feedback. Tire grip,

suspension, weight, horsepower — even unique engine sound

resonance — are immediately and accurately felt through the wheel.

For a list of supported titles visit

logitechG.com/support/PRO_Wheel_ps

FORCE FEEDBACK

NOTE:

The direct drive motor in your wheel can produce very high levels

oftorque (up to 11 Nm). Please exercise caution when using

thewheeland set the level of force feedback that is within the limits

oftheperson using it.

This product is not intended for use by small children.

If you crash a vehicle whilst racing in a simulation title, the wheel may

pull itself out of your hands. Do not attempt to stop the wheel from

moving as this may result in injury. You can usually stop the wheel

by pausing the game. On PC, this can be done using your keyboard

(oenthe Escape key, but other games may dier). On console,

youmay need to unplug the USB cable of your wheel from the console.

Under heavy use, you may notice a slight odor from the exhaust at the

back of the wheel. This is normal and will fade over time.

Additionally, if you run exceptionally long racing sessions with

thewheel at maximum torque, certain parts of the wheel may become

warm to the touch, especially the quick release collar on the steering

wheel and the quick release adapter on the wheel base. Insuch

circumstances, it is recommended that you allow your PRO wheel

tocool down before removing the wheel rim and / or moving the wheel

base from where it is mounted.

10 ENGLISH

SETTINGS

Press the Settings button on the wheel base to access the Settings

menu. In the settings menu you can congure dierent settings

for your wheel (and pedals, if attached) in 5 dierent onboard

proles or, ifconnected to a PC, directly adjust the currently active

prole inGHUB. You can then easily switch between proles when

youchange game titles (or even when you change cars in the same

game title). All settings are “live adjustable” and will take eect

assoon as you nish adjusting.

The 5 dierent onboard proles can be renamed using G HUB.

Ifyouare racing on console, you can connect the PRO Wheel

toyourPC, rename the onboard proles and those names will still be

present when you connect back to your console.

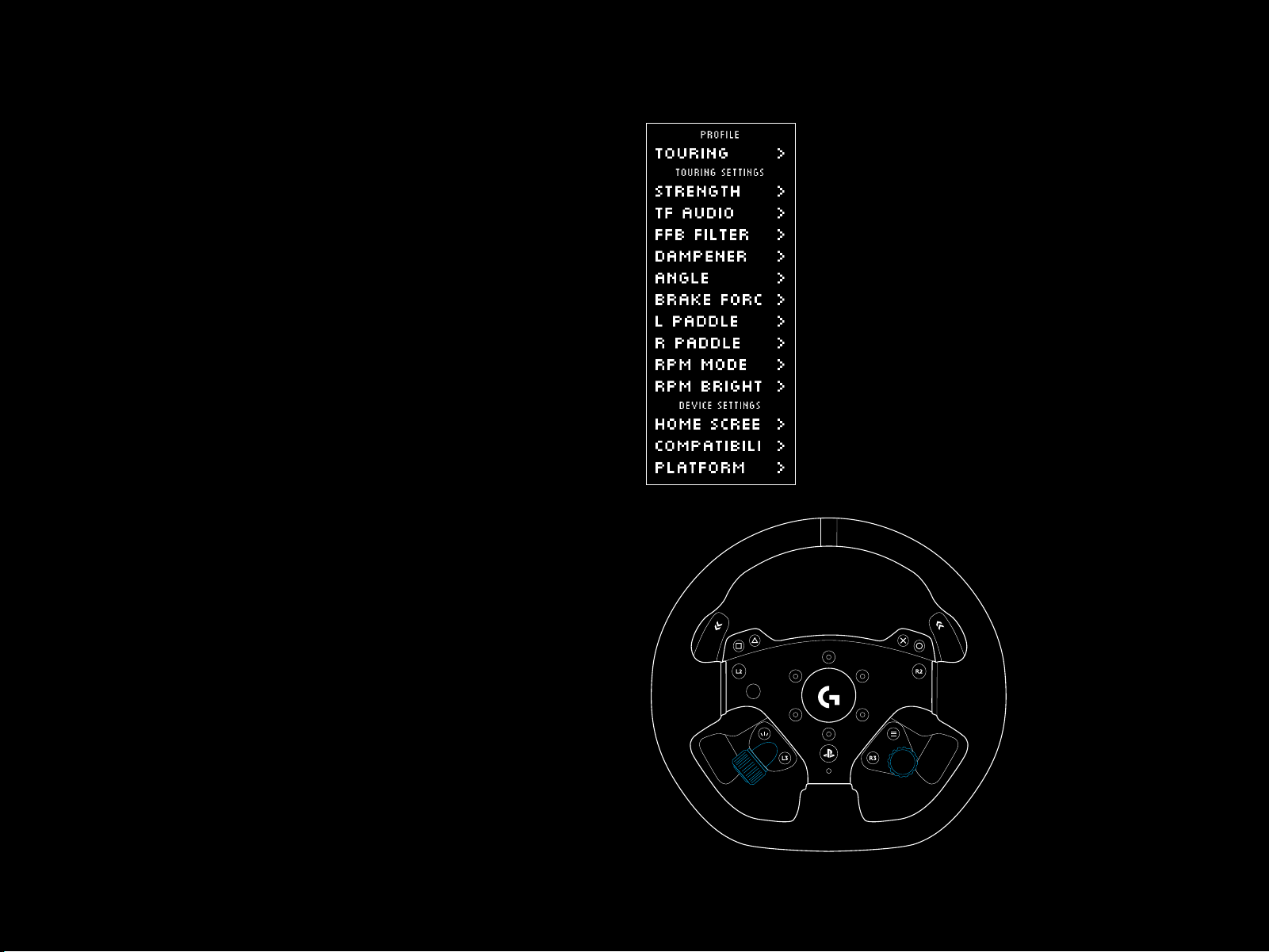

Menu Navigation

Use either of the adjustment dials on the wheel to scroll up/down

menus or adjust a setting. Press the dial in to select or to conrm

aselection.
