Logitech ADAPTIVE GAMING KIT Manual de usuario

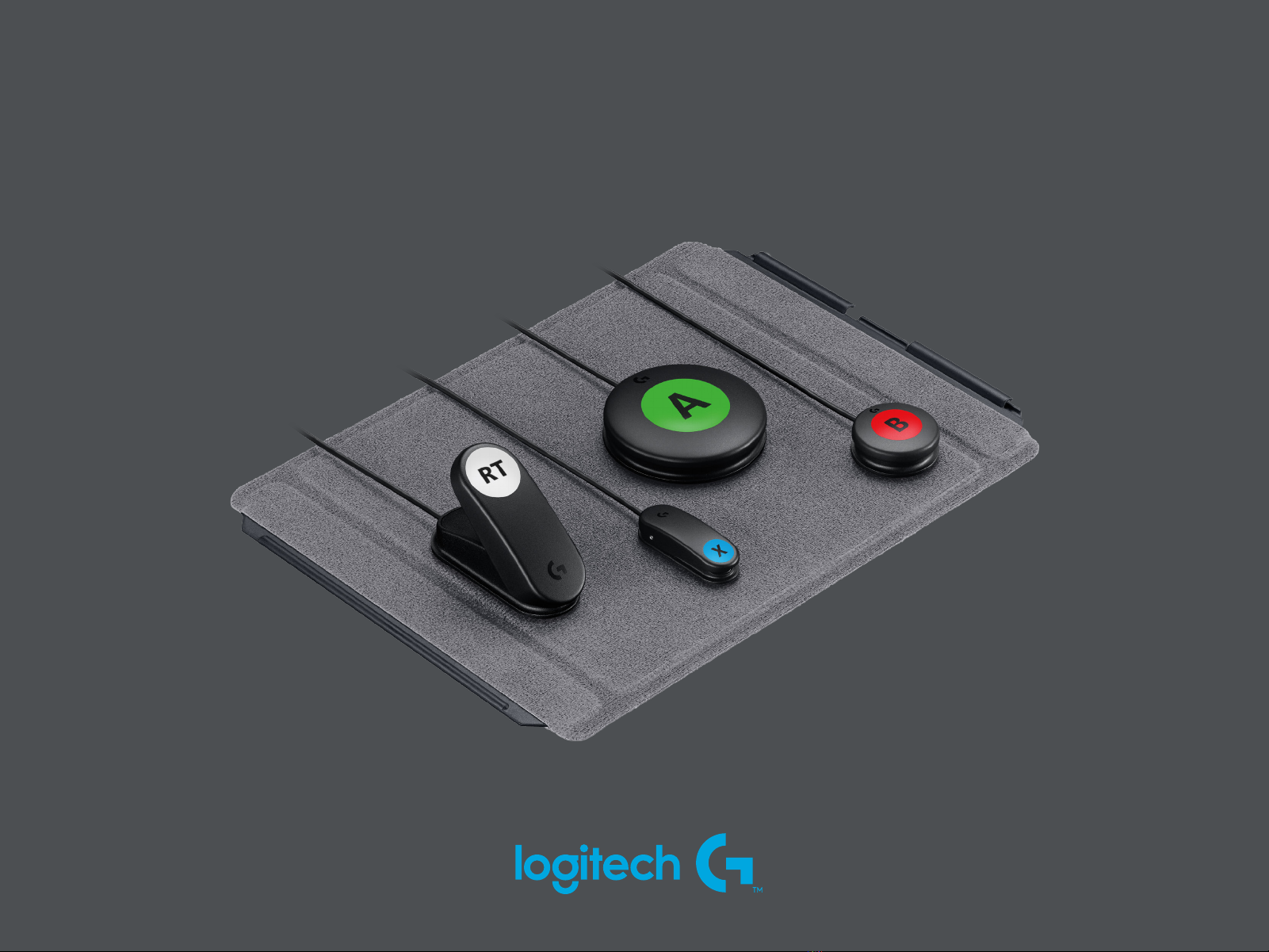

ADAPTIVE GAMING KIT

SETUP GUIDE

x3 x3

x4x2

x1 x1 x1

ENGLISH . . . . . . . . . . 3

DEUTSCH. . . . . . . . . .9

FRANÇAIS . . . . . . . . .15

ITALIANO . . . . . . . . . .21

ESPAÑOL . . . . . . . . . 27

PORTUGUÊS . . . . . . . 33

NEDERLANDS . . . . . . 39

SVENSKA . . . . . . . . . 45

DANSK . . . . . . . . . . .51

NORSK . . . . . . . . . . 57

SUOMI . . . . . . . . . . 63

ΕΛΛΗΝΙΚΑ . . . . . . . . 69

ПОРУССКИ . . . . . . . . 75

PO POLSKU . . . . . . . .81

87 . . . . . . . . . . . .   

MAGYAR . . . . . . . . . 93

ČESKÁ VERZE . . . . . . 99

SLOVENČINA . . . . . . .105

УКРАЇНСЬКА . . . . . . . 111

EESTI . . . . . . . . . . . 117

LATVISKI . . . . . . . . . 123

LIETUVIŲ . . . . . . . . . 129

БЪЛГАРСКИ . . . . . . . .135

HRVATSKI. . . . . . . . . 141

SRPSKI . . . . . . . . . . 147

SLOVENŠČINA . . . . . . 153

ROMÂNĂ . . . . . . . . .159

TÜRKÇE . . . . . . . . . 165

171 . . . . . . . . . . . . 

177 . . . . . . . . . . . .

3ENGLISH

ADAPTIVE GAMING KIT INSTRUCTIONS

• Two Integral hook and loop Game Boards -

Attachmentpointfor controls

–Rigid hook and loop Game Board

–Flexible hook and loop Game Board

–Connect them to form a larger surface

4ENGLISH

• 4 dierent type of buttons and controls

–Small buttons

–Large buttons

–Variable trigger

–Light touch buttons

• Fastener labels- peel and stick onto corresponding

buttons to attached to Game Board surfaces.

• Buttons also have threaded points forpermanent

attachment, marked with metric size

(screwsnotincluded).

5ENGLISH

• Adaptive Gaming Kit Labels

–Labels are exact size to match button types

–Labels for connector end

–Pre-labeled with Xbox controller symbols

–Blank labels for custom naming

• Hook and loop ties and fasteners

–Bundle and manage cables

–Attach controls to other areas

6ENGLISH

CONNECTING CONTROLS

All controls connect to the Xbox Adaptive Controller

inthesameway:

1 The back edge of the Xbox Adaptive Controller has ports

thatmatch all the functions of an Xbox controller. 1

2 Plug the button you want to use into the port of the function

you want to control.

3 Variable trigger buttons are special. They should only be used

in LT (Left Trigger) and RT(Right Trigger) ports.

7ENGLISH

LABELS

• Attach hook labels to button bottoms so they will

attach to the loop surfaces or ties.

• Attach Xbox symbol labels to the top of buttons -

They are sized to match.

• Matching tabs can be attached to cable end to help

with connecting to XAC.

8ENGLISH

CONTROL SET UP EXAMPLES

The Adaptive Gaming Kit is designed to provide exibility

andcongurability to meet dierent needs. Using the hook and

loop system attached the buttons to the included Game Boards

or ties.

QUESTIONS?

logitechG.com/support/adaptivegaming

9GERMAN

ANWEISUNGEN FÜR DAS ADAPTIVE GAMING KIT

• Zwei integrierte Gameboards mit Klettbefestigung –

Befestigungspunkt für Bedienelemente

–Starres Gameboard mit Klettbefestigung

–Biegsames Gameboard mit Klettbefestigung

–Setze sie zu einer größeren Oberäche zusammen

10 GERMAN

• 4 verschiedene Arten von Tasten und Bedienelementen

–Kleine Tasten

–Große Tasten

–Variabler Auslöser

–Leichtgängige Tasten

• Befestigungsetiketten – abziehen und auf

dieentsprechenden Tasten kleben, um sie an

denGameboard-Oberächen zu befestigen.

• Tasten können auch dauerhaft angeschraubt werden;

Gewinde mit metrischen Maßangaben (Schrauben nicht

im Lieferumfang enthalten).
