Thrustmaster Dual trigger Manual de usuario

1/10

Compatible with PC, PlayStation®2 and PlayStation®3

User Manual

TECHNICAL FEATURES

1. 2 progressive triggers

2. Action buttons

3. Start + Select

4. 2 progressive mini-sticks

5. D-Pad

6. MAPPING button

(for programming)

7. PRESET button with LED

(for selecting programming)

8. HOME button for Playstation®3

and MODE for PC with LED

9. USB connector (PC and Playstation®3)

10. Gameport connector (Playstation®2)

11. PC or PS3 USB selector

2/10

TABLE OF SUPPORTED MODES

Platform MODE MODE button color (8)

PLAYSTATION®1

PS1 OFF

PLAYSTATION®2 PS2 RED

PLAYSTATION®3 PS3 RED

PC 4 AXES GREEN

6 AXES RED

PLAYSTATION®2

INSTALLATION ON PLAYSTATION®2

1. Connect the PS2 Gameport connector (11) to a number 1 port on your console.

2. Turn on your console and start up your game.

You are now ready to play!

ATTENTION: NEVER CONNECT THE USB CABLE (10) TO YOUR PLAYSTATION®2

(to avoid the risk of damaging your gamepad or your console)

PLAYSTATION®2 MODE

PS1 mode: the MODE button is off (reserved exclusively for Playstation®1 games)

PS2 mode: the MODE button is red (reserved exclusively for Playstation®2 games)

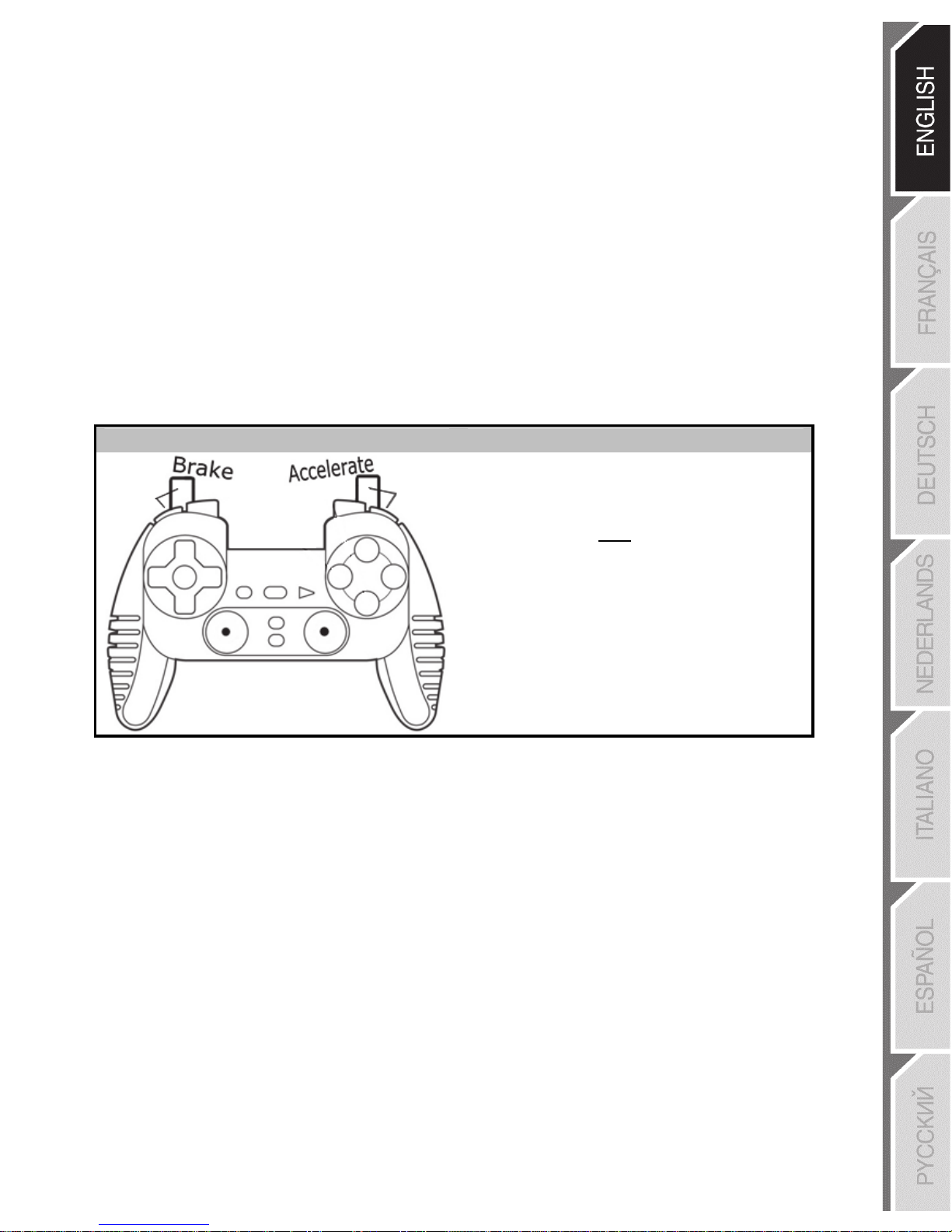

AUTOMATIC PRESET CONFIGURATION - PLAYSTATION®2

PS2 mode MODE button is RED

Here:

Right trigger associated with progressive

Cross button

Left trigger associated with progressive

Square button

3/10

PLAYSTATION®3

INSTALLATION ON PLAYSTATION®3

1. Set the gamepad’s USB selector (12) to the PS3 position.

2. Connect the USB connector (10) to a USB port on your console.

3. Turn on your console.

4. Start up your game.

You are now ready to play!

PLAYSTATION®3 MODE

AUTOMATIC PRESET CONFIGURATION - PLAYSTATION®3

PS3 mode MODE button is RED

Here:

Right trigger associated with R2

Left trigger associated with L2

USING THE HOME BUTTON (8)

Your gamepad’s Home button allows you to exit your game and access your PlayStation®3 system’s menus.

IMPORTANT NOTES FOR PLAYSTATION®3

- Your gamepad’s USB selector (12) must always be set to the PS3 position before connecting the gamepad.

- In 1 Player mode: If your official gamepad is turned on, you must switch it to gamepad port 2 in order for your

Dual Trigger gamepad to be functional.

- On Playstation®3, the Dual Trigger gamepad is only compatible with Playstation®3 games (and will not

function with Playstation®2 games).

4/10

INSTALLATION ON PC

1. Set your gamepad’s USB selector (12) to the PC position.

2. Connect the USB connector (10) to one of your computer’s USB ports. Windows XP or Vista will

automatically detect the new device.

3. Driver installation

The drivers are installed automatically. Follow the on-screen instructions to complete the installation.

4. Select Start/Settings/Control Panel and then double-click Game Controllers (or Gaming Options,

depending on your operating system).

The Game Controllers dialog box displays the gamepad’s name with OK status.

5. In the Control Panel, click Properties to configure your gamepad:

Test device: allows you to test and view the buttons, D-pad and axes for the 2 mini-sticks and for the

2 triggers.

You are now ready to play!

SELECTING THE NUMBER OF AXES ON PC

Selection of axes via “Software”: Once you have installed the “Advanced programming software”, on

page 1 of the Control Panel, click the number of axes you wish to use and then click OK.

Selection of axes via “Hardware”:

Press the MODE button (8) to select the number of active axes.

5/10

2 AXIS MODES AVAILABLE ON PC

AUTOMATIC PRESETS CONFIGURATION - PC

4 AXES mode MODE button is GREEN

Here:

Right trigger associated with Up direction

on right mini-stick

Left trigger associated with Down direction

on right mini-stick

6 AXES mode MODE button is RED

Here:

Left trigger is now independent

Right trigger is now independent

For a better understanding of all the possibilities available on PC,

try them out in the Windows “Game Controllers” section

(once you have installed the “Advanced programming software”.)

IMPORTANT NOTES FOR PC

- Your gamepad’s USB selector (12) must always be set to the PC position before connecting the

gamepad.

6/10

ADVANCED FUNCTIONS

2 PROGRAMMING MODES

The PRESET button and its LED (7) allow you to view the types of programming you have selected:

AUTOMATIC (preprogrammed) or MANUAL (programmed by yourself). A single press of this button

allows you to switch from one programming mode to the other (even during a game).

AUTOMATIC PRESET (PRESET button is OFF)

This represents the default programming: the triggers are preprogrammed, as are the positions of buttons,

directions of the mini-sticks and of the D-Pad.

PLEASE REFER TO THE AUTOMATIC PRESETS CONFIGURATION DIAGRAMS.

MANUAL PRESET (PRESET button is GREEN)

This represents your own personal programming:

- Buttons, directions of the mini-sticks and of the D-Pad can either be:

* programmed onto the triggers,

* or switched between themselves.

- You can modify these programmings to your liking and whenever you wish.

- Your programmings are automatically saved inside your gamepad (even when it is disconnected).

- When your MANUAL PRESET is blank, it is identical to the AUTOMATIC PRESET.

PROGRAMMING THE TRIGGERS

The 2 progressive triggers can be programmed using the MAPPING button (6).

Examples of possible applications:

Programming a button, direction of a mini-stick or of the D-Pad:

- onto the left trigger,

- onto the right trigger.

Procedure for programming the triggers:

Steps Action PRESET button

color (7)

1 Enable MANUAL PRESET (7) by pressing the button. Lit up Green

2 Press and release the MAPPING button (6). Lit up Red

3 Press and release the button or direction to program. Flashes Red

4 Press the trigger onto which you wish to place the function. Lit up Green

Your MANUAL PRESET is now enabled and updated

(with your programming applied to the trigger(s))

7/10

SWITCHING BUTTONS / MINI-STICKS / D-PAD

All progressive buttons (on PS2 and PS3) or digital buttons (on PC), directions of the mini-sticks and of

the D-Pad can be switched using the MAPPING button (6).

Examples of possible applications:

- Switching the functions of buttons

- Switching the 2 mini-sticks

(in this case, you must map the 4 directions of the first mini-stick to the 4 directions of the second)

- Switching the D-Pad with a mini-stick

(in this case, you must map the 4 directions of the D-Pad to the 4 directions of the mini-stick in

question).

Procedure for switching buttons, mini-sticks and D-Pad (does not work with triggers)

Steps Action PRESET button

color (7)

1 Enable MANUAL PRESET (7) by pressing the button. Lit up Green

2 Press and release the MAPPING button (6). Lit up Red

3 Press and release the button or direction to switch. Flashes Red

4 Press and release the button or direction onto which you wish to

place the function. Lit up Green

Your MANUAL PRESET is now enabled and updated (with the 2 functions switched)

EEPROM MEMORY

Your gamepad includes an internal chip which saves all of your MANUAL PRESET programming

(even if the gamepad is switched off or disconnected for a long period of time).

You can save a different MANUAL PRESET for each platform you use:

Playstation®1, Playstation®2, Playstation®3, PC 4 Axes, and PC 6 Axes.

ERASING A MANUAL PRESET

Steps Action PRESET button

color (7)

1 Enable your MANUAL PRESET (7). Lit up Green

2 Press and hold the MAPPING button (6)

for 2 seconds.

Flashes Green

2 seconds

Your MANUAL PRESET is now blank (and once again identical to the Automatic Preset).

8/10

RETURNING TO FACTORY SETTINGS

You can erase all of your programming or settings in a single step:

Steps Action PRESET button color (7)

1 Press the MAPPING + SELECT + START buttons

simultaneously.

Flashes Green and Red

2 seconds

All of your MANUAL PRESETS (PC + PS2 + PS3) or settings are now erased.

Note: On PC, we recommend that you carry out this operation when you are not in a game.

POSSIBLE USES IN GAMES

- The triggers (thanks to their progressive function and range of travel greater than that of any button)

offer extremely precise control in all types of games: driving (progressive and independent acceleration

and braking, handbrake), action and FPS (firing rate, lateral movement), sports (measured pass or shot,

strength of hit or jump, running speed), and so on…

- There are numerous configuration possibilities, depending on the type of game you are playing.

TROUBLESHOOTING AND WARNINGS

My gamepad doesn’t function properly or doesn’t seem to be properly calibrated:

-Switch off your computer or your console, completely disconnect your gamepad, reconnect it and then

restart your game.

- Never move the mini-sticks or the triggers when connecting your gamepad (to avoid any calibration

problems).

- On PC, if the game does not accept “6 axes” mode (resulting in undesirable effects), switch your

gamepad to “4 axes” mode (the standard gamepad mode).

I can’t configure my gamepad:

- In your game’s “Options/Controller/Gamepad” menu: select the most appropriate configuration.

- Please refer to you game’s user manual or online help for more information.

- You can also use your gamepad’s “programming” function to resolve this type of problem.

On PC or PS3, my gamepad doesn’t function properly:

- Exit your game, disconnect your gamepad, verify that the PC/PS3 USB selector (12) is in the proper

position, and then reconnect your gamepad.

9/10

TECHNICAL SUPPORT

If you encounter a problem with your product, please go to http://ts.thrustmaster.com and click Technical

Support. From there you will be able to access various utilities (Frequently Asked Questions (FAQ), the

latest versions of drivers and software) that may help to resolve your problem. If the problem persists, you

can contact the Thrustmaster products technical support service (“Technical Support”):

By email:

In order to take advantage of technical support by email, you must first register online. The information you

provide will help the agents to resolve your problem more quickly. Click Registration on the left-hand side

of the Technical Support page and follow the on-screen instructions. If you have already registered, fill in

the Username and Password fields and then click Login.

By telephone:

United Kingdom 08450800942

Charged at local rate Monday to Saturday from 8 a.m. to 7 p.m.

United States 1-866-889-5036

Free

Monday to Friday from

9 a.m. to 8 p.m.

Saturday from 8 a.m. to 2 p.m.

(Eastern Standard Time)

Monday to Friday from 6 a.m. to 5 p.m.

Saturday from 5 a.m. to 11 a.m.

(Pacific Standard Time)

Canada 1-866-889-2181

Free

Monday to Friday from 9 a.m. to 8 p.m.

Saturday from 8 a.m. to 2 p.m.

(Eastern Standard Time)

Monday to Friday from 6 a.m. to 5 p.m.

Saturday from 5 a.m. to 11 a.m.

(Pacific Standard Time)

Denmark 80887690

Free

Monday to Saturday from 9 a.m. to 8 p.m.

(English)

Sweden 0200884567

Free

Monday to Saturday from 9 a.m. to 8 p.m.

(English)

Finland 0800 913060

Free

Monday to Saturday from 10 a.m. to 9 p.m.

(English)

Hours of operation and telephone numbers are subject to change. Please visit http://ts.thrustmaster.com

for the most up-to-date Technical Support contact information.

Otros manuales para dual trigger

Tabla de contenidos

Idiomas:

Otros manuales de Controladores de videojuegos de Thrustmaster

Thrustmaster

Thrustmaster GPX LightBack Manual de usuario

Thrustmaster

Thrustmaster FERRARI 488 GT3 WHEEL ADD-ON Manual de usuario

Thrustmaster

Thrustmaster NASCAR PRO VICTORY Instrucciones de uso

Thrustmaster

Thrustmaster T-LCM Pedals Manual de usuario

Thrustmaster

Thrustmaster T Flight Stick X Manual de usuario

Thrustmaster

Thrustmaster F-16C Viper Manual de usuario

Thrustmaster

Thrustmaster T500 RS Manual de usuario

Thrustmaster

Thrustmaster T-WIRELESS 3-IN-1 Manual de usuario

Thrustmaster

Thrustmaster FireStorm Instrucciones de uso

Thrustmaster

Thrustmaster T80 Ferrari 488 GTB Edition Manual de usuario

Thrustmaster

Thrustmaster Red Legend Edition Manual de usuario

Thrustmaster

Thrustmaster T-WIRELESS NW Manual de usuario

Thrustmaster

Thrustmaster T-Wireless Black Manual de usuario

Thrustmaster

Thrustmaster T.16000M Manual de usuario

Thrustmaster

Thrustmaster TWCS Throttele Manual de usuario

Thrustmaster

Thrustmaster T150 Manual de usuario

Thrustmaster

Thrustmaster Ferrari 458 Italia TX Manual de usuario

Thrustmaster

Thrustmaster universal challenge Instrucciones de uso

Thrustmaster

Thrustmaster Rechargeable Wireless Dual Trigger 2-in-1 Manual de usuario

Thrustmaster

Thrustmaster TMX Force Feedback Manual de usuario

Thrustmaster

Thrustmaster TCA Sidestick Airbus Edition Manual de usuario

Thrustmaster

Thrustmaster T80 Ferrari 488 GTB Edition Manual de usuario

Thrustmaster

Thrustmaster T248 Manual de usuario

Thrustmaster

Thrustmaster TS-XW RACER Sparco P310 Competition Mod Manual de usuario

Manuales populares de Controladores de videojuegos de otras marcas

Wasp

Wasp SL-6610 Manual de usuario

JKG

JKG JKG2022A Manual de usuario

Marvo

Marvo MG08 Manual de usuario

Belkin

Belkin F8GBPC001 Manual de usuario

GameSir

GameSir Z2 Manual de usuario

Laser

Laser PCO-AGAMEC-BK Manual de usuario

Cortex

Cortex VEXnet Manual de usuario

Gioteck

Gioteck HF-1 Manual de usuario

Nacon

Nacon DAIJA ARCADE STICK Manual de usuario

SHAKS

SHAKS S1+ Manual de usuario

YCCTEAM

YCCTEAM Joy Con Manual de usuario

Hyperkin

Hyperkin Smartboy Manual de usuario

Nerf

Nerf DuraGrip Manual de usuario

MoveMaster

MoveMaster MoveMaster Manual de usuario

WinWing

WinWing Super Libra J1 Manual de usuario

ECCI

ECCI Trackstar 6000 Series Manual de usuario

Logitech

Logitech 963291-0403 - Attack 3 Joystick Manual de usuario

Pelican

Pelican Afterglow PL-678 Manual de usuario

Thrustmaster dual trigger Manual de usuario

Manuales populares de Controladores de videojuegos de otras marcas
