Logitech G502 Proteus Spectrum Manual de usuario

Logitech® G502 Proteus Spectrum

Setup Guide

Guide d’installation

English. . . . . . . . . . . . . . . . . . . . . 3

Français . . . . . . . . . . . . . . . . . . . . 13

Español . . . . . . . . . . . . . . . . . . . . 23

Português . . . . . . . . . . . . . . . . . . . 33

English 3

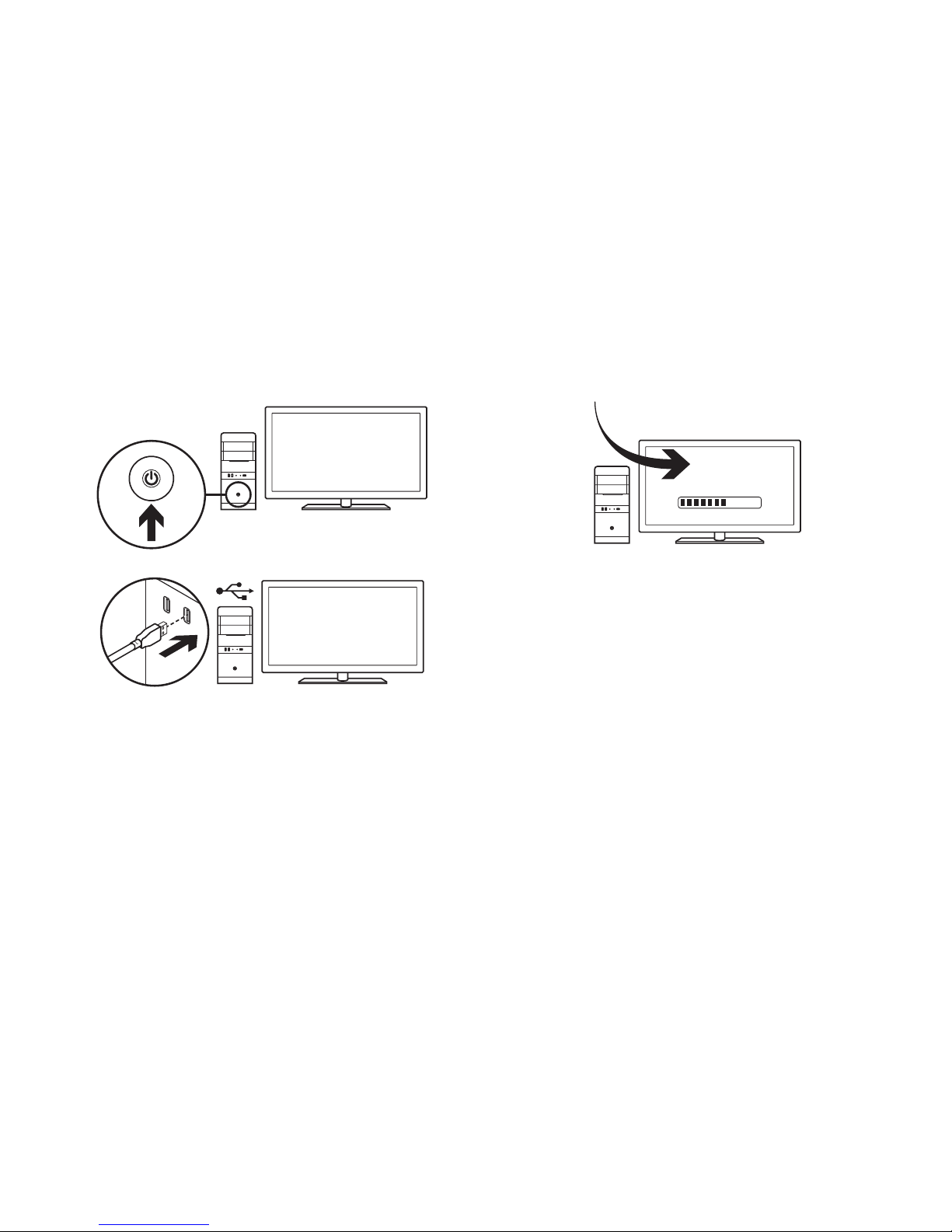

Your G502 is ready to play games.

If you would like to customize your G502,

refer to the next section.

You can customize the three onboard proﬁles of

the G502—surface tuning, button programming,

lighting color, lighting eects, and tracking

behavior—using the Logitech Gaming Software.

Download this free software and learn how to

customize the G502 at www.logitech.com/

support/g502-spectrum

USB

4 English

4 To adjust the weight and balance of your G502,

ﬁrst open the weight door by grasping the mouse

ﬁrmly in your right hand and pulling the tab down

with your left thumb.

English 5

5 You can place up to ﬁve 3.6 gram weights

in a number of dierent orientations.

Experiment with dierent positions

for the weights to ﬁnd an overall weight

and balance that feels right for you.

6 English

After inserting the weights, close the weight door

by inserting the tabs on the weight door into

the slots on the left side of the mouse and rotating

the door down until the magnet holds the weight

door ﬁrmly closed.

Out of the box, the sensor for the G502

is conﬁgured to deliver amazing tracking

acrossa wide range of surfaces. For an extra

edge, it can also be further tuned for optimal

performance with the speciﬁc surface that you use

for gaming. To tune the sensor, use the Logitech

Gaming Software.

English 7

11 fully programmable buttons

1. Left (Button 1)

2. Right (Button 2)

3. Wheel click (Button 3)

4. Back (Button 4)

5. Forward (Button 5)

6. DPI Shift (Button G6)

7. DPI Down (Button G7)

8. DPI Up (Button G8)

9. Scroll left (wheel tilt left)

10. Scroll right (wheel tilt right)

11. Proﬁle select (Button G9)

12. Wheel mode shift (not programmable)

8 English

Proﬁle 1*

(High-DPI gaming)

Proﬁle 2*

(Low-DPI gaming)

Proﬁle 3*

(Standard:

unshifted)

Proﬁle 3*

(Standard: G-shifted)

DPI values 1200, 2400, 3200,

6400

400, 800, 1600,

2400

2400 2400

Default DPI value 2400 1600 2400 2400

DPI Shift value 1200 400 N/A N/A

Reports/sec 1000 1000 500 500

1Button 1

(left click)

Button 1

(left click)

Button 1

(left click)

Button 1

(left click)

2Button 2

(right click)

Button 2

(right click)

Button 2

(right click)

Button 2

(right click)

3Button 3

(middle click)

Button 3

(middle click)

Button 3

(middle click)

Ctrl-T

English 9

Proﬁle 1*

(High-DPI gaming)

Proﬁle 2*

(Low-DPI gaming)

Proﬁle 3*

(Standard:

unshifted)

Proﬁle 3*

(Standard: G-shifted)

4Button 4 (back) Button 4 (back) Button 4 (back) Ctrl-Shift-Tab

5Button 5 (forward) Button 5 (forward) Button 5 (forward) Ctrl-Tab

6DPI Shift (sniper) DPI Shift (sniper) G-Shift (double

functions)

N/A

7DPI Down DPI Down Ctrl-C Ctrl-X

8DPI Up DPI Up Ctrl-V Ctrl-Z

9Scroll left Scroll left Scroll left Ctrl-F4

10 Scroll right Scroll right Scroll right Ctrl-Shift-T

11 Next proﬁle Next proﬁle Next proﬁle Ctrl-0

10 English

Onboard proﬁles

The G502 has three preconﬁgured proﬁles, one

each for high sensitivity gaming, low sensitivity

gaming, and standard mouse usage. Use Button

9 (see mouse drawing) to rotate through

these default proﬁles. When you change proﬁles,

the DPI indicator lights will change color to blue

for three seconds and will indicate the new mode

as shown here:

DPI indicators

DPI values are shown using the three LEDs

indicated in the mouse drawing. The image below

shows which DPI value is being indicated by

the LED panel.

Prof. 1 Prof. 2 Prof. 3

DPI 1 DPI 2 DPI 3 DPI 4 DPI 5
