LOGITECH ZONE WIRELESS

Setup Guide

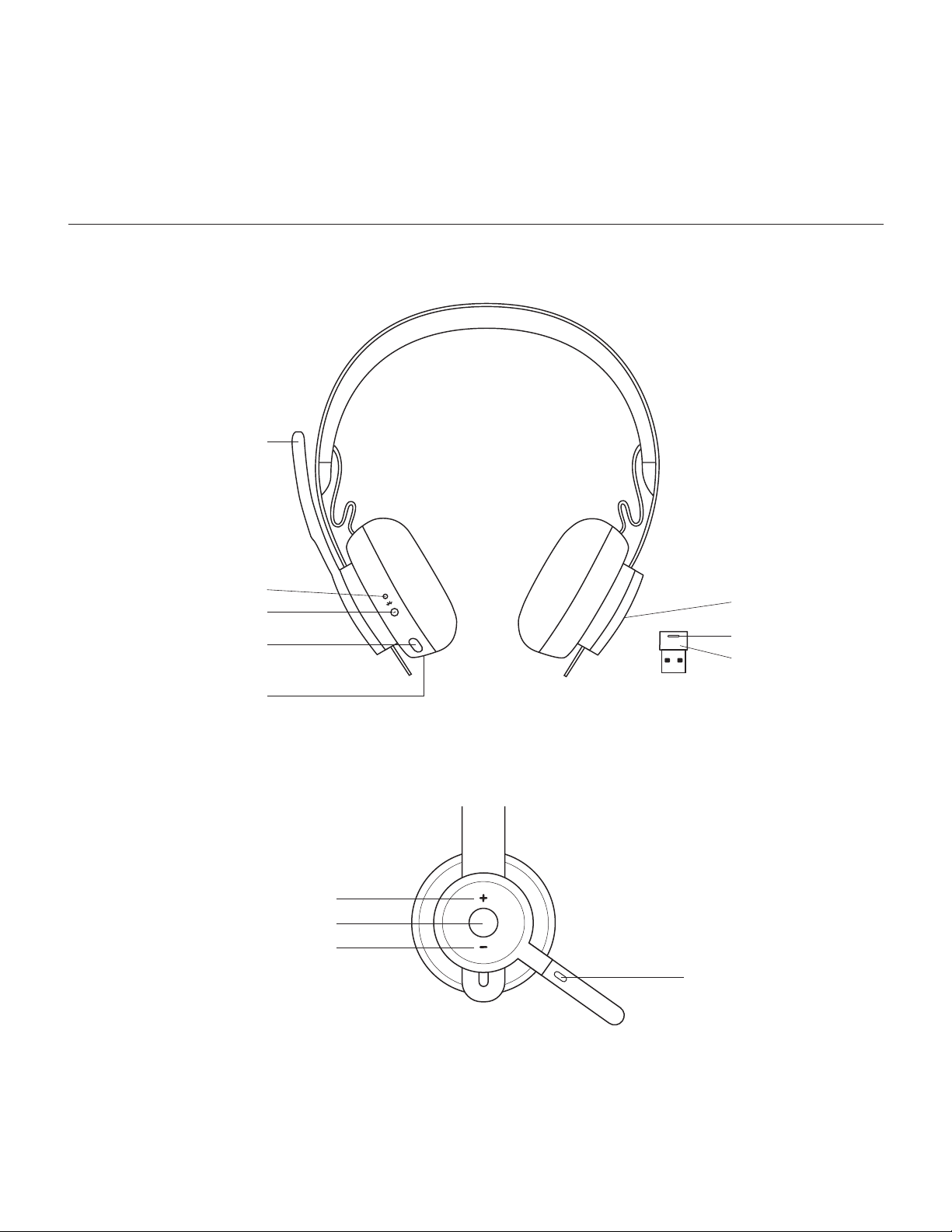

KNOW YOUR PRODUCT

Microphone boom

Power/Pairing

light indicator

Active Noise Cancellation

(ANC)

Power/Bluetooth®pairing

USB port for

charging cable

Volume up

Volume down

Mute

Qi wireless charging

Light indicator

USB-A receiver

Multi-function button

3English

USB-A

Greg’s

Headphones

CHARGING

Mic Mute

Noise Cancellation

Music EQ

Talk Settings

Sound

Notications

GREG’S IPHONE 8

80%

100%4:20 PM

Equalizer

Swipe to change the equalizer preset. To

personalize, simply move the fadersup and

down to taste.

BASS MIDS

SAVE ASCANCEL

TREBLE

Custom

100%4:20 PM

Greg’s

Headphones

CHARGING

Mic Mute

Active Noise

Cancellation

Equalizer

Talk Settings

Voice Prompts

45%

Greg’s iPhone 8

Home iPhone

100%4:20 PM

STANDARD

Side Tone

Put your headset on and start talking. Then

drag your nger to increase or decrease the

volume of your own voice until its just right.

100%4:20 PM

Greg’s

Headphones

Mic Mute

Active Noise

Cancellation

Equalizer

Sidetone

Voice Prompts

45%

MACBOOK PRO

100%4:20 PM

Zone Wireless

WHAT’S IN THE BOX

1. Headset

2. USB-A receiver

3. USB-A charging cable

4. Travel bag

5. User documentation

LOGI TUNE APP

Download Logi Tune App from the Apple App Store®

orGoogle Play™.

1. Headset controls: Mute or unmute your headset

andcontrol noise cancellation with one touch.

2. Wireless updates: Get notied when there is

anupdate of the latest features.

3. Device status: Know your active devices

connected to your headset and streaming.

4. Settings: Control your headset languages and adjust

when headset goes to auto sleep.

5. Status notications: Mute status, battery level

andcharging notications.

6. Immersion adjustments: Sidetone settings to hear

your own voice at the right volume and EQ presets

toadjust or customize.

POWER ON/OFF

1. Press power button for 1 second.

2. Once powered on, light indicator turns white.

Ifnodevice is connected, it will ash white slowly.

PAIRING VIA BLUETOOTH

1. Press power button for 2 seconds. Light indicator will

ash white rapidly.

2. Open Bluetooth settings on your device.

3. Select Zone Wireless in discoverable devices.

4. Once successfully paired, light indicator will turn

solidwhite.

PAIRING VIA USB RECEIVER

1. Insert the receiver into the computer USB-A port.

2. Once successfully paired, light indicator on

receiverwillremain solid white. Light indicator

onheadsetwill turn solid white.

Power

2 sec.

4English

ADJUSTING HEADSET

1. Adjust headset by sliding earcups up and down

theheadband.

2. It may be easier to adjust the headset on your head.

Movethe earcups up and down the headband until

theysit comfortably on your ears.

ADJUSTING THE MICROPHONE BOOM

1. Microphone boom rotates 270 degrees. Wear it on either

left or right side. Audio channel will switchautomatically,

depending on the direction you are wearing

themicrophone.

2. Flexible microphone boom — adjust boom location

tocapture voice better.

HEADSET CONTROLS

MUTE

Usage Button Behavior

Call

Answer / End Multi-function 1 second press

Reject Multi-function 2 second press

Music*

Play / Pause Multi-function 1 second press

Track forward Multi-function

and “+” 1 second press

Track backward Multi-function

and “–”1 second press

Headset

status

Check connectivity

andbattery life “+”and “–”1 second press

Voice assistant

(Siri,GoogleAssistant) Multi-function 2 second press

* Functionality depends on types of application. Music controls may not be functional

withweb-based applications. When two devices are connected, connection via Bluetooth will be

prioritized over dongle.

* Tip: Headset Sidetone and Music EQ controls available on Logi Tune app.

Mute

Multi-function

Move mic boom

up to mute

Voice notications

indicatewhen

themicrophone is on/

omute

“Mute on”

“Mute o”

Move mic boom

downto unmute

5English

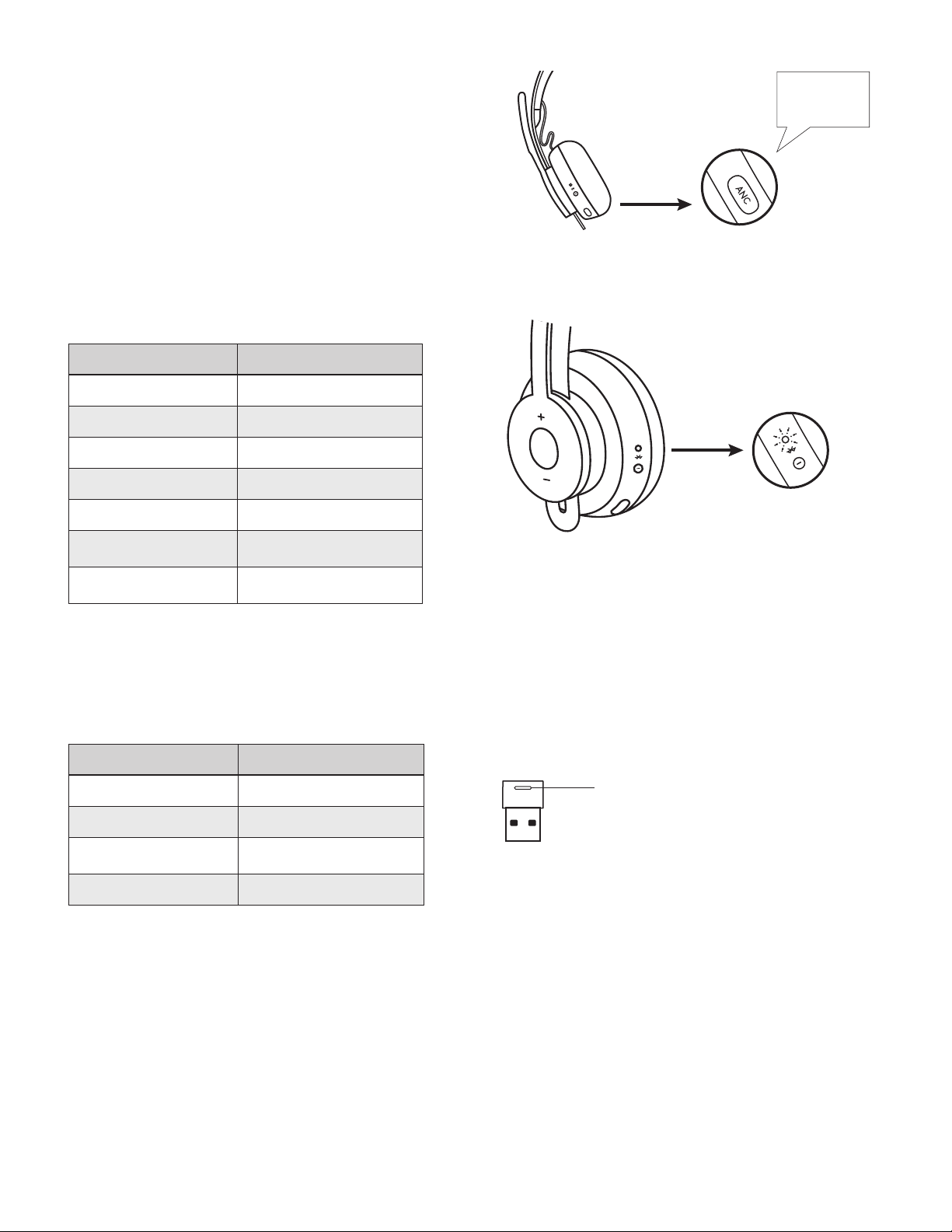

Red light indicates

microphone is on mute

Headset indicator light

“ANC on”

“ANC o”

ACTIVE NOISE CANCELLATION (ANC)

ANC blocks out the noise around you to help you

concentrate on the task at hand.

1. Press the ANC button on the side of the earcup.

2. There will be voice notications when turning ANC on

ando. These can be turned o in the Logi Tune app.

HEADSET INDICATOR LIGHT

DONGLE INDICATOR LIGHT

Light Status

Fast ashing WHITE Pairing mode

Solid WHITE Paired

Repeat ashing on and o

in WHITE Incoming call

Solid RED Mute on

Light Status

Solid WHITE Powered on or fully charged

Breathing WHITE Battery charging

Fast pulsing WHITE Bluetooth pairing mode

Slow pulsing WHITE No paired device

Solid RED Low battery

Fast pulsing RED Bluetooth pairing mode while

low battery

Slow pulsing RED No paired device while

lowbattery

6English

Greg’s

Headphones

CHARGING

Mic Mute

Noise Cancellation

Music EQ

Talk Settings

Sound

Notications

GREG’S IPHONE 8

80%

100%4:20 PM

Equalizer

Swipe to change the equalizer preset. To

personalize, simply move the fadersup and

down to taste.

BASS MIDS

SAVE ASCANCEL

TREBLE

Custom

100%4:20 PM

Greg’s

Headphones

CHARGING

Mic Mute

Active Noise

Cancellation

Equalizer

Talk Settings

Voice Prompts

45%

Greg’s iPhone 8

Home iPhone

100%4:20 PM

STANDARD

Side Tone

Put your headset on and start talking. Then

drag your nger to increase or decrease the

volume of your own voice until its just right.

100%4:20 PM

Greg’s

Headphones

Mic Mute

Active Noise

Cancellation

Equalizer

Sidetone

Voice Prompts

45%

MACBOOK PRO

100%4:20 PM

Headset indicator light

Wireless charging

icon

Power

Nearby devices

CHARGING

Headset automatically powers o when left idle.

Sleeptimer can be changed in the Logi Tune App.

Headset indicator light will turn RED when battery is low.

Charging via USB cable

1. Plug the micro USB cable end into the micro USB port

onthe bottom of the earcup.

2. Plug the USB-A end into the USB-A charging port

onyourcomputer or AC adapter.

3. Indicator light will be a breathing white light

for charging.

4. Indicator light will be solid white when fully charged.

2hours will fully charge the battery.

5 minutes will give you 1 hour of talk time.

5. Headset can be used with receiver and Bluetooth paired

while charging.

Charging via Qi wireless charger

1. Fold headset with the wireless charging icon on

theearcupto the outside.

2. Place earcup with wireless charging icon on top

ofanyQiwireless charging base.*

3. Indicator light will be a breathing, white light

whencharging.

4. Indicator light will be solid white when fully charged.

2hours of charging fully charges the battery.

* Qi wireless charging base is not included.

LOGI TUNE APP

1. Download the Logi Tune app from the Apple App Store®

orGoogle Play™stores by searching for “Logi Tune“.

2. Review the product carousel to learn more about

yourheadset and the app controls.

– Press GET STARTED to enter Bluetooth pairing mode.

3. To continue, follow instructions on the app.

7English
