Logitech G635 Manual de usuario

Wired 7.1 LIGHTSYNC

Gaming Headset

G635

User Manual

CONTENTS

English . . . . . . . . . . . . . . . . . 3

Deutsch . . . . . . . . . . . . . . . . 13

Français . . . . . . . . . . . . . . . . 23

Italiano . . . . . . . . . . . . . . . . . 33

Español . . . . . . . . . . . . . . . . . 43

Português . . . . . . . . . . . . . . . 53

Nederlands . . . . . . . . . . . . . . . 63

Svenska. . . . . . . . . . . . . . . . . 73

Dansk. . . . . . . . . . . . . . . . . . 83

Norsk . . . . . . . . . . . . . . . . . . 93

Suomi. . . . . . . . . . . . . . . . . 103

Ελληνικά . . . . . . . . . . . . . . . . 113

По-русски . . . . . . . . . . . . . . . 123

Po polsku . . . . . . . . . . . . . . . 133

Magyar . . . . . . . . . . . . . . . . 143

Česká verze. . . . . . . . . . . . . . 153

Slovenčina . . . . . . . . . . . . . . 163

Українська. . . . . . . . . . . . . . . 173

Eesti . . . . . . . . . . . . . . . . . 183

Latviski . . . . . . . . . . . . . . . . 193

Lietuvių . . . . . . . . . . . . . . . . 203

Български . . . . . . . . . . . . . . . 213

Hrvatski . . . . . . . . . . . . . . . 223

Srpski . . . . . . . . . . . . . . . . . 233

Slovenščina. . . . . . . . . . . . . . 243

Română . . . . . . . . . . . . . . . 253

Türkçe . . . . . . . . . . . . . . . . 263

273. . . . . . . . . . . . . . . . . .

www.logitech.com/support/g935

3ENGLISH

WHAT’S IN THE BOX

1. G635 Headset

2. Custom tags (L/R)

3. PC cable (USB to Micro-USB, 2.8m)

4. 3.5mm cable (1.5m)

2 2 3

4ENGLISH

FEATURES

1. Adjustable padded sports mesh

headband

2. Removable backlit custom tags

3. Boom mic mute indicator LED

4. Retractable boom microphone

Automatically mutes in “up” position

5. Lighting zones (2)

6. Washable soft sports mesh earpads

7. PC/3.5mm mode switch

8. Pro-G Audio Drivers

9. Programmable buttons (3)

10. Microphone Mute

11. Volume Wheel

12. 3.5mm (mobile) connection

13. USB connection

5ENGLISH

1. PC mode/3.5mm (mobile) mode switch

2. G3 (programmable):

Default equalizer (EQ) cycle

• Will cycle through EQ settings in

Logitech G HUB software

3. G2 (programmable): Default DTS:

Headphone X surround sound on/o

4. G1 (programmable): Lighting cycle

• Will cycle through lighting settings in

Logitech G HUB Software, including:

breathing, solid cyan, custom, and o

5. Microphone mute

6. Volume wheel

G1, G2, and G3 are programmable

using the Logitech G HUB Software

(in PC mode only):

www.logitech.com/support/g635

Note: Buttons and volume wheel only operate

in PC mode while connected to a PC with

Logitech G HUB software.

HEADSET BUTTON LAYOUT

6ENGLISH

1. Download and install

Logitech G HUB Software:

www.logitech.com/support/g635

2. Set mode switch to PC.

3. Connect the G635 to PC via USB cable.

Mixing audio sources

While in PC mode and connected via USB,

the G635 can also use the 3.5mm cable

to connect to another audio source

(ex. smartphone). Both audio sources

can be played simultaneously. Inline

controls and inline microphone can be

used to answer calls, adjust volume, etc

independently for the mobile device.

USB

SETUP FOR PC PC MODE

7ENGLISH

SETUP FOR PC 3.5MM MODE

The G635 can also connect to audio

devices solely via 3.5mm cable.

1. Set mode switch to 3.5mm

2. Connect to PC using the 3.5mm cable

Features that require USB power,

including 7.1 surround sound, on-headset

buttons, volume wheel operation, and

customization of lighting and button

functions are not available without USB

connection.

Some PCs may require a 3.5mm 4-pole to

mic/stereo splitter adapter (not included)

to use microphone features in this mode.

3.5mm

8ENGLISH

SETUP FOR MOBILE

1. Set the mode switch to 3.5mm.

2. Connect the headset to the mobile

device via the 3.5mm cable.

Features that require USB power,

including 7.1 surround sound, on-headset

buttons, volume wheel operation,

and customization of lighting and button

functions are not available without USB

connection.

3.5mm

9ENGLISH

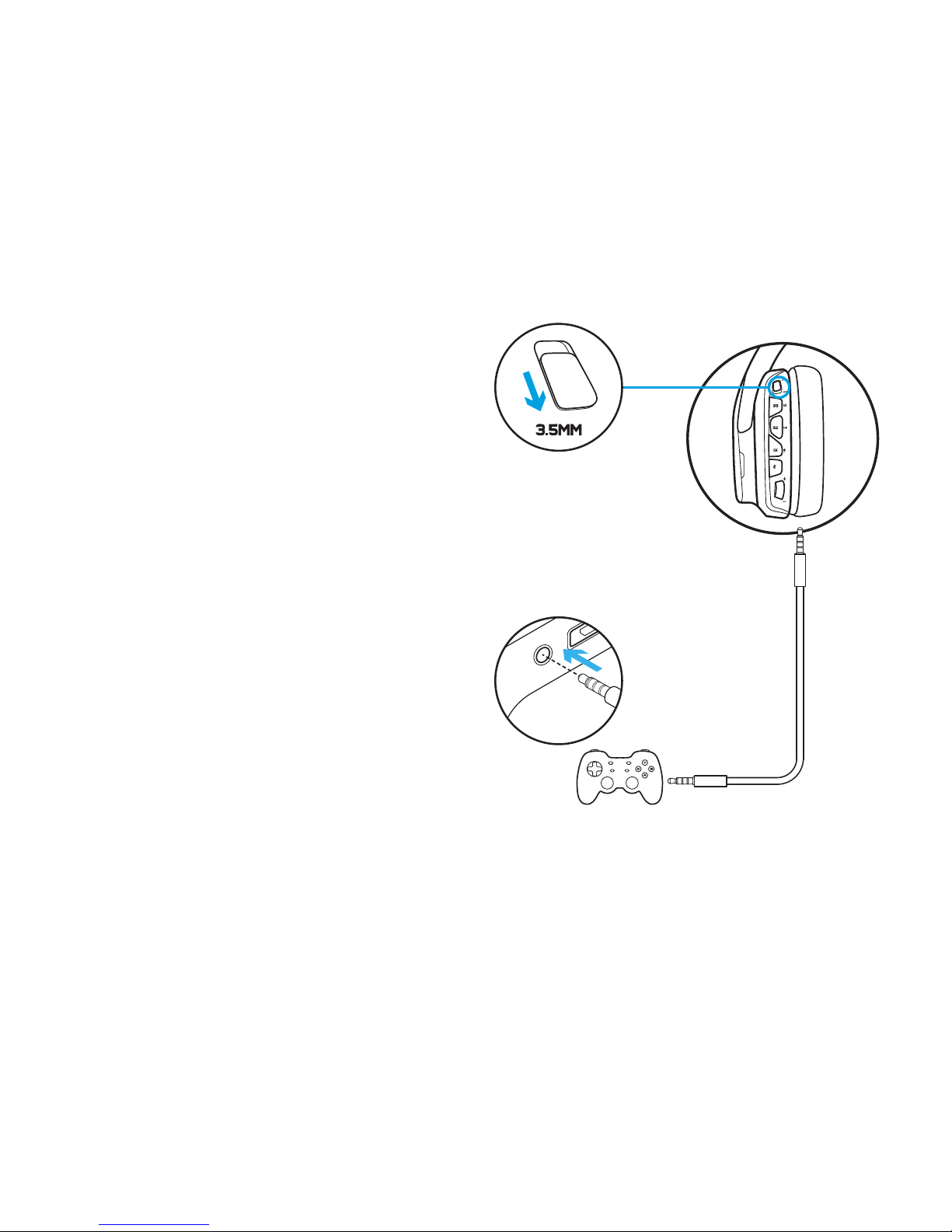

SETUP FOR CONSOLE: XBOX ONE™, PS4™ OR SWITCH™

1. Set switch to 3.5mm mode.

2. Connect the headset to the console

controller using the 3.5mm cable.

• Xbox One may require Xbox One

headset adapter (sold separately).

PlayStation setup (settings)

1. Connect headset to console

2. Open Settings

3. Select “Sound and Screen”

4. Select “Audio Output Settings”

5. Set “Output to Headphones”

to “All Audio”

Headset will not operate via USB cable

on Xbox One. 3.5mm

10 ENGLISH

ALTERNATE SETUP FOR SONY PLAYSTATION®4

USB powered operation

1. Set the mode switch to PC mode.

2. Connect the headset to the console

using the USB cable.

Note: although set in PC mode,

buttons do not operate when connected

to the PlayStation 4. Programming of

lighting and buttons is not possible on

the PlayStation 7.1 surround sound is not

available while connected to PlayStation.

Volume wheel does not work on PlayStation.

PlayStation setup (settings)

1. Plug in headset via USB or 3.5mm cables

2. Open Settings

3. Select “Sound and Screen”

4. Select “Audio Output Settings”

5. Set “Output to Headphones”

to “All Audio”

USB
