Lilliput 665WH Manual de usuario
COLOR TFT LCD MONITOR
User Manual
LILLIPUTDIRECT
* Option for product model with"/P" only.
1
IMPORTANT SAFETY INSTRUCTIONS:
Please read manual before using this product.
Please keep manual for future reference.
Please read the cautions to prevent possible danger and loss of
property
Please enjoy the benefits of convenience, safety, and space-saving
from this TFT LCD monitor in different ways.
FEATURES:
This product employs integrate circuits, lower power consumption,
and lower radiation emission. It has fashion designed appearance and
good portability.
AV, HDMI, YPbPr & WHDI Input, to connect with Full HD Video
Camera.
LED backlight display, support 1920×1080 HD resolution.
High contrast & dizzy-proof monitor with flexible folding sun shade
cover, to see clearly under sunshine.
DC 7-24V wide range voltage.
CAUTIONS：
1. Please do not place the display screen towards the ground.
2. Please avoid heavy impact or drop onto the ground.
3. Please do NOT use chemical solutions to clean this product. Please
wipe with a clean soft cloth to maintain the brightness of the surface.
4. Please do not block any vent hole.
5. Please follow the instructions and trouble-shootings to adjust the
product. Other improper adjustment may result in damage. Any further
adjustment must be performed or conducted by a qualified technician.
6. Please unplug the power and remove the battery if long-term no-use,
or thunder weather.
YP-01140524
LILLIPUTDIRECT
* Option for product model with"/P" only.
2
Contents
1. PRODUCT DESCRIPTION................................................................................3
2. WIRELESS HD TRANSMITTER.......................................................................5
3. WHDI REMOTE CONTROL...............................................................................5
4. WHDI FUNCTION................................................................................................6
5. INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE...........8
6. DV BATTERY MOUNT PLATE..........................................................................9
7. SETTING MENU................................................................................................10
8. ACCESSORIES .................................................................................................13
9. PARAMETERS...................................................................................................13
10. TROUBLE SHOOTING.....................................................................................14
LILLIPUTDIRECT
* Option for product model with"/P" only.
3

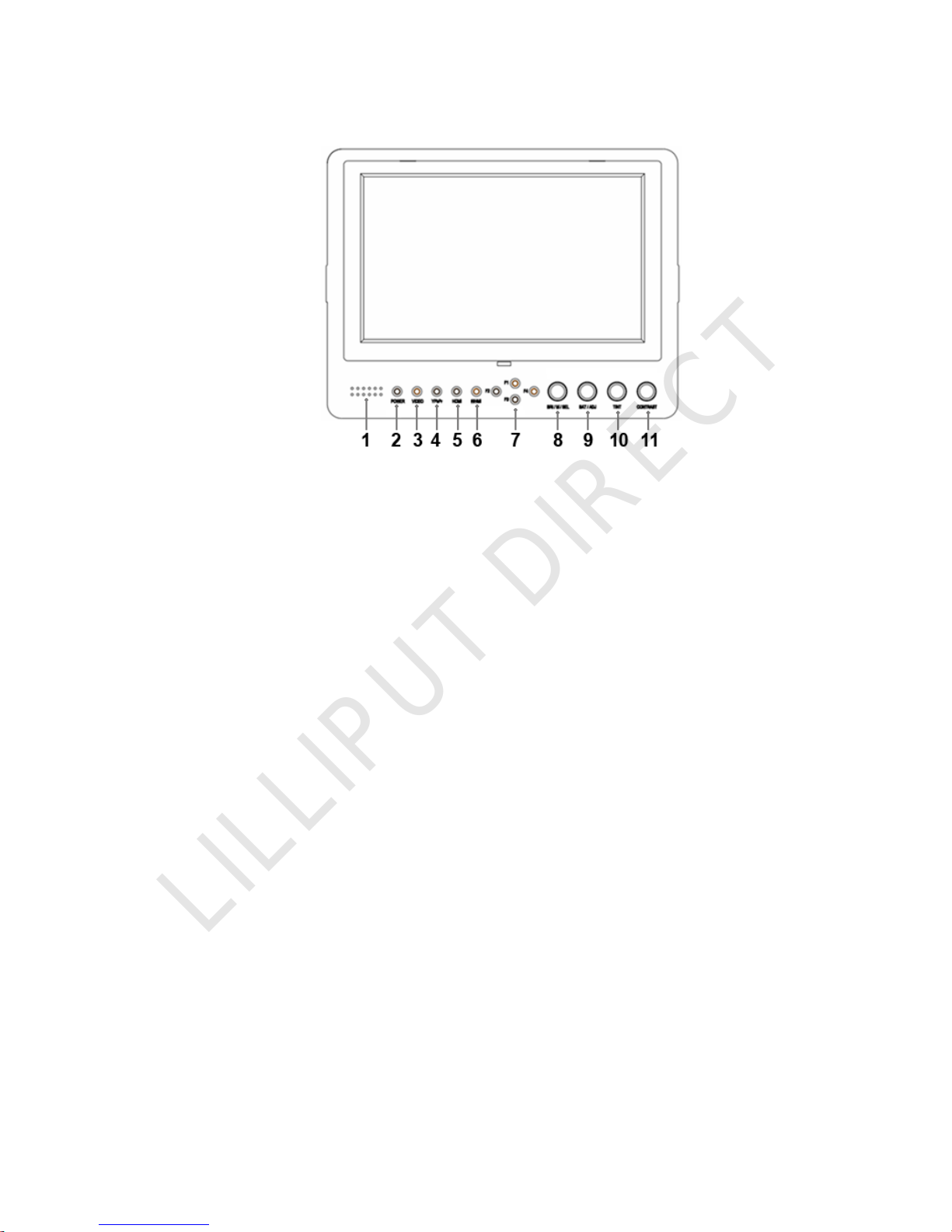

1. PRODUCT DESCRIPTION
1．Speaker.
2．POWER：ON/OFF (Light turns to red when power on).
3．VIDEO: Indicator lights up when signal switch to video state.
4．YPbPr: Indicator lights up when signal switch to YPbPr state.
5．HDMI: Indicator lights up when signal switch to HDMI state.
6．WHDI: Indicator lights up when signal switch to WHDI state.
7．F1、F2、F3、F4：User-definable buttons.
Default functions:
F1 Screen Marker F3 Check Field
F2 Aspect Ratio F4 Underscan
*F1 Peaking
*F2 False Color
*F3 Exposure
*F4 Histogram
（function customized to meet your needs）
8．Knob BRI/M/SEL：Press the knob to access the menu function,
pressing the knob in the menu to return to the previous page or
exit the menu. Rotate knob to select an option.
Default as Brightness function.
9．Knob SAT/ADJ：Press the knob to select main MENU options; rotate
knob to confirm the selection and adjust parameter values.
Default as Saturation function.
10．Knob TINT：Default as Tint function.
11．Knob CONTRAST: Default as Contrast function.
LILLIPUTDIRECT
* Option for product model with"/P" only.
4

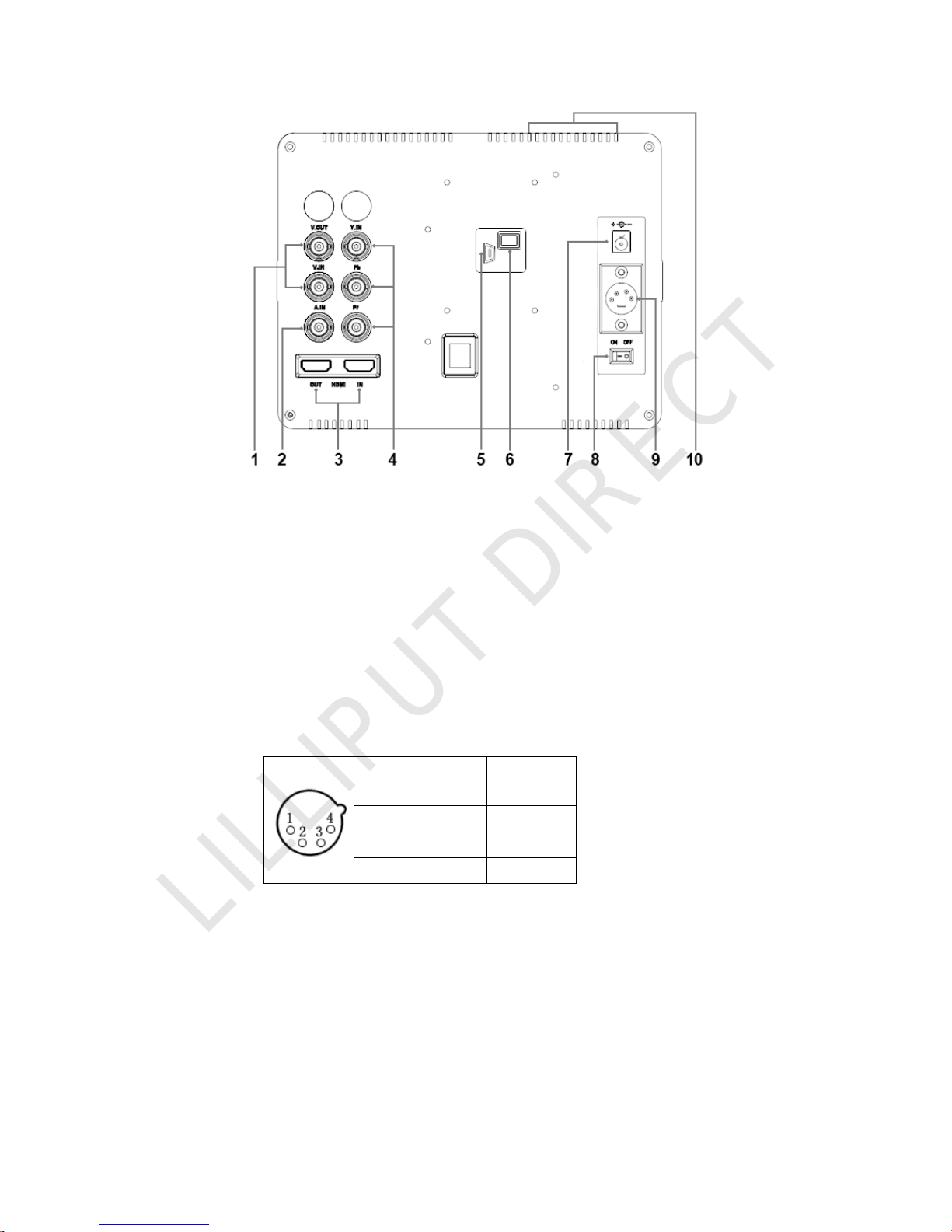

1. Video signal output / input.
2. Audio signal input.
3. HDMI signal output (Optional) / input.
4. YPbPr signal input
5 Mini USB input. (Only for program upgrades, do NOT use if
non-professionals)
6. Power cable interface (connecting to the battery plate).
7. DC power input.
8. Battery power on/off switch.
9. 4-pin XLR DC power input.
Pin number
Signal
①
GND
②③
……...
④
+12V
10. WHDI Infrared receiving window.
LILLIPUTDIRECT
* Option for product model with"/P" only.
5
2. WIRELESS HD TRANSMITTER
1. Code key.
2. Network indicating light.
3. Video indicator.
4. HDMI interface (connect with HDMI device).
5. Mini USB port (connect with power).
3. WHDI REMOTE CONTROL
LILLIPUTDIRECT
* Option for product model with"/P" only.
6
4. WHDI FUNCTION

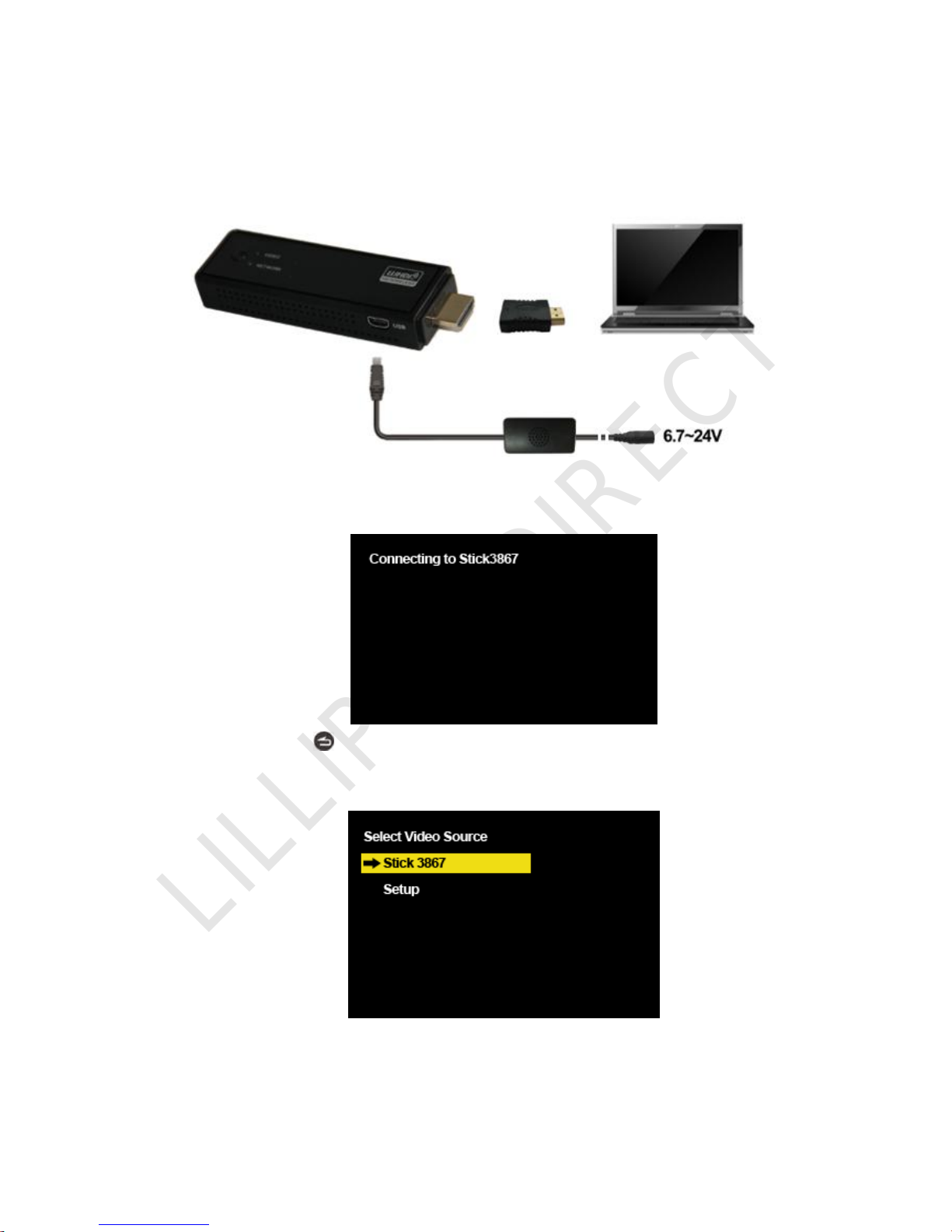

1. Connect WHDI transmitter with computer or camcorder via HDMI
interface, display as below.
2. Press the EXIT button on remote control to activate “Select Video
Source” function, and the transmitter matched will be displayed as
follows.
LILLIPUTDIRECT
* Option for product model with"/P" only.
7

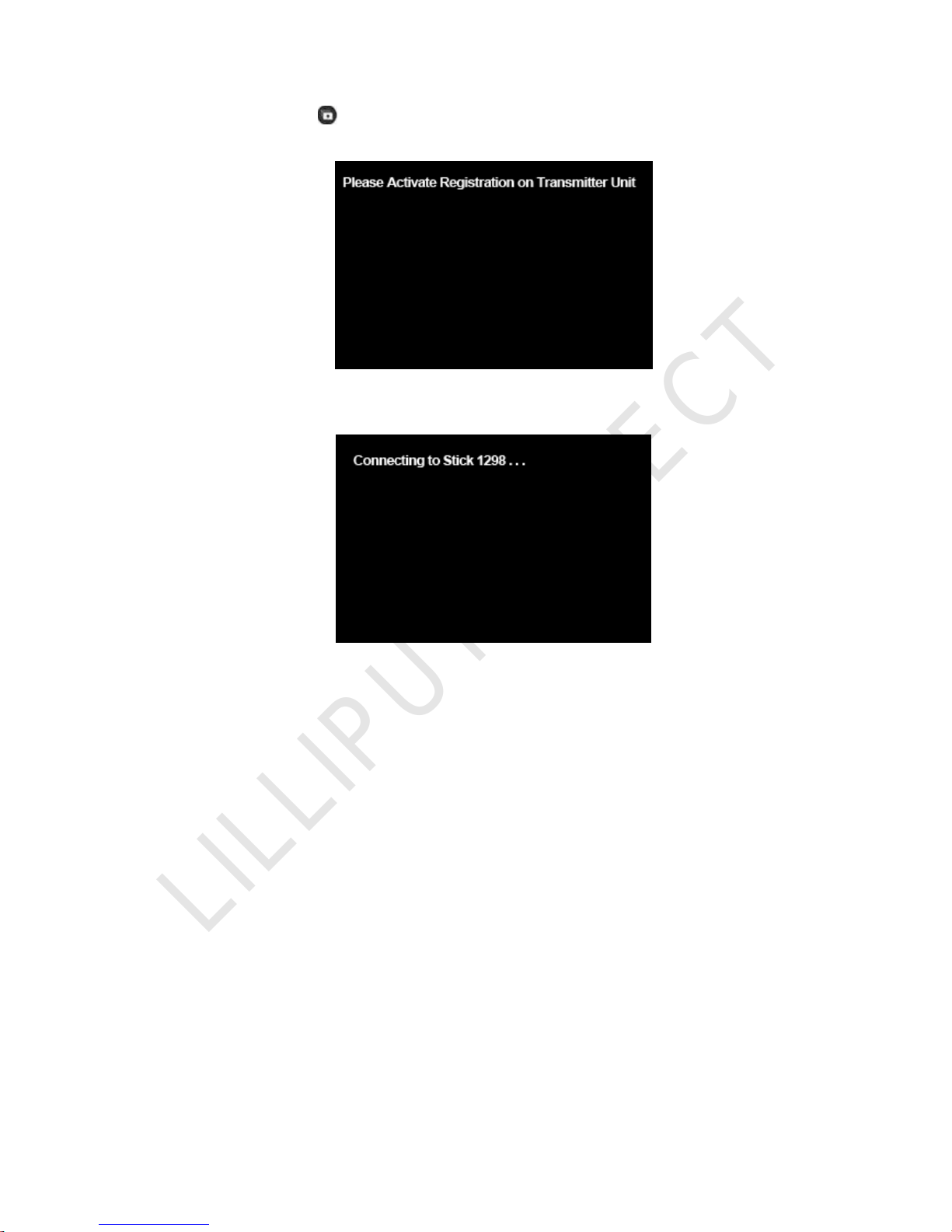

3. Press the ADD button on remote control to activate registration
function as follows.
4. Then long press Code key on WHDI transmitter to activate connecting
interface as follows.
5. Waiting for connection completed.
LILLIPUTDIRECT
* Option for product model with"/P" only.
8
5. INSTALLATION OF SUNSHADE
COVER AND BATTERY PLATE
Installation of sunshade cover：Disassembly of sunshade cover：
Installation steps Installation completed Disassembly steps Disassembly completed
Steps of sunshade cover on / off:
Please follow the instructions steps, or may damage the cover.
Open Step: Closed steps:
Do not press the edge in the under of the cover, otherwise it will
result in open failure.
LILLIPUTDIRECT
* Option for product model with"/P" only.
9

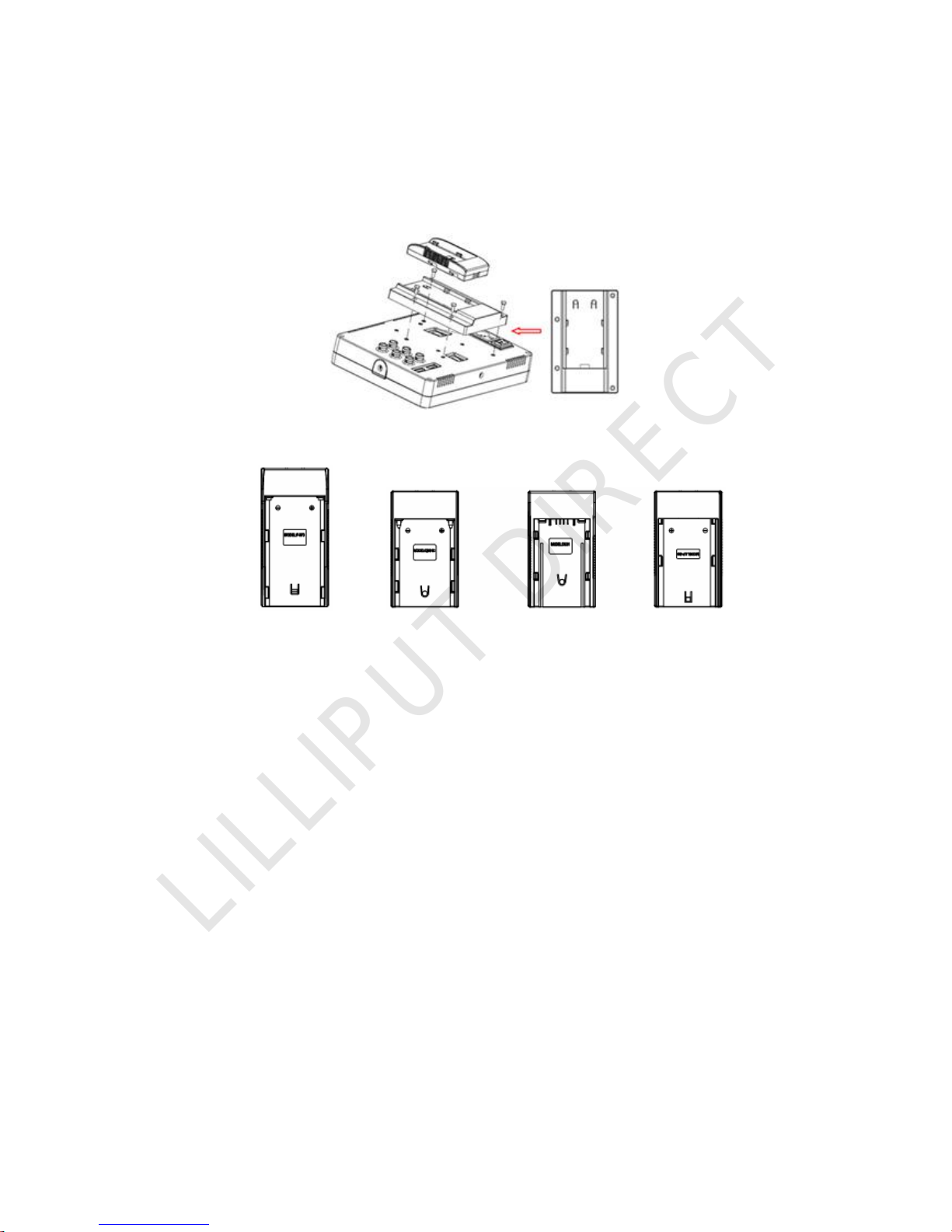

6. DV BATTERY MOUNT PLATE
Standard mounts process
Following three types of battery plates are suitable for this device, model
F970, QM91D, DU21 & LP-E6 (choose 2 out of 4).
MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6
DV Battery Mount Plate:
DV Battery Mount Plate Specification:
Model DU21 for battery of Panasonic DV:
NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with
Panasonic battery DU06/VBD140/SANYO DZhs301sw/Hitachi
DZ-HS303SW/BZ-BP14S/DZ3200/BP07W.
Model QM91D for battery of SONY DV:
DSCR1/F/S/MVCCD/E/HC15E/HC1E/AE1u/DCRTRV828/E/CCD-TRV
116/DCR-DVD/PS105K/300K/10P/1E series.
Model F970 for battery of SONY DV:
DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700,
GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C,
HVR-V1C, FX7E F330.
Model LP-E6 for battery of Canon DSLR:
5D Mark II/EOS7D/EOS60D;
