Lilin MR8322 Manual de usuario
MR8422/8442
MR8322/8342
D/N 2MP(4MP) HD Vari-Focal IR IP Camera
D/N 2MP(4MP) HD IR IP Camera
66-MR8322CSM
Quick Installation Guide
CAUTION
Do not drop or strike this equipment
Do not install the equipment near any naked flames or heat
sources
Do not expose this unit to rain, moisture, smoke or dust
Do not cover the openin of the cabinet with cloth and plastic
or to install this unit in poorly ventilated places. Allow 10cm
between this unit and its surroundin s
Do not continue to operate the unit under abnormal conditions
such as detection of smoke, stran e smell or malfunctioned
screen while power is on
Do not touch the power connection with wet hands
Do not dama e the power cord or leave it under pressure
Do not operate this unit near ma net, speaker system, etc., to
avoid ma netic interference
Connection cables should be rounded properly
The ITE is to be connected only to PoE networks without
routing to the outside plant.
L’ITE ne doit être connecté que sur un réseau PoE sans
routage vers l’ali entation extérieure.
-1-
English
Product Overview
①Sun Shield
②Main Body
③Front Cover
④Bracket Base
⑤Window
⑥Lens
⑦RJ-45 Network Port (PoE supported)
⑧DC Power Input Jack (DC12V ±10%)
⑨Micro SD Card Slot
⑩Reset Key
Restores the camera back to factory default settings.
Unit: mm
-2-
English
Installation
1. Remove the camera from the box first. Connect the Ethernet
cable and power cable to the camera’s RJ-45 network connector
and DC power-in connector (FIG.1). Secure the camera to the
wall (FIG.2).
2. Adjust the five adjustment screws to move the camera to the
desired angle, and then tighten the adjustment screws
(FIG.3–8).
-3-
English
3. Rotate focus and zoom knobs foroptimal video images (FIG.9).
NOTE: Vari-Focal Model Only.

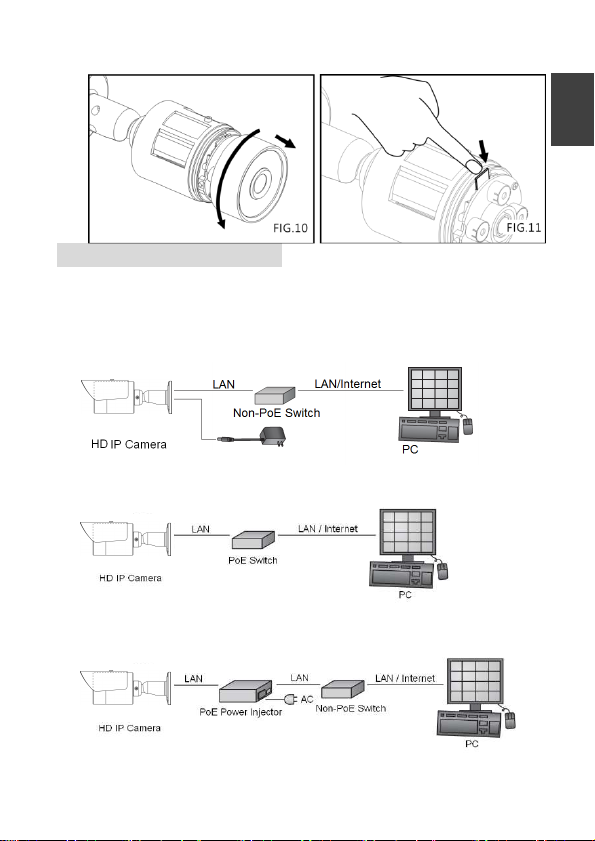

Inserting a Micro SD Card
Rotate the front cover counterclockwise to remove it and insert a
Micro SD card (FIG.10 & FIG.11).
-4-
English
System Architectures
To connect HD IP cameras to the network, please follow one of the
system architectures:
(1). Use a DC12V power adapter and a network switch to connect to
the network.
(2). Use a PoE network switch to connect to the network.
(3). Use a PoE power injector and a network switch to connect to the
network.
DC12V Power Supply
-5-
English
Emergency Factory Default
To restore the hardware to factory default settings, please follow
these steps:
1.Press and hold “RESET Key” for 10 seconds and release.
2.Wait for about 40 seconds, and the network LED light should turn
off, and go back on again.
3.The camera is now restored to factory default settings, and will
reboot automatically.
4.Search for the IP device using the IPScan software.
5.Start the IP device via an Internet browser.
6.Enter the default username “admin” and password “pass” to
operate.
NOTE: For your convenience, the IP address will revert to the
default setting of 192.168.0.200.
Before Accessing IP Cameras
Before accessing the IP camera, make sure that the camera’s RJ-45
network, audio, and power cables are properly connected. To set the
IP address, consult your network administrator for an available IP
address. The default IP address for each IP camera is
192.168.0.200. Users can use the default IP address for verifying the
camera’s network connection.
Software Requirements
Merit LILIN Universal ActiveX software components are required for
web interface display of MJPEG or H.264 Full HD video. When you
log in to the IP camera using Internet Explorer, a security warning
dialog box will prompt the installation of the LILIN Universal ActiveX.
Click Install to download and install the required software.
-6-
English
Configuring IP Addresses with IPScan Software
To configure an IP address using the IP scan tool, you can copy the
IPScan software from the installation CD, and paste to your
computer. Alternatively, you can execute the IPScan software from
the installation CD, or download the software from the Merit LILIN
website (www.meritlilin.com). To change the settings of the IP
address, subnet mask, gateway, or HTTP port, you can follow the
steps below:
1. Run the IPScan software.
2. Click Refresh. All available devices should be listed in the
device list.
3. Select your device from the list provided.
4. Change the IP address, subnet mask, gateway, or HTTP port
for the IP camera.
5. Click Apply to submit the settings.
6. Click Refresh to verify the settings.
-7-
English
Configuring IP Addresses via Web Interface
To change an IP address via web interface, type the default IP
address (192.168.0.200) in the Internet browser and follow the steps
below:
1. Login to the H.264 Full HD IP camera by the default username
“admin” and default password “pass”
2. Click Basic Mode configuration hyperlink.
3. Click Network->General hyperlink.
4. Change the IP address, subnet mask, gateway, or HTTP port
for the IP camera.
5. Click Submit to verify the settings.
Internet Browser Settings & Application Required
Make sure your Internet browser allows the signed ActiveX plug-in to
work on your computer. Set “Download Signed ActiveX plug-in
controls” to “Prompt” and “Run ActiveX control and plug-in” to
“Enable”. You can set this option via Internet Explorer-> Tools->
Options-> Security Settings.
-8-
English
Once complete, you can access the IP camera’s live video by
entering the default IP address via your Internet browser. As the
security warning dialog box appears, click OK to download the
ActiveX directly from the IP camera.
Login
There are two levels of user authentication, including admin and
guest, that can access the IP camera. Administrator is authorized to
reset basic mode settings and see live video, while the guest is
allowed to see only live video.
