INSTRUCTION MANUAL

COLOR DOME CAMERA

PIH-2522/2542

66-2522CSE

IMPORTANT SAFEGUARDS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

GRAPHIC SYMBOL EXPLANATION

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure

that may be of sufficient magnitude to constitute a risk of electric

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

shock to persons.

accompanying the unit.

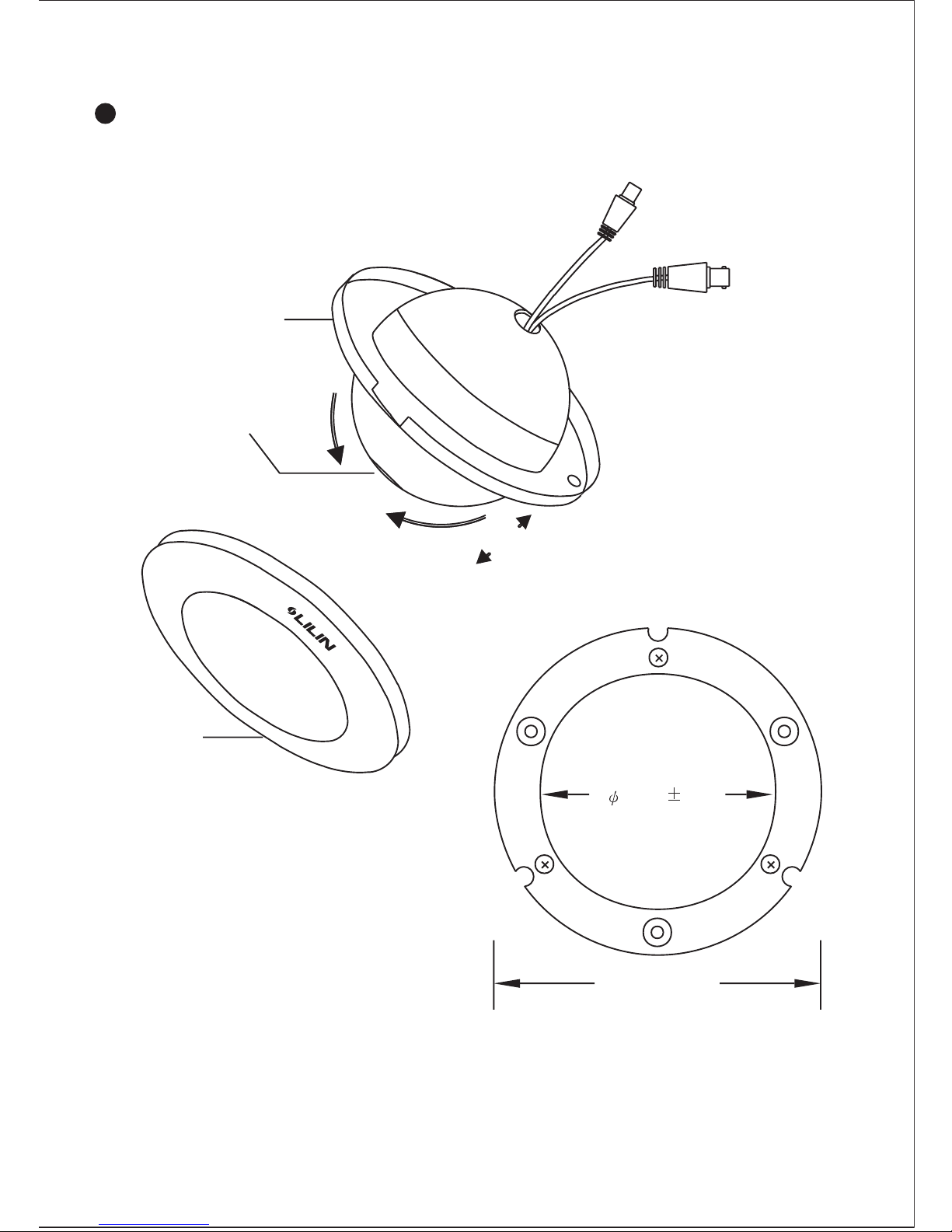

PART DESCRIPTION & DIMENSIONS

VIDEO OUTPUT

DC POWER INPUT

HOLDER

LENS

PAN

TILT

COVER

62.5 0.5

98.0mm

HOLER DIMENSION

INSTALLATION

1. Make sure the image will not appear upside down.

2. Screw 3 points of "a" to mount the holder.

3. Point each "c" to each "b", turn counterclockwise and mount

the cover.

COVER

FIG.1

FIG.2

(up)

62.5 0.5

SPECIFICATIONS

COLOR DOME CAMERA

Model No.

Power Input Voltage

System

Sync. Mode

Pick Up Element

Effective Pixels

Chip Size

Scanning System

Resolution

Minimum Illumination

S/N Ratio

Auto Gain Control

Aperture Correction

Power Consumption

Shutter

Back Light Compensation

Video Output

Gamma Characteristic

Lens

Operating Temperature

Weight

Dimension

DC12V ( 10%)

NTSC or PAL

Internal

1/3" Super HAD CCD Sensor

5.59mm (H) x 4.68mm (V)

2 1 Interlace

540TV Lines

0.5Lux (F1.8)

More Than 50dB (AGC OFF)

36dB Variable Gain

Horizontal , Vertical

2.2W

1/60(1/50)S ~ 1/100,000S(Auto)

Auto

CVBS 1.0Vp-p , 75ohm

=0.45

-10 ~ +50 (14 ~ 122 )

Dome: 62.5 , Holder: 98

768(H) x 494(V) [NTSC]

752(H) x 582(V) [PAL]

15.734KHz / 59.94Hz [NTSC]

15.625KHz / 50Hz [PAL]

Horizontal & Vertical

Sync. Frequency

Focal Length

Iris

Angle of view

3.6mm 6.0mm

F2.0 F1.8

PIH-2542 3.6 PIH-2542 6

Option lens 8.0mm lens.

Design and specifications are subject to change without notice.

White Balance ATW

310g

3.6mm 6.0mm

F2.0 F1.8

54.5 33.1

PIH-2522 3.6 PIH-2522 6

73 44.5

92 56

54.5 33.1

73 44.5

92 56

510(H) x 492(V) [NTSC]

500(H) x 582(V) [PAL]

380TV Lines

0.2Lux (F1.8)

Construction Metal

66-2522CSE-5

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com

INSTRUCTION MANUAL

COLOR DOME CAMERA

PIH-2522/2542

66-2522CSE
