Lilin IPD6122ESX Manual de usuario

66-IPR612CSE

MERIT LILIN ENT. CO., LTD

http://www.meritlilin.com

D/N 1080P HD Vandal Resistant Dome IP Camera

D/N 1080P HD Vandal Resistant Dome IR IP Camera

IPD6122ESX / IPR6122ESX

LD6122EX / LR6122EX

Instr uction Manual

IMPORTANT SAFEGUARDS

GRAPHIC SYMBOL EXPLANATION

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated "dangerous voltage" within the product's enclosure

that may be of sufficient magnitude to constitute a risk of electric

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

shock to persons.

accompanying the unit.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION：

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS

CAUTION

Do not drop or strike this equipment.

Do not install the equipment near any naked flames or heat

sources.

Do not expose this unit to rain or excessive moisture, avoid

smoke and dust.

Do not cover cloth or to install this unit in poorly ventilated

places.

Do not continue to operate if there appears to be fault.

Do not touch the power connection with wet hands.

Do not damage the power cord or leave it under pressure.

Sensitive electronics inside are vulnerable to excessive shock.

Excessive heat could damage this unit.

Please the camera in an environmental housing for protection.

If the camera gets wet, unplug it and have it checked by

qualified service personnel.

This may lead to overheating.

If the unit ceases to function, contact qualified service

personnel for help.

Risk of short circuit or electric shock.

Risk of fire or shock circuit.

CONGRATULATIONS

Thank you for purchasing this D/N 1080P HD Vandal Resistant

Dome (Infrared) IP Camera. You now own one of the many fine

network products we manufactured. This product has been

carefully inspected under rigid quality control and should reach

you in perfect condition. With reasonable care, it will provide

years of reliable performance.

We recommend that you read this installation and operation

manual thoroughly before installing and operation your new

system.

Here you will find all the information you need to set up and use

the system. If any questions are not answered in the manual,

please contact your dealer.

Before proceeding, please read and observe all instructions and

warnings contained in this manual. Retain this manual with the

original bill of sale for future reference and, if necessary, warranty

service.

When unpacking your new camera, check for missing or damaged

items. If any item is missing, or if damage is evident,

I . Contact your dealer for

assistance.

DO NOT

NSTALL OR OPERATE THIS PRODUCT

IPD6122/IPR6122ESX & LD6122/LR6122EX series is an 2

megapixel Day&Night 1080P HD Vandal Resistant Dome IP

Camera, built-in H.264 AVC(Advanced Video Coding) video

compression. H.264 AVC video compression engine supports

high definition video quality, 1080P(1920x1080) resolution,

bandwidth efficiency with PPPoE and DDNS.

Also it provides higher bit rate of internet and diverse alarm

functions such as movement video detection e-mail or FTP.

Moreover, IPD6122/IPR6122ESX & LD6122/LR6122EX series

can do remote surveillance with iPad, iPhone or Android cell

phone. The software R&D engineer can use HTTP protocol

(HTTPAPI) or ONVIF protocol to develop related software, and

integrate them with existing application software system.

IPD6122/IPR6122ESX & LD6122/LR6122EX series is ideal

solution for remote video monitoring via internet.

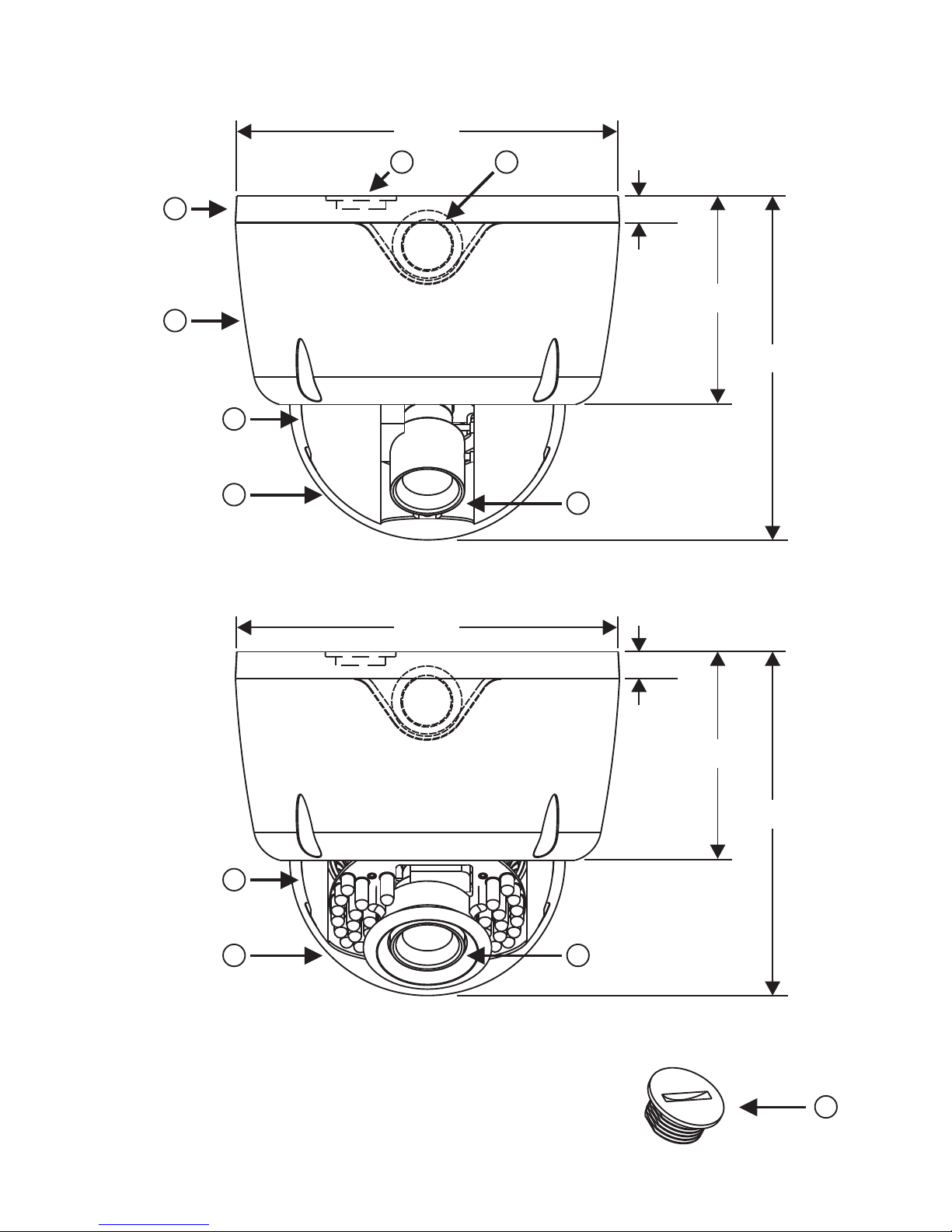

Executive Summary

Unit: mm

145.0

3 4

10.0

78.7

130.0

10.0

78.7

130.0

145.0

6 7

(IPD6122 /LD6122 series)

(IPR6122/LR6122 Series)

PART DESCRIPTION & DIMENSION

1Bottom Chassis

Top Cover

Bottom Hole

Side Hole

Inner Cover

Dome Cover

Lens

Hole Plug

DC12V Input, Alarm In/Out & Audio In/Out Terminal

RJ-45 Network Connector

Live Video Output RCA Jack

Plug the video input of monitor to the RCA jack and adjust focus and zoom.

Network Indicator LEDs

Green(LINK): Network cable connected, this LED lit.

Orange(ACT): Data communications, this LED flashes.

Reset Button

To restore the server to factory default setting.

Micro SD Card Slot

This network camera is compliant with micro SD/SDHC card.

+12V IN

GND

+5V OUT

N.O.

COM.

DIN

GND

OUT

AUDIO

910 11

INSTALLATION

1. Please use the enclosed hexagon screw driver to untighten the 4 screws on the top cover

(FIG.1).　

2. Using screw drive to untighten the 3 screw on the camera module (FIG.2 & FIG.3)

FIG.1

FIG.2 FIG.3

Camera Module

(IPD6122 / LD6122 series) (IPR6122 / LR6122 series)

3. Fix the safety rope on the bottom chassis with screw driver (FIG.4). Put the provided

screw(M3.0x25, wooden screw) through the holes marked as “a”, and fix the bottom

chassis in the desired area (FIG.5 & FIG.6)

FIG.4

FIG.5 FIG.6

66mm

120°

a a

4. Firstly, put network cable and power cable through a pipe with 1/2" PT at one end (FIG.7),

and then screw the pipe to the side hole or bottom hole (FIG.8, please make sure the

connection between the pipe and the side hole or bottom hole is watertight.).

NOTE: Pipe is not provided.

FIG.7 FIG.8

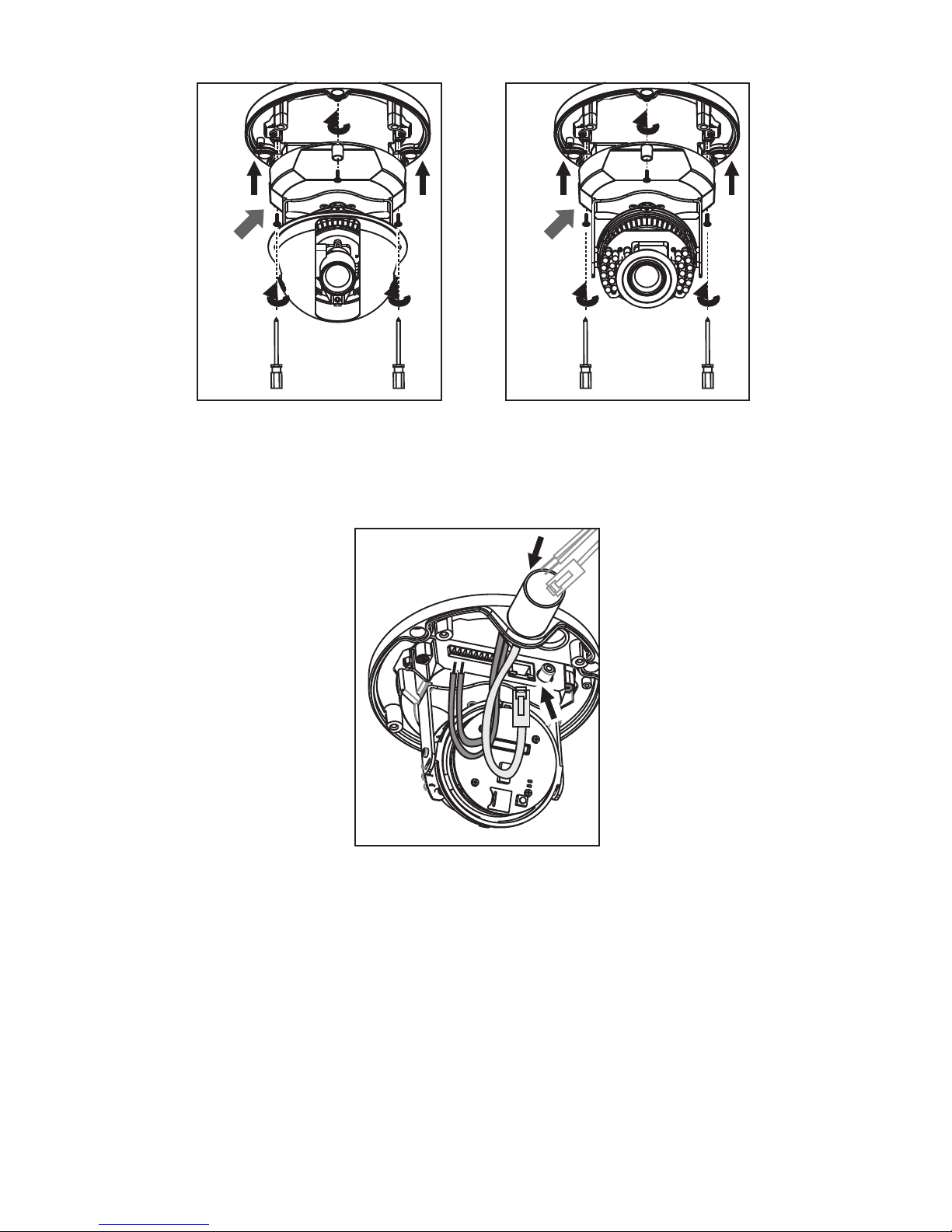

5. Using the screw driver to screw camera module into bottom chassis (FIG.9 & FIG.10).

(IPD6122 / LD6122 series) (IPR6122 / LR6122 series)

FIG.9 FIG.10

Camera Module

6. Plug and fix the power cable to the terminal block and plug the network cable to RJ-45

connector of the camera (FIG.11).　

FIG.11

7. Take down the inner cover from the camera module (FIG.12, IPD6122/LD6122), and

then adjust the direction of the lens through the adjustable Pan/Tilt bracket and rotatable

round bracket for Azimuth (FIG.13 & FIG.14).
