Instruction Manual
66-IPG1022CSE
IPG1022ESX3
MERIT LILIN ENT. CO., LTD
http://www.meritlilin.com
Day & Night 1080P HD IP Camera
IMPORTANT SAFEGUARDS
GRAPHIC SYMBOL EXPLANATION
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
shock to persons.
accompanying the unit.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS
CAUTION
Do not drop or strike this equipment.
Do not install the equipment near any naked flames or heat
sources.
Do not expose this unit to rain or excessive moisture, avoid
smoke and dust.
Do not cover cloth or to install this unit in poorly ventilated
places.
Do not continue to operate if there appears to be fault.
Do not touch the power connection with wet hands.
Do not damage the power cord or leave it under pressure.
Sensitive electronics inside are vulnerable to excessive shock.
Excessive heat could damage this unit.
Please the camera in an environmental housing for protection.
If the camera gets wet, unplug it and have it checked by
qualified service personnel.
This may lead to overheating.
If the unit ceases to function, contact qualified service
personnel for help.
Risk of short circuit or electric shock.
Risk of fire or shock circuit.
CONGRATULATIONS
Thank you for purchasing this D/N Megapixel HD IP Camera. You
now own one of the many fine network products we manufactured.
This product has been carefully inspected under rigid quality
control and should reach you in perfect condition. With reasonable
care, it will provide years of reliable performance.
We recommend that you read this installation and operation
manual thoroughly before installing and operation your new
system.
Here you will find all the information you need to set up and use
the system. If any questions are not answered in the manual,
please contact your dealer.
Before proceeding, please read and observe all instructions and
warnings contained in this manual. Retain this manual with the
original bill of sale for future reference and, if necessary, warranty
service.
When unpacking your new camera, check for missing or damaged
items. If any item is missing, or if damage is evident,
I . Contact your dealer for
assistance.
DO NOT
NSTALL OR OPERATE THIS PRODUCT
IPG1022ESX3 is an 2 megapixel D/N 1080P HD IP Camera,
built-in H.264 AVC(Advanced Video Coding) video compression.
H.264 AVC video compression engine supports high definition
video quality, 1080P(1920x1080) resolution, bandwidth efficiency
with PPPoE and DDNS.
Also it provides higher bit rate of internet and diverse alarm
functions such as movement video detection e-mail or FTP.
Moreover, IPG1022ESX3 can do remote surveillance with iPad,
iPhone or Android cell phone. The software R&D engineer can
use HTTP protocol(HTTPAPI) or ONVIF protocol to develop
related software, and integrate them with existing application
software system.
IPG1022ESX3 is ideal solution for remote video monitoring via
internet.
Executive Summary
PART DESCRIPTION & DIMENSION
5
2
1
122mm
50mm
3
4
SD CARD
EXTINGND
DIN
COM
NO
..
+5V
RESET
LAN
VIDEO OUT
POWER
DC12V
AUDIO INAUDIO OUT
6
70mm
11
12
13
9
714 8
10
1. LENS MOUNT CAP
FOCAL LENGTH ADJUSTMENT RING AND LOCKING SCREW
MICROPHONE
AUTO IRIS CONNECTOR(DC Type)
Supplies control signals to an auto iris lens(jack not supplied).
6. POWER LED
Power ON/OFF indicator.
7. LIVE VIDEO BNC JACK
Plug the video input of monitor to the BNC jack and adjust focus and zoom.
8. RESET KEY
To restore the server to factory default setting.
9. RJ-45 NETWORK CONNECTOR AND INDICATOR LEDS
Green(LINK): While cable of network is connecting the LED is light.
Orange(ACT): When data is communicating, the LED is flashed.
(This network camera support PoE.)
10. AUDIO INPUT 3.5mm PHONE JACK
Can be accessed by an external microphone or audio input signal.
(Choose from the audio settings menu to switch)
Prevent damages to the image sensor and to keep dust away.
2.
Use this ring to adjusts the back-focal distance or picture focus. Rotate this
ring clockwise or counterclockwise for a CS-mount lens.
3.
Built-in highly sensitive capacitive microphone.
4. LIGHT SENSOR
Day and night function auto mode detect.
5.
11. AUDIO OUTPUT 3.5mm PHONE JACK
12. DC12V POWER INPUT JACK
DC12V ( 10%) power input.
13. SD CARD SLOT
This network camera is compliant with SD/SDHC card.
14. ALARM IN/OUT & EXTIN TERMINAL
±
+5V COM. GND
N.O. DIN
123456
EXTIN
+5V Output: Max. output 50mA.
N.O./COM.: Max. load +60V/100mA.
DIN terminal can be set either N.O. (normally open) or N.C. (normally
close) mode.
EXTIN: IR cut removable external control input.

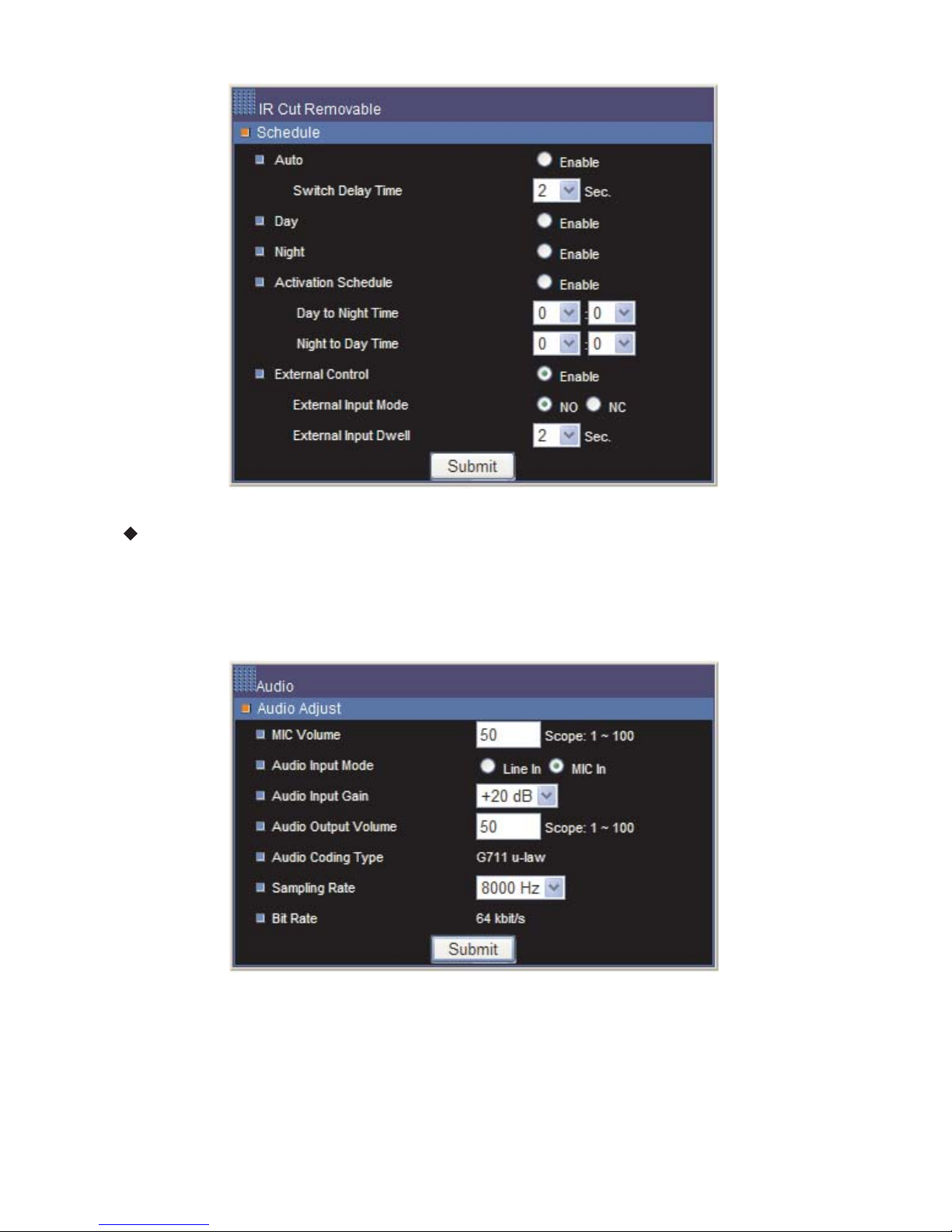

IR CUT REMOVABLE EXTERNAL CONTROL SETUP
Access into web page setup menu, under schedule menu, enable External
Control option.
External input mode: normally open(NO) or normally closed(NC) mode is
selectable.
External input dwell: may select 1, 2, 5, 10, 15, 20, 30 seconds delay time
interval to avoid wrong operation caused by headlight
of the front light.
AUDIO INPUT MODE SETUP
Access into web page setup menu, under audio adjustment setup menu,
may select Audio Input mode to either camera front microphone or rear's
Audio In (Line IN).
INSTALLATION
The lens must be either a C or CS mount type. The protrusion behind the
mounting surface must be within the following limits:
SUITABLE LENSES
C - mount lens CS - mount lens
9mm or less 4mm or less
FITTING THE LENS
Remove the lens mount cap.
Screw in the C mount ring(not supplied), until it is secured. When using a
CS mount lens skip step2.
Screw in the lens, until it is secured.
Insert the lens plug in the AUTO IRIS connector, when fitting a manual-
iris lens, skip step4.
Adjust the focal length by turning the focal length adjustment ring.
(Using hexagon screw driver, loose and tighten the screw.)
1
2
3
4
5
