Lilin MR3022 Manual de usuario

MR2922X/2922AX/2942X/2942AX

MR3022/3022A/3042/3042A

D/N 2MP(4MP) HD Vari-Focal Dome IR IP Camera

D/N 2MP(4MP) HD Dome IR IP Camera

66-MR3022CSM

Quick Installation Guide

SR2922X

D/N 1080P60 HD Vari-Focal Dome IR IP Camera

CAUTION

Do not drop or strike this equipment

Do not install the equipment near any naked flames or heat

sources

Do not expose this unit to rain, moisture, smoke or dust

Do not cover the opening of the cabinet with cloth and plastic

or to install this unit in poorly ventilated places. Allow 10cm

between this unit and its surroundings

Do not continue to operate the unit under abnormal conditions

such as detection of smoke, strange smell or malfunctioned

screen while power is on

Do not touch the power connection with wet hands

Do not damage the power cord or leave it under pressure

Do not operate this unit near magnet, speaker system, etc., to

avoid magnetic interference

Connection cables should be grounded properly

The ITE is to be connected only to PoE networks without

routing to the outside plant.

L’ITE ne doit être connecté que sur un réseau PoE sans routage

vers l’alimentation extérieure.

-1-

English

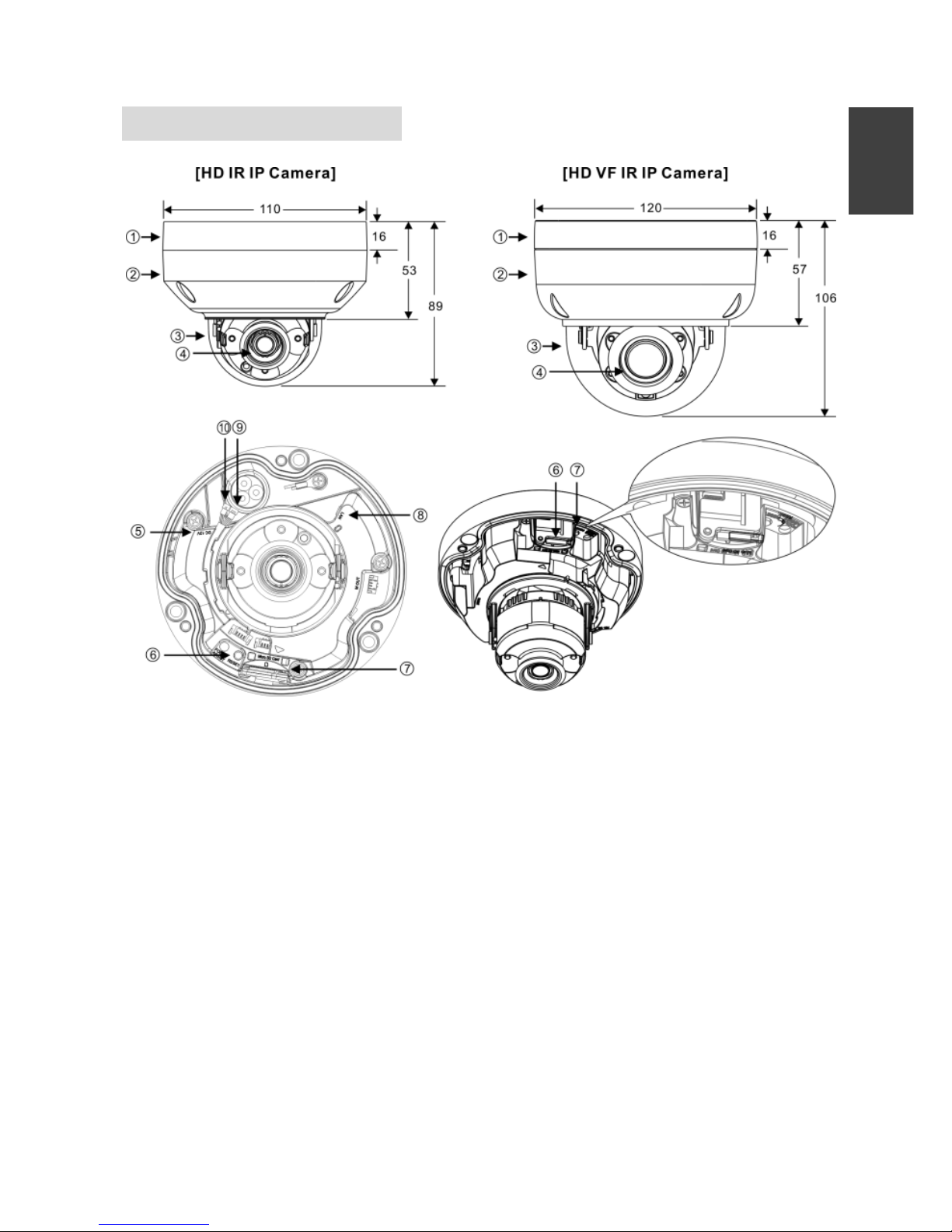

Product Overview

①Bottom bracket

②Upper cover

③Transparent cover

④Lens

⑤Power connector (DC12V ±10%)

⑥Factory default button

⑦Micro SD card

⑧RJ-45 Ethernet connector (supports PoE)

⑨Audio in/out cable (available only for A & AX suffixes)

⑩Alarm in/out cable (available only for A & AX suffixes)

Unit: mm

-2-

English

Installation

1. Retrieve the camera and remove the bottom bracket from the

upper cover with a hex key (FIG.1).

2. Insert the Ethernet cable and power cable through the bottom

bracket (FIG.2). Next, connect the RJ-45 connector and DC12V

power cable to the camera’s RJ-45 Ethernet connector and

power connector (FIG.3 & 4).

-3-

English

3. Use the included screws (M4.0x25) through the holes marked as

“a,” and fix the camera in the desired location (FIG.5 & 6).

-4-

English

4. Adjust the pan, tilt, and azimuth of the camera to the desired

location (FIG.7).

 Adjust the zoom and focus for the best image, and tighten the

screws after the adjustment for manual varifocal models (Fig.7).

-5-

English

5. Secure the upper cover to the bottom bracket with a hex key

(FIG.8).

Wall Mount IR Adjustment [for HD VF IR IP cameras]

When wall mounting the Varifocal Dome IR Camera, remember to

adjust the infrared beam (FIG.9).

-6-

English

System Architectures

To connect HD IP cameras to the network, please follow one of the

system architectures:

(1). Use a DC12V power adapter and a network switch to connect to

the network.

(2). Use a PoE network switch to connect to the network.

(3). Use a PoE power injector and a network switch to connect to

the network.

DC12V Power Supply

-7-

English

Emergency Factory Default

To restore the hardware to factory default settings, please follow

these steps:

1.Press and hold “RESET Key” for 10 seconds and release.

2.Wait for about 40 seconds, and the network LED light should turn

off, and go back on again.

3.The camera is now restored to factory default settings, and will

reboot automatically.

4.Search for the IP device using the IPScan software.

5.Start the IP device via an Internet browser.

6.Enter the default username “admin” and password “pass” to

operate.

NOTE: For your convenience, the IP address will revert to the default

setting of 192.168.0.200.

Before Accessing IP Cameras

Before accessing the IP camera, make sure that the camera’s RJ-45

network, audio, and power cables are properly connected. To set the

IP address, consult your network administrator for an available IP

address. The default IP address for each IP camera is 192.168.0.200.

Users can use the default IP address for verifying the camera’s

network connection.

Software Requirements

Merit LILIN Universal ActiveX software components are required for

web interface display of MJPEG or H.264 Full HD video. When you

dialog box will prompt the installation of the LILIN Universal ActiveX.

Click Install to download and install the required software.

-8-

English

Configuring IP Addresses with IPScan Software

To configure an IP address using the IP scan tool, you can copy the

IPScan software from the installation CD, and paste to your computer.

Alternatively, you can execute the IPScan software from the

installation CD, or download the software from the Merit LILIN

website (www.meritlilin.com). To change the settings of the IP

address, subnet mask, gateway, or HTTP port, you can follow the

steps below:

1. Run the IPScan software.

2. Click Refresh. All available devices should be listed in the

device list.

3. Select your device from the list provided.

4. Change the IP address, subnet mask, gateway, or HTTP port for

the IP camera.

5. Click Apply to submit the settings.

6. Click Refresh to verify the settings.
