Lytespan® Track Lighting System 22GR6

Page 1 of 2 Alcyon™ Glass Ring MR16

Ordering Information

Catalog No. Finish Mounting Lamps

22GR6WH Matte White All Lytespan Track Systems. MR16 Lamp with out Integral lens, 50W Max

22GR6BK Matte Black Does not mount on ProSpec Track. MR16 Lamp with integral lens 37W Max

22GR6AL Metallic Aluminum

2 3/4 in

[67 mm]

1 1/2 in

[40 mm]

1/2 in

[12 mm]

4 3/4 in

[123 mm]

2 3/4 in

[69 mm]

15/16 in

[24 mm]

4 3/4 in

[119 mm]

5 3/4 in

[144 mm]

4 1/4 in

[109 mm]

Features

1. Transformer: Class two electronic transformer for 12v halogen lamps

2. Track Attachment Fitting: Molded polycarbonate; rotates into track

3. Brass Contact: Extends for connection to second circuit

(Advent Lytespan track only)

4. Horizontal Pivot: Wireless stem profile with infinite horizontal rotation

5. Vertical Pivot: 0-90° vertical adjustment

6. Socket: Bi-pin multipoint contact low voltage halogen socket

7. Housing: Die cast aluminum

8. Frosted Glass: Included; rotate clockwise to attach

9. Glass Shield: Integral; For use with unshielded lamps

Finish

All Painted finishes are baked enamel.

Dimming

Use only dimmers specifically designed for use with electronic transformers.

Low voltage fixtures may produce audible sound when dimmed.

Accessories

Accessory Holder: None

Lenses & Louvers: None

Snoot Accessory: None

Not permissible to use any more than one glass accessory

(lens or filter) at any time.

Labels

UL, cUL

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan® Track Lighting System 22GR6

Page 2 of 2 Alcyon™ Glass Ring MR16

6’ 206 0.7’ 0.7’

8’ 116 1.0’ 1.0’

10’ 74 1.2’ 1.2’

12’ 51 1.5’ 1.5’

8’ 4.6’ 75 1.3’ 1.1’

12’ 6.9’ 33 2.0’ 1.7’

14’ 8.1’ 25 2.3’ 2.0’

16’ 9.2’ 19 2.6’ 2.3’

4’ 4.0’ 164 1.0’ 0.7’

5’ 4.0’ 105 1.2’ 0.9’

6’ 6.0’ 73 1.5’ 1.0’

7’ 7.0’ 53 1.7’ 1.2’

2’ 3.5’ 231 1.0’ 0.5’

3’ 5.2’ 103 1.5’ 0.7’

4’ 6.9’ 58 2.0’ 1.0’

5’ 8.7’ 37 2.5’ 1.2’

7400 3000

20W MR16

VNSP (EZX) 7˚

6’ 3.5’ 68 2.1’ 1.8’

8’ 4.6’ 38 2.8’ 2.4’

10’ 5.8’ 24 3.5’ 3.0’

12’ 6.9’ 17 4.2’ 3.6’

4’ 4.0’ 83 2.1’ 1.5’

5’ 5.0’ 53 2.7’ 1.9’

6’ 6.0’ 37 3.2’ 2.2

7’ 7.0’ 27 3.8’ 2.6’

2’ 3.5’ 117 2.2’ 1.1’

3’ 5.2’ 52 3.3’ 1.6’

4’ 6.9’ 29 4.4’ 2.1’

5’ 8.7’ 19 5.6’ 2.6’

3750 5000

20W MR16

NSP (ESX) 15˚

6’ 122 2.7’ 2.7’

8’ 69 3.5’ 3.5’

10’ 44 4.4’ 4.4’

12’ 31 5.3’ 5.3’

6’ 3.5’ 79 3.6’ 3.1’

8’ 4.6’ 45 4.8’ 4.1’

10’ 5.8’ 29 6.0’ 5.1’

12’ 6.9’ 20 7.2’ 6.1’

4’ 4.0’ 97 3.7’ 2.5’

5’ 5.0’ 62 4.7’ 3.1’

6’ 6.0’ 43 5.6’ 3.8’

7’ 7.0’ 32 6.5’ 4.4’

2’ 3.5’ 138 4.2’ 1.8’

3’ 5.2’ 61 6.2’ 2.7’

4’ 6.9’ 34 8.3’ 3.5’

5’ 8.7’ 22 10.4’ 4.4’

4400 4000

37W MR16

(IR) NFL 25˚

10’ 123 1.6’ 1.6’

12’ 85 1.9’ 1.9’

14’ 63 2.2’ 2.2’

16’ 48 2.5’ 2.5’

10’ 5.8’ 80 2.1’ 1.8’

12’ 6.9’ 55 2.5’ 2.2’

14’ 8.1’ 41 2.9’ 2.5’

16’ 9.2’ 31 3.4’ 2.9’

4’ 4.0’ 272 1.3’ 0.9’

5’ 5.0’ 174 1.6’ 1.1’

6’ 6.0’ 121 1.9’ 1.3’

7’ 7.0’ 89 2.2’ 1.6’

2’ 3.5’ 384 1.3’ 0.6’

3’ 5.2’ 171 1.9’ 0.9’

4’ 6.9’ 96 2.6’ 1.3’

5’ 8.7’ 62 3.2’ 1.6’

12300 3500

42W MR16

VNSP (EZY) 9˚

8’ 138 1.4’ 1.4’

10’ 88 1.7’ 1.7’

12’ 61 2.1’ 2.1’

14’ 45 2.4’ 2.4’

8’ 4.6’ 89 1.9’ 1.6’

10’ 5.8’ 57 2.3’ 2.0’

12’ 6.9’ 40 2.8’ 2.4’

14’ 8.1’ 29 3.3’ 2.8’

4’ 4.0’ 194 1.4’ 1.0’

5’ 5.0’ 124 1.8’ 1.2’

6’ 6.0’ 86 2.1’ 1.5’

7 7.0’ 63 2.5’ 1.7’

2’ 3.5’ 275 1.4’ 0.7’

3’ 5.2’ 122 2.1’ 1.0’

4’ 6.9’ 69 2.9’ 1.4’

5’ 8.7’ 44 3.6’ 1.7’

8800 3000

50W MR16

NSP (EXT) 10˚

525 5000

20W MR16

FL (BAB) 40˚

5’ 40 3.6’ 3.6’

6’ 28 4.4’ 4.4’

7’ 20 5.1’ 5.1’

8’ 16 5.8’ 5.8’

5’ 2.9’ 26 5.1’ 4.2’

6’ 3.5’ 18 6.1’ 5.0’

7’ 4.0’ 13 7.1’ 5.9’

8’ 4.6’ 10 8.1’ 6.7’

4’ 4.0’ 22 6.7’ 4.1’

5’ 5.0’ 14 8.4’ 5.1’

6’ 6.0’ 10 10.1’ 6.2’

7’ 7.0’ 7 11.7’ 7.2’

2’ 3.5’ 31 9.7’ 2.9’

3’ 5.2’ 14 14.5’ 4.4’

4’ 6.9’ 8 19.3’ 5.8’

5’ 8.7’ 5 24.2’ 7.3’

1000 5000

35W MR16

FL (FMW) 40˚

6’ 44 3.9’ 3.9’

8’ 25 5.2’ 5.2’

10’ 16 6.5’ 6.5’

12’ 11 7.8’ 7.8’

6’ 3.5’ 29 5.4’ 4.5’

8’ 4.6’ 16 7.2’ 6.0’

10’ 5.8’ 10 9.0’ 7.5’

12’ 6.9’ 7 10.8’ 9.0’

4’ 4.0’ 35 5.8’ 3.7’

5’ 5.0’ 23 7.3’ 4.6’

6’ 6.0’ 16 8.7’ 5.5’

7 7.0’ 12 10.2’ 6.4’

2’ 3.5’ 50 7.6’ 2.6’

3’ 5.2’ 22 11.4’ 3.9’

4’ 6.9’ 13 15.2’ 5.2’

5’ 8.7’ 8 19.0’ 6.5’

1600 3000

50W MR16

FL (EXN) 36˚

1200 4000

50W MR16

WFL (FNV) 60˚

3900 4000

35W MR16

SP (FRA) 20˚

5’ 88 3.6’ 3.6’

6’ 61 4.4’ 4.4’

8’ 34 5.8’ 5.8’

10’ 22 7.3’ 7.3’

5’ 2.9’ 57 5.1’ 4.2’

6’ 3.5’ 40 6.1’ 5.0’

8’ 4.6’ 22 8.1’ 6.7’

10’ 5.8’ 14 10.2’ 8.4’

4’ 4.0’ 49 6.7’ 4.1’

5’ 5.0’ 31 8.4’ 5.1’

6’ 6.0’ 22 10.1’ 6.2’

7’ 7.0’ 16 11.7’ 7.2’

2’ 3.5’ 69 9.7’ 2.9’

3’ 5.2’ 31 14.5’ 4.4’

4’ 6.9’ 17 19.3’ 5.8’

5’ 8.7’ 11 24.2’ 7.3’

2200 4000

37W MR16

(IR) FL 40˚

6’ 69 2.6’ 2.6’

8’ 39 3.4’ 3.4’

10’ 25 4.3’ 4.3’

12’ 17 5.1’ 5.1’

6’ 3.5’ 45 3.5’ 2.9’

8’ 4.6’ 25 4.6’ 3.9’

10’ 5.8’ 16 5.8’ 4.9’

12’ 6.9’ 11 6.9’ 5.9’

4’ 4.0’ 55 3.6’ 2.4’

5’ 5.0’ 35 4.5’ 3.0’

6’ 6.0’ 25 5.3’ 3.6’

7 7.0’ 18 6.2’ 4.2’

2’ 3.5’ 78 3.9’ 1.7’

3’ 5.2’ 35 5.9’ 2.6’

4’ 6.9’ 20 7.9’ 3.4’

5’ 8.7’ 13 9.8’ 4.3’

2500 3000

50W MR16

NFL (EXZ) 24˚

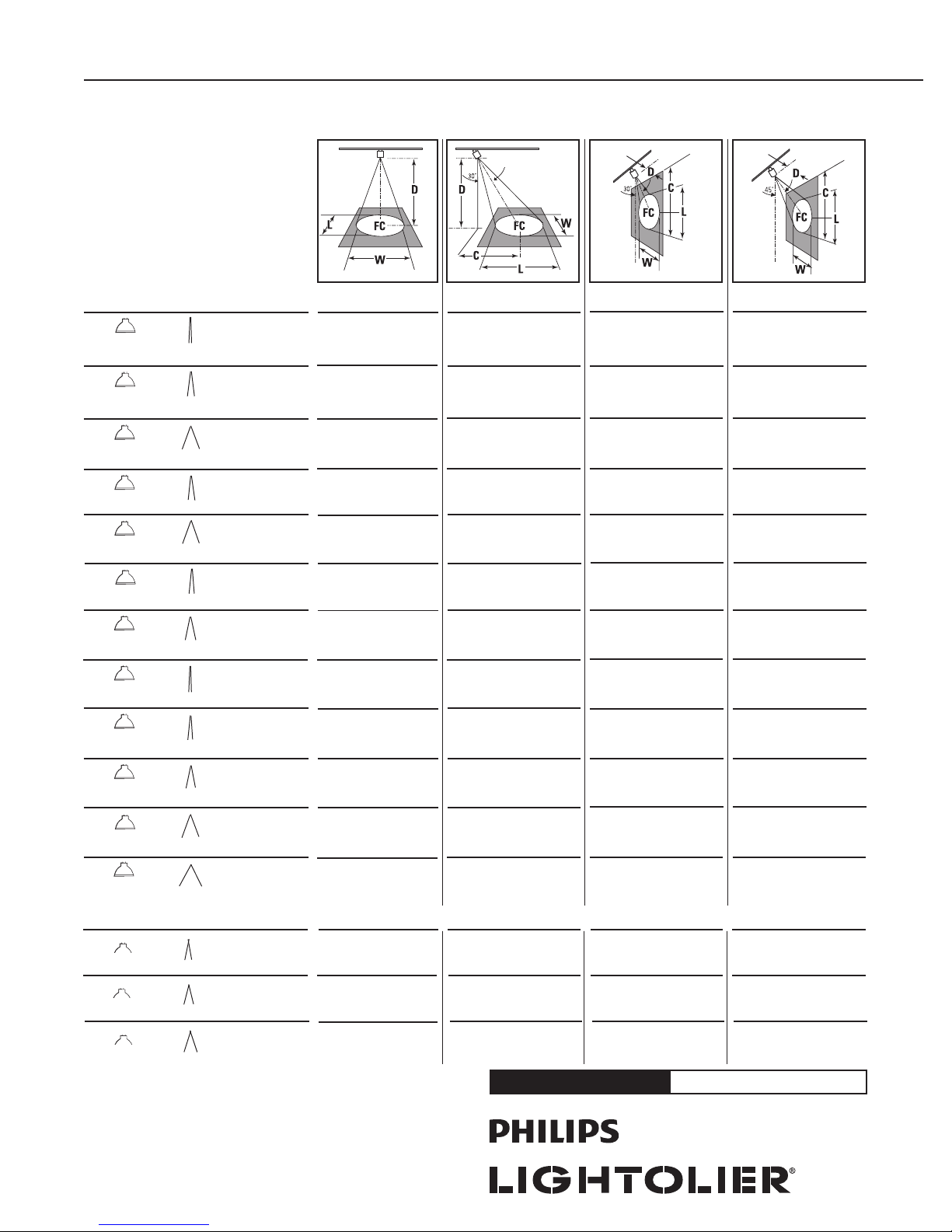

MR16 LOW VOLTAGE HALOGEN BI-PIN LAMPS WITH ALUMINIZED (NON-DICHROIC) REFLECTORS

D FC L W D C FC L W D C FC L W D C FC L W

LAMP

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

AIMING ANGLE: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width A Aiming Angle

C Distance to center beam FC Footcandles

L and W are the outer points where the candle power

drops to 50% of the maximum. FC are the initial footcan-

dles at the center of the beam.

Lamp data shown is typical. Consult lamp manufacturers

for availability and performance. CBCP= Center Beam

Candle Power.

6’ 104 1.6’ 1.6’

8’ 59 2.1’ 2.1’

10’ 38 2.6’ 2.6’

12’ 26 3.2’ 3.2’

2’ 131 1.5’ 1.5’

3’ 58 2.2’ 2.2’

4’ 33 2.9’ 2.9’

5’ 21 3.6’ 3.6’

2’ 1.2’ 85 2.0’ 1.7’

3’ 1.7’ 38 3.0’ 2.5’

4’ 2.3’ 21 4.1’ 3.4’

5’ 2.9’ 14 5.1’ 4.2’

2’ 2.0’ 46 3.4’ 2.1’

3’ 3.0’ 21 5.0’ 3.1’

4’ 4.0’ 12 6.7’ 4.1’

5’ 5.0’ 7 8.4’ 5.1’

1’ 1.7’ 66 4.8’ 1.5’

2’ 3.5’ 16 9.7’ 2.9’

3’ 5.2’ 7 14.5’ 4.4’

4’ 6.9’ 4 19.3’ 5.8’

6’ 108 2.1’ 2.1’

8’ 61 2.8’ 2.8’

10’ 39 3.5’ 3.5’

12’ 27 4.2’ 4.2’

5’ 2.9 101 2.4’ 2.0’

7’ 4.0’ 52 3.3’ 2.9’

9’ 5.2’ 31 4.3’ 3.7’

11’ 6.4’ 21 5.2’ 4.5’

3’ 3.0’ 153 2.2’ 1.5’

5’ 5.0’ 55 3.6’ 2.5’

7’ 7.0’ 28 5.1’ 3.5’

9’ 9.0’ 17 6.6’ 4.5’

2’ 3.5’ 122 3.1’ 1.4’

3’ 5.2’ 54 4.7’ 2.1’

4’ 6.9’ 30 6.2’ 2.8’

5’ 8.7’ 20 7.8’ 3.5’

3’ 128 3.1’ 3.1’

5’ 46 5.2’ 5.2’

7’ 23 7.3’ 7.3’

9’ 14 9.4’ 9.4’

3’ 1.7’ 83 4.6’ 3.6’

5’ 2.9’ 30 7.6’ 6.0’

7’ 4.0’ 15 10.7’ 8.4’

9’ 5.2’ 9 13.7’ 10.8’

2’ 2.0’ 102 5.7’ 2.9’

3’ 3.0’ 45 8.6’ 4.4’

4’ 4.0’ 25 11.4’ 5.9’

5’ 5.0’ 16 14.3’ 7.4’

1’ 1.7’ 144 22.3’ 2.1’

2’ 3.5’ 36 44.5’ 4.2’

3’ 5.2’ 16 66.8’ 6.2’

4’ 6.9’ 9 89.1’ 8.3’

8’ 164 1.5’ 1.5’

12’ 73 2.3’ 2.3’

16’ 41 3.1’ 3.1’

20’ 26 3.9’ 3.9

7’ 4.0’ 139 1.8’ 1.6’

10’ 5.8’ 68 2.6’ 2.2’

13’ 7.5’ 40 3.3’ 2.9’

16’ 9.2’ 27 4.1’ 3.6’

3’ 5.2’ 146 2.4’ 1.2’

4’ 6.9’ 82 3.2’ 1.5’

5’ 8.7’ 53 4.0’ 1.9’

6’ 10.4’ 36 4.8’ 2.3’

5’ 5.0’ 148 1.9‘ 1.4’

7’ 7.0’ 76 2.7‘ 1.9’

9’ 9.0’ 46 3.5‘ 2.5’

11’ 11.0’ 31 4.3‘ 3.0’

10500 4000

50W MR16

NSP 10°

6’ 83 2.7’ 2.7’

8’ 47 3.5’ 3.5’

10’ 30 4.4’ 4.4’

12’ 21 5.3’ 5.3’

5’ 2.9’ 78 3.0’ 2.6’

7’ 4.0’ 40 4.2’ 3.6’

9’ 5.2’ 24 5.4’ 4.6’

11’ 6.4’ 16 6.6’ 5.6’

2’ 3.5’ 94 4.2’ 1.8’

3’ 5.2’ 42 6.2’ 2.7’

4’ 6.9’ 23 8.3’ 3.5’

5’ 8.7’ 15 10.4 4.4’

3’ 3.0’ 118 2.8‘ 1.9’

5’ 5.0’ 42 4.7‘ 3.1’

7’ 7.0’ 22 6.5‘ 4.4’

9’ 9.0’ 13 8.4‘ 5.6’

3000 4000

50W MR16

NFL 25°

4’ 119 2.9’ 2.9’

6’ 53 4.4’ 4.4’

8’ 30 5.8’ 5.8’

10’ 19 7.3’ 7.3’

3’ 1.7’ 137 3.0’ 2.5’

5’ 2.9’ 49 5.1’ 4.2’

7’ 4.0’ 25 7.1’ 5.9’

9’ 5.2’ 15 9.1’ 7.6’

1’ 1.7’ 238 4.8’ 1.5’

2’ 2.9’ 59 9.7’ 2.9’

3’ 4.0’ 26 14.5’ 4.4’

4’ 5.2’ 15 19.3’ 5.8’

3’ 3.0’ 75 5.0‘ 3.1’

4’ 4.0’ 42 6.7‘ 4.1’

5’ 5.0’ 27 8.4‘ 5.1’

6’ 6.0’ 19 10.1‘ 6.2’

1900 4000

50W MR16

FL 35°
