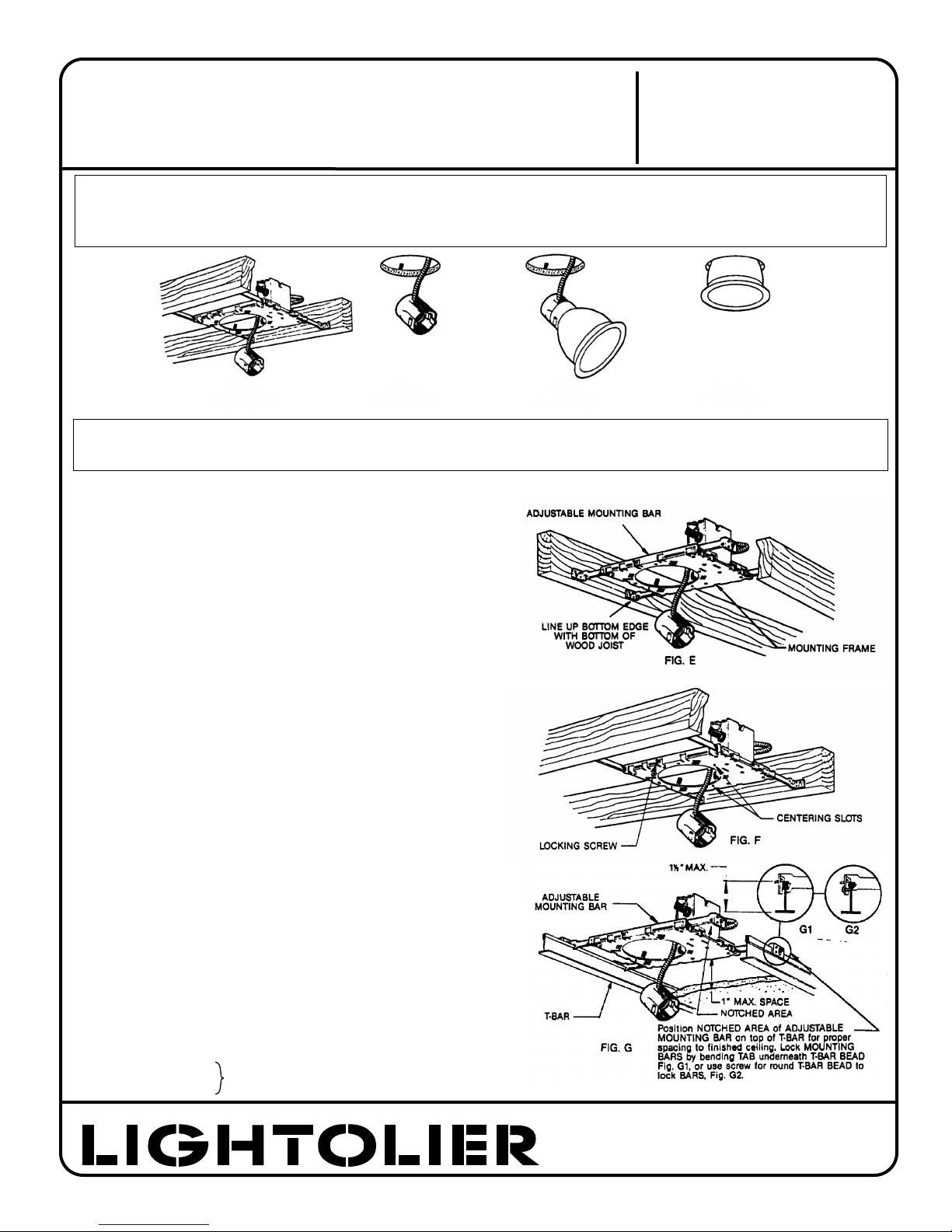

1. FRAME-IN (FIG. A)

Fasten MOUNTING FRAME to wood joist. Line-up bottom edge of

ADJUSTABLE MOUNTING BAR with bottom of wood joist (Fig. E). Wire to

supply leads. White fixture lead to neutral supply lead. Black fixture lead

to hot (120V) supply lead. Bare fixture wire to supply ground. Use

wirenuts (local hardware items). Place all electrical connections in the J-

BOX. Attach J-BOX COVER onto J-BOX. (Use built-in Cable Clamp in J-

BOX for non-metallic sheathed cable (Romex) or armored cable (BX).)

NOTE:

1. ADJUSTABLE MOUNTING BARS are pre-assembled on long side

of MOUNTING FRAME for rigidity and ease of installation (Fig. E).

MOUNTING BARS must be removed and installed on narrow side

of MOUNTING FRAME if required. Locking screws are provided to

lock frame in a desired position. (Fig. F)

2. MOUNTING BARS can be extended to 24”. The MOUNTING

FRAME can be mounted off-center. CENTERING SLOTS are provid--

ed as guides to align adjacent frames.

3. For suspended ceilings, make certain that bottom of MOUNTING

FRAME is no higher than 1” above ceiling line and notched area

of ADJUSTABLE MOUNTING BARS are positioned on top of

T-BAR (Fig. G).

2. CLOSE-IN (FIG. B)

Install plasterboard or other dry type ceiling. Hole in board can be cut

either on floor or after the board is secured in the ceiling. Use MOUNT-

ING FRAME opening as cutting guide (make sure ROTO CLIPS are rotated

out of hole area). ROTO CLIPS can only be rotated counter-clockwise. A

lanced stop detail is provided to prevent ROTO CLIPS from rotating clock-

wise. This detail allows easy removal of REFLECTOR TRIM by rotating

TRIM counterclockwise and permits installing REFLECTOR TRIM tightly

against the ceiling surface by rotating TRIM clockwise after pushing

TRIM into ceiling.

NOTE: For wet plaster ceiling, use Plaster Ring Accessory (order sepa-

rately): No. 1960 for 1002P1 Frame-In Kit; No. 1961 for 1102P1 Frame-In

Kit.

3. SNAP-ON (FIG. C) SEE SEPARATE REFLECTOR TRIM

4. PUSH-UP (FIG. D) INSTRUCTION SHEETS.

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

This fixture is intended for installation in accordance with the National Electrical Code and local or Federal

code specifications. To assure full compliance with codes and regulations, check with your local electrical

inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:1102P1

A0403 Page 1 of 2

INSTALLATION PROCEDURE FOR FRAME-IN KIT 1102P1

(MAY BE USED FOR EITHER 7•11 OR LYTECASTER TRIM)

NEW CONSTRUCTION

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, Fall River, MA 02720

FIG. A

1. FRAME-IN

FIG. B

2. CLOSE-IN

FIG. C

3. SNAP-ON

FIG. D

4. PUSH-UP

WARNING-(RISK OF FIRE) DO NOT INSTALL INSULATION WITHIN 3 INCHES OF FIXTURE SIDES OR WIRING

COMPARTMENT, NOR ABOVE FIXTURE IN SUCH A MANNER TO ENTRAP HEAT.

1. CUT OPENING (FIG. A)

Use MOUNTING FRAME opening as template.

2. WIRE-IN (FIG. B)

Wire to supply leads. (Use built-In Cable Clamp in J-Box for non-

metallic sheathed cable (Romex) or armored cable (BX)).

3. PUT THROUGH (FIG. C)

a. Remove ADJUSTABLE MOUNTING BARS.

b. Break off BRIDGE on MOUNTING FRAME as shown in FIG. G

(break WEBS on SLOTS with cutting plier).

c. Pass MOUNTING FRAME into CEILING as shown.

4. ANCHOR (FIG. D)

a. Using NAIL CLIPS, (order separately; Cat. #1985N for 1002

Frame-In Kit, Cat. #1985S for 1102 Frame-In Kit).

5. SNAP-ON (FIG. E)

6. PUSH-UP (FIG. F)

INSTRUCTION SHEET NO.

IS:1102P1

A0403 Page 2 of 2

INSTALLATION PROCEDURE FOR FRAME-IN KITS

1002P1 & 1102P1 EXISTING CONSTRUCTION

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, Fall River, MA 02720

WARNING-USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER INC. USE OF OTHER MANUFACTUR-

ERS’REFLECTOR TRIMS VOIDS THE UNDERWRITERS LABORATORIES LISTING AND COULD CONSTITUTE

A FIRE HAZARD.

SEE SEPARATE REFLECTOR TRIM

INSTRUCTION SHEETS.

FIG. A

1. CUT-OPEN

FIG. B

2. WIRE-IN

FIG. C

3. PUT THRU

FIG. D

4. ANCHOR

FIG. E

5. SNAP-ON

FIG. F

6. PUSH-UP
