Lytecaster®Recessed Downlighting 1185

Page 1 of 2 6 3/4" Aperture Basic White Wall Washer Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim

Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1185

Perma White

LED

Fluorescent

Frame-In Kit Installation Type Lamping Height

L56LED Non-IC Retrofit LED 7 1/8"

1104F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"

Incandescent 1104F18 Series IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"

Frame-In Kit Installation Type Lamping Height 1104F26 Series IC (1) Triple 26W (GX24q-3) 7 1/2"

1102P1

1103R

Non-IC

Non-IC Remodeler

100W A19 7 1/8"

7 1/8"

1100FTU Series Non-IC (1) Triple 26/32W (GX24q-3) 6 7/8"

1100AICMFT AirSeal®IC (1) Triple 26/32W (GX24q-3) 6 7/8"

1910XFH1 Conversion Kit (1) Quad 13W (GX23-2) 6 7/8"

1100IC

1100AICM

1104ICX/N

AirSeal®IC

52W A19 7 5/16"

7 5/16"

7 1/4"

1910XDH1 Conversion Kit (2) Quad 13W (GX23-2) 6 7/8"

1100DICM

1100DAICM

1104IC/N

1104ICR

Deep IC

Deep AirSeal®IC

AirSeal®IC

IC Remodeler

40W A19 9 1/4"

9 1/4"

7 1/2"

1104IC/N

1104ICR

Non-IC

Non-IC Remodeler

60W A19 7 1/2"

7 1/2"

Features

1. Deep Reflector: Hydroformed aluminum, .040" thick (18 ga.); Perma White®

finish with 88% reflectance; white trim flange. Provides smooth wash of light

over wall surface without scallops or shadows.

2. Aperture Plate: Molded high-heat polymer, white finish.

3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Options & Accessories

Spread Lens: L56WWLENS - Proprietary spread lens for use with

combination of wall washer optics and LED Frame-In Kits.

1185/1100 DEEP IC Series

Incandescent Insulated Ceiling

9 1/4”

7 1/8” 1185/1103R

0™

Non-IC Remodeler Ring

1185/1102P1 Series

Standard Incandescent

7 1/2”

1185/1104IC/N

0™Convertible

IC/Non-IC

Lytecaster®Recessed Downlighting 1185

Page 2 of 2 6 3/4" Aperture Basic White Wall Washer Reflector Trim

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

LIGHTING DATA

EXAMPLE: Multiple units with 100W A19lamps, located 2’

from wall and 2’ on center, illumination on the wall 3’ down

from the ceiling of 35 f.c. beneath and 35 f.c. between the

fixtures.

Footcandle values are averaged and rounded off and are based on a minimum of five units.

For fixture-to-wall distances, other than those shown, use maximum of 1 of 1 spacing (distance between fixtures not more than distance to wall) for best result.

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle values by the ratio of the lumens of the two lamps.

100W A19

1 39 36 39 29 19 29

2 49 47 49 33 30 33

3 35 35 35 23 25 23

4 29 26 29 19 18 19

5 16 18 16 13 12 13

6 12 11 12 4 4 4

7 8 8 8 6 6 6

8 8 8 8 6 6 6

9 7 8 7 6 6 6

DISTANCE FROM CEILING, FT.

UNITS 2 FEET FROM WALL

2’ 3’

100W A19

1 14 12 14 10 10 10

2 22 20 22 16 14 16

3 23 23 23 18 16 18

4 19 19 19 16 14 16

5 16 15 16 13 12 13

6 12 11 12 10 8 10

7 9 10 9 8 6 8

8 8 8 8 6 6 6

9 8 8 8 5 6 5

DISTANCE FROM CEILING, FT.

UNITS 3 FEET FROM WALL

3’ 4’

1 LT. 13W Quad Tube

1 15 14 15 12 8 12

2 20 20 20 15 13 15

3 15 15 15 11 10 11

4 10 10 10 7 7 7

5 6 6 6 5 5 5

6 4 4 4 3 3 3

7 3 3 3 2 2 2

8 2 2 2 2 2 2

9 2 2 2 1 1 1

DISTANCE FROM CEILING, FT.

UNITS 2 FEET FROM WALL

2’ 3’

FOOTCANDLES ON WALL FROM MULTIPLE UNITS

2 LT. 13W Quad Tube

1 23 21 23 18 12 18

2 29 29 29 21 18 21

3 22 22 22 15 15 15

4 14 15 14 10 10 10

5 10 10 10 7 7 7

6 6 7 6 5 5 5

7 5 5 5 4 4 4

8 3 3 3 3 3 3

9 2 2 2 2 2 2

DISTANCE FROM CEILING, FT.

UNITS 2 FEET FROM WALL

2’ 3’

Otros manuales de Luminaria de Lightolier

Lightolier

Lightolier ProSpec 26056 Manual de usuario

Lightolier

Lightolier Calculite ProSpec PA1P3075 Manual de usuario

Lightolier

Lightolier Lytecaster 604SQMR Manual de usuario

Lightolier

Lightolier 6700MS38U Manual de usuario

Lightolier

Lightolier 40600H1 Guía

Lightolier

Lightolier H9S1GLR128 Manual de usuario

Lightolier

Lightolier Calculite GW Manual de usuario

Lightolier

Lightolier Soli 48024ALU Manual de usuario

Lightolier

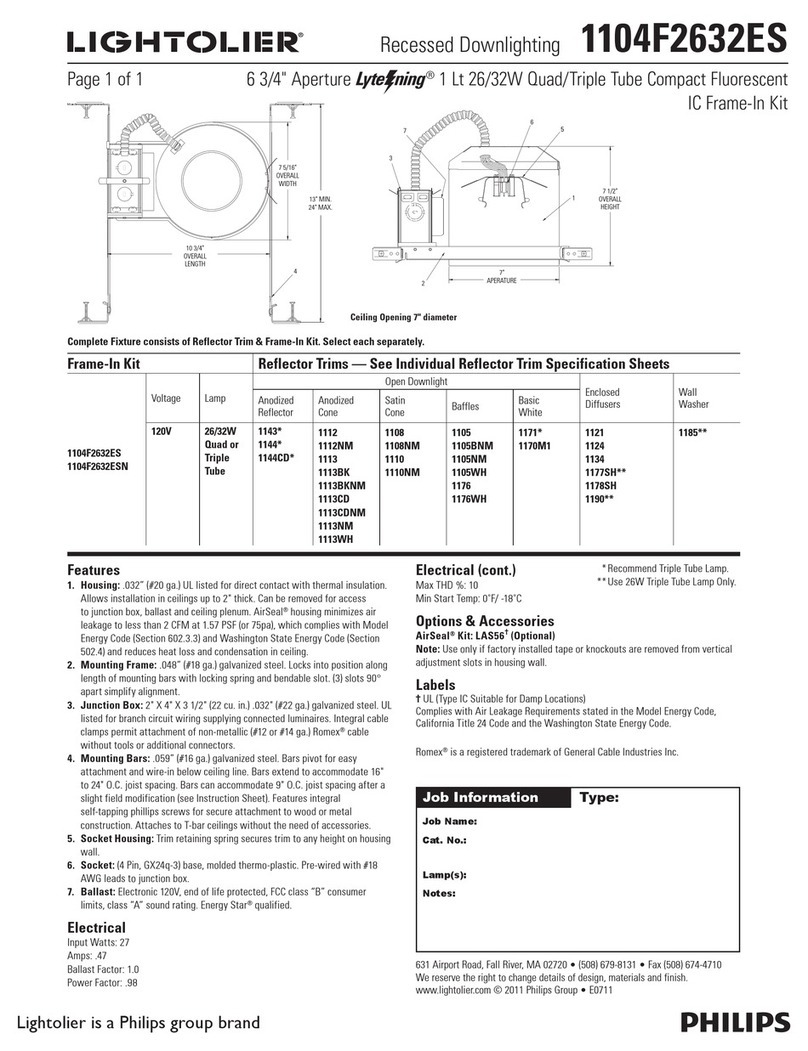

Lightolier 1104F2632ES Manual de usuario
