Lightolier Calculite AA7P38D Manual de usuario

2345

3/4" Max.

Ceiling Thickness

19-1/8"

19-7/32"

Top View

16" Dia.

7 1/2" I.D.

8 29/32" O.D.

12 13/32"

Calculite®Incandescent Adjustable Accent AA7/PAA7P38D

Page 1 o 2 7 1/2” Aperture ProSpec®PAR38

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details o design, materials and inish.

Features

1. Housing: Steel .029” (22 ga.) matte black inish. Top housing: aluminum,

.050” (16 ga.) matte black inside. Removable or top relamping.

2. Mounting Frame: Die-cast aluminum or dry or plaster ceilings.

3. Aperture Cone: Specular Alzak®aluminum, .050" (16 ga.)

4. Lampholder: Die-cast aluminum “U” shaped lamp and accessory holder pro-

vided with tension springs or ast snap-in/snap-out side mounting o lamp

and various accessories (see accessory section.) Provides lockable 45° verti-

cal and 360° horizontal adjustment. Both adjustments remain locked while

relamping. The relationship between the lamp aiming angle and the aperture

is consistently maintained by keying cone spring to Lampholder Assembly.

Hot aiming can easily be done with the blade o a screwdriver.

5. Mounting Brackets: Adjust vertically rom inside and outside o ixture.

Durable .059” (16 ga.) steel construction. Use with standard 3/4” or 1 1/2”

lathing channels, or 1/2” (11/16” O.D.) EMT tubing (by others) or Lightolier

accessory mounting bars.

6. Junction Box: 2 7/8”x 3 1/2”X 4”; .063” (14 ga.) galvanized steel. UL listed

or maximum o 8 no. 12 AWG 90°C through branch circuit wires. Accessible

rom inside and outside o ixture. Outside J-Box door is hinged or maximum

opening. Snap-in plug is provided on inside cover or quick connection with

socket harness.

7. Socket Harness: Porcelain socket-medium base. Pre-wired with No. 18 SF1

leads to plastic plug-in connector.

8. Vertical Cam Lock: Die-cast aluminum lever provides cam action vertical

adjustment lock, max. 45° adjustment.

9. Horizontal Cam Lock: Spring steel lever provides cam action horizontal

adjustment lock, 360° rotation.

10. Thermal Protector: Meets NEC and UL requirements.

Options & Accessories

Mounting Bars 1950 18" set o (2)

1951 27" set o (2)

T bar Anchor Clips 1956 set o (4), or use with above)

For other re lector inishes consult actory.

See MBA accessory speci ication sheet.

Labels

UL listed (suitable or damp locations), I.B.E.W.

Ceiling Cutout: 8 1/4” Dia.

Reflector Trim Frame In Kit Lamp

PAA7P38D PAR38 250W Max.

Finish

Sel -Flange Polished

Specular Clear Alzak®AA7CLP30 AA7CLP45

Specular Gold Alzak®AA7GDP30 AA7GDP45

Specular Black Alzak®AA7BKP30 AA7BKP45

Sel -Flange White

Specular Clear Alzak®AA7CLW30 AA7CLW45

Specular Gold Alzak®AA7GDW30 AA7GDW45

Specular Black Alzak®AA7BKW30 AA7BKW45

Alzak®is a registered trademark o ALCOA.

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details o design, materials and inish.

Job Information Type:

Calculite®Incandescent Adjustable Accent AA7/PAA7P38D

Page 2 o 2 7 1/2” Aperture ProSpec®PAR38

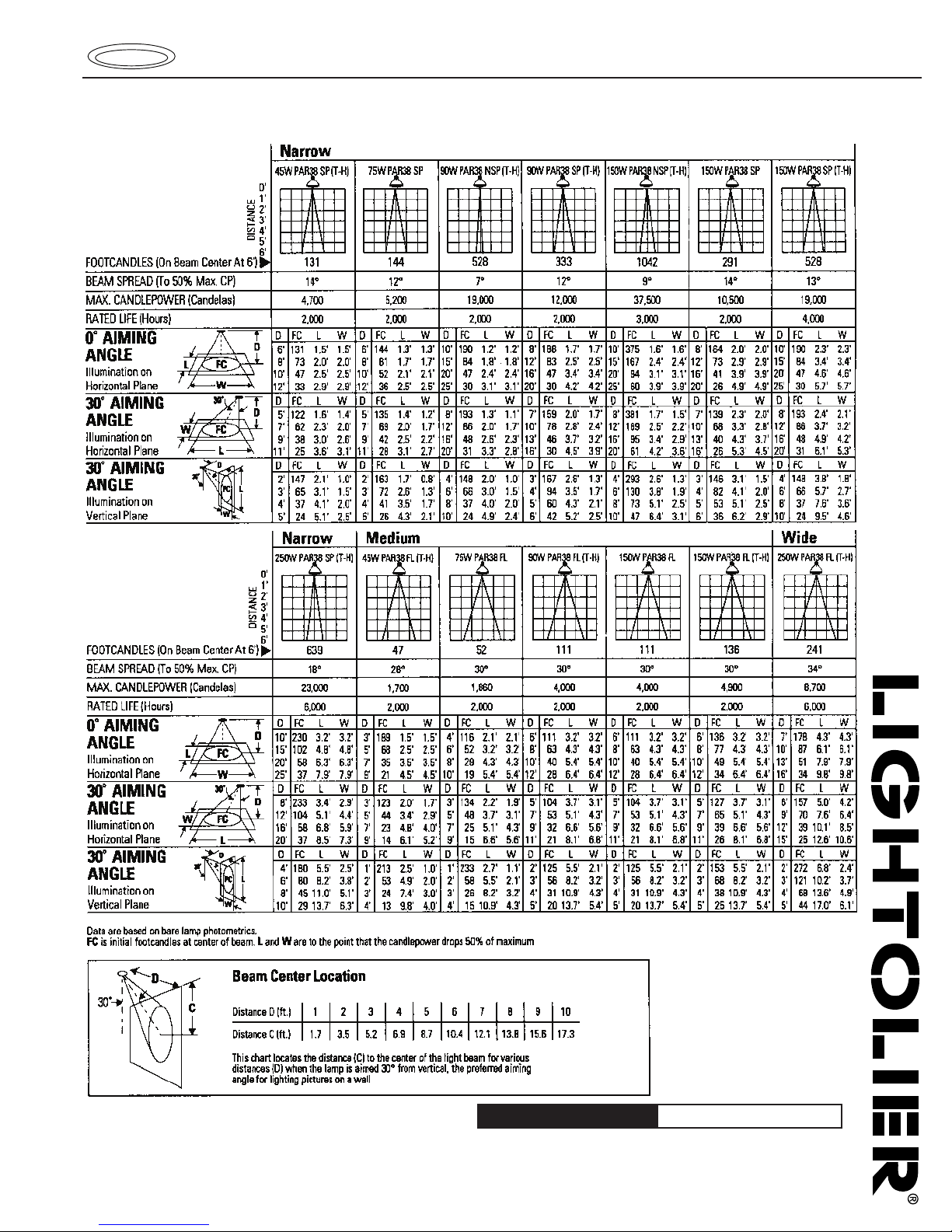

Lighting Performance Data
