Lightolier Lytecaster 302ESAICX Manual de usuario

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

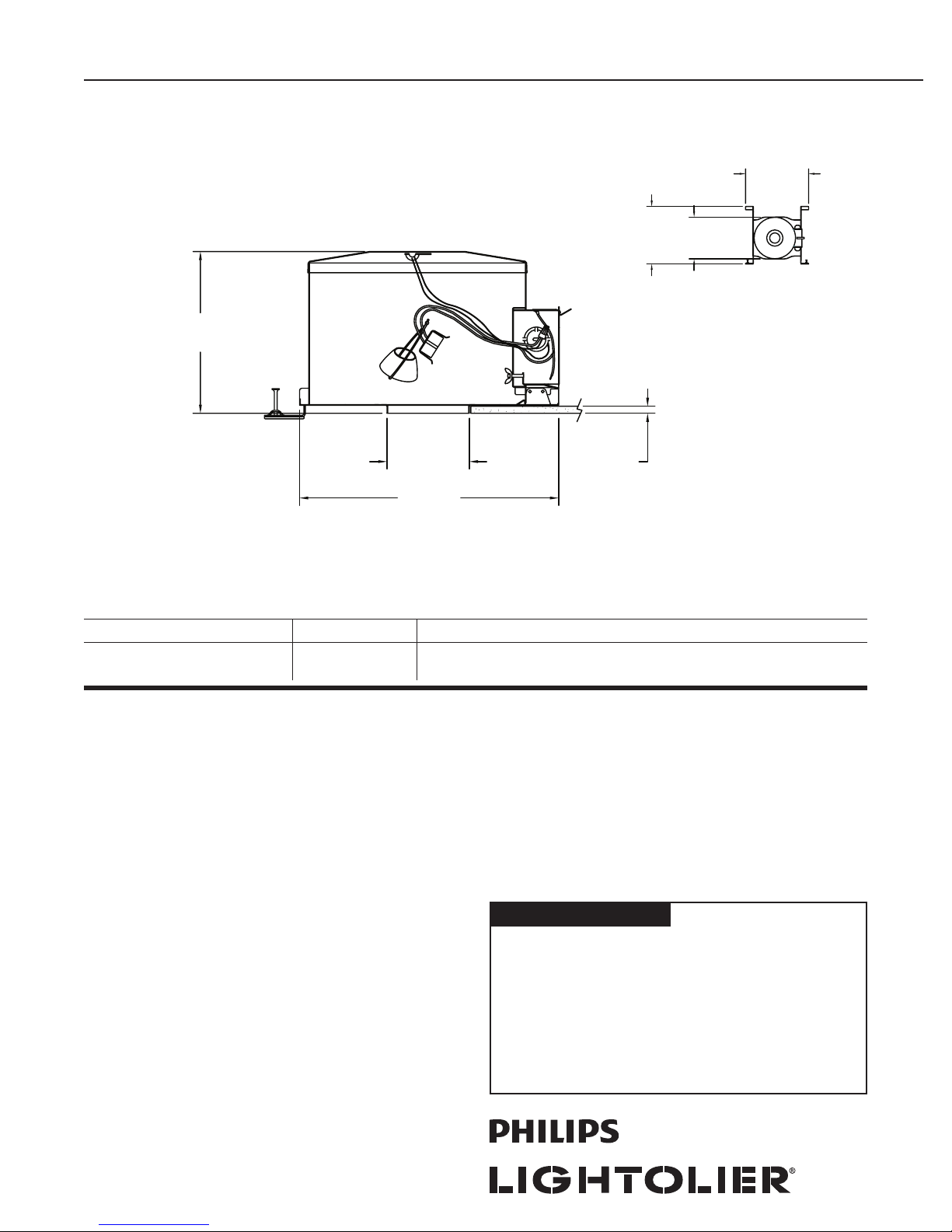

Lytecaster Recessed Downlighting 302ESAICX

Page 1 of 1 3 ¾" (95mm) Aperture Line Voltage 120v ES/ESD16 IC / Air Seal Electronic Frame-in-Kit

Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately

302ESAICX 3 3/4" (95mm) Accepts most 3 3/4" (95mm) 300 series trims ;

see Reflector Trim specification sheets.

Power Pack Cut-Out Reflector Trim

Features

1. Housing: 032" (#20 ga.) aluminum. CSA certified and UL listed for direct

contact with thermal insulation. Airseal housing minimizes air leakage to less

than 2 CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code

(Section 602.3.3) and Washing State Energy Code (Section 502.4) and reduces

heat loss and condensation in ceiling. Access door for inspection of junction

box.

2. Mounting Frame: .032 (#20 ga.) aluminum. Accommodates ceilings up to 1"

thick. 3/8" deep integral lip. Locks into position along length of mounting bars

with locking screw and bendable slot. Four slots are positioned 90° apart to

simplify alignment.

3. Mounting Bars: 16 ga. galvanized steel. Extend from 14" (356mm) to 24"

(610mm). "SwiveLock" system permits installation and wiring below the

ceiling. Pre-installed No. 6 auger point screws for installation in wood and

steel joists. Attaches to T-bar ceilings without the need of accessories.

4. Junction Box: 2"( 51mm) x 4" (102mm) x 3 1/2" (89mm) 22 ga.galvanized

steel. CSA certified and UL listed for maximum of 8 No. 12 ga. Integral cable

clamp permit attachment of non-metallic (#12 or#14 ga.) cable without tools

or additional connector.

5. Socket: Porcelain body; Twist and lock (GZ base) Pre-wired with 18 ga.

Teflon 250° leads to junction box.

6. Lamp cover: Aluminum heat deflector for ES/ESD16 dichroic lamp.

7. Internal Thermal Cut-out: Meets NEC and UL requirements.

Labels

Air Seal. Tested in accordance with ASTM E283 (max 2 cfm @ 75 pa) and com-

ply with WSEC & MEC when installed as instructed.

CSA, UL. Damp or Wet location rated depending on trim used.

7-5/8"

(194mm)

12-1/4"

(311mm)

3-7/8"

(98mm)

1" MAX.

(25mm)

15-1/4"

(387mm)

13-3/4"

(349mm)

24" MAX.

(610mm)

10-3/4"

(273mm)
