READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local

regulations. To assure full compliance with local codes and regulations, check with your local electrical

inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:8228

0499 Page 1 of 2

INSTRUCTIONS FOR FIXTURES 8228, 8238, 8248, 8582, 8583, 8595, & ACCESSORIES

INSTRUCTIONS FOR ASSEMBLING PAR-TECH®RING SHADES TO PAR-TECH &

METALLICSTM FIXTURES FOR USE WITH LYTESPAN®OR PROSPEC® TRACK SYSTEMS ONLY.

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, Fall River, MA 02720

TO INSTALL RING SHADE:

1. Line up shade’s NECK FLANGE with corresponding

openings at inside diameter of ARM.

2. Push in and twist-lock RING SHADE by turning in clock-

wise until it is tightly held.

3. Install indicated PAR lamp into shade

(see LAMPING INFORMATION on page 2).

TO INSTALL ACCESSORIES INTO RING SHADES:

NOTE: RING SHADE plus an ACCESSORY HOLDER are required

to install ACCESSORIES into fixtures. (The ACCESSORY HOLD-

ERS are sold separately from the SHADES). For ACCESSORY

information see ACCESSORIES chart on page 2. ACCESSORY

HOLDER may be used without ACCESSORIES.

1. Before installing ACCESSORY HOLDER, assemble RING

SHADE to the Par-Tech or Metallics fixture and install

lamp (See above).

2. Place the desired ACCESSORIES inside ACCESSORY

HOLDER (A max. of two ACCESSORIES). Line up

ACCESSORY HOLDER so that the SPRINGS are facing the

inside diameter of the RING SHADE. Push ACCESSORY

HOLDER into shade until it snaps into the GROOVE

(See Fig. 3 & 4).

RING SHADE

NECK FLANGE

ARM

FIXTURE ADAPTERS:

8201 & 8202

SPRINGS

ACCESSORY

HOLDER

GROOVE

ACCESSORIES

optional (sold separately)

SPRINGS

ACCESSORY

HOLDER

GROOVE

ACCESSORIES

optional (sold separately)

Fig. 1

Fig. 2

Fig. 3

Fig. 4

FIXTURE ADAPTERS:

8701, 8704E, 8705E, 8706E,

8707E, 28701, & 28705E

ARM

NECK FLANGE

RING SHADE

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local

regulations. To assure full compliance with local codes and regulations, check with your local electrical

inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:8228

0499 Page 2 of 2

INSTRUCTIONS FOR FIXTURES 8228, 8238, 8248, 8582, 8583, 8595, & ACCESSORIES

INSTALLATION INSTRUCTIONS FOR RELAMPING PAR-TECH®& METALLICSTM FIXTURES WITH

RING SHADES. FOR USE WITH LYTESPAN® OR PROSPEC® TRACK SYSTEMS ONLY.

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, Fall River, MA 02720

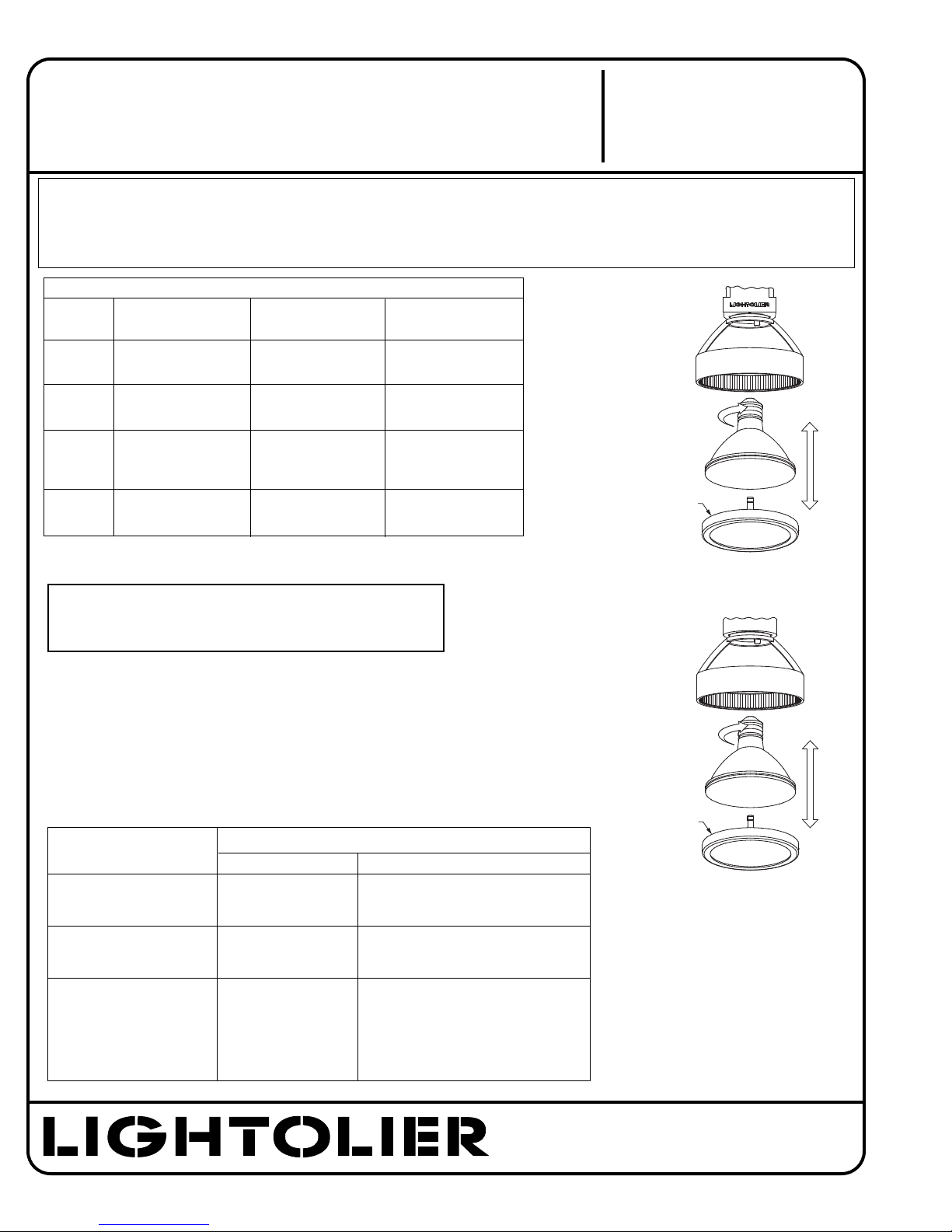

Relamping RING SHADES:

CAUTION: TURN OFF FIXTURE AND ALLOW

TO COOL BEFORE RELAMPING OR MAKING

ADJUSTMENTS.

1. If ACCESSORY HOLDER (sold separately) is present,

pull out evenly until it snaps out of the shade

(See Fig. 5 & 6).

2. Remove lamp by rotating counter clockwise.

3. Install indicated PAR lamp (see LAMPING INFORMATION

chart below).

4. To replace ACCESSORY HOLDER, see page 1.

SHADE

ACCESSORY

HOLDERS

(2 FILTERS MAX.)

COLOR

FILTERS

DIFFUSION/

SPECIAL

FILTERS

HEX CELL

LOUVERS

PAR20 RING SHADE (8228)

8582

AF25 RD, BL, GR, MM, BG, YG,

MA, SP, LS, SB, BA, DA, LP

AF25 UV, PF, SY, LF, AS

AL25HC

PAR30 RING SHADE (8238)

8583

AF3 RD, BL, GR, MM, BG, YG,

MA, SP, LS, SB, BA, DA, LP

AF3 UV, PF, SY, LF, AS

AL3HC

ACCESSORY HOLDER

(sold separately

form shades)

ACCESSORY HOLDER

(sold separately

form shades)

PAR38 RING SHADE (8248)

8595

AF4 RD, BL, GR, MM, BG, YG,

MA, SP, LS, SB, BA, DA, LP

AF4 UV, PF, SY, LF, AS

AL4HC

ACCESSORIES

CATALOG NUMBER LAMP TYPE

8228WH,BK,TM,NM

(PAR20 Ring Shade)

8238WH,BK,TM,NM

(PAR30 Ring Shade)

8248WH,BK,TM,NM

(PAR38 Ring Shade)

PAR20 50W MAX.

PAR30 75W MAX.

PAR38 250W MAX.

150W MAX. with accessories,

(with fixture 8701)

PAR38 150W MAX.

(with fixtures 8201, 8202)

PAR20 39W (with fixture 8704E)

PAR30L 39W (with fixture 8704E)

PAR30L 70W (with fixture 8705E & 28705E)

NO ACCESSORIES

PAR38 70W (with fixture 8706E)

PAR38 100W (with fixture 8707E)

Incandescent/Halogen Metal Halide

Fig. 5

Fig. 6
